ESS Buyer's Guide: An In-Depth Teardown of the 125kW/261kWh Liquid-Cooled System

In the commercial and industrial (C&I) energy storage sector, the most frequent question we hear is: "What is the actual ROI?" The truth is, your return on investment is entirely dictated by system reliability.

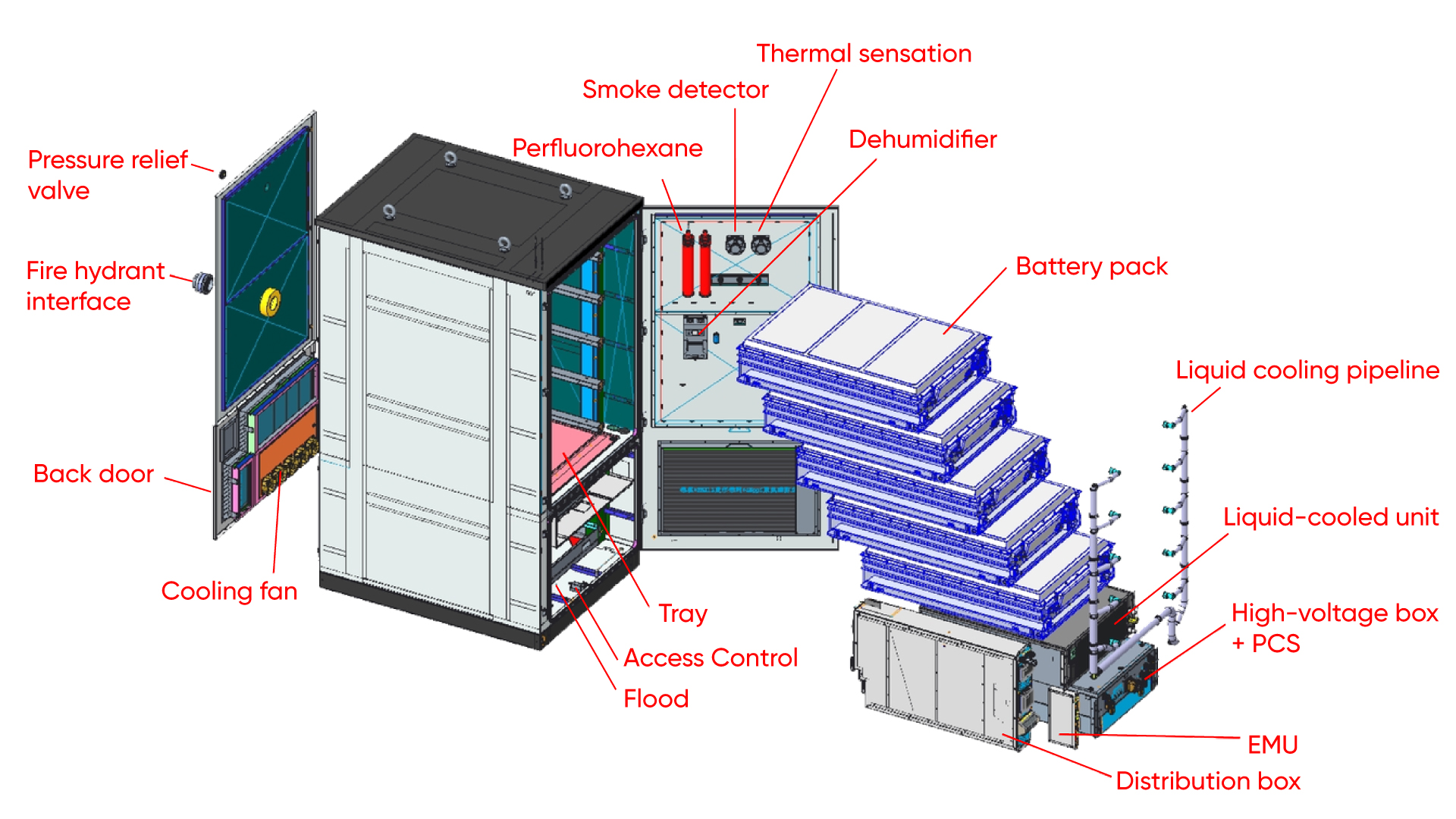

Today, we are opening the doors of our 125kW/261kWh liquid-cooled outdoor cabinet. From the battery cells to the enclosure, we are breaking down the 11 core components that make a truly bankable energy storage solution.

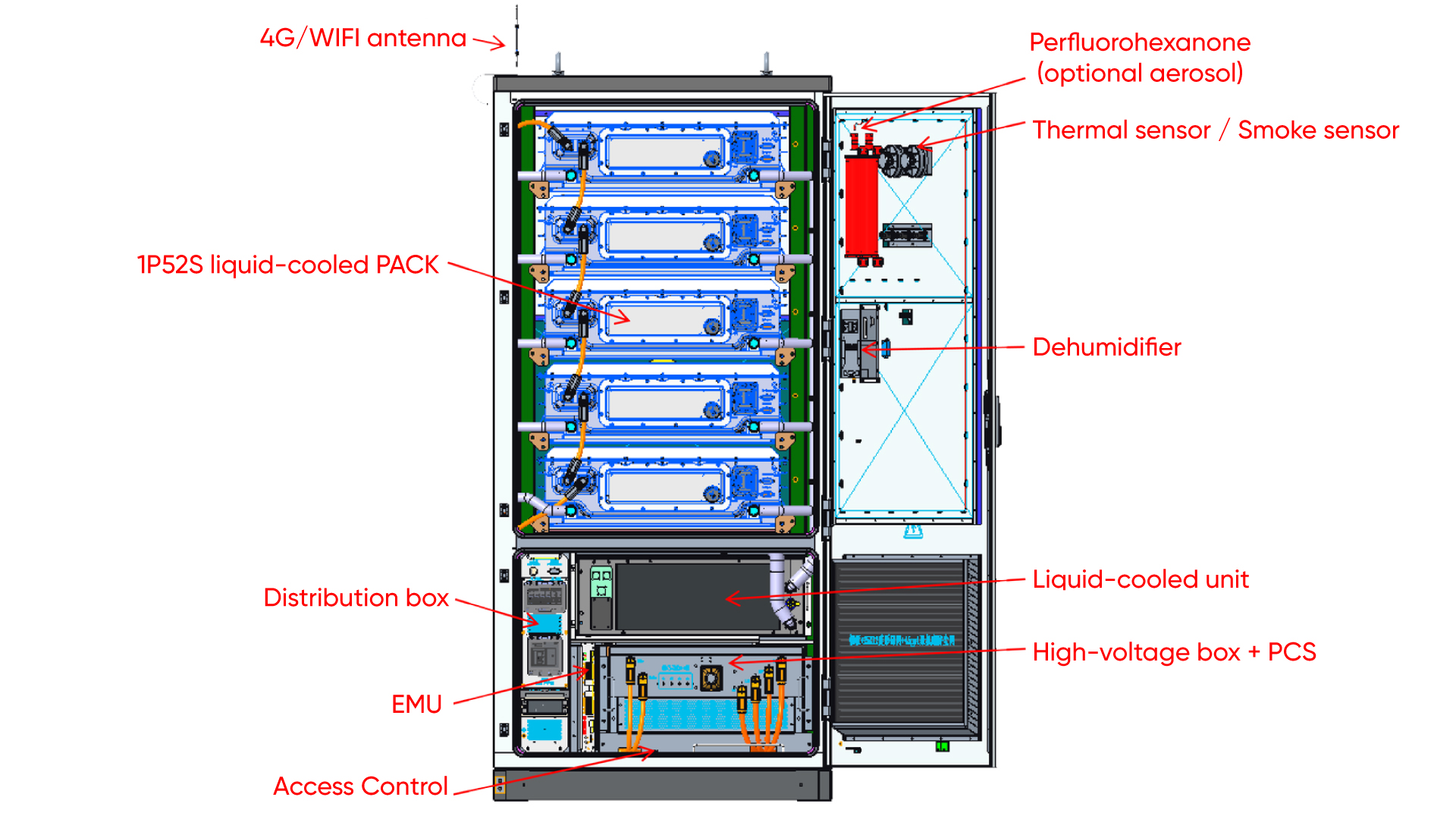

1. Battery Pack: True Capacity with Positive Tolerance

Let’s start with the core: 3.2V 314Ah cells operating at a 0.5C rate. While these specs are standard, our commitment to Positive Tolerance is what sets us apart. Each cell delivers a guaranteed capacity exceeding 1004.8Wh. Every kilowatt-hour you pay for is delivered, with zero initial degradation. Utilizing a 1P52S configuration, each pack yields 52.25kWh, stacking up to a robust 832V cluster.

2. High-Voltage (HV) Box: 24/7 Intelligent Monitoring

Built with Tier-1 components and rated for 1000V max working voltage, the HV box is the sentinel of the system. The built-in Battery Cluster Control Unit (BCU) communicates seamlessly with the pack-level BMUs via CAN bus, providing relentless, real-time oversight of voltage, temperature, and system health.

3. EMU (Energy Management Unit): The Brain of the Cabinet

While the cabinet sits quietly outside, the EMU handles the heavy lifting. It dictates the Power Conversion System (PCS) dispatch, optimizes charge/discharge strategies, manages grid interaction, and coordinates all fire and security alarms.

4. PCS: 3-Level, 4-Leg Topology for Unbalanced Loads

Traditional 3-leg inverters often trip when facing 3-phase unbalance—a common issue in manufacturing facilities with complex load profiles. Our 125kW PCS utilizes a 3-level, 4-leg topology. The additional fourth leg independently manages neutral wire current, actively compensating for phase imbalances and ensuring a highly stable waveform.

5. Liquid Cooling Unit: Precision Thermal Management

A battery’s lifespan is largely dictated by thermal stability. Our dedicated 5kW liquid chiller is integrated with the EMU via RS485 communication. It consistently maintains cell temperatures at 25±5°C, with a critical system-wide temperature difference of ≤2.5°C. This minimal variance ensures uniform degradation across all cells, significantly extending the system's overall cycle life.

6. Coolant Piping: Unidirectional & Condensation-Free

Beyond basic insulation, our piping network features check valves to prevent coolant backflow. Combined with a balanced flow-channel design, it ensures uniform heat dissipation while preventing external condensation during extreme temperature swings.

7. Fire Suppression: Dual-Layer Safety Architecture

Safety requires redundancy. Our system employs a two-tiered defense:

Tier 1 (Pack Level): Built-in aerosol fire extinguishing devices to neutralize threats at the source.

Tier 2 (Cabinet Level): A Perfluorohexanone (FK-5-1-12) gas suppression system, triggered by integrated smoke and heat detectors.

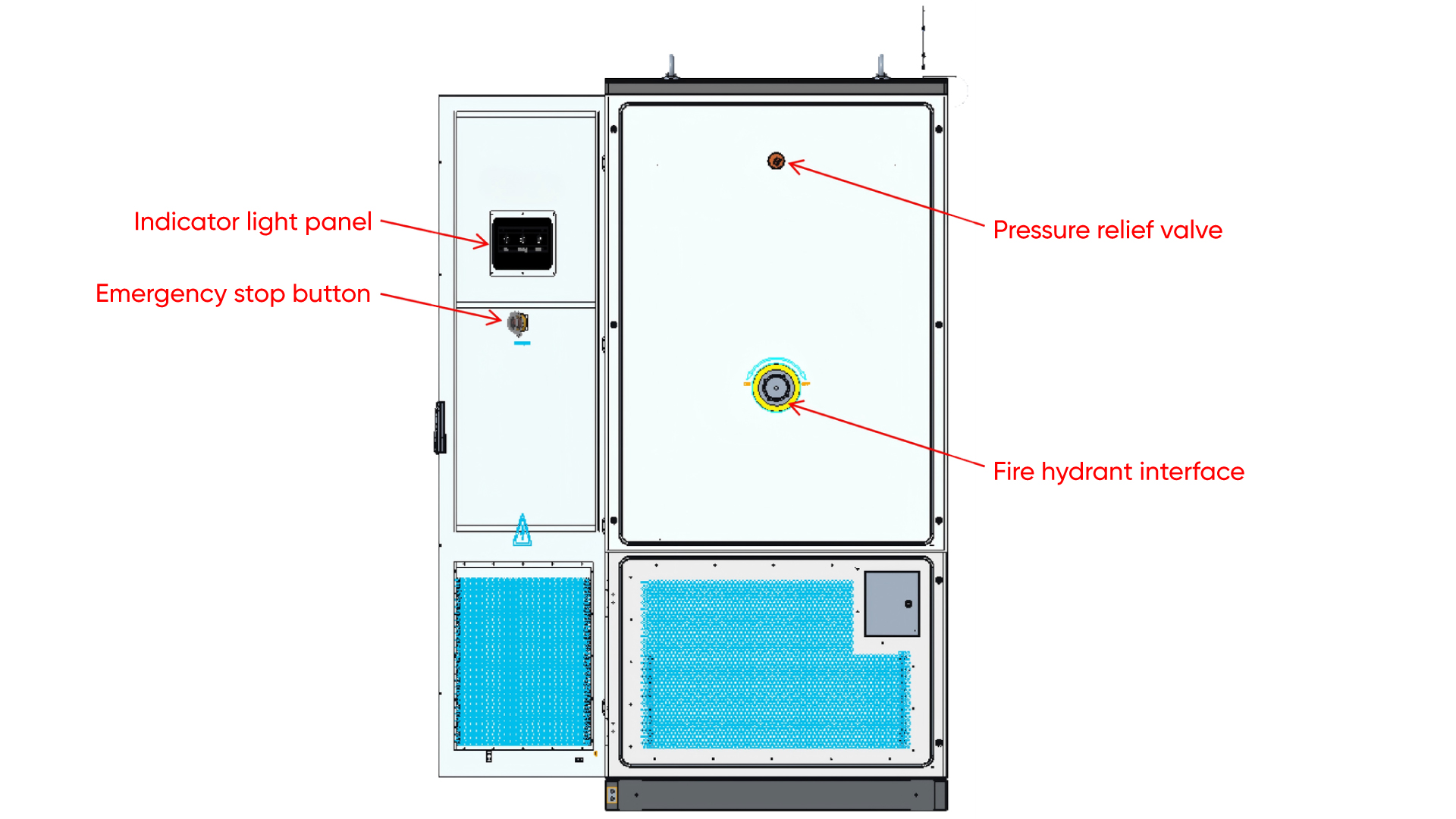

Coupled with a deflagration venting valve for rapid pressure release and a water fire-fighting interface, the system is prepared for absolute worst-case scenarios.

8. Dehumidifier: Essential for Harsh Climates

Outdoor cabinets experience significant day/night temperature fluctuations, leading to internal condensation that can corrode electronics. Our active dehumidification system continuously extracts moisture, maintaining critical electrical insulation—an absolute necessity for high-humidity regions.

9. Water Immersion Sensor: Proactive Leak Detection

Mounted at the base, this sensor immediately alerts operators to coolant leaks or external floodwater ingress, preventing catastrophic short circuits before they happen.

10. Access Control: Securing the Asset

Energy storage systems are high-voltage assets. The password or key-operated access control ensures that only authorized, trained technicians can interact with the internal components, mitigating the risk of human error.

11. Structural Design: IP54-Rated Durability

Constructed from anti-corrosion sheet metal, the cabinet offers baseline IP54 protection against dust and driving rain. Internally, modular partitions physically isolate the battery and electrical compartments. The reinforced frame is engineered to withstand transport stress and seismic activity.

The Bottom Line

Reliability in energy storage isn't a single feature; it's the culmination of hundreds of meticulous engineering decisions. It's the positive tolerance of the cells, the thermal precision of the chiller, and the load-balancing capability of the PCS.
