The Jinko JKM-N-72HL4RBDV solar panel stands as a top-tier photovoltaic unit manufactured by JinkoSolar, a prominent player in the solar energy sector. This module boasts exceptional efficiency, aimed at generating maximum power output while ensuring steadfastness across diverse solar setups.
Power Range:
575W-585WMax. Efficiency:
22.64%Dimensions of Module L*W*H:
2278*1134*30mmWeight:
32 kgNumber of Cells:
144 (6 * 24)
the Jinko JKM-N-72HL4RBDV solar panel offers exceptional efficiency, durability, and reliability. It incorporates advanced technology to maximize energy generation and withstand various environmental conditions.
Electrical Parameters (STC*)
|
Module model |
JKM575NN-72HL4RBDV |
JKM580NN-72HL4RBDV |
JKM585NN-72HL4RBDV |
|
Maximum Power (Pmax/W) |
575 |
580 |
585 |
|
Open circuit voltage (Voc/V) |
51.27 |
51.47 |
51.67 |
|
Short circuit current (Isc/A) |
14.31 |
14.37 |
14.43 |
|
Peak power voltage (Vmp/V) |
42.44 |
42.59 |
42.74 |
|
Peak power current (Imp/A) |
13.55 |
13.62 |
13.69 |
|
Module Efficiency (%) |
22.26 |
22.45 |
22.64 |
|
Power Output Tolerance (W) |
0~3% |
||
|
Temperature Coefficient of Isc |
+0.046%/°C |
||
|
Temperature Coefficient of Voc |
-0.25%/°C |
||
|
Temperature Coefficient of Pmax |
-0.30%/°C |
||
|
Standard test conditions |
STC：AM1.5 1000W/m² 25℃ |
||
When we compare N type and P type solar panel, it’s important to understand the differences in their performance, durability, efficiency, and cost-effectiveness to help you make a better-informed decision about which one is perfect for your solar energy system.
When it comes to performance and efficiency, the N-type solar panels do stand out slightly against the p-type solar panels. N-type solar panels have an efficiency level of 25.7% as compared to 23.6% of P-type panels. A known defect of the p-type panel is its light-induced degradation.
P-type panels are dipped in boron, which will interact with oxygen in the air and decrease a panel’s performance by up to 10% over time. With p-type panels initially constructed for space use where there is a lack of oxygen, this wasn’t initially a problem. However, when using these panels for residential use here on earth, they can be slightly less effective than n-type panels.

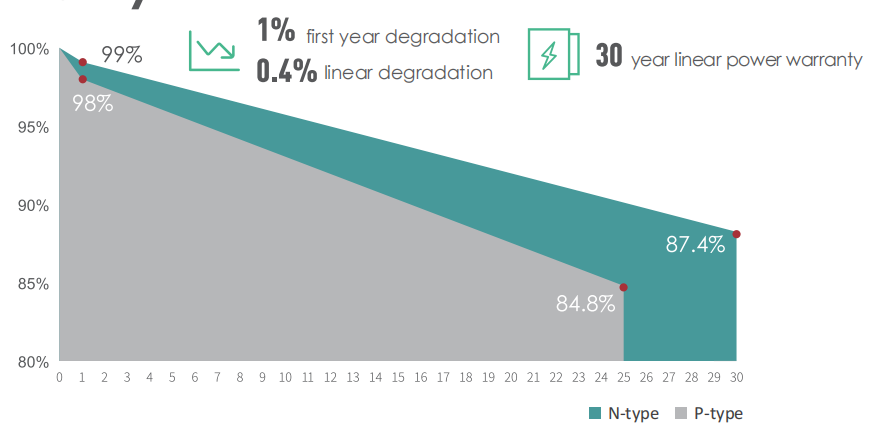

When comparing overall lifespan, n-type solar panels do have a longer lifespan than p-type solar panels due to their construction. However, when it comes to price, p-type dominates n-type setups.
Warranty of Jinko JKM-N-72HL4RBDV PV Module
The Jinko JKM-N-72HL4RBDV solar panel is known for its outstanding efficiency, durability, and reliability. It incorporates advanced technology to maximize energy generation and withstand various environmental conditions.
Jinko Solar panels come with a warranty of up to 30 years, ensuring reliable electricity generation for an extended period.
To maximize the benefits of your investment, it is advisable to have your panels installed by a qualified professional, schedule routine maintenance, keep them clean and free from debris, and regularly inspect for any potential damage. Taking a proactive approach will help you enjoy efficient and long-lasting performance from your solar panels.
Global Presence of Jinko Solar
The Jinko JKM-N-72HL4RBDV solar panel has gained popularity across different markets globally. Its high efficiency and reliability make it suitable for a wide range of applications, including utility-scale solar farms, commercial rooftops, and residential solar systems. It has been extensively used in countries with a growing demand for renewable energy, such as the United States, Germany, Australia, and China.

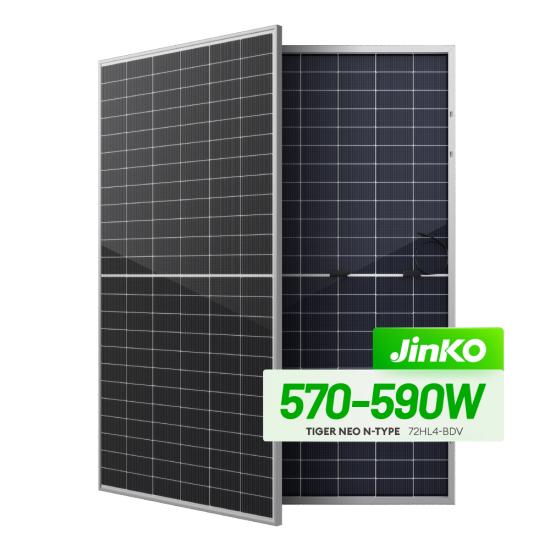

The Tiger Neo N-type 72HL4-(V) model from JinkoSolar incorporates Hot 2.0 technology for enhanced light trapping, current collection, and overall module power output, ensuring superior reliability with lower LID/LETID. Its optimized mass-production process and materials control guarantee excellent Anti-PID performance, while also demonstrating high resistance to salt mist and ammonia exposure.
The JinkoSolar Tiger Neo N-type 54HL4R-(V) module features Hot 2.0 technology for enhanced light trapping and current collection, resulting in improved power output and reliability. It boasts superior reliability with lower LID/LETID, and excellent Anti-PID performance ensured through optimized mass-production processes and materials control. Additionally, it exhibits high resistance to salt mist and ammonia.
Unlock the full potential of solar energy with Jinko solar cutting-edge N-type 580W panels. From customizable orders starting at just 1 pallet of 31 panels to the bifacial design for increased power output, our Jinko solar panels ensure maximum efficiency, allowing you to generate more electricity per unit area. Elevate your solar experience with our high-performance, versatile solution.
Jinko Solar Panel, featuring 22.65% high efficiency with N-type technology, boasts a half-cell configuration of 144 cells, accompanied by a reliable 12-year warranty, and is certified with CE and UL, ensuring top-notch performance and quality assurance.

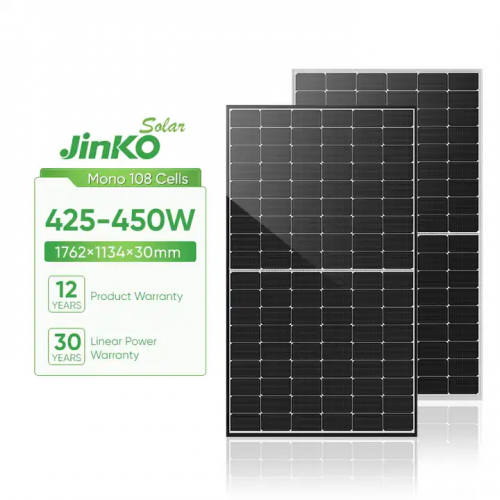

The Jinko solar panel JKM-N-54HL4R is a high-performance solar module that offers excellent efficiency and reliability. This panel is renowned for its advanced technology and outstanding power output.
The Jinko solar panel JKM-N-54HL4R is a high-performance solar module with a black frame. Its compact size design makes this module a great choice for residential solar system installation, especially for European countries.
Jinko Solar's Tiger Neo Series is an innovative line of solar panels that combines advanced technology and high performance. With its cutting-edge features and superior efficiency, the Tiger Neo Series is a reliable and cost-effective solution for solar power generation.
The Jinko JKM-N-72HL4RBDV solar panel is a high-efficiency photovoltaic module produced by JinkoSolar, one of the leading solar energy companies in the industry. This panel is designed for optimal performance and reliability in various solar installations.
