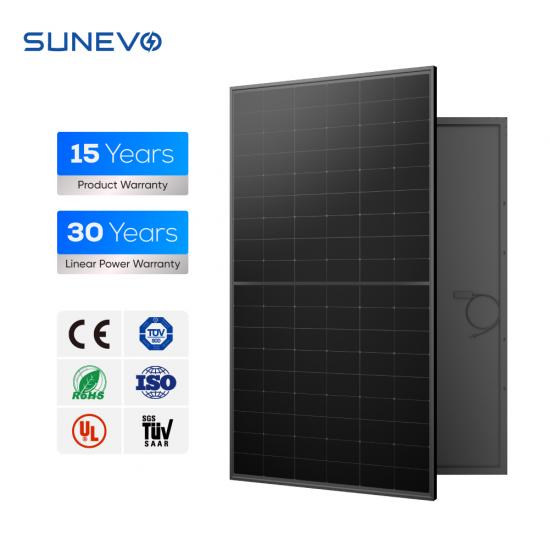

Sunevo Back Contact Solar Photovoltaic Panels 605W 610W 620W 630W 700W PV Module

SunEvo BC components are centered around high cohesion and low coupling. They encapsulate business logic to achieve cross-scenario reuse, which not only improves development efficiency but also ensures business consistency. They are key elements in the modular construction of complex business systems.

  • Brand:

    SunEvo
  • Max. Efficiency:

    23.3%
  • Number of Cells:

    144 (6&24)
  • Dimensions of Module L*W*H:

    2382 * 1134 * 30mm
  • Weight:

    28.5kg
  • Backsheet:

    Single glass, 3.2mm coated tempered glass
  • Frame:

    Anodized aluminum alloy frame
  • Junction Box:

    IP68

New Products

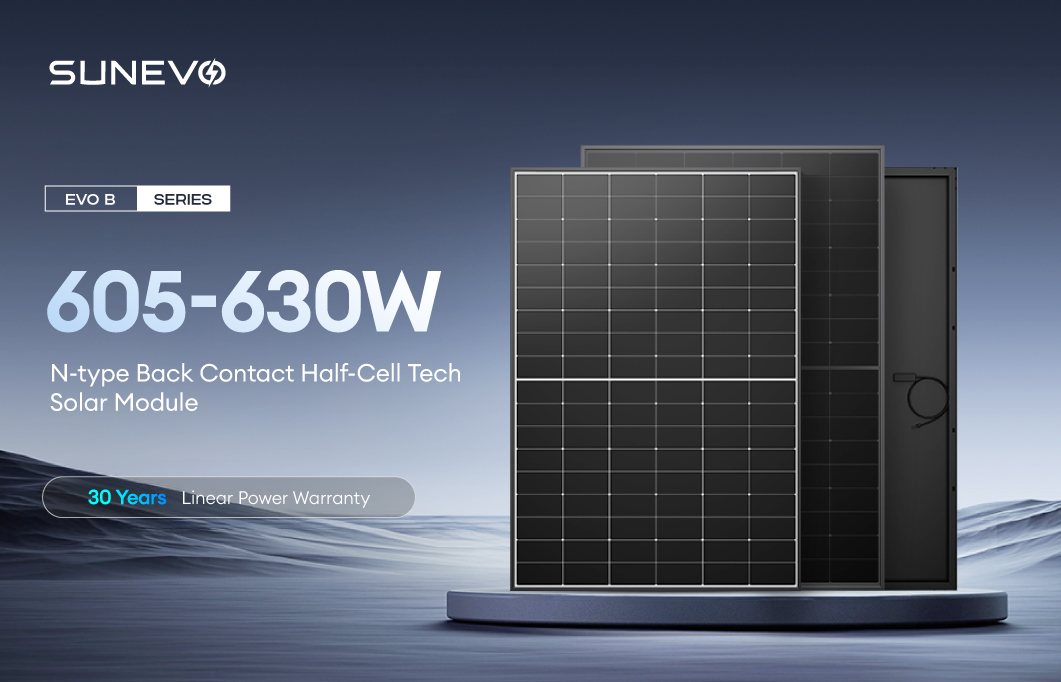

SunEvo BC Solar Panel Bifacial HJT N Type Solar Module 605W to 630Watt

SUNEVO is committed to becoming the leading provider of all-scenario one-stop energy solution systems.

Mechanical Characteristics
Cell Orientation
144 (6×24)
Junction Box
IP68
Output Cable
4mm, +400, -200mm/±1400mm length can be customized
Glass
Single glass, 3.2mm coated tempered glass
Frame
Anodized aluminum alloy frame
Weight
28.5kg
Dimension
2382 × 1134 × 30mm
Packaging
36pcs per pallet / 144pcs per 20’GP /720pcs per 40’HC
Front Side Maximum Static Loading
5400Pa
Rear Side Maximum Static Loading
2400Pa
Hailstone Test
25mm Hailstone at the speed of 23m/s

Temperature Ratings (STC*)
Temperature Coecient of Isc
+0.050%/°C
Temperature Coecient of Voc
-0.230%/°C
Temperature Coecient of Pmax
-0.280%/°C
Operating Parameters
Operational Temperature
-40°C~+85°C
Powe Output Tolerance
0~3%
Maximum System Voltage
DC1500V (IEC/UL)
Maximum Series Fuse Rating
25A
Nominal Operating Cell Temperature
45±2°C
Protection Class
Class II



Electrical Parameters (STC*)
Module Type: SE5R-72HBC
605
610
615
620
625
630
Maximum Power (Pmax/W)
605
610
615
620
625
630
Open Circuit Voltage (Voc/V)
52.27
52.42
52.57
52.72
52.87
53.02
Short Circuit Current (Isc/A)
14.74
14.80
14.87
14.93
15.01
15.07
Voltage at Maximum Power (Vmp/V)
44.03
44.18
44.33
44.48
44.63
44.78
Current at Maximum Power (Imp/A)
13.75
13.81
13.88
13.94
14.01
14.07
Module Eciency(%)
22.4
22.6
22.8
23.0
23.1
23.3



Electrical Parameters (NOCT*)
Maximum Power (Pmax/W)
452.1
455.9
459.6
463.4
467.1
470.8
Open Circuit Voltage (Voc/V)
49.17
49.22
49.36
49.59
49.64
49.78
Short Circuit Current (Isc/A)
11.91
11.95
12.01
12.06
12.12
12.17
Voltage at Maximum Power (Vmp/V)
40.18
40.32
40.46
40.59
40.73
40.87
Current at Maximum Power (Imp/A)
11.26
11.31
11.36
11.42
11.47
11.52
*STC: AM1.5 1000W/m2 25°C
*NOCT: AM1.5 800W/m2 20°C 1m/s

Why Choose Us

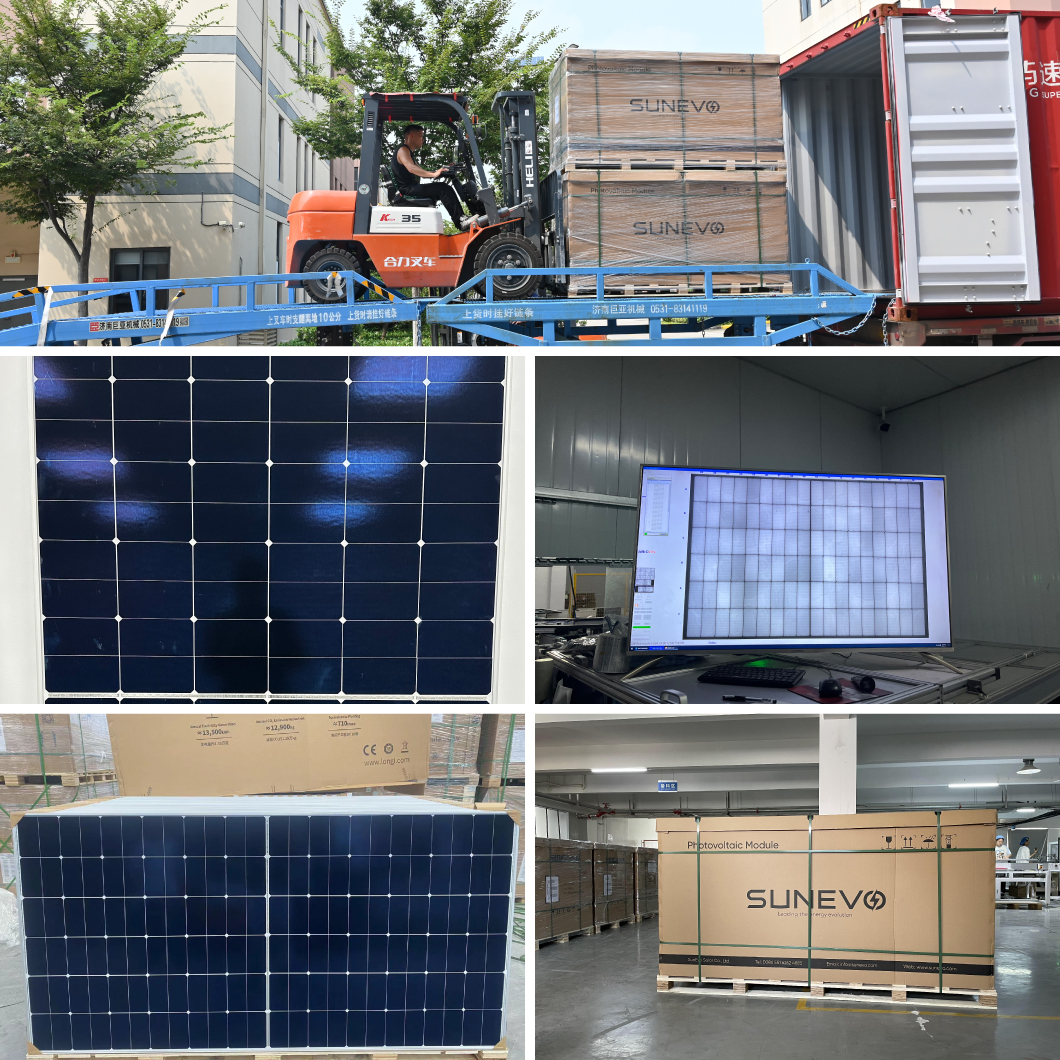

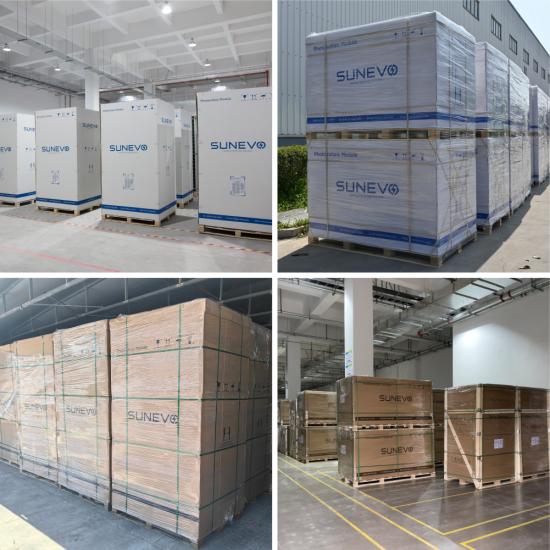

Packaging&Delivery

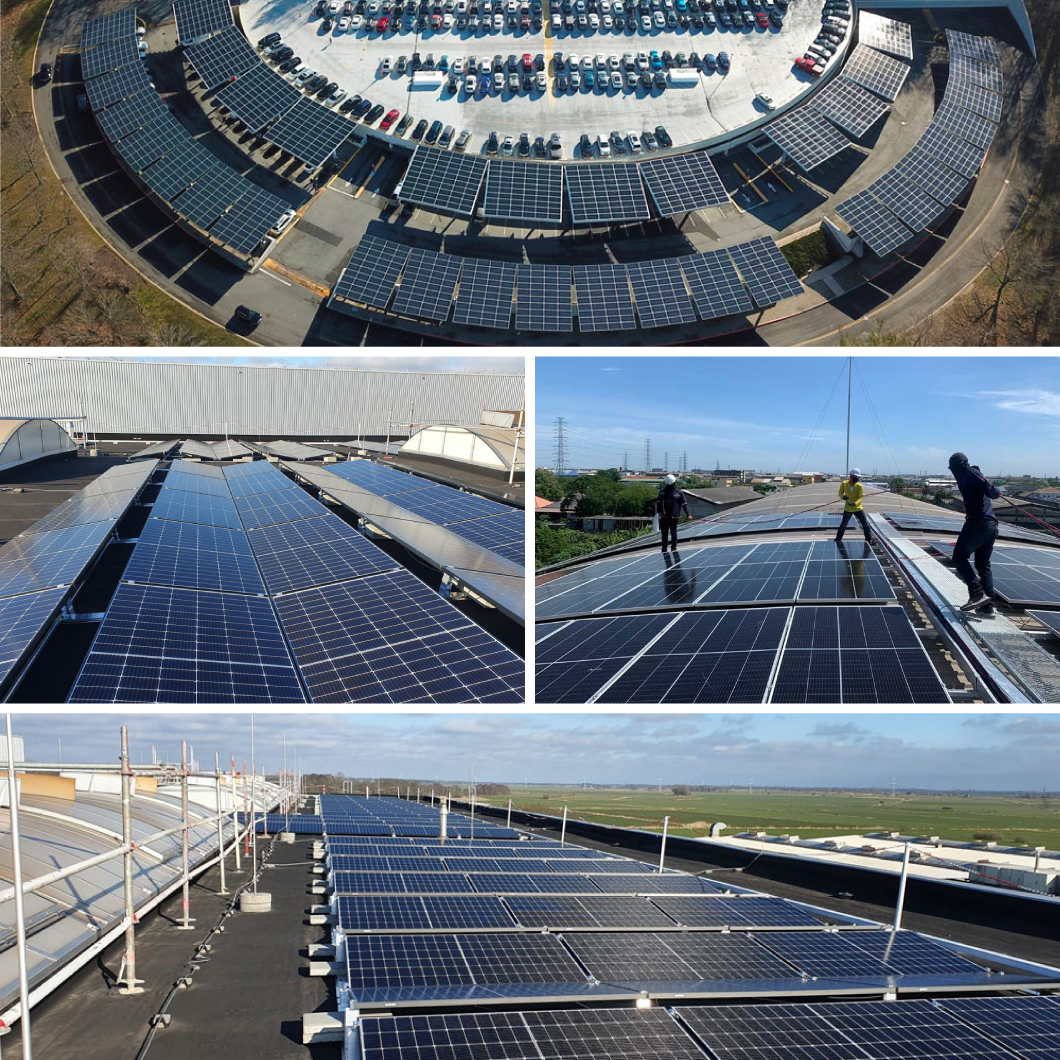

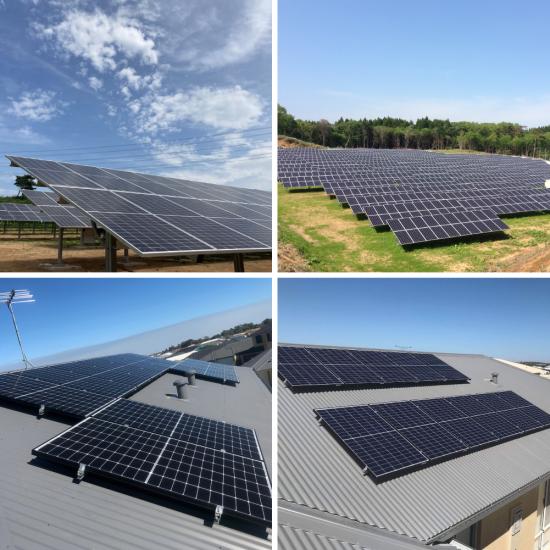

Project Case

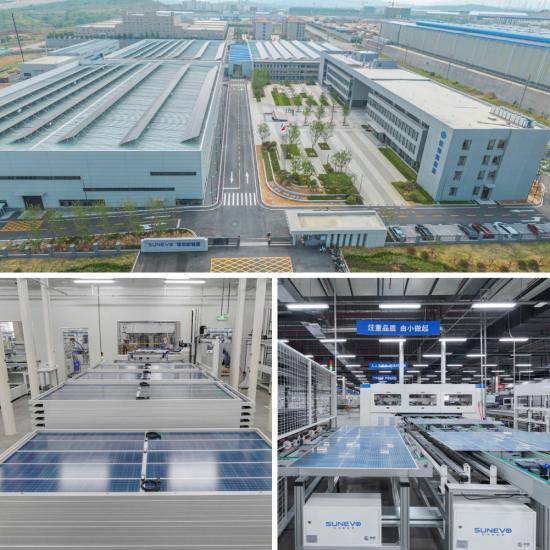

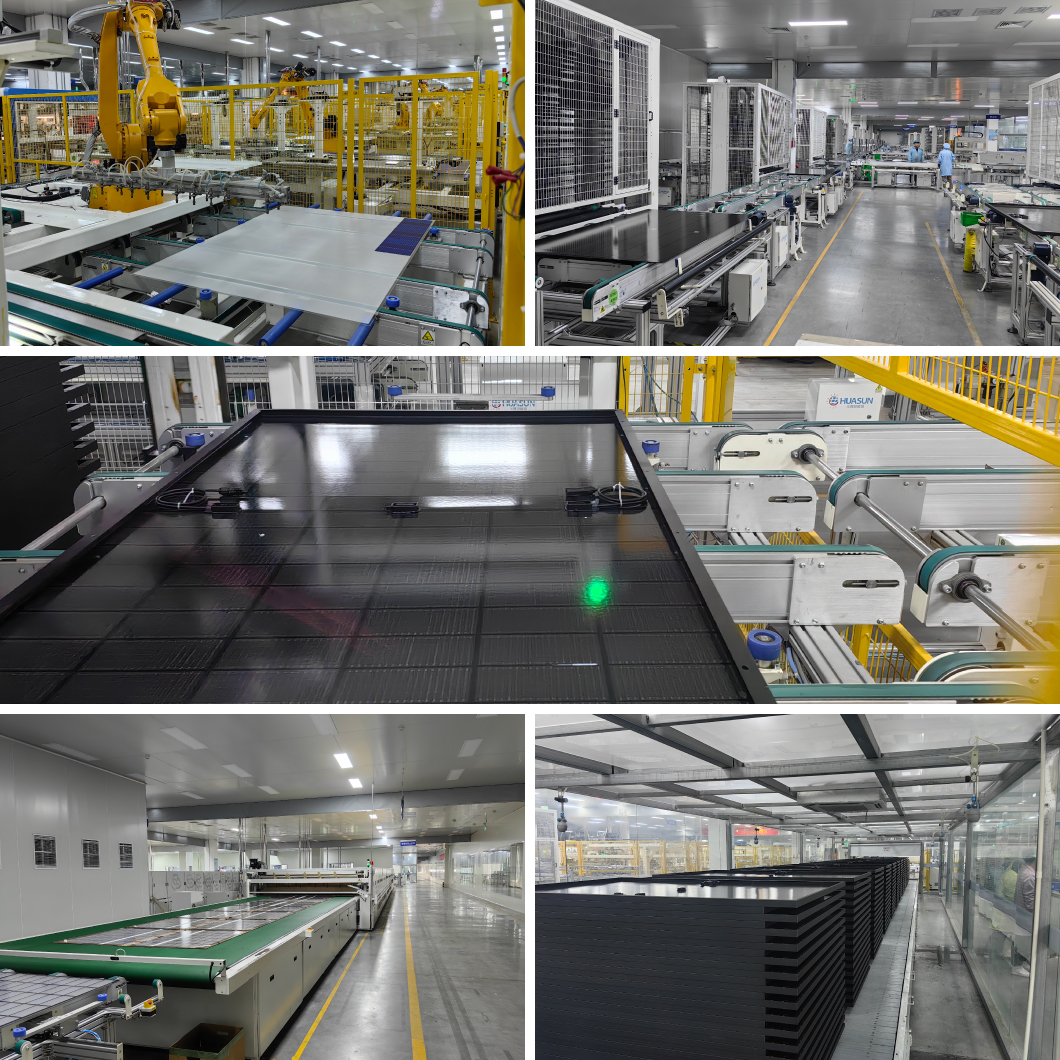

Our Factory

Our Exhibition

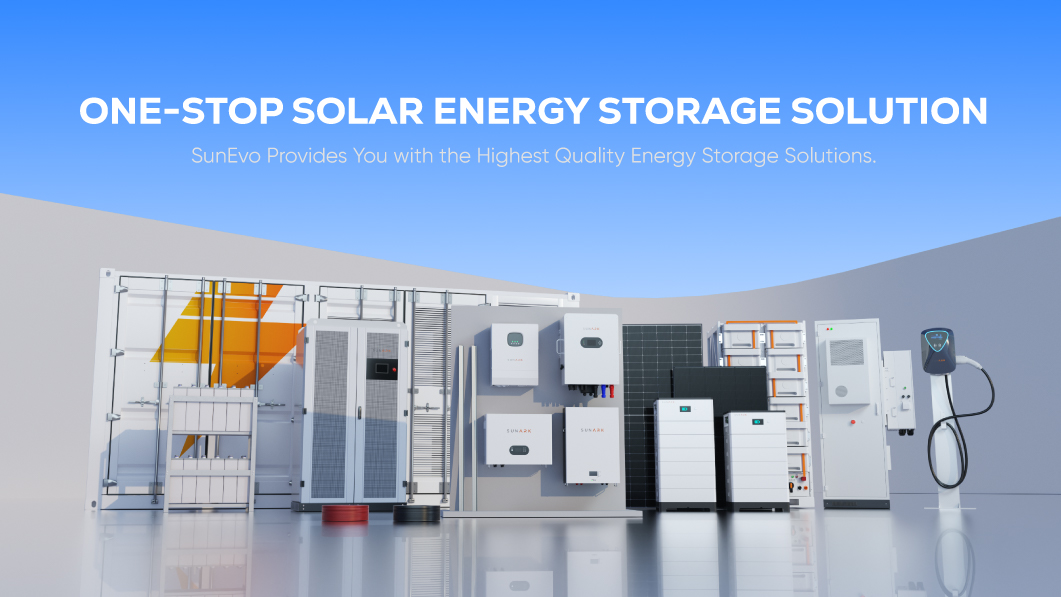

One Stop Solar Solution



Q1: Who are we?

A1:We are based in Anhui, China, start from 2017, sell to Southern Europe (40.00%), Southeast Asia (20.00%), Africa (18.00%), Domestic Market(2.00%), South Asia(2.00%), North America(2.00%), Northern Europe (2.00%), Central America (2.00%), Western Europe(2.00%), Eastern Asia(2.00%), Mid East(2.00%), Oceania(2.00%), Eastern Europe (2.00%), South America (2.00%). There are total about 101-200 people in our office.

Q2: How does your factory control the quality?
A2: We adopt iso 9001 quality system to control the quality. We have an incoming quality control department to test and confirm that raw material meets high-quality production requirements. production quality control department contains. During the first inspection, in-process quality control, acceptance inspection, and full inspection, the outgoing quality control department confirmed no defective batteries came out from the factory.

Q3: Can I have a sample order?
A3: Yes, we welcome sample orders to test and check quality.

Q4: Do you support customized design?
A4: Yes, we can accept your customized requirements. We can also help you create your new designs.

Q5: How can I place an order?
A5: You can contact us for the details, and after all the details are confirmed, you can place an order.



If you want to know more information, you can send inquiry to our team, we will cover more details.
