Brand:
SunEvoPower Range:
590-610WMax. Efficiency:
21.6%Number of Cells:
120 Cells (6x20)Dimensions of Module L*W*H:
2172 x 1303 x 35mmWeight:
34.8kgFront Side Glass:
High transparency solar glass 2.0mmBack Side Glass:
High transparency solar glass 2.0mmFrame:
Black/Silver, anodized aluminium alloyJunction Box:
IP68 Rated, 3 DiodesCable:
4.0mm2, Portrait: 280mm / Landscape: 1300mmWind/Snow Load:
2400Pa/5400PaConnector:
MC CompatibleBifaciality:
70±5%

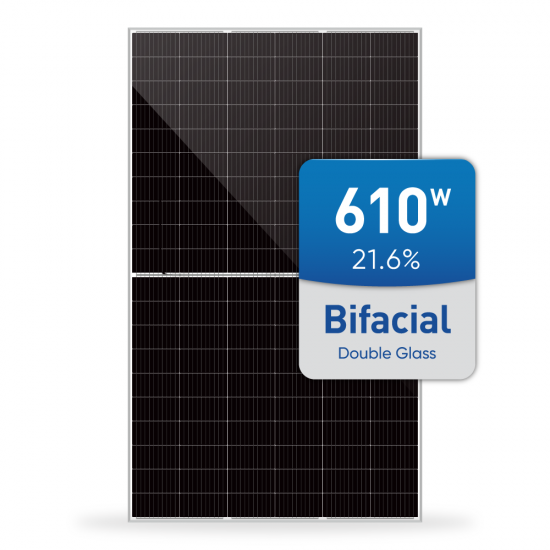

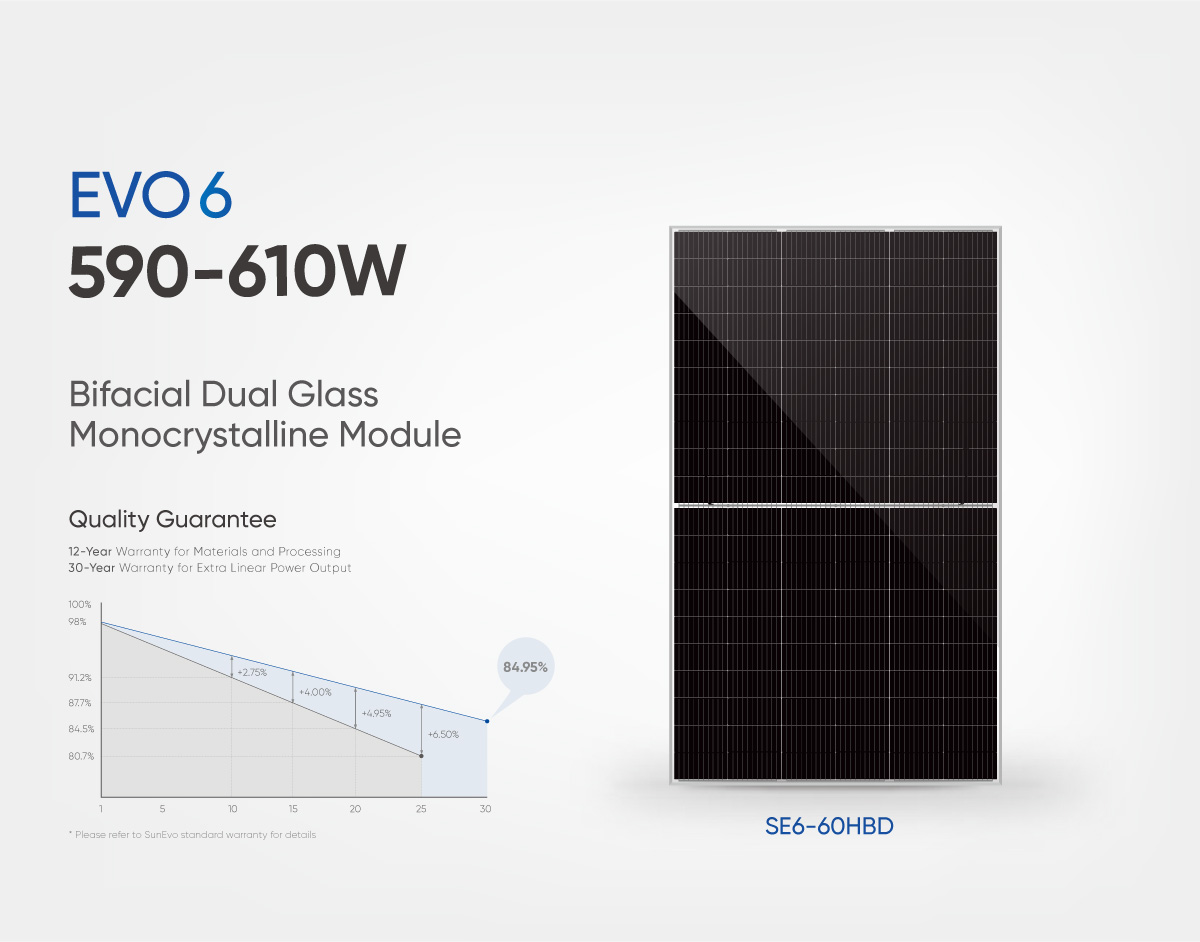

EVO 6 Series Mono PERC 120 Half Cells 590W 595W 600W 605W 610W Bifacial Dual Glass Solar Module
Based on 210mm silicon wafer and 120 half-cut mono-crystalline PERC 12BB solar cell, the Evo 6 Series photovoltaic panels comes with several innovative design features allowing higher output power up to 610W. Excellent temperature coefficient and low irradiation performance result in higher power generation. Meanwhile, Evo 6 Sereis benefits from full square mono cells and high-density solar module encapsulation technology, raising PV module efficiency up to 21.6%.
Electrical Specification
|
Maximum Power (Pmax/W) |
590 |
595 |
600 |
605 |
610 |
|
Maximum Power Voltage (Vmp/V) |
34.15 |
34.35 |
34.55 |
34.75 |
34.95 |
|
Maximum Power Current (Imp/A) |
17.28 |
17.32 |
17.37 |
17.41 |
17.46 |
|
Open Circuit Voltage (Voc/V) |
41.24 |
41.44 |
41.64 |
41.84 |
42.04 |
|
Short Circuit Current (Isc/A) |
18.36 |
18.41 |
18.46 |
18.52 |
18.57 |
|
Module Efficiency (%) |
20.8 |
21.0 |
21.2 |
21.4 |
21.6 |
|
Power Output Tolerance (W) |
0~+5W |
||||
|
Temperature Coefficient of Isc |
+0.05%/°C |
||||
|
Temperature Coefficient of Voc |
-0.28%/°C |
||||
|
Temperature Coefficient of Pmax |
-0.35%/°C |
||||
Certifications
All of SunEvo's products have been certified by professional third-party testing bodies around the world, and the testing conditions are complex and diverse, from ordinary installation conditions to various extreme weather conditions, natural environments. We pursue the ultimate in quality and provide the best guarantee for customers' assets and profits.
What's the Benifits of Bifacial Dual Glass Solar Panels?
• Lower LCOE (Levelized Cost Of Energy), reduced BOS (Balance of System) cost, shorter payback time
• Lowest guaranteed first year and annual degradation;
• Designed for compatibility with existing mainstream system components
• Up to 21.6% module effciency with high density interconnect technology
• Multi-busbar technology for better light trapping effect, lower series resistance and improved current collection
• Minimized micro-cracks with innovative non-destructive cutting technology
• Ensured PID resistance through cell process and module material control
• Resistant to harsh environments such as salt, ammonia, sand, high temperature and high humidity areas
• Mechanical performance up to 5400 Pa positive load and 2400 Pa negative load
• Excellent IAM (Incident Angle Modifer) and low irradiation performance, validated by 3rd party certi cations
• The unique design provides optimized energy production under inter-row shading conditions
• Lower temperature coeffcient (-0.34%) and operating temperature
• Up to 25% additional power gain from back side depending on albedo
Evo 6 Series 132 Half Cells 12BB Solar PV Panel 655W 660W 665W 670Wp 675 Watt Bloomberg Tier 1 Monocrystalline PERC Multi Busbar Photovoltaic Solar Panel Module Based on 210mm Solar Cells
Evo 6 Series 210mm Solar Cell 120 Half Cells 12BB Solar PV Panel 595W 600 Wp 605W 610W 615 Watt Tier 1 Grade A Commercial Monocrystalline PERC Multi Busbar Photovoltaic Solar Panel Module
Evo 6 Series 132 Half Cells 650W 655W 660W 665 Wp 670 Watt Solar PV Panels High Effficiency Monocrystalline PERC MBB Bifacial Double Side Glass Photovoltaic Solar Panel Module Based on 210mm Solar Cell
Evo 6 Series 210mm Solar Cell 110 Half Cells 12BB Solar PV Panel 540W 545W 550W 555W 560W Tier 1 Grade A Commercial Monocrystalline PERC Multi Busbar Photovoltaic Solar Panel Module
EVO 6 Series Bifacial modules combine leading PERC technology, 210mm silicon wafer, and half-cell. 30 years lifespan brings 10-30% additional power generation compared with conventional P-type modules. The SunEvo Bifacial Half-cell Module can reach a power output range between 650W to 670W.
Introducing Sunevo's latest innovation in solar technology - the Sunevo 50W solar module. Engineered for efficiency and reliability, this compact module features 28 high-efficiency 182mm monocrystalline silicon cells, each cut into three pieces, achieving an impressive efficiency of 17.83%. Ideal for a variety of applications, including solar water pump systems, RVs, solar street lights, and communication base station UPS power supply, the Sunevo 50W module delivers consistent performance in diverse environments. With its robust design and advanced solar cell technology, it ensures maximum power output and long-term durability, making it the perfect solution for off-grid and remote power needs.
The exact size of the global market for solar air conditioners is challenging to determine accurately as data on specific products and regions can vary. Additionally, the market is highly fragmented, with many regional and local manufacturers and suppliers. However, with the increasing focus on renewable energy and energy efficiency, the solar air conditioning market is expected to continue growing in the coming years.
A hybrid solar air conditioner combines traditional air conditioning technology with solar power to provide cooling while minimizing energy consumption and reducing reliance on the electrical grid. It utilizes both solar energy and electricity to operate, making it more energy-efficient and environmentally friendly compared to conventional air conditioners.
