Brand:
SunArkCells Per Unit:
6Voltage Per Unit:
12VDesign Life:
20 years (Float charging)Standby Use Voltage:
13.6V~13.8V @25°CCycle Use Voltage:
14.2V~14.4V @25°COperating Temperature Range:
Discharge: -15°C~50°C Charge: 0°C~40°C Storage: -15°C~50°CNormal Operating Temperature Range:
25°C ± 5°CSelf Discharge:
Monthly Self-discharge ratio is less than 3.5% at 25°C.Container Material:
A.B.S. UL94-HB UL94-V0 Optional
What Is GEL Battery
Gel Batteries Characteristics:
High stability: Due to the presence of colloidal electrolytes, gel batteries exhibit high stability under oscillation, vibration and extreme temperature conditions.
High discharge efficiency: Colloidal electrolyte provides more uniform ion flow and lower resistance, resulting in higher discharge efficiency.
Resistance to sulfide: Colloidal electrolytes are well resistant to the formation of sulfides and therefore can be used in some special applications, such as lithium-sulfur batteries where the anode material is a sulfur compound.
GEL Battery's Application:
Application areas of gel batteries include solar photovoltaic systems, energy storage systems, hybrid vehicles, electric vehicles, etc. However, gel batteries have relatively few commercial applications due to their higher cost and limited performance compared to traditional liquid electrolyte batteries.
It is important to note that the term "gel battery" can sometimes refer to a different battery type, namely a gel lead-acid battery. This kind of battery uses colloidal sulfuric acid as the electrolyte, has higher gas recombination efficiency, lower self-discharge rate and better cycle life, and is suitable for specific applications, such as UPS (uninterruptible power supply) systems, etc.

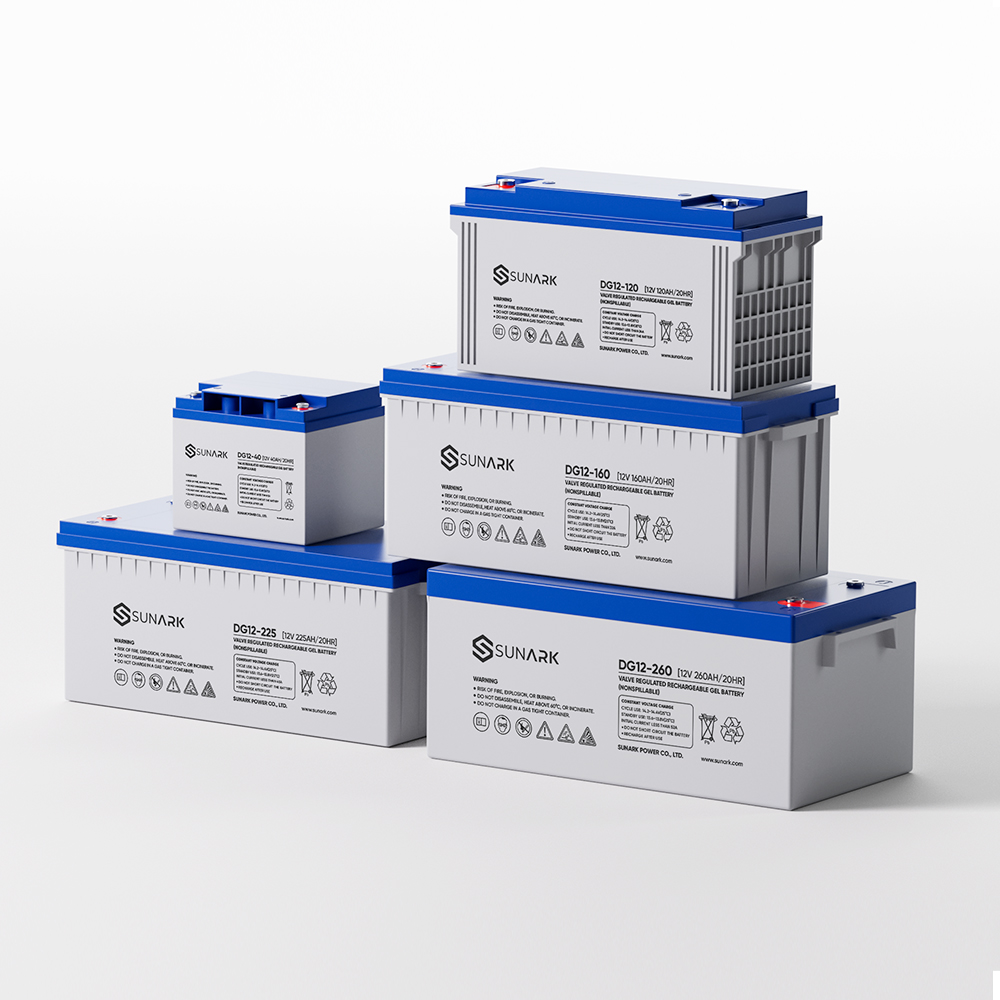

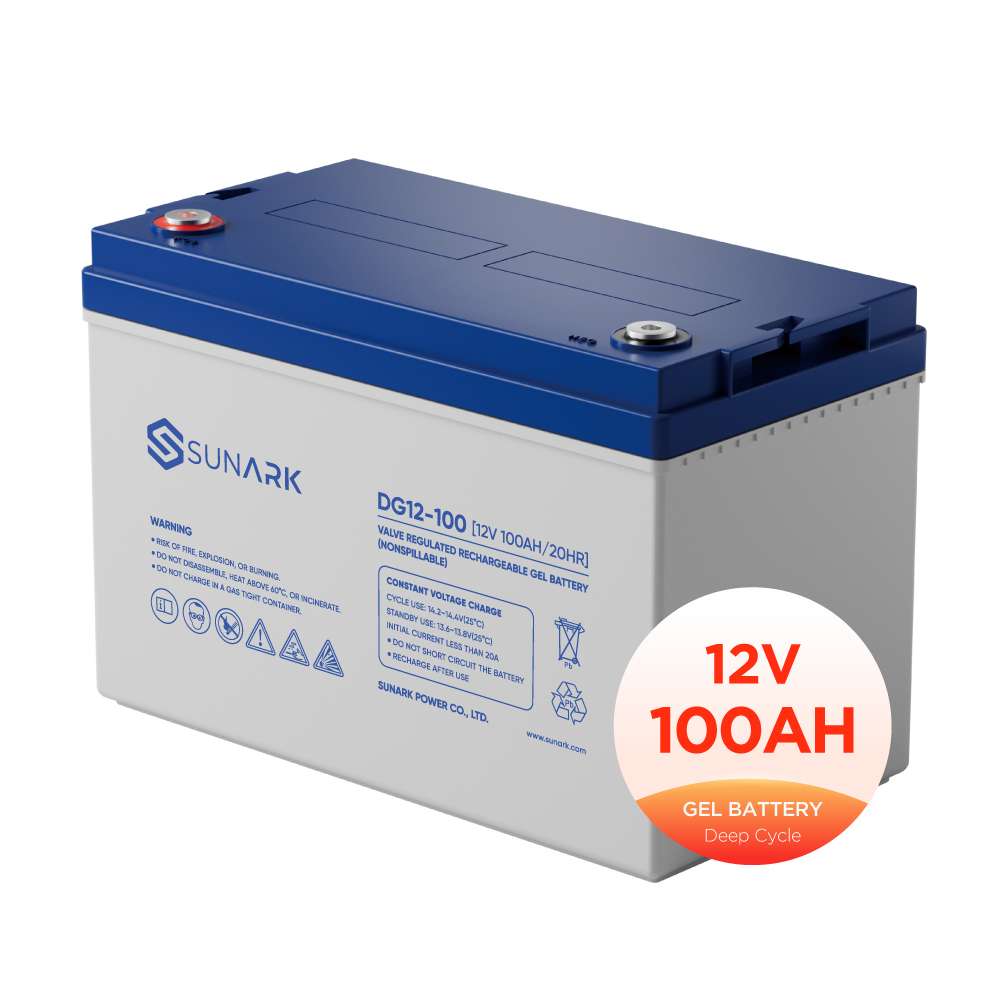

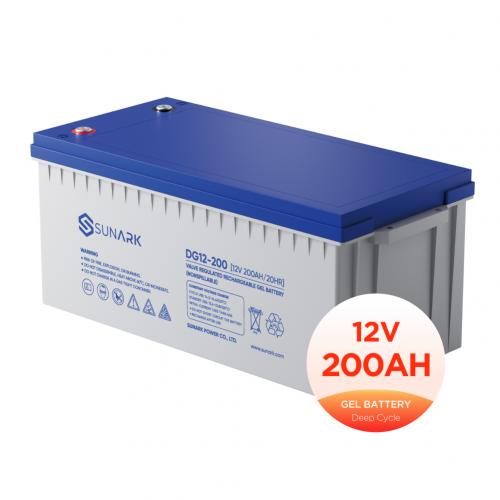

DG (Deep Cycle GEL ) series is pure GEL battery with 20 years floating design life, it is ideal for standby or frequent cyclic discharge applications under extreme environments. By using strong grids, high purity lead and patented Gel electrolyte, the DG series offer excellent recovery capability after deep discharge under frequent cyclic discharge use, and can deliver 450 cycles at 100% DOD.
DG (Deep Cycle GEL ) series is pure GEL battery with 20 years floating design life, can deliver 2500 cycles at 50% DOD.
DG (Deep Cycle GEL ) series is pure GEL battery with 20 years flfloating design life, it is ideal for standby or frequent cyclic discharge applications under extreme environments.
DG (Deep Cycle GEL ) series is pure GEL battery with 20 years floating design life, it is ideal for standby or frequent cyclic discharge applications under extreme environments. By using strong grids, high purity lead and patented Gel electrolyte, the DG series offers excellent recovery capability after deep discharge under frequent cyclic discharge use, and can deliver 450 cycles at 100% DOD.
DG (Deep Cycle GEL ) series is pure GEL battery with 20 years floating design life, it is ideal for standby or frequent cyclic discharge applications under extreme environments. By using strong grids, high purity lead and patented Gel electrolyte, the DG series offers excellent recovery capability after deep discharge under frequent cyclic discharge use, and can deliver 450 cycles at 100% DOD.
DG (Deep Cycle GEL ) series is pure GEL battery with 20 years floating design life, it is ideal for standby or frequent cyclic discharge applications under extreme environments. By using strong grids, high purity lead and patented Gel electrolyte, the DG series offers excellent recovery capability after deep discharge under frequent cyclic discharge use, and can deliver 450 cycles at 100% DOD.
The generated solar energy is fed into the grid, which serves as an energy storage device. When the electricity load is large and solar power is insufficient, power is purchased from the city power supply. When the load is small, or when the power cannot be used up, the excess power can be sold to the city power. Improve the mean time between failures of the system and secondary pollution of the battery, and reduce the cost.
30kWh lithium-ion battery boasting high energy density, long cycle life, high charge-discharge efficiency, low self-discharge, no memory effect, and eco-friendliness, serves as a mid-capacity solution ideal for scenarios like residential energy storage and light EVs, with performance and safety reliant on BMS.
