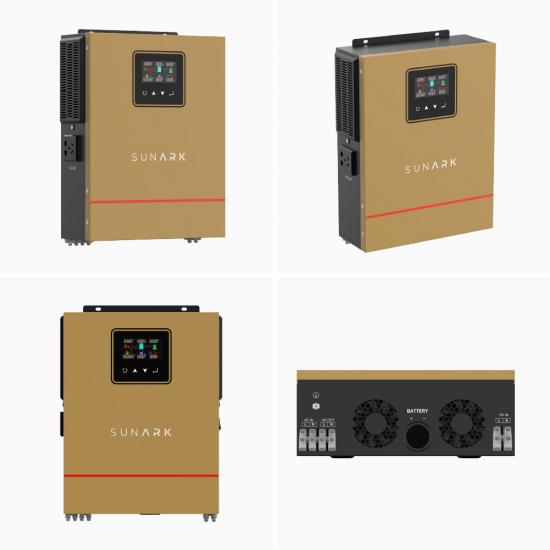

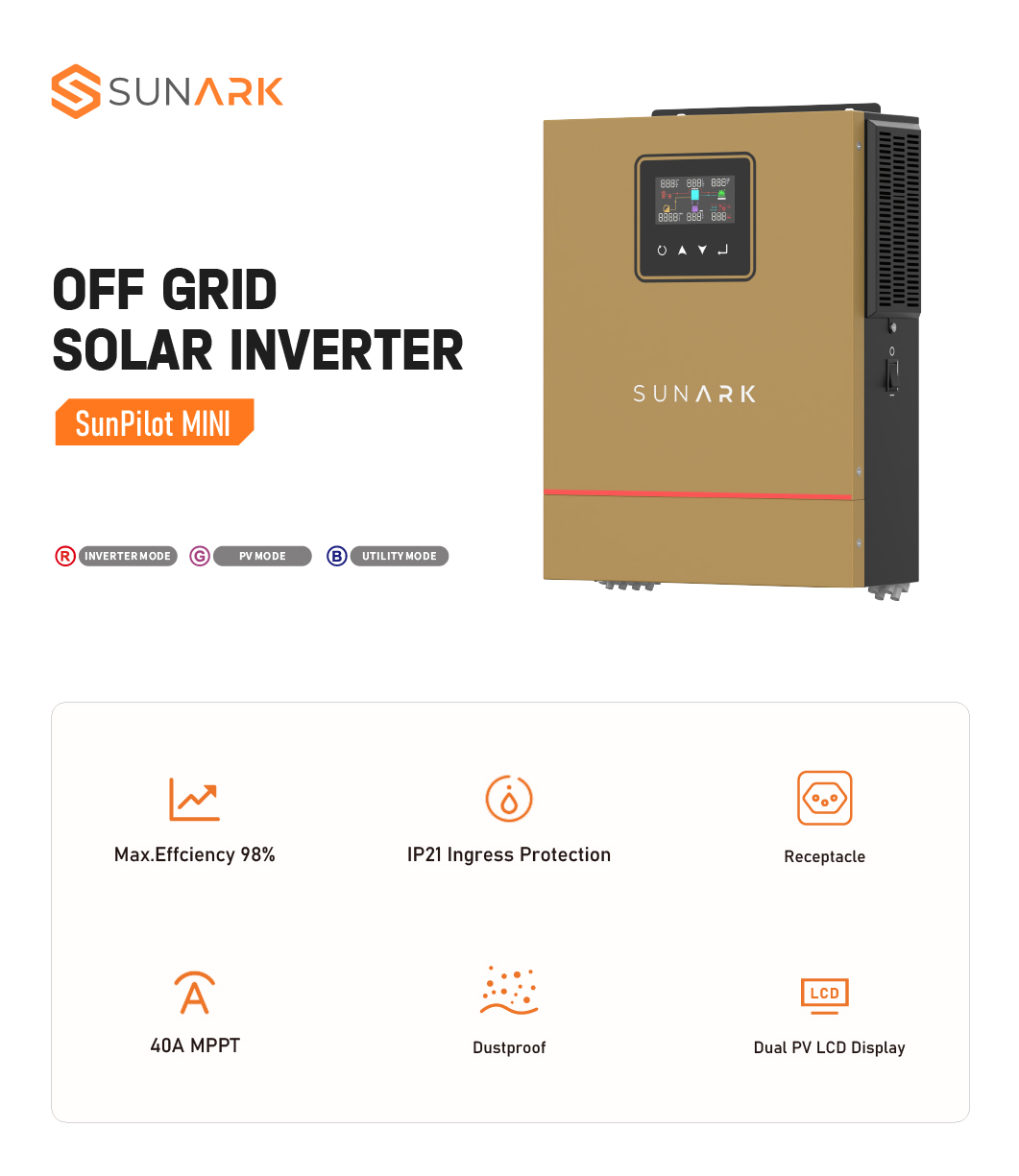

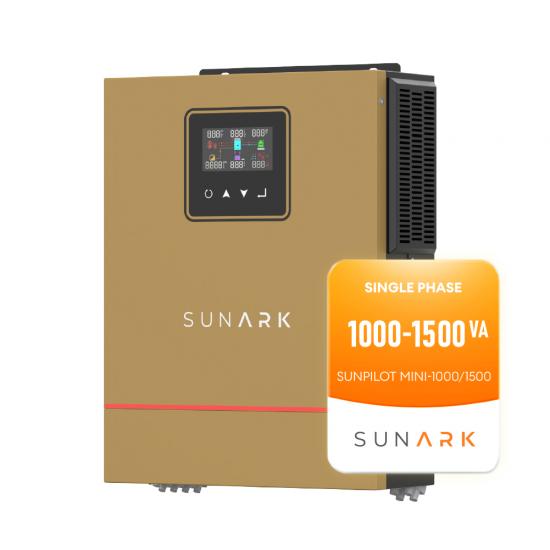

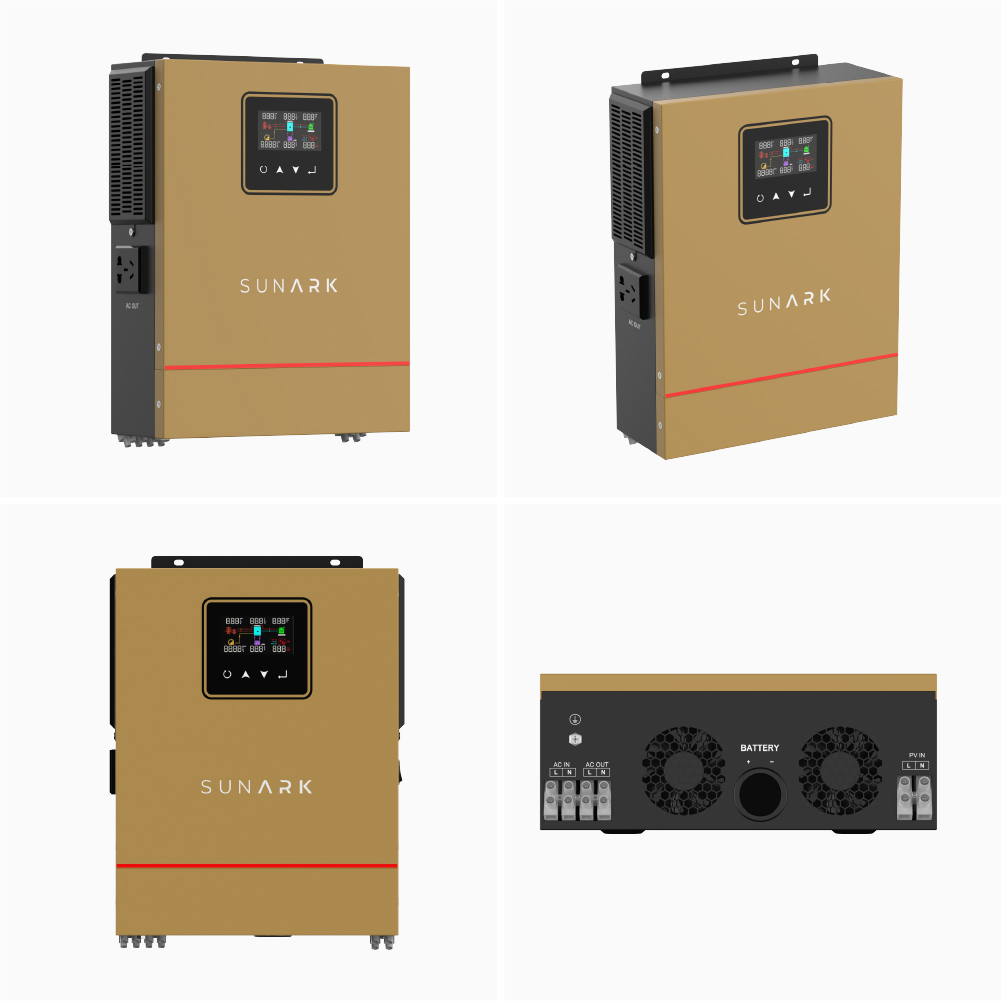

SunArk Africa SunPilot Mini Off Grid Solar Inverter 12v 24v 1000W 1500W

An off-grid inverter is a device that converts solar energy into usable AC electricity for homes or businesses that are not connected to the traditional power grid.

  • Brand:

    SunArk
  • Model:

    SunPilot MINI 1000VA /1500VA
  • Max. PV Input Power:

    600W / 1200W
  • Rated Power:

    1000VA /1500VA
  • MPPT Voltage Range:

    20-150VDC
  • Rated Battery DC Voltage:

    12 / 24 VDC

New Products

SunArk SunPilot Mini Series Solar Inverter 1000W 1500W



SunArk SunPilot Mini Series Off-grid solar inverters play a crucial role in addressing the energy challenges faced by many regions in Africa.



With the continent's abundant solar resources and limited access to traditional power grids, off-grid solar inverters provide a viable solution for decentralized and sustainable energy generation.








Development Trends of SunArk SunPilot Mini Series Solar Inverter 1000W 1500W



SunArk SunPilot Mini series inverter is getting more and more popular in Africa. Here are the main development trends:

--Increasing Adoption: In recent years, there has been a significant increase in the adoption of off-grid solar inverters throughout Africa. This is driven by various factors such as decreasing costs of solar technology, improved efficiency of inverters, and the growing awareness of renewable energy benefits.

--Technological Advancements: The off-grid solar inverter industry is witnessing rapid technological advancements. Manufacturers are focusing on developing more efficient and durable inverters that can withstand challenging environmental conditions prevalent in many parts of Africa. These advancements also include improved battery management systems, remote monitoring capabilities, and enhanced conversion efficiency.

--Integration with Energy Storage: Energy storage systems, such as batteries, are becoming an integral part of off-grid solar solutions. Pairing solar inverters with energy storage enables reliable power supply during periods of low solar irradiation or at night. This combination enhances energy independence and reliability, essential for addressing the energy needs of off-grid communities.



Detailed Parameters of  SunPilot Mini Series Solar Inverter 1000W 1500W



Model
SunPilot MINI-1000-12
SunPilot MINI-1500-24
Rated Output Power
1000W/1000VA
1500W/1500VA
INPUT


Voltage
230VAC
Selectable Voltage Range
170~280VAC(For Personal Computers) 90~280VAC(For Home Appliances)
Frequency Range
50Hz/60Hz(Auto sensing)
OUTPUT

AC Voltage Regulation(Batt.Mode)
230VAC±5%
Surge power
2000VA
3000VA
Efficiency(Peak)PV to INV
98%
Efficiency(Peak)Battery to INV
94%
Transfer Time
10ms
BATTERY & AC CHARGER

Battery Voltage
12VDC
24VDC
Floating Charge Voltage
13.5VDC
27VDC
Overcharge Protection
16VDC
36VDC
SOLAR CHARGER

Solar Charger Type
MPPT
Maximum PV Array Power
600W
1200W
MPPT Range @ Operating Voltage
20~150VDC
30~150VDC
Maximum PV Array Open Circuit Voltage Solar
150VDC
Maximum Solar Charging Current
40A
Maximum AC Charging Current
40A
Maximum Solar+AC Charging Current
80A
PHYSICAL

Dimension,D*W*H(mm)
290*240*91
Cartoon Dimension,D *W *H(mm)
340*295*145
Net Weight(kgs)
3.5
3.6
Gross Weight(kgs)
4.0
4.2
ENVIRONMENT

Humidity
5% to 95% Relative Humidity(Non~condensing)
Operating Temperature
-10°C~50°C
STANDARD

Compliance Safety
CE




Potential Developments for SunPilot Mini Series Solar Inverter In Africa Market?

SunArk SunPilot Mini series off-grid solar inverters in Africa hold tremendous potential to accelerate energy access, promote sustainable development, and address the continent's energy challenges. As the technology continues to evolve and awareness grows, we can expect to see increased adoption and greater impact in improving lives and driving economic growth.



--Rural Electrification: Off-grid solar inverters have immense potential in rural electrification projects across Africa. They offer a cost-effective and sustainable energy solution for remote communities that are far from centralized power grids. These inverters can power homes, schools, healthcare centers, and other vital infrastructure, improving the quality of life and facilitating socioeconomic development.

--Business and Productive Use: Off-grid solar inverters support the growth of small businesses and productive use of energy in Africa. They enable entrepreneurs to power agricultural machinery, refrigeration units, telecommunications equipment, and other income-generating activities. This fosters economic empowerment and contributes to poverty alleviation

--Climate Change Mitigation: The use of off-grid solar inverters aligns with the global efforts to combat climate change. By relying on clean, renewable energy sources, Africa can reduce its carbon footprint and decrease its reliance on fossil fuels for electricity generation.

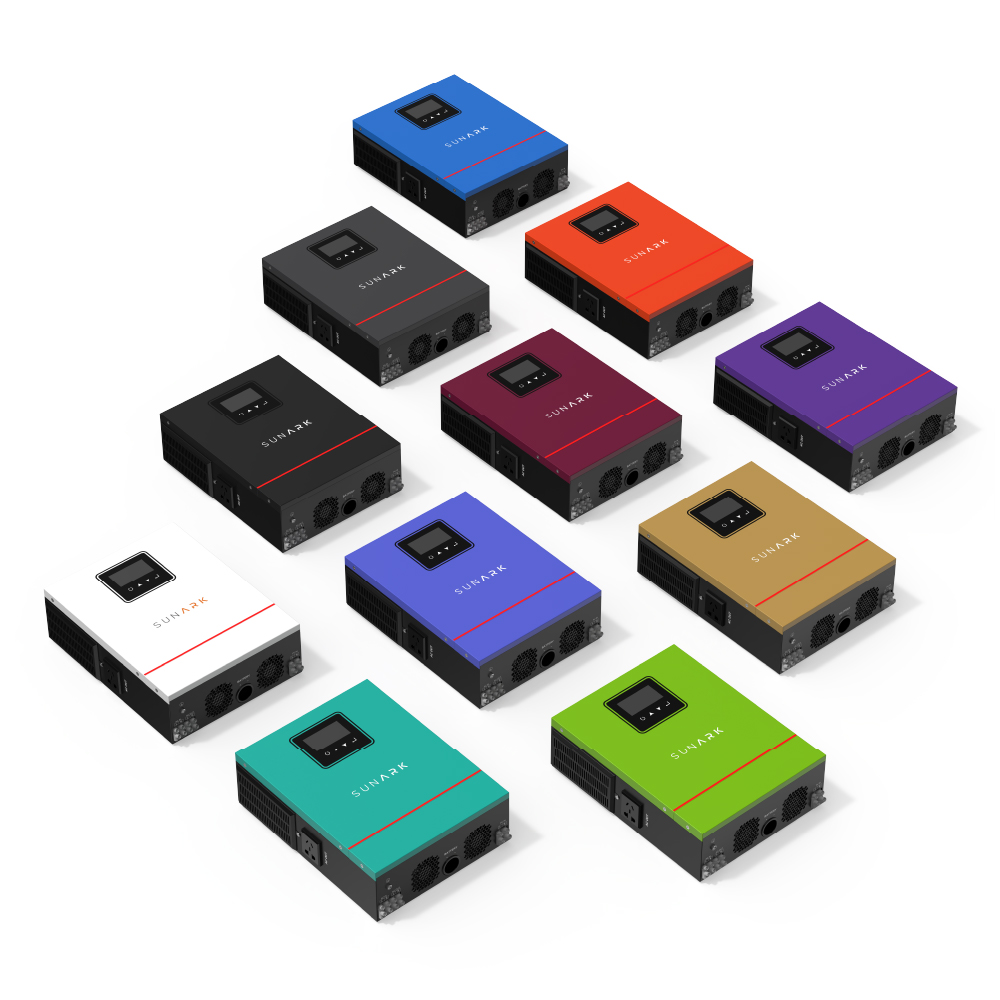

OEM Color Design For Reference
