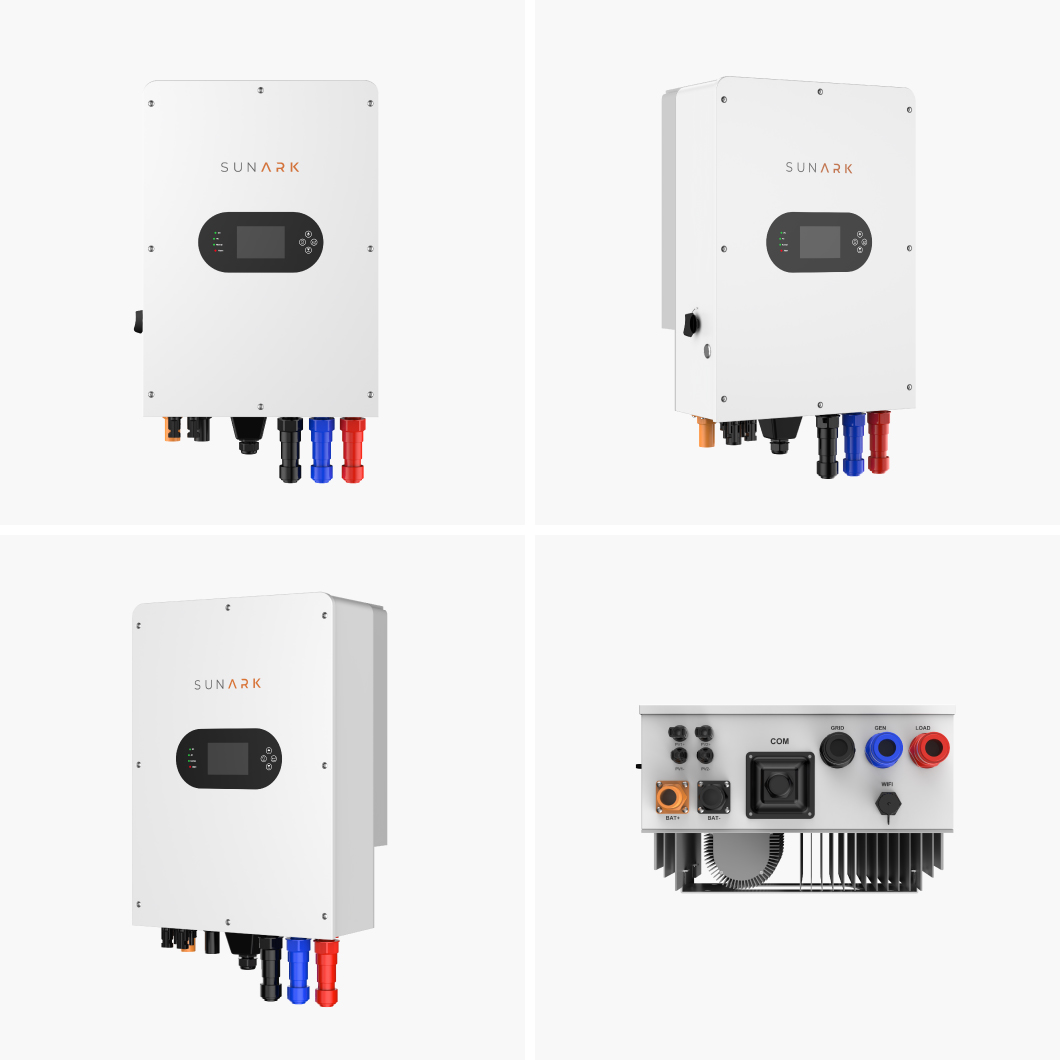

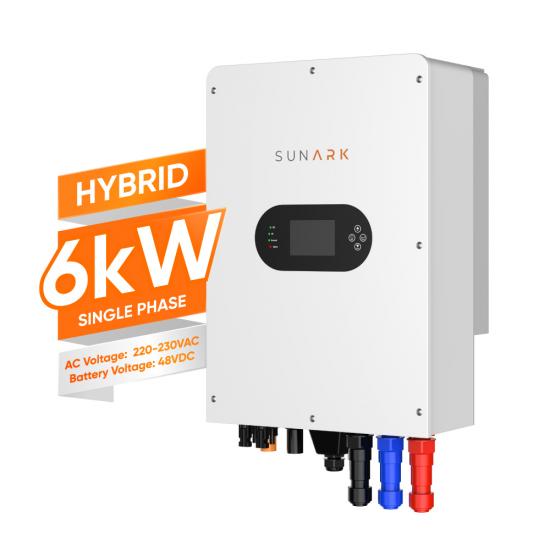

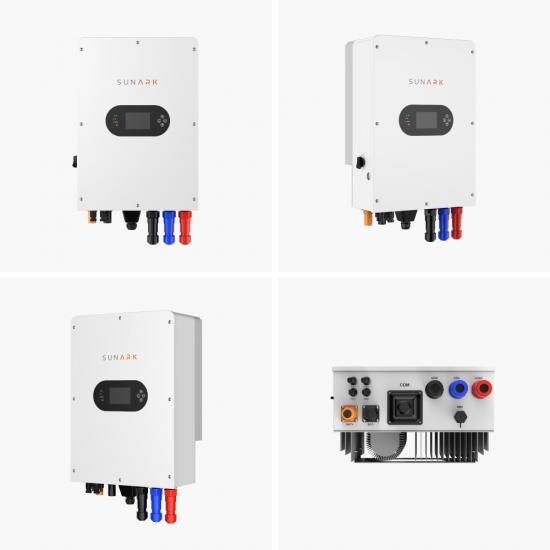

Sunark Off Grid Inverters Single Phase 6KW Pv Inverter 48V Hybrid Solar Inverter

Still looking for a cost-effective inverter and worry? Get over it! Look at this! This mixed-network single-phase inverter is definitely your ideal choice. Power up to 6kw, 48 volts for a variety of scenarios to meet your electricity needs. The most eye-catching thing is that it supports customization, flexible and intimate. And high efficiency, fast and stable power supply, so that you worry about electricity. The price is a surprise, very cost-effective, in the same type of products directly pull full!Whether it is a family backup, or small project use, it can easily fill. Do not hesitate to choose this inverter to open a new experience of efficient electricity consumption!

  • Brand:

    SunArk
  • Order(MOQ):

    2
  • Brand:

    SunArk
  • Model name:

    SunExpert SL6K-EU
  • Max PV power:

    7800w
  • MPPT voltage range:

    150-425
  • Rated output power:

    6kw
  • Output voltage:

    220-230VAC

New Products

Sunark Off Grid Inverters Single Phase 6000W Pv Inverter 48V Hybrid Solar Inverter

Why choose us?

①Celorful touch LCD, lp65 protection degree

②Ac coupling to retroft existing solar system

③Maxx. 16 pcs parallel for on-grid and off-grid operaton Support multipke battenes parallel

④Max. charging/dischaging current of 135A

⑤6 time periods for battery charging/dischaging

⑥Support storing energyfrom diesel generator

Detailed Parameters of  Deye Three Phases Hybrid 60KW Solar Inverter

Model
SunExpert SL6K-EU
PV String Input Data

Max. DC Input Power (W)
7800
Rated PV Input Voltage (V)
370 (125~500)
Start-up Voltage (V)
125
MPPT Voltage Range (V)
150-425
Full Load MPPT Voltage Range (V)
200-425
Max. DC Input Current(A)
26+13
Max. DC Short Circuit Current(A)
44+22
No.of MPPT Trackers
2
No.of Strings per MPPT Tracker
2+1
AC Output Data

Rated AC Output Power (W)
6000
Max AC Output Power (W)
6600
AC Output Rated Current (A)
27.3/26.1
Max AC Output Current (A)
30/28.7
Max.Continuous AC Passthrough (A)
40
Peak Power (off grid)
2 times of rated power, 10 S
Power Factor
0.8 leading - 0.8 lagging
AC Output Frequency and Voltage
50/60Hz; 220/230Vac
Grid Type
Single Phase
Total Harmonic Distortion (THDi)
<3% (of nominal power)
DC Current Injection
<0.5% (Rated Current)
Battery Input Data

Battery Type
Lead-acid or Lithium-ion
Battery Voltage Range (V)
40~60
Max. Charging Current (A)
135
Max. Discharging Current (A)
135
External Temperature Sensor
Yes
Charging Curve
3 Stages / Equalization
Charging Strategy for Li-Ion Battery
Self-adaption to BMS
Efficiency

Max. Efficiency
97.60%
Euro Efficiency
96.50%
MPPT Efficiency
99%
Protection

Anti-islanding Protection
Yes
PV String Input Reverse Polarity Protection
Yes
Insulation Resistor Detection
Yes
Residual Current Monitoring Unit
Yes
Output Over Current Protection
Yes
Output Shorted Protection
Yes
Surge Protection
DC Type II/AC Type II
Over Voltage Category
DC Type II / AC Type III
Certifications and Standards

Grid Regulation
IEC61727/IEC 62116,EN 50549-1
Safety EMC / Standard
IEC/EN 61000-6-1/2/3/4,IEC/EN 62109-1,IEC/EN 62109-2
General Data

Operating Temperature Range (℃)
-40-60℃, >45℃ Derating
Cooling
Smart Cooling
Noise (dB)
≤50 dB
Communication with BMS
RS485; CAN
Monitoring mode
WIFI,APP
Weight (kg)
24
Size (W x H x D mm)
330wx580Hx239.5D(Excluding connectors and brackets)
Protection Degree
IP65
Installation Style
Wall-mounted
Warranty
5 Years (10Years Optional)

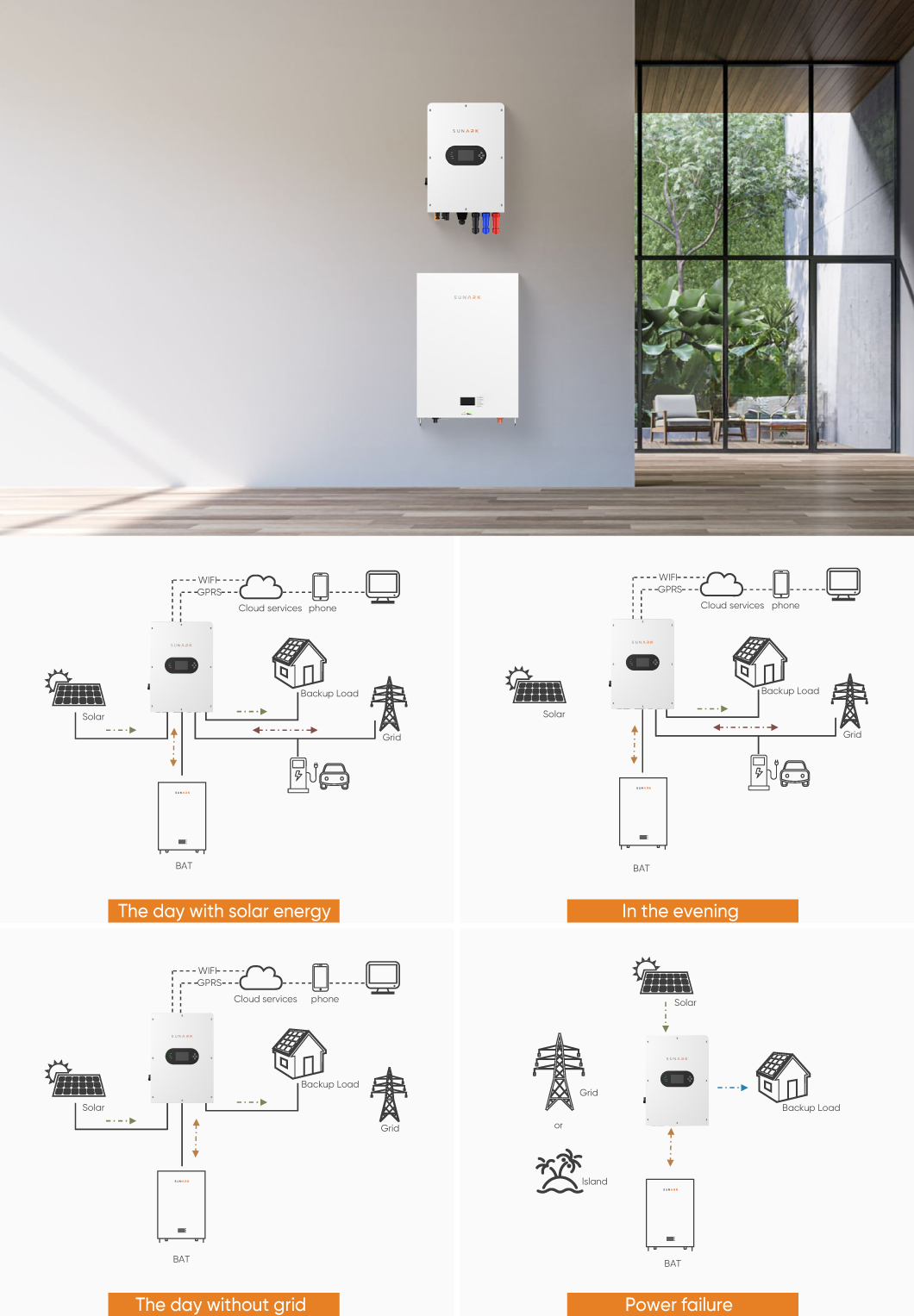

Applications

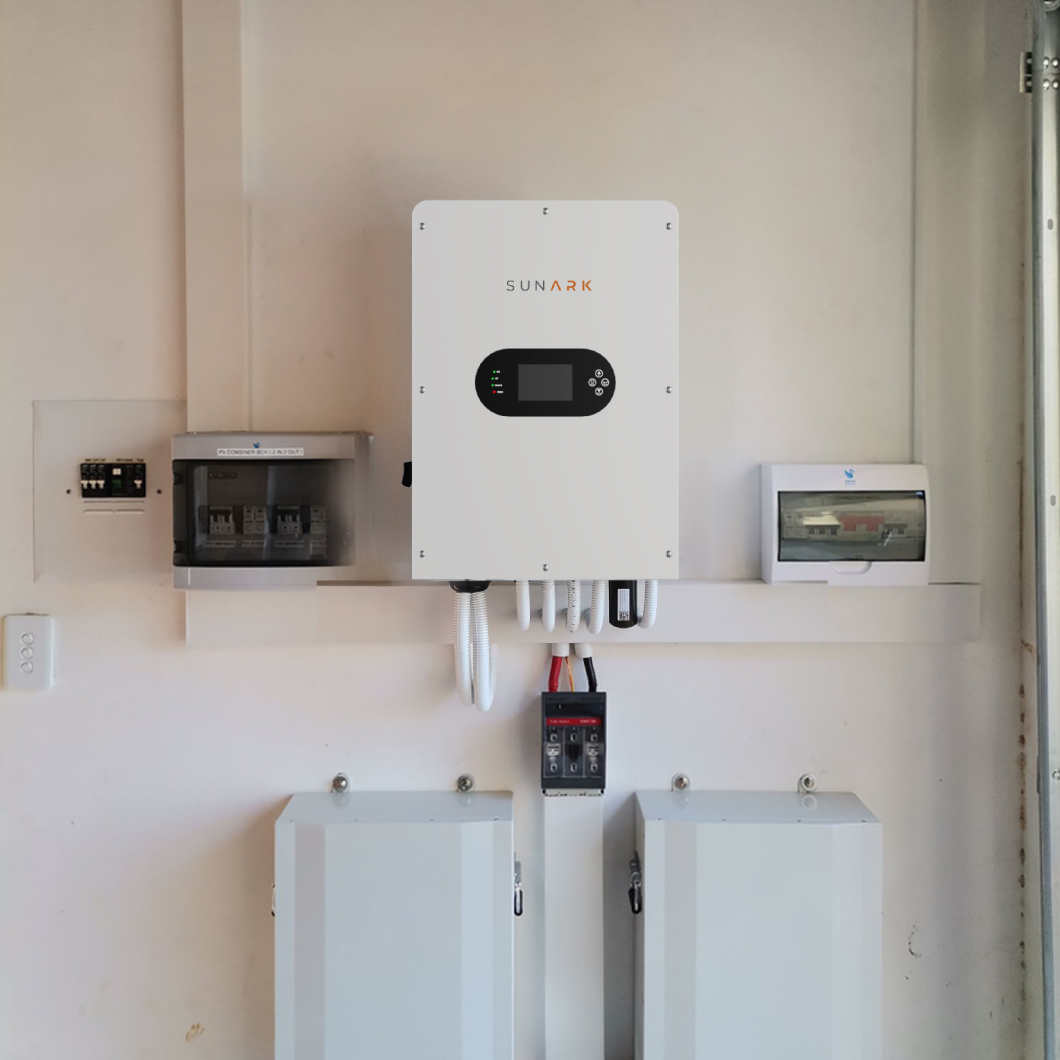

Project Case

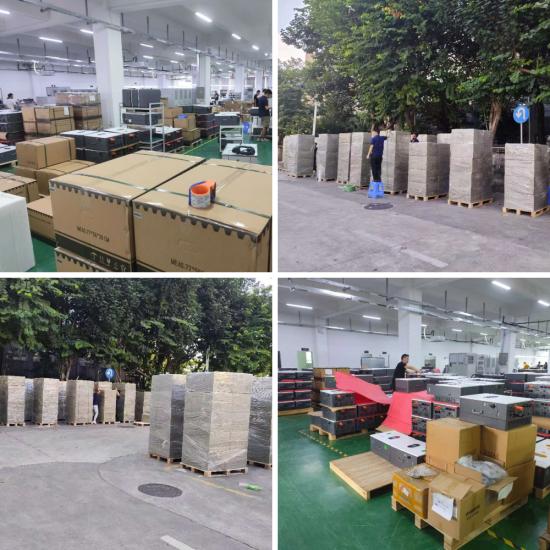

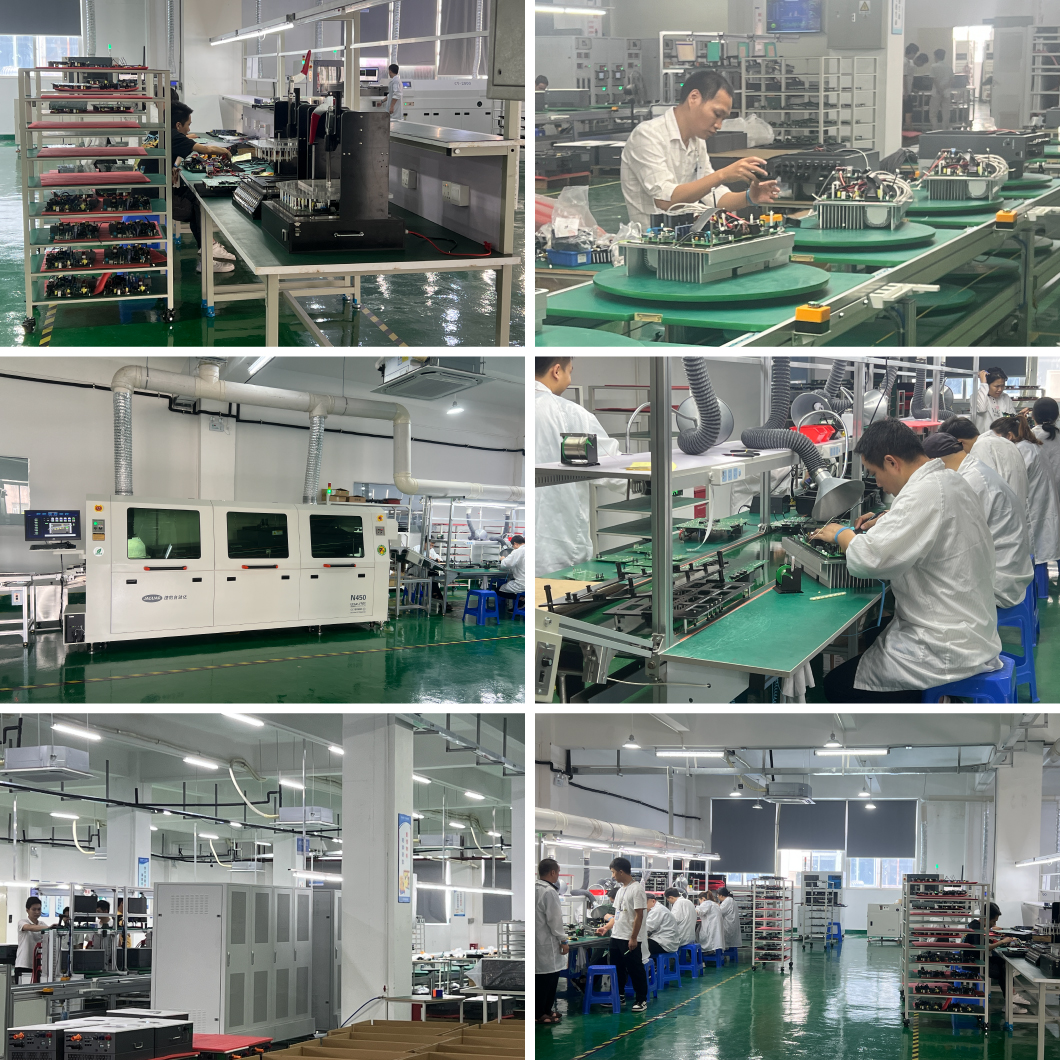

Our Factory

SunArk Power is a leading global energy storage solution and service provider. The company specializes in residential, commercial and utility applications and delivers pre-eminent products and fit-for-purpose solutions. SunArk Power has 20+ experience producing energy storage products and 90,000+ systems actively running in 80+ countries, enabling millions of people to enjoy reliable, accessible and clean energy. SunArk Power has been developing quickly, till end of 2022, accumulatively, the company has manufactured 620MWh BESS and battery strings. Internationally, SunArk Power FlexCombo DC coupling microgrid ESS, from 50kW to 500kW, is a well-known trademark that more than 300 sets has been deployed in EU, US, Canada, Brazil, Myanmar, African countries etc. SunArk Power is a national high-tech enterprise with such innovative platforms as national enterprise technology center, CNAS accredited laboratory, postdoctoral workstation, academician workstation, Equipment and Electronics Research Institute and so on.SunArk Power has core technology patents in new materials, new technologies and new structures of battery power supply, has led and participated in the formulation of a number of international, national and industrial standards.
