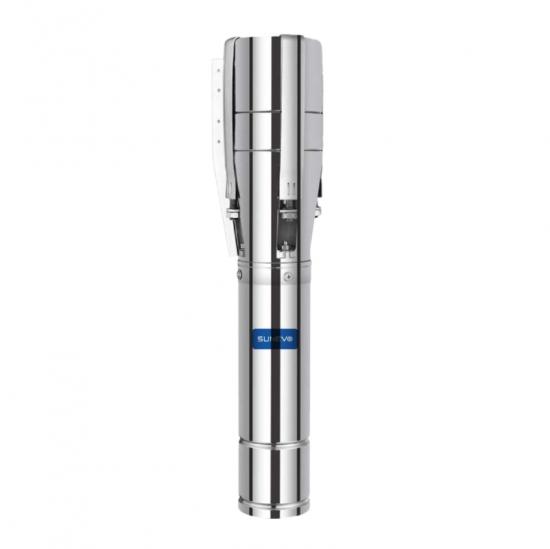

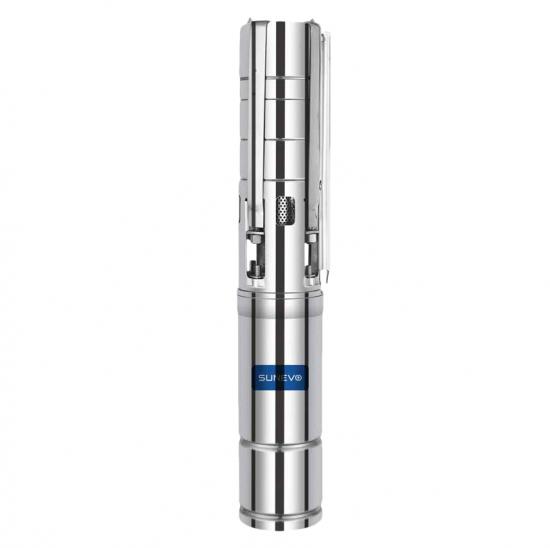

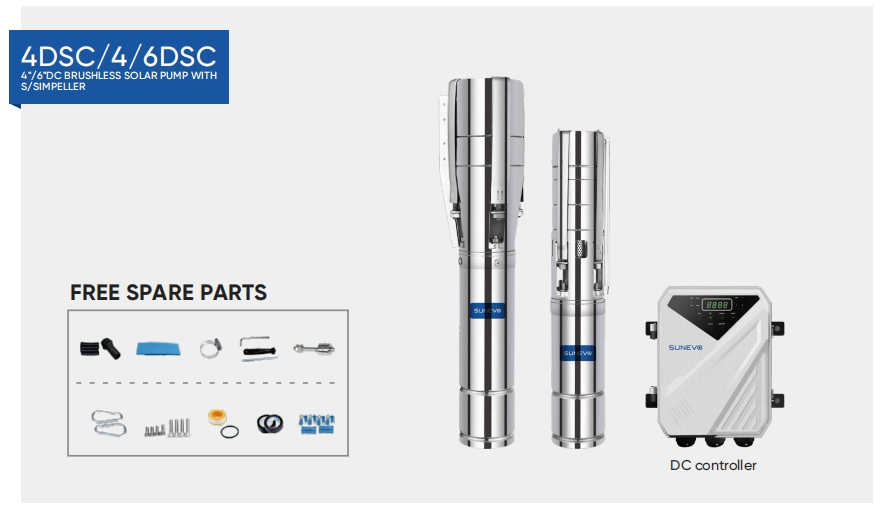

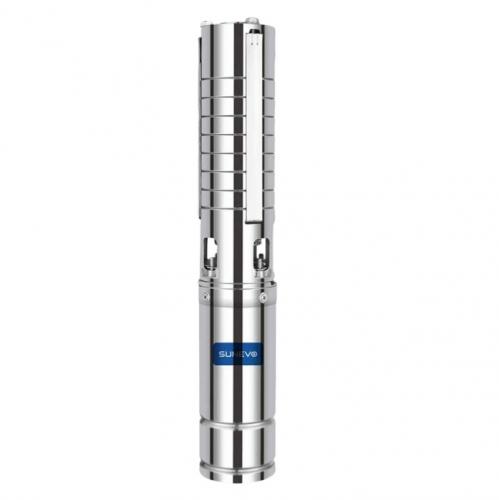

A Brushless Solar Pump with a Plastic Impeller is a type of solar-powered pump that uses a brushless DC motor and features an impeller made of plastic for moving water. These pumps offer eco-friendly operation by using renewable solar energy, reducing the carbon footprint. Their brushless motors and plastic impellers ensure low maintenance with minimal servicing needs, leading to lower costs. Additionally, they deliver reliable performance in varying sunlight conditions, providing consistent water output throughout the day.
Brand:
SunEvoVoltage:
72~110VDCOptimum input voltage (DC):
110~150VPower:
1100~1500WMax. Flow:
11~30m³/hMax. Head:
19~60mOutlet:
2~3''PRODUCT DESCRIPTION

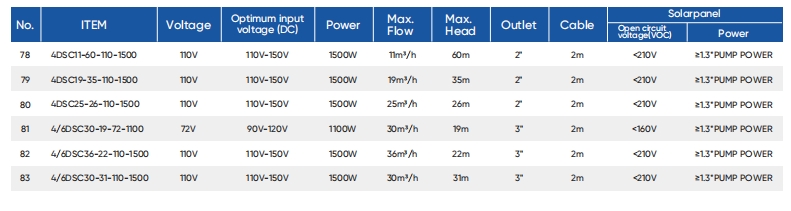

TECHNICAL DATA

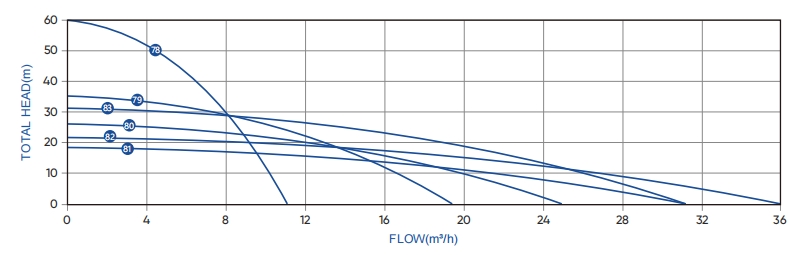

HYDRAULIC PERFORMANCE CURVES
Tips for choosing a solar pump:
First, you need to decide the flow and head required;
How to calculate the head?
Calculate method:
h1: Head above water (Water to Tank)
h2: Head under water (Pump to Water)
Actual Pump Head: H=h1+h2/10
For Example: h1=50m,h2=30m,H=h1+h2/10=50+(30/10)=53m
The actual Pump Head is 53m
Select the Pump Type:
Surface Pumps: Suitable for shallow water sources (up to ~7 meters deep).
Submersible Pumps: Ideal for deep wells or boreholes (more than 7 meters deep).
Centrifugal Pumps: Best for large volumes with low head requirements.
Diaphragm or Piston Pumps: Work well for low flow and high head needs.
Major Benefits of Solar Water Pumps
Energy Independence
Solar water pumps use solar energy as their sole power source, eliminating reliance on the power grid or diesel generators. This is particularly suitable for ranches in areas with limited electricity access. Such energy independence reduces energy costs and decreases dependence on fossil fuels.
Environmental Friendliness and Energy Efficiency
Solar energy is a clean power source. Using solar water pumps significantly reduces carbon emissions, aligning with global sustainability goals. Additionally, solar water pumps operate quietly, minimizing noise pollution and maintaining a peaceful ranch environment.
Low Operating Costs
While the initial investment for installing solar water pumps may be relatively high, their operating and maintenance costs are low, and solar energy is free. In the long term, solar water pumps offer remarkable cost-effectiveness.
Ease of Installation and Maintenance
Solar water pump systems are simple in structure and feature modular designs, making them easy to install. Even in remote areas, they can be deployed quickly. Furthermore, they require minimal maintenance, typically involving periodic cleaning of solar panels and inspection of the pump's operation.
High Adaptability
Solar water pumps can be customized to meet the diverse needs of ranches, whether for shallow wells, deep wells, or surface water sources. They can also be combined with energy storage systems to ensure a stable water supply on cloudy days or at night.
A solar water pump is a system that uses electricity generated by solar panels to drive a pump, typically used for agricultural irrigation, livestock watering, water supply in rural or remote areas, and other applications. The main components of a solar water pump system include solar panels, a controller, a pump (such as a submersible or surface pump), and an optional battery for storing excess energy. Its working principle involves converting solar energy into electrical energy to power the pump, which extracts or delivers water, offering an energy-efficient and self-sustaining water supply solution.
A solar water pump is a system that uses electricity generated by solar panels to drive a pump, typically used for agricultural irrigation, livestock watering, water supply in rural or remote areas, and other applications. The main components of a solar water pump system include solar panels, a controller, a pump (such as a submersible or surface pump), and an optional battery for storing excess energy. Its working principle involves converting solar energy into electrical energy to power the pump, which extracts or delivers water, offering an energy-efficient and self-sustaining water supply solution.
A Brushless Solar Pump with a Plastic Impeller is a type of solar-powered pump that uses a brushless DC motor and features an impeller made of plastic for moving water. These pumps offer eco-friendly operation by using renewable solar energy, reducing the carbon footprint. Their brushless motors and plastic impellers ensure low maintenance with minimal servicing needs, leading to lower costs. Additionally, they deliver reliable performance in varying sunlight conditions, providing consistent water output throughout the day.
A Brushless Solar Pump with a Plastic Impeller is a type of solar-powered pump that uses a brushless DC motor and features an impeller made of plastic for moving water. These pumps offer eco-friendly operation by using renewable solar energy, reducing the carbon footprint. Their brushless motors and plastic impellers ensure low maintenance with minimal servicing needs, leading to lower costs. Additionally, they deliver reliable performance in varying sunlight conditions, providing consistent water output throughout the day.
A Brushless Solar Pump with a Plastic Impeller is a type of solar-powered pump that uses a brushless DC motor and features an impeller made of plastic for moving water. These pumps offer eco-friendly operation by using renewable solar energy, reducing the carbon footprint. Their brushless motors and plastic impellers ensure low maintenance with minimal servicing needs, leading to lower costs. Additionally, they deliver reliable performance in varying sunlight conditions, providing consistent water output throughout the day.
A Brushless Solar Pump with a Plastic Impeller is a type of solar-powered pump that uses a brushless DC motor and features an impeller made of plastic for moving water. These pumps offer eco-friendly operation by using renewable solar energy, reducing the carbon footprint. Their brushless motors and plastic impellers ensure low maintenance with minimal servicing needs, leading to lower costs. Additionally, they deliver reliable performance in varying sunlight conditions, providing consistent water output throughout the day.
A Brushless Solar Pump with a Plastic Impeller is a type of solar-powered pump that uses a brushless DC motor and features an impeller made of plastic for moving water. These pumps offer eco-friendly operation by using renewable solar energy, reducing the carbon footprint. Their brushless motors and plastic impellers ensure low maintenance with minimal servicing needs, leading to lower costs. Additionally, they deliver reliable performance in varying sunlight conditions, providing consistent water output throughout the day.
A Brushless Solar Pump with a Plastic Impeller is a type of solar-powered pump that uses a brushless DC motor and features an impeller made of plastic for moving water. These pumps offer eco-friendly operation by using renewable solar energy, reducing the carbon footprint. Their brushless motors and plastic impellers ensure low maintenance with minimal servicing needs, leading to lower costs. Additionally, they deliver reliable performance in varying sunlight conditions, providing consistent water output throughout the day.
