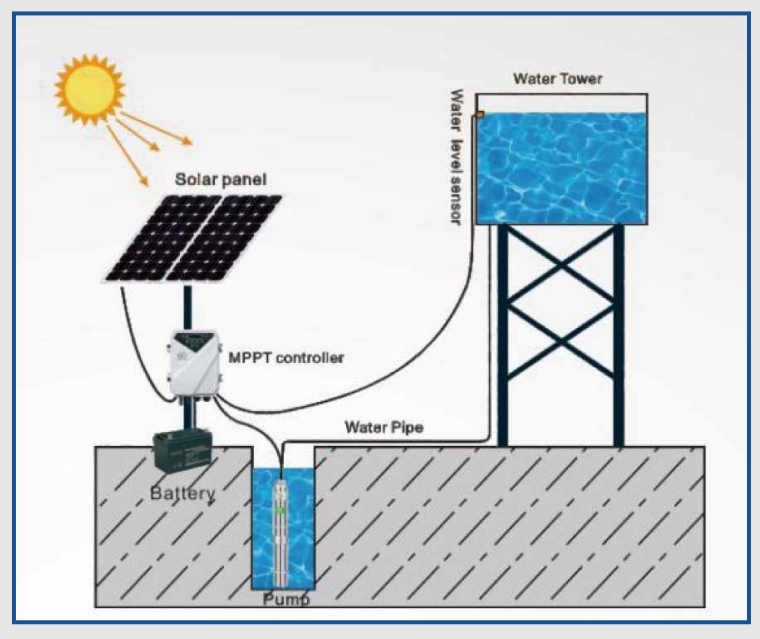

A solar water pump is a system that uses electricity generated by solar panels to drive a pump, typically used for agricultural irrigation, livestock watering, water supply in rural or remote areas, and other applications. The main components of a solar water pump system include solar panels, a controller, a pump (such as a submersible or surface pump), and an optional battery for storing excess energy. Its working principle involves converting solar energy into electrical energy to power the pump, which extracts or delivers water, offering an energy-efficient and self-sustaining water supply solution.
Brand:
SunEvoVoltage:
24~48VOptimum input voltage (DC):
30~48VPower:
200~400WMax. Flow:
1.5~1.7m³/hMax. Head:
35~64mOutlet:
0.75''INSTRUCTIONS

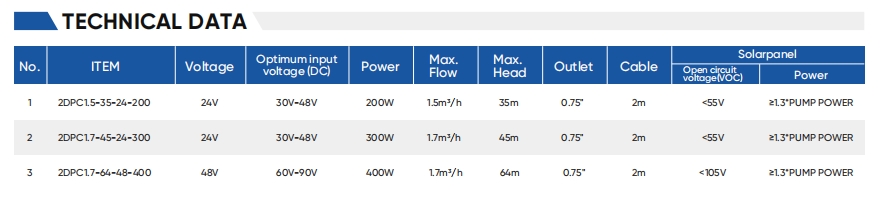

TECHNICAL DATA

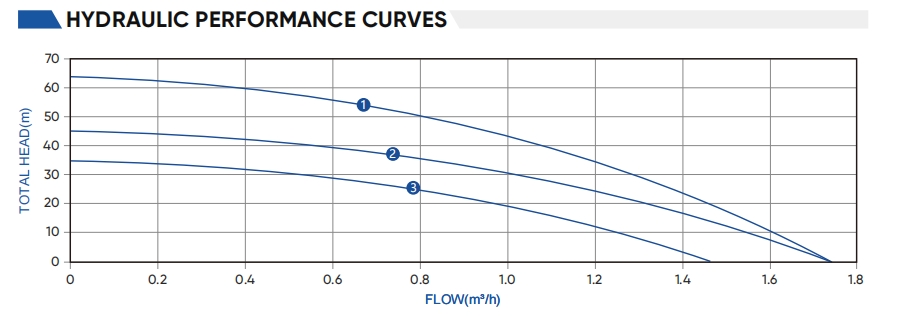

HYDRAULIC PERFORMANCE CURVES
ADVANTAGE OF DC SOLAR PUMP
1. Permanent magnet DC brushless synchronous motor: The efficiency is increased by 15% - 20%, saving energy consumption.
2. The whole 304 stainless steel rotor shaft avoids the risk of shaft breakage.
3. Brass/Stainless steel outlet/connector/ oil cylinder, with better corrosion resistance.
4. Japanese NSK bearing, longer working life.
5. Double bearing structure at the bottom of rotor, using angular contact bearing, can withstand greater axial pressure.
6. Silicon carbide-impregnated graphite mechanical seal, long service life and reliable operation.
7. 180 high-temperature resistant copper wire, insulation class F.
8. Cold rolled 600 silicon steel sheet stator and rotor.
9. The magnet is made of 40SH NdFeb, with a temperature resistance of 150°.
10. 304 S/S pump shaft.
A solar water pump is a system that uses electricity generated by solar panels to drive a pump, typically used for agricultural irrigation, livestock watering, water supply in rural or remote areas, and other applications. The main components of a solar water pump system include solar panels, a controller, a pump (such as a submersible or surface pump), and an optional battery for storing excess energy. Its working principle involves converting solar energy into electrical energy to power the pump, which extracts or delivers water, offering an energy-efficient and self-sustaining water supply solution.

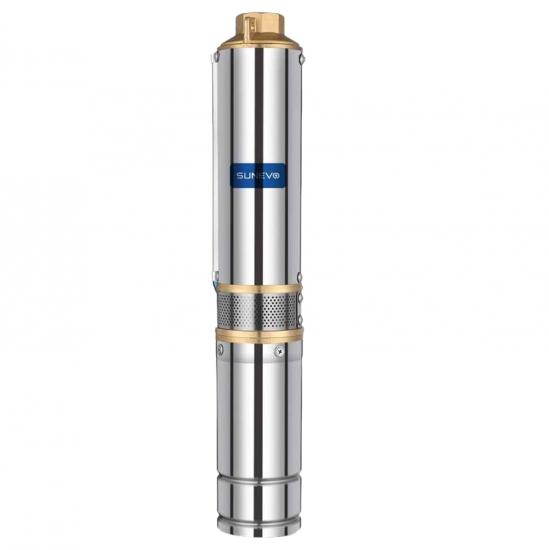

A Brushless Solar Pump with a Plastic Impeller is a type of solar-powered pump that uses a brushless DC motor and features an impeller made of plastic for moving water. These pumps offer eco-friendly operation by using renewable solar energy, reducing the carbon footprint. Their brushless motors and plastic impellers ensure low maintenance with minimal servicing needs, leading to lower costs. Additionally, they deliver reliable performance in varying sunlight conditions, providing consistent water output throughout the day.
A Brushless Solar Pump with a Plastic Impeller is a type of solar-powered pump that uses a brushless DC motor and features an impeller made of plastic for moving water. These pumps offer eco-friendly operation by using renewable solar energy, reducing the carbon footprint. Their brushless motors and plastic impellers ensure low maintenance with minimal servicing needs, leading to lower costs. Additionally, they deliver reliable performance in varying sunlight conditions, providing consistent water output throughout the day.
A Brushless Solar Pump with a Plastic Impeller is a type of solar-powered pump that uses a brushless DC motor and features an impeller made of plastic for moving water. These pumps offer eco-friendly operation by using renewable solar energy, reducing the carbon footprint. Their brushless motors and plastic impellers ensure low maintenance with minimal servicing needs, leading to lower costs. Additionally, they deliver reliable performance in varying sunlight conditions, providing consistent water output throughout the day.
A Brushless Solar Pump with a Plastic Impeller is a type of solar-powered pump that uses a brushless DC motor and features an impeller made of plastic for moving water. These pumps offer eco-friendly operation by using renewable solar energy, reducing the carbon footprint. Their brushless motors and plastic impellers ensure low maintenance with minimal servicing needs, leading to lower costs. Additionally, they deliver reliable performance in varying sunlight conditions, providing consistent water output throughout the day.
A Brushless Solar Pump with a Plastic Impeller is a type of solar-powered pump that uses a brushless DC motor and features an impeller made of plastic for moving water. These pumps offer eco-friendly operation by using renewable solar energy, reducing the carbon footprint. Their brushless motors and plastic impellers ensure low maintenance with minimal servicing needs, leading to lower costs. Additionally, they deliver reliable performance in varying sunlight conditions, providing consistent water output throughout the day.
A Brushless Solar Pump with a Plastic Impeller is a type of solar-powered pump that uses a brushless DC motor and features an impeller made of plastic for moving water. These pumps offer eco-friendly operation by using renewable solar energy, reducing the carbon footprint. Their brushless motors and plastic impellers ensure low maintenance with minimal servicing needs, leading to lower costs. Additionally, they deliver reliable performance in varying sunlight conditions, providing consistent water output throughout the day.
A Brushless Solar Pump with a Plastic Impeller is a type of solar-powered pump that uses a brushless DC motor and features an impeller made of plastic for moving water. These pumps offer eco-friendly operation by using renewable solar energy, reducing the carbon footprint. Their brushless motors and plastic impellers ensure low maintenance with minimal servicing needs, leading to lower costs. Additionally, they deliver reliable performance in varying sunlight conditions, providing consistent water output throughout the day.
