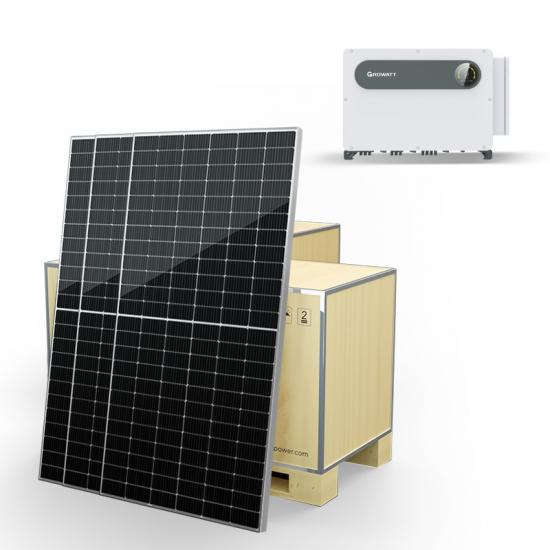

Complete Kit Roof-Top 150KW 300KW 1MW 230/400V On Grid Structure Solar System

When designing the inclination angle of the solar cell array for the grid-connected photovoltaic power generation system, the angle corresponding to the maximum amount of solar radiation received throughout the year can be used to maximize the power generation capacity of the solar cell array.

  • Brand:

    SunEvo
  • Model:

    SE100KW-ON/SE200KW-ON/SE300KW-ON/SE500KW-ON/SE1000KW-ON
  • PV Panel:

    Mono(Poly Optional)
  • Inverter Power:

    100KW/200KW/300KW/500KW/1000KW
  • Accessories:

    PV Cable/Y Branch Connector/MC4 Connector/PV Tools/Switch
  • Mountings Rack:

    Metal Roof,Asphalt Shingle,Tile Roof,Tin Roof,Flat Concrete Roof
  • Application:

    Home, Remote Cabin, Villa, Apartment
  • OEM:

    Acceptable

New Products

Mono Solar Panels



Peak Power Watts: 550W (SE5-72H)

Maximum Power Voltage: 42.64V

Maximum Power Current: 12.90A

Open Circuit Voltage: 50.22V

Short Circuit Current: 13.70A

Dimensions: 2279×1134×35(30)mm

Weight: 26.9 kg (59.3 lb)

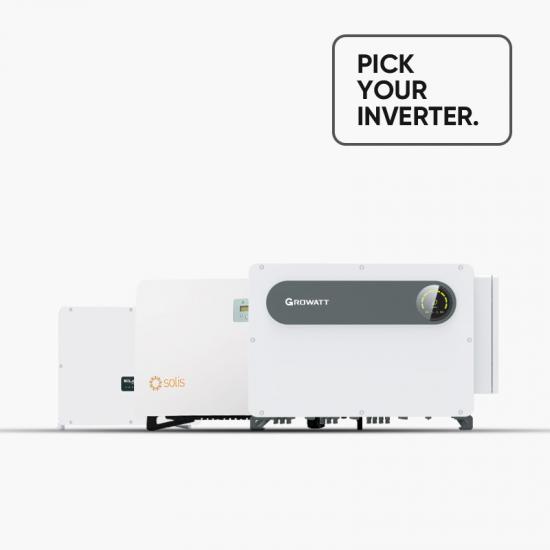

On Grid Solar Inverter



Different ratings of PV strings, PV modules of different sizes or technologies, strings in different directions (e.g. east, south and west), different tilt angles or shading, can all be connected to a common inverter on the converter, while each string operates at their respective maximum power peak.



Intelligent Monitoring



Cable free, easy installation

USB communication port

Build -in storage, 1 month data

Online monitoring and maintenance

  1.
  2.



Solar Panel Mounting Structure



Photovoltaic brackets can also be used in agricultural greenhouses, industrial parks and other places to provide solid support for photovoltaic power generation projects in different fields. Pre-assembly in the factory effectively reduces on-site installation time, reduces installation costs, and avoids the loss of small parts.

PV Combiner Box



The data acquisition unit is equipped with a human-machine interface. Through the human-machine interface, the real-time working status of the equipment can be viewed. The real-time working status of the equipment can be realized through the keyboard. The local setting of equipment parameters can be realized through the keyboard. When the component has backflow current, the photovoltaic Special DC fuses can cut off faulty strings in time.








Other Accessories



Solar panel install tools

PV cable(4m㎡,6m㎡,10m㎡ etc, optional)

DC and AC switch, protective effect

MC4(normal type, T and Y type etc)




On grid solar panel system meet certifications:



IEC 61215, IEC 61730, UL 61730

ISO 9001:2008: ISO Quality Management System

ISO 14001: 2004: ISO Environment Management System

OHSAS 18001: 2007 Occupational Health and Safety




FAQs:

     Q1: Do you support OEM service?

     A:Yes, we support OEM service, including Logo customization and packaging;

     Q2:How long is the delivery time?

     A: The delivery time is generally 15 working days after receiving the advance payment, if there is stock, it can be shipped immediately;

     Q3: Does it support door-to-door service?

     A:Yes, we have freight forwarders with many years of rich experience in the industry, who can deliver goods to the door and help customers clear customs and pay taxes;

     Q4:How many years of warranty and after-sales service are provided?

     A:We provide a unified 10-25 year warranty for different components in the system, and accessories can be replaced and sent for free.
