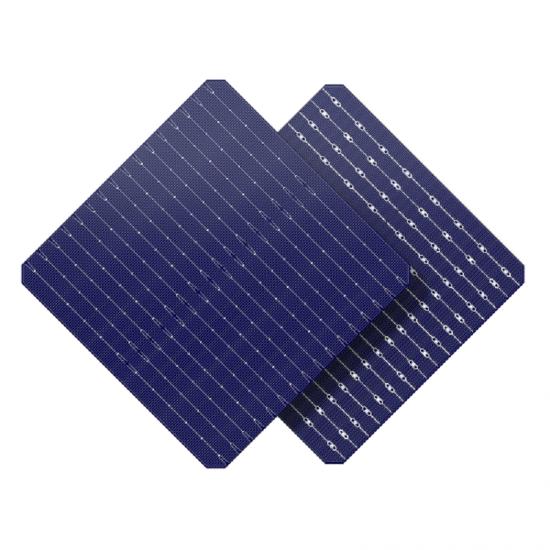

High Efficiency N-type TOPCon Solar Cells 182mm For Solar Module

Our solar cells feature superior resistance to LID and PID, with reduced sealing damage and lower CTM loss rates, making them ideal for high-efficiency modules. Additionally, they boast a low power temperature coefficient of -0.30%/°C, ensuring better performance even in low irradiance environments, with a relative conversion efficiency of up to 98% under low light conditions (200w/m²). With front efficiency at 22.5% and a bifaciality rate of approximately 80%, our panels offer high conversion efficiency for optimal energy production.

  • Brand:

    SunEvo
  • Mdel:

    182 mono-crystalline Bifacial solar cell (SE-182M-16D1)
  • Dimension:

    182mmx182mm±0.5mm, Φ 247.28mm±0.5mm
  • Thickness:

    130μm±13μm, 120μm±12μm

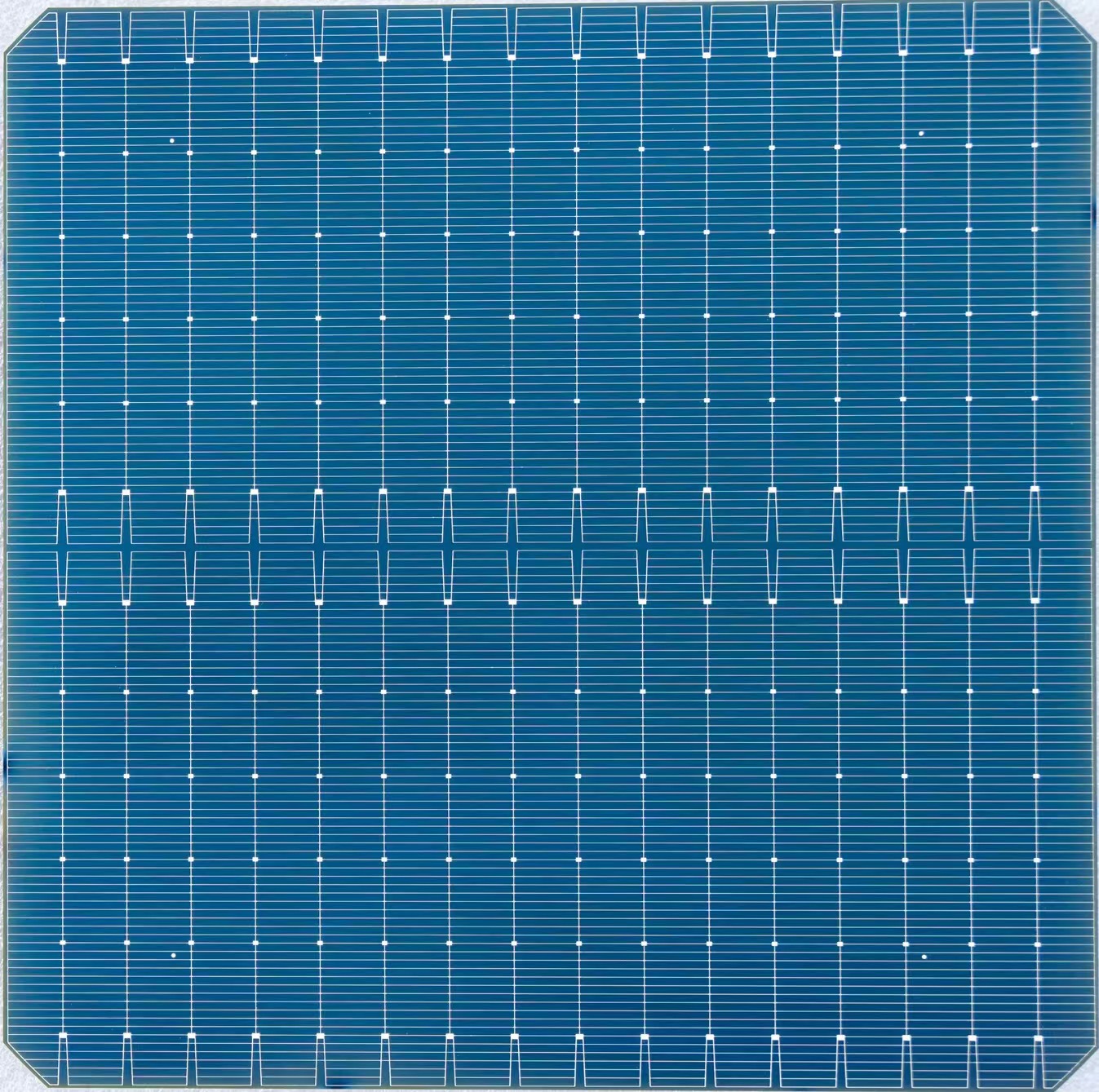

  • Front:

    16 busbars, 12 pads, 144 fingers, busbar width 0.036±0.02mm

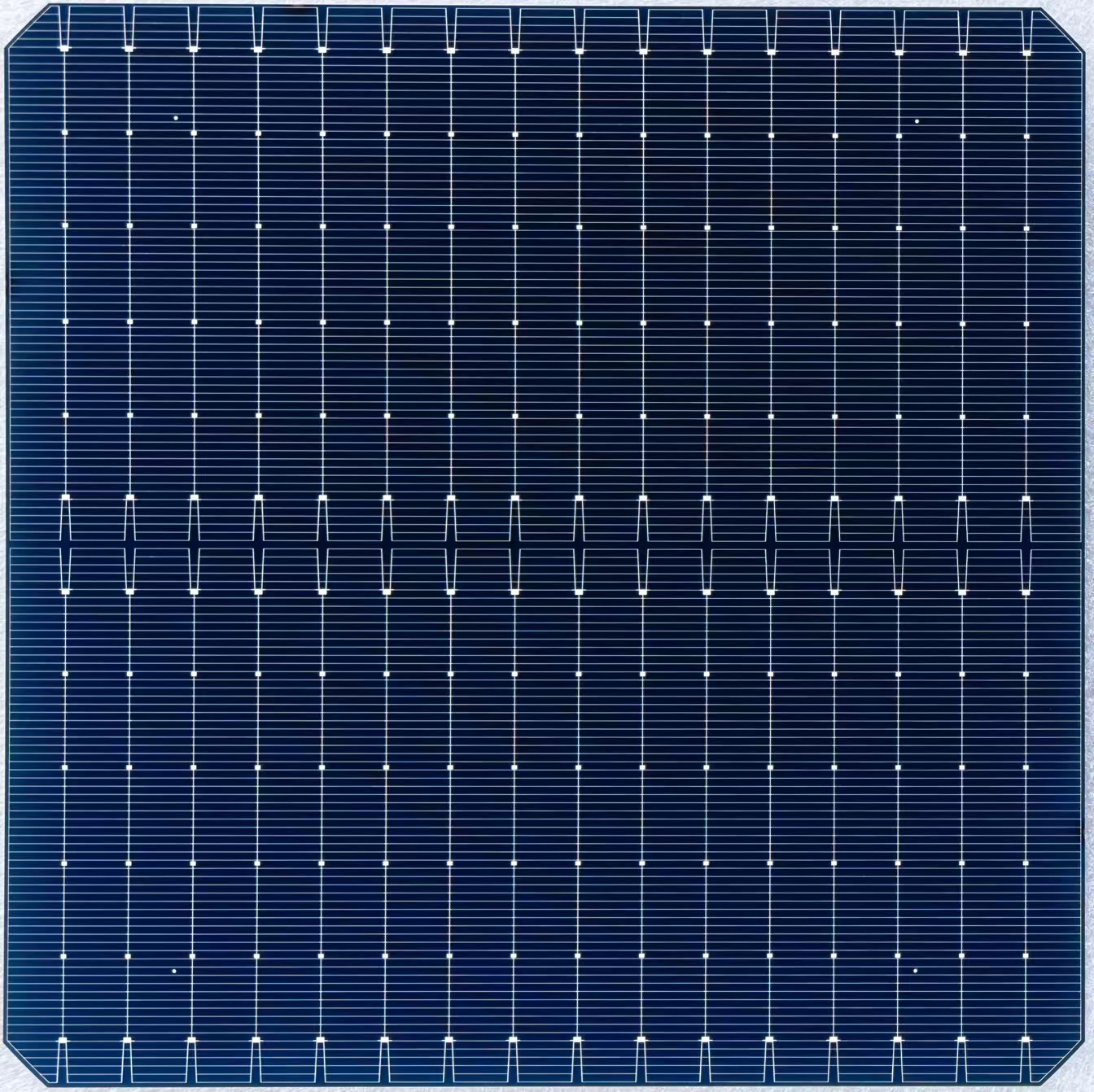

  • Back:

    16 busbars, 12 pads, 146 fingers, busbar width 0.036±0.02mm

New Products

Product Characteristics

Lower LlD
Superior anti-PlD performance
Lower Cell to Module (CTM) Loss Rate, more suitable for high-efficiency module
Temperature coefficient of Power as low as -0.30%/°C
Relative conversion efficiency is 98% under low light (200W/m?)
High Conversion Effciency: Front effciencyz25%,Bifaciality rate ≥80%

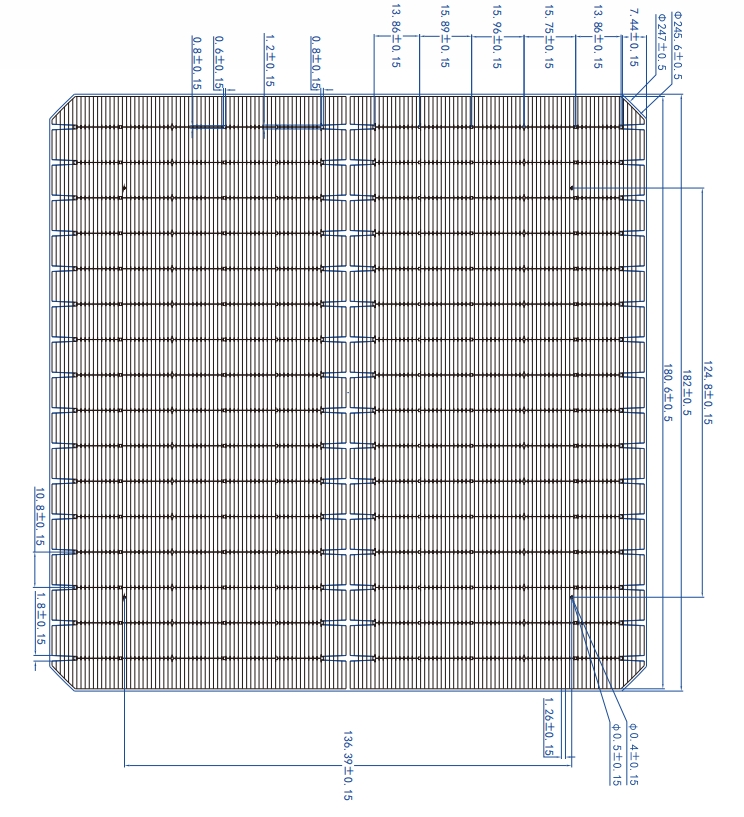

Mechanical Characteristics
Model: 182 mono-crystalline Bifacial solar cell (SE-182M-16D1)
Dimension: 182mmx182mm+0.5mm, Ф 247.28mm+0.5mm
Thickness: 130um+13um, 120um±12um
Front: 16 busbars,12 pads, 144 fingers, busbar width 0.036+0.02mm
Back: 16 busbars,12 pads, 146 fingers, busbar width 0.036+0.02mm




FAQs:
1. What is the MOQ?
1 pallet
2. What is the warranty?
25 years
