High Efficiency PERC Solar Cell 166mm Monocrystalline

PERC technology effectively enhances the light absorption and energy conversion efficiency of solar cells, leading to increased power output. This improvement in efficiency allows PERC solar cells to generate more electricity for a given area of solar panels, making them particularly attractive for rooftop installations and other space-constrained applications.

  • Brand:

    SunEvo
  • Mdel:

    PERC Monocrystalline solar cell
  • Dimension:

    166mm*166mm±0.25mm
  • Thickness:

    190±30um
  • Front:

    9*0.1±0.03mm silver segmented busbar
  • Back:

    1.3±0.25mm wide soldering silver pads

New Products

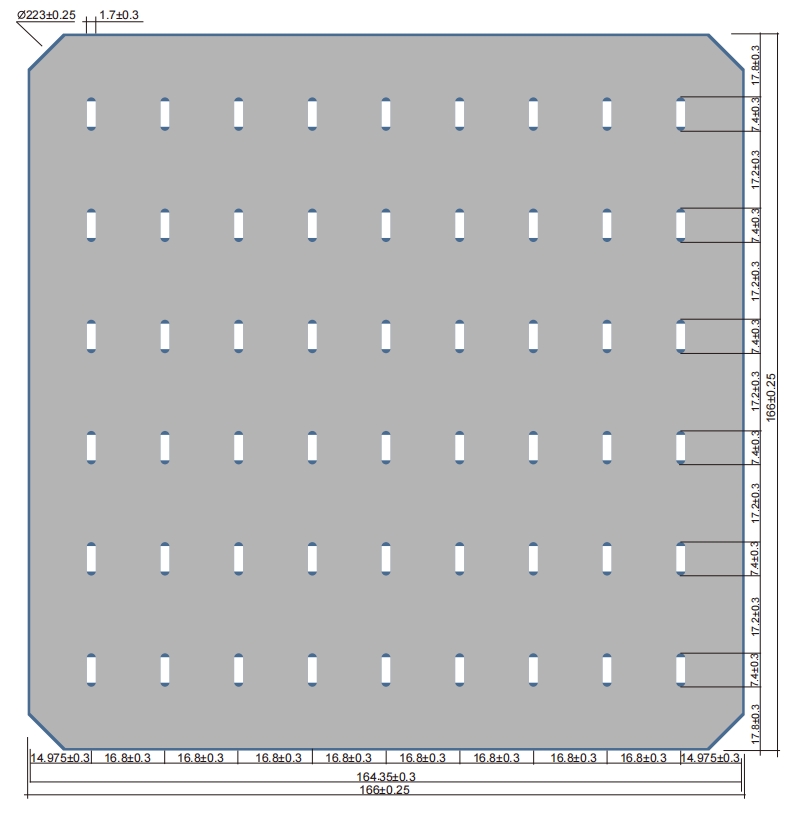

Mechanical Characteristics

Product: PERC Monocrystalline solar cell

Format: 166mm*166mm+0.25mm

Average Thickness(Si): 190+30um

Front Surface(-): 9*0.1+0.03mm silver segmented busbar Blue anti-reflecting, coating (silicon nitride)

Back Surface(+): 1.3+0.25mm wide soldering silver pads Back surface field (aluminum)

Temperature Characteristics


CurrentTemperature Coeffcient-lsc: TkCurrent:+0.07%/K
Voltage Temperature Coefficient-Voc: TkVoltage: -0.36%/K
Power Temperature Coefficient-Pmax: TkPower: -0.38%/K
