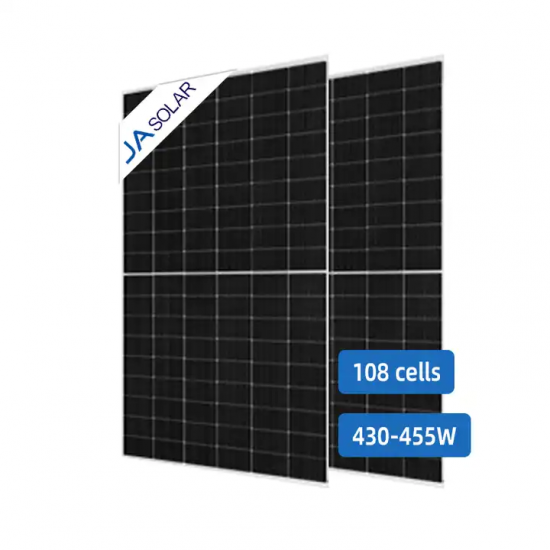

JA Solar N-Type Bifacial Solar Module Series Mono 445W 455W

JA solar JAM54D40 series is an n-type bifacial double glass high-efficiency mono module, with higher power generation better LCOE, n-type with very lower LID, better temperature coefficient, and better low irradiance response features, the max output power is 455W.

  • Power Range:

    430W~455W
  • Max. Efficiency:

    22.8%
  • Dimensions of Module L*W*H:

    1762×1134×30 mm
  • Weight:

    22kg
  • Number of Cells:

    108

New Products



The contributions of JA Solar to the global energy transition.



JA Solar's new generation of n-type high-efficiency DeepBlue 4.0 Pro photovoltaic modules uses independently developed n-type high-efficiency Bycium+ passivated contact cells, SMBB, and high-density packaging technology. The mass production power of the module reaches 630W, achieving higher power and efficiency. At the same time, lower attenuation, better temperature coefficient, higher bifacial ratio and better low-light performance bring better power generation performance, coupled with excellent reliability performance, the product has lower BOS cost and LCOE , effectively improving customer value.

Since the launch of DeepBlue 4.0 Pro series products, it has successively passed IEC standards and stricter tests, salt spray, ammonia, sand and dust tests, uneven snow load, flexible bracket matching, salt water wettability and many other reliability test items. It fully demonstrates the high-reliability performance of the product in various extreme environments.

JA Solar Technology's market share in Europe in 2022 will be as high as 23%, which fully demonstrates its good product reputation and high recognition in the European market. Previously, at the Intersolar exhibition in Munich, Germany, JA Solar won the "Top Photovoltaic Brand" in Europe in 2023 due to its product quality reliability, customer satisfaction, customer selection, and distribution range. In the future, JA Solar Technology will give full play to its own advantages, take quality as the basis and customer orientation, continue to adhere to technological innovation and invest in research and development, bring more efficient and reliable photovoltaic module products to customers, and contribute to the high-quality development of the industry and global energy. Transformation contribution.



item
value
Brand Name
Ja
Model Number
JAM54D40 LB
Place of Origin
jiangsu
Cell size
182mmx182mm
Type
Half Cell, Bifacial, Double-glass, Black Frame, N-TYPE, TOPCON, BIPV
Panel Dimensions
1762*1134*30mm
Panel Efficiency
22.8%
Warranty
30 Years
Application
Home Commercial Solar System
MOQ
36pcs/ Pallet
Packaging
936pcs/ 40'HQ Container
Front Glass/Back Glass
1.6mm High Transmission
Connector
QC4.10-351/MC4-EVO2A
Weight
22kg
