JA solar JAM54D40 series is an n-type bifacial double glass high-efficiency mono module, a power range from 430W to 455W. Powered by the latest SMBB n-type solar cell and half-cell configuration, these modules have higher output power.
Power Range:
430W~455WMax. Efficiency:
22.8%Dimensions of Module L*W*H:
1762×1134×30 mmWeight:
22kgNumber of Cells:
108

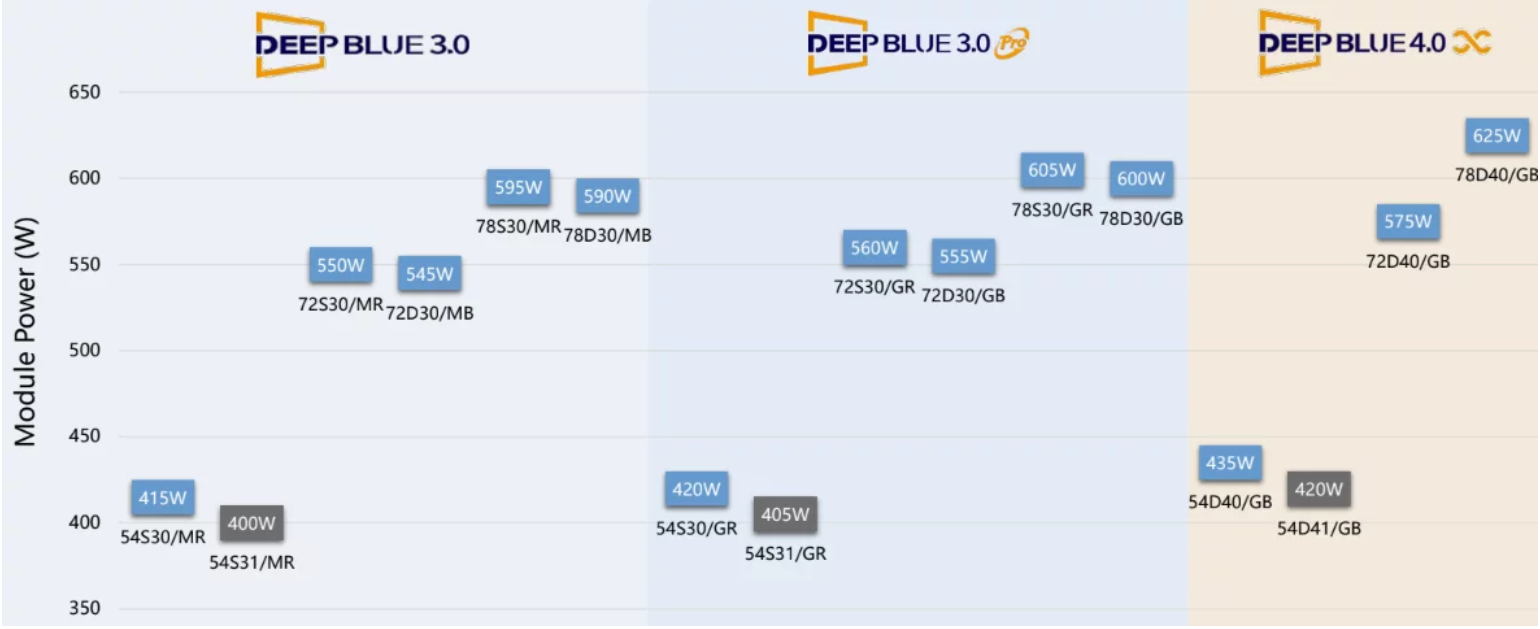

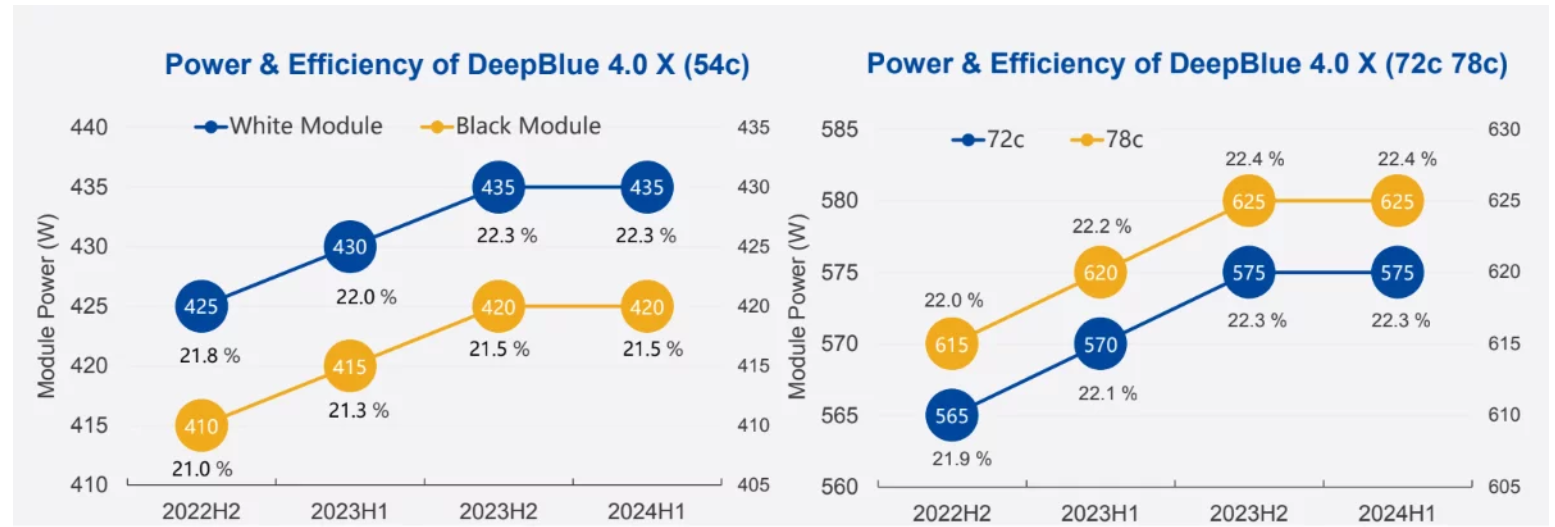

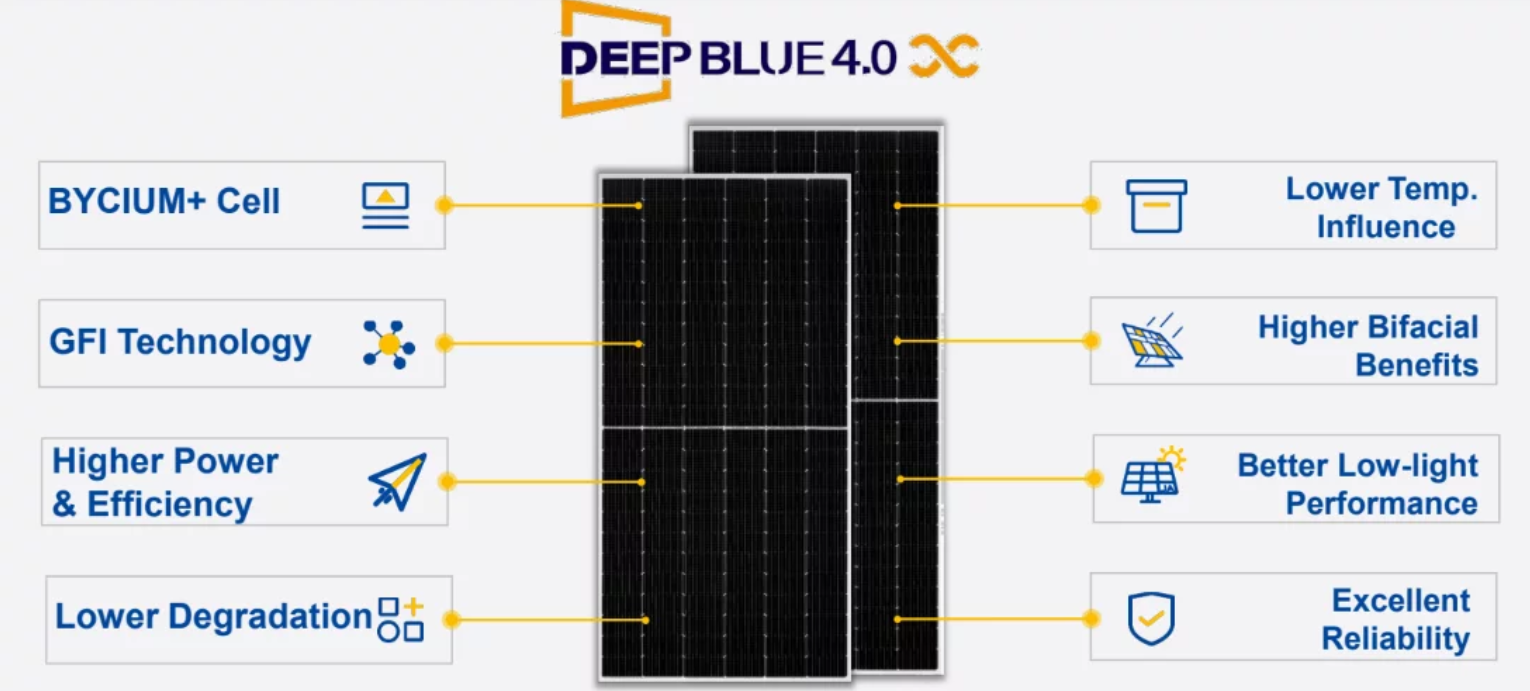

While perovskite technology stands out as the most efficient among photovoltaic (PV) panels, the prevailing choice in today's solar panels is monocrystalline. Within the domain of monocrystalline cells, N-type technology is anticipated to become the dominant solution in the market by 2023. With the advent of DeepBlue 4.0, JA Solar has transitioned to N-Type technology following the introduction of DeepBlue 3.0. The remarkable increase in efficiency to 22.4% was achieved through the incorporation of advanced N-type cells and innovative Gapless Flexible Interconnection (GFI) technologies.
This technological leap has propelled module power to an impressive 635W. Leveraging GFI technology, module power can be augmented by over 5 watts, accompanied by an increase in module efficiency by at least 0.2%. Noteworthy enhancements have been made in the degradation factor, with first-year degradation less than 1% and annual degradation over 30 years held below 0.4%. The temperature coefficient has been reduced to -0.30%/°C, showcasing minimal temperature-dependent power loss (ΔPmax/ ΔT). The overall power loss is a mere 2%, significantly surpassing the rigorous IEC standards. Moreover, the Bifacial Benefits have been elevated to an impressive 80%.
Below you will find the main products using all the above-mentioned technologies.
JAM72S30 LR series is a deep blue 3.0 series, that has higher power output, lower LCOE, less shading and lower resistive loss, and better mechanical loading tolerance.
JA solar JAM54D40 series is an n-type bifacial double glass high-efficiency mono module, with higher power generation better LCOE, n-type with very lower LID, better temperature coefficient, and better low irradiance response features, the max output power is 455W.
JA solar JAM54D40 series is an n-type bifacial double glass high-efficiency mono module, with higher power generation better LCOE, n-type with very lower LID, better temperature coefficient, and better low irradiance response features, the max output power is 455W.
Evo 4 Series 144 Half Cells 445W 450W 455W 460W 465W 470W 475 Watt Bifacial Dual Glass Solar PV Module N Type HJT / PERC Commercial Monocrystalline MBB Bifacial Double Side Glass Photovoltaic Solar Panel Module Based on 166mm Solar Cell
The solar energy storage system improves the user's self-use rate and brings greater benefits; currently the self-use part of the user's photovoltaic system is relatively low, perhaps less than 30%, and the combination of photovoltaic + energy storage will greatly provide spontaneous self-use ratio, thereby increasing user income.
Racking lithium batteries refers to the process of arranging and organizing them in a specific configuration to create a battery bank. This is commonly done in applications that require a larger capacity and higher voltage than what a single lithium battery can provide. When racking lithium batteries, it's important to consider safety measures and the specific requirements of the batteries you are using.
Evo 5 Series 108 Half Cells 10BB Solar PV Panel 400W 405W 410W 415Wp 420 Watt TUV CE Certificated Monocrystalline PERC Multi Busbar Photovoltaic Solar Panel Module Based on 182mm Solar Cells
JA solar JAM54D40 series is an n-type bifacial double glass high-efficiency mono module, with higher power generation better LCOE, n-type with very lower LID, better temperature coefficient, and better low irradiance response features, the max output power is 455W.
