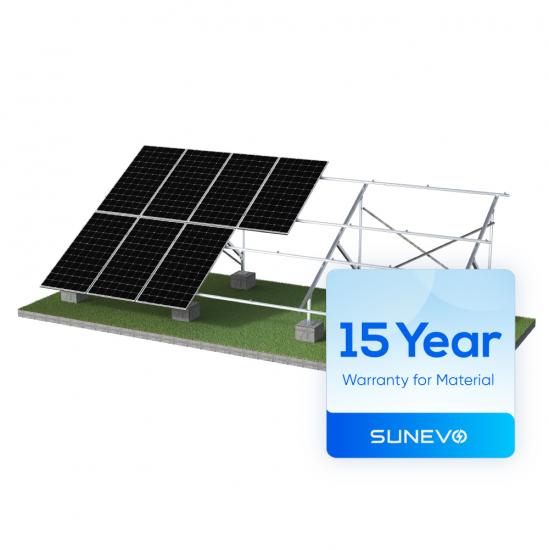

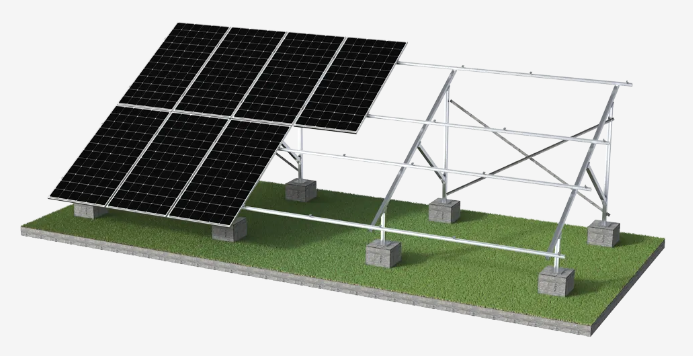

Sunevo Solar Pv Panel Ground Concrete Foundation Rack Mounting System Structure

The concrete mounting structure is a type of support system used to securely install solar PV panels on the ground or flat surfaces. It provides a stable base for the panels and ensures their optimal performance.

  • Brand:

    SunEvo
  • Installation Application:

    Concrete Foundation Rack System
  • PV Module Layout:

    Portrait or Landscape
  • Wind Load:

    80m/s or Customized
  • Snow Load:

    1.6KN/m2 or Customized
  • Inclination:

    Customized

New Products

Sunevo Solar Pv Panel Ground Concrete Foundation Rack Mounting System Structure





A solar panel concrete mounting structure refers to a system specifically designed to securely install solar panels on a concrete foundation or structure. It is a framework that provides structural support and stability for the solar panels, ensuring their optimal performance and longevity.






Technical Features of Concrete Foundation Rack Mounting Systems:

Product name Concrete Foundation Rack Mounting System
Installation Site
Flat concrete roofs and ground installations
Wind Load
80m/s or Customized
Snow Load
1.6KN/m2 or Customized
Applicable Solar Module
Framed
Panel Layout
Portrait or Landscape
Material AL 6005-T5, SUS 304, Q235

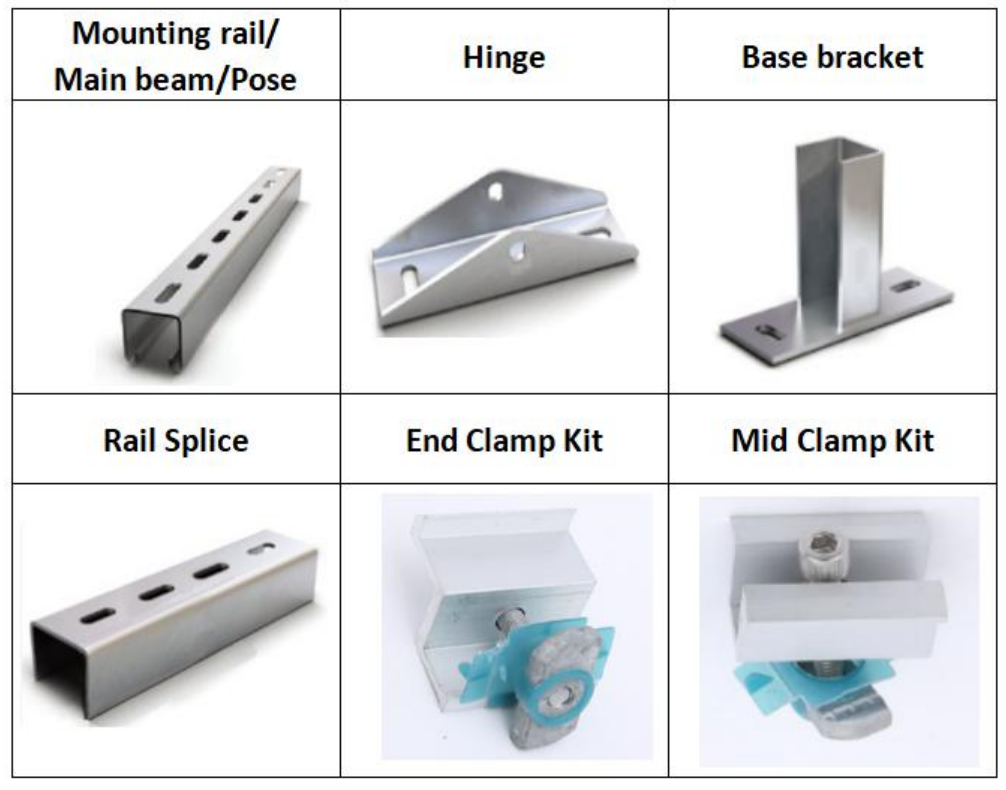

The Components of Concrete Foundation Rack Mounting Systems


The concrete structure consists of several components, including:



--Foundation: The foundation serves as the base of the structure and is typically made of concrete. It provides stability and load-bearing capacity to support the weight of the panels.



--Supports/Posts: These vertical elements are attached to the foundation and provide the framework that holds the panels in place. They are usually made of galvanized steel or aluminum.



--Cross Beams/Rails: These horizontal components connect the support posts and provide a framework for installing the solar panels. They are also made of steel or aluminum and are designed to withstand the weight and wind loads.



--Mounting Brackets: These brackets are used to secure the solar panels onto the cross beams or rails. They are adjustable and allow for easy positioning and orientation of the panels.






The Installation Processes of Concrete Foundation Rack Mounting Systems



The installation process for a concrete foundation rack mounting system typically involves the following steps:



1. Site Preparation: The installation site needs to be cleared of any obstacles or debris. The ground should be leveled and compacted to provide a stable foundation.



2. Foundation Construction: The foundation is constructed by pouring concrete into excavated areas or using precast concrete blocks. It should be designed to accommodate the weight and size of the structure.



3. Post Installation: Once the foundation is ready, the support posts are anchored into the concrete using appropriate fasteners. They are positioned according to the layout plan and aligned accurately.



4. Cross-beam Installation: The horizontal cross beams or rails are attached to the support posts, forming the framework for the solar panels. These beams are fixed securely using bolts or clamps.



5. Panel Mounting: The solar panels are then mounted onto the cross beams using the adjustable mounting brackets. The panels are positioned and secured to ensure optimal exposure to sunlight.






Package of Rack Mounting



Box or Crate Packaging: The individual packaged components are placed in suitable boxes or crates for consolidation and transportation. These boxes or crates are designed to withstand the rigors of shipping and handling, providing secure and organized packaging.
