SunEvo & SunArk Product Catalog
Products

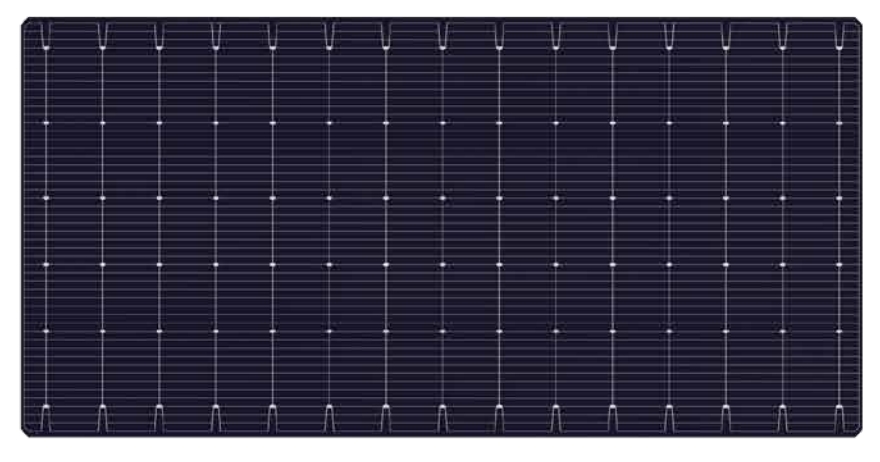

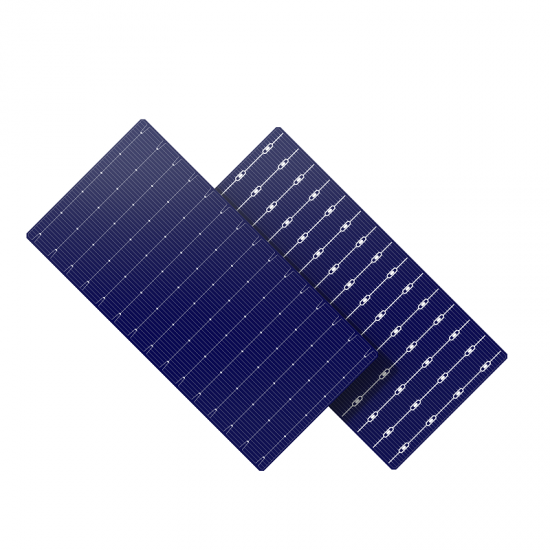

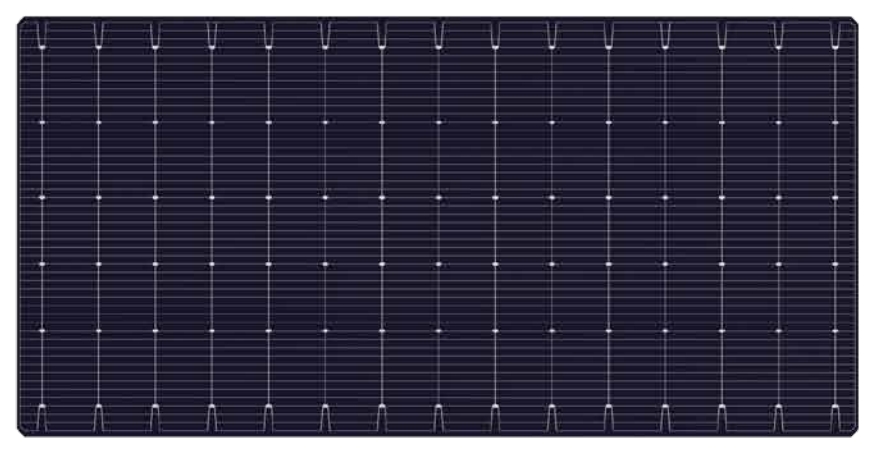

Heterojunction Solar Cell Great Performace With N-type Wafers

HJT solar cell is a new generation superior bifacial solar cell made out of an N-type wafer, which combines the merits of crystalline silicon and thin-film technology to form a single composite structure. As one of the most effective cell passivation technologies in the market, HJT ensures that solar cells deliver high efficiency and great power even in hot climates.

  • Brand:

    SunEvo
  • Mdel:

    HJT Monocrystalline solar cell
  • Dimension:

    15BB,N-type,210mm*105mm±0.25mm
  • Thickness:

    130μm±20μm
  • Front:

    15 soldering pads (silver)
  • Back:

    15 soldering pads (silver)

New Products

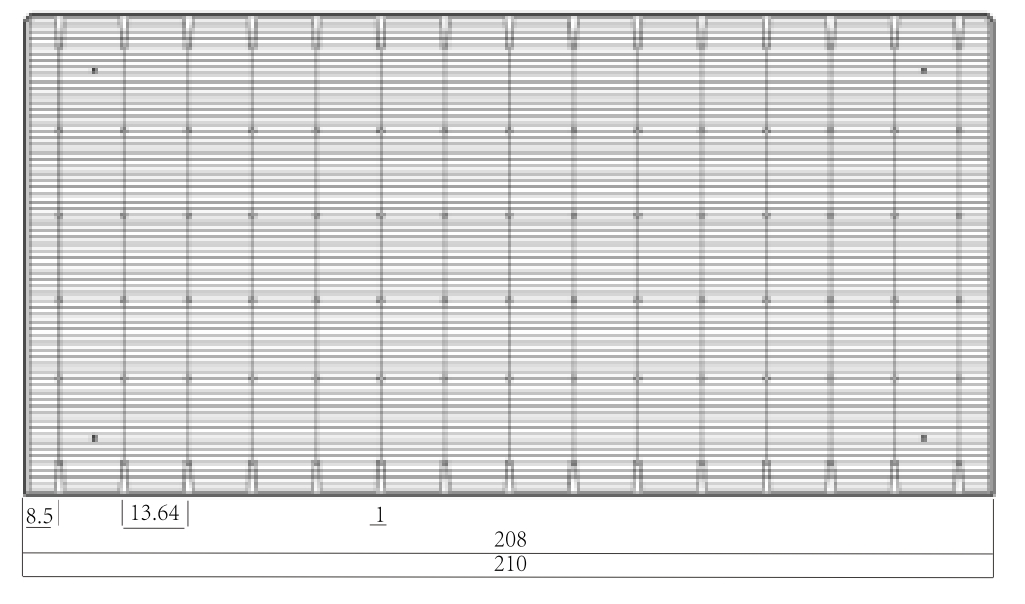

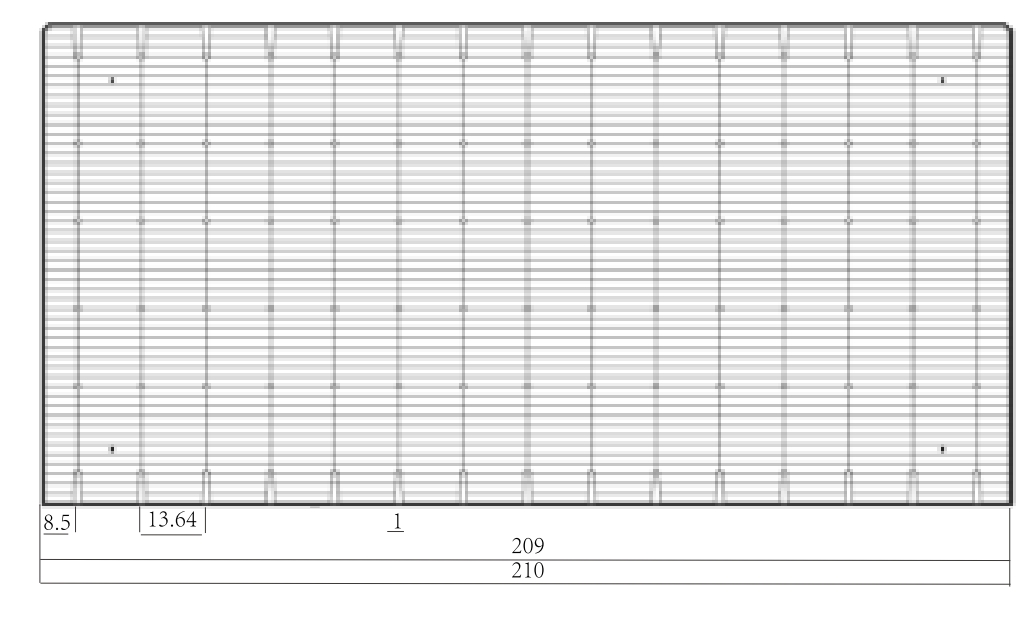

Mechanical Characteristics

Product: HJT Monocrystalline solar cell

Format: 15BB,N-type,210mm*105mm+0.25mm

Average Thickness(Si): 130 μ m+20 μ m

Front Surface(-): 15 soldering pads (silver)Dark blue anti-reflecting lTO coating (indium tin oxide)

Back Surface(+): 15 soldering pads (silver)Dark blue anti-reflecting ITO coating (indium tin oxide)

High Cell Efficiency

 Phosphorus fettering combines with the nano-crystalline process to guarantee higher cell efficiency.
Ultra-low temperature coefficiency ensures more power output in high-temperature environments.
No LID. No PID leads to zero degradation.

Maximum Module Power
15-busbar technology combines a half-cell design to deliver higher energy output for maximum cost savings.
Bifacial construction ensures more sunlight is captured and converted into power on the back side.
Extremely low LID and PID support reliability and longevity.
Lower LCOE cost by HJT solar system

Packaging and Store
18pcs/box, 120boxes/ctn, 2160pcs/carton
