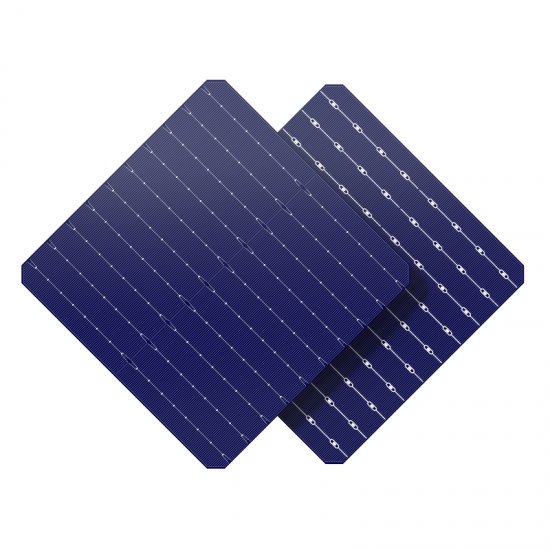

High Efficiency Monocrystalline PERC Technology Solar Cells 182mm Wafer

Our advanced solar technology presents internal friction reduction with a half-piece design, slashing friction by a quarter. Coupled with superior PID resistance and anti-PID performance, our modules ensure long-term durability. With reduced sealing damage and CTM loss rates, they are tailored for high-efficiency setups. Thanks to multiple bus bars, power loss is minimized, while boasting an impressive front efficiency exceeding 23.6% and a bifaciality rate of at least 70%, guaranteeing outstanding conversion rates for optimal energy production.

  • Brand:

    SunEvo
  • Mdel:

    182 mono-crystalline Bifacial solar cell (JT-182M-10D40)
  • Dimension:

    182mmx182mm±0.5mm, Φ 247mm±0.5mm
  • Thickness:

    175μm±17.5μm
  • Front:

    10 busbars, 14 pads, 170 fingers, busbar width 1.2±0.3mm
  • Back:

    10 busbars, 8 pads, 180 fingers, busbar width 1.2±0.3mm

New Products

Product Characteristics

Half-piece design internal friction reduction by 1/4
Superior anti-PlD performance
Lower Cell to Module (CTM) Loss Rate, more suitable for high-efficiency module
Multiple bus bars effectively reduce power loss
Front effciency≥23.6%,Bifaciality rate ≥70%

Mechanical Characteristics
Model: 182 mono-crystalline Bifacial solar cell (SE-182M-16D1)
Dimension: 182mmx182mm+0.5mm, Ф 247.28mm+0.5mm
Thickness: 175um+17.5um
Front: 10 busbars,14 pads, 170 fingers, busbar width 1.2+0.3mm
Back: 10 busbars,8 pads, 180 fingers, busbar width 1.2+0.3mm








FAQs:
1. What is the MOQ?
1 pallet
2. What is the warranty?
25 years
