Brand:
SunEvoPower Range:
555-575WMax. Efficiency:
22.2%Number of Cells:
144 Cells (6x24)Dimensions of Module L*W*H:
2285 x 1134 x 30mmWeight:
32.5kgFront Side Glass:
High transparency solar glass 2.0mmBack Side Glass:
High transparency solar glass 2.0mmFrame:
Black/Silver, anodized aluminium alloyJunction Box:
IP68 Rated, 3 DiodesCable:
4.0mm2, Portrait: 300mm / Landscape: 1400mmWind/Snow Load:
2400Pa/5400PaConnector:
MC CompatibleBifaciality:
80±5%

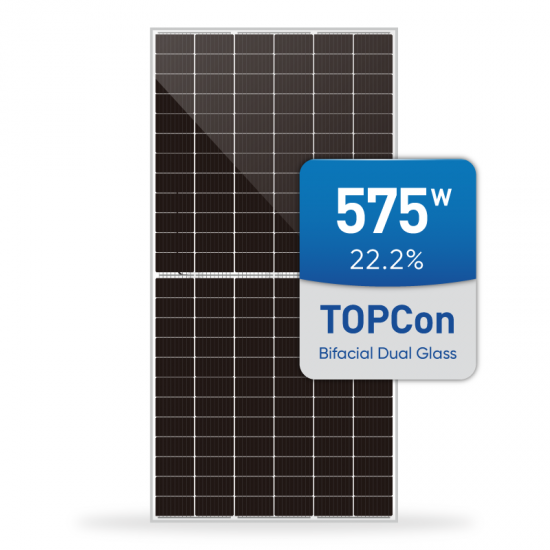

EVO 5 Pro Series N-type TOPCon 144 Half Cells 555W 560W 565W 570W 575W Bifacial Dual Glass Solar Module
Evo 5 Pro Series Bifacial modules combine leading N-type TOPCon technology, 11BB half-cell. The SunEvo N-type Bifacial Half-cell Module can reach power output up to 575W. N-type material has zero LID/LeTID risk, and make modules to be higher reliable, higher bifacility, higher efficiency, lower temperature coefficient and longer lifetime.
Electrical Specification
|
Maximum Power (Pmax/W) |
555 |
560 |
565 |
570 |
575 |
|
Maximum Power Voltage (Vmp/V) |
42.2 |
42.4 |
42.6 |
42.8 |
43.0 |
|
Maximum Power Current (Imp/A) |
13.16 |
13.21 |
13.27 |
13.32 |
13.38 |
|
Open Circuit Voltage (Voc/V) |
50.4 |
50.6 |
50.8 |
51.0 |
51.2 |
|
Short Circuit Current (Isc/A) |
13.93 |
13.99 |
14.05 |
14.11 |
14.17 |
|
Module Efficiency (%) |
21.42 |
21.61 |
21.80 |
22.19 |
22.19 |
|
Power Output Tolerance (W) |
0~+5W |
||||
|
Temperature Coefficient of Isc |
+0.046%/°C |
||||
|
Temperature Coefficient of Voc |
-0.260%/°C |
||||
|
Temperature Coefficient of Pmax |
-0.310%/°C |
||||
Certifications
All of SunEvo's products have been certified by professional third-party testing bodies around the world, and the testing conditions are complex and diverse, from ordinary installation conditions to various extreme weather conditions, natural environments. We pursue the ultimate in quality and provide the best guarantee for customers' assets and profits.
· ISO 9001: 2015: ISO Quality Management System
· ISO 14001: 2015: ISO Environment Management System
· ISO 45001: 2018: Occupational Health and Safety
· CE & EU declaration of conformity
· IEC 61215 / IEC 61730 Anti-PID Test for Photovoltaic Module
· IEC 61701 Salt Mist Corrosion Test for Photovoltaic Module
· IEC 60068-2-68 Dust and Sand Test for Photovoltaic Module
· UL1703 / UL 61730 – PV Module Safety Standards by UL / CSA / INTERTEK
· Italian First-Class Report on Fire Prevention
· INMETRO Ex Tariff for Brazil
· MCS / JEPC & JET / CEC(Clean Energy Council) approved PV modules / FIDE / CB / DEWA / RETIE
Core Advantages of N-type TOPCon Solar Panel
10-30% Additional Power Generation
30 years lifespan brings 10-30% additional power generation comparing with conventional P-type module
ZERO LID (Light Induced Degradation)
N-type solar cell has no LID naturally which can increase power generation
Lower LCOE
Higher bifaciality, higher power output and lower BOS cost
Better Weak Illumination Response
Higher power output even under low-light environments like on cloudy or foggy days
Better Temperature Coefficient
Higher power generation under working conditions, thanks to passivating contact cell technology
Wider Applicability
More application scenes like BIPV, vertical installation, snowfield, high-humid, windy and dusty area
