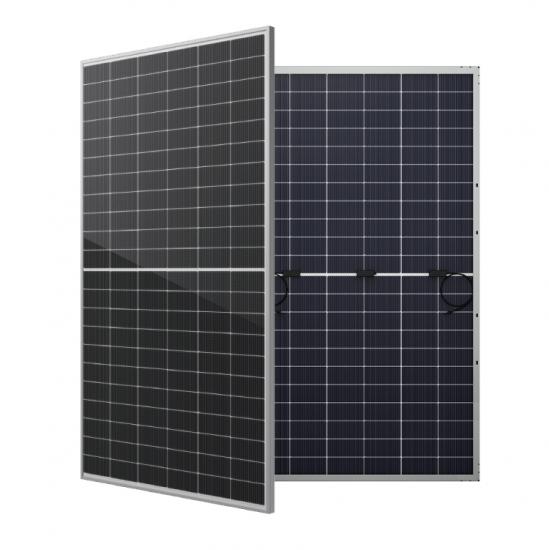

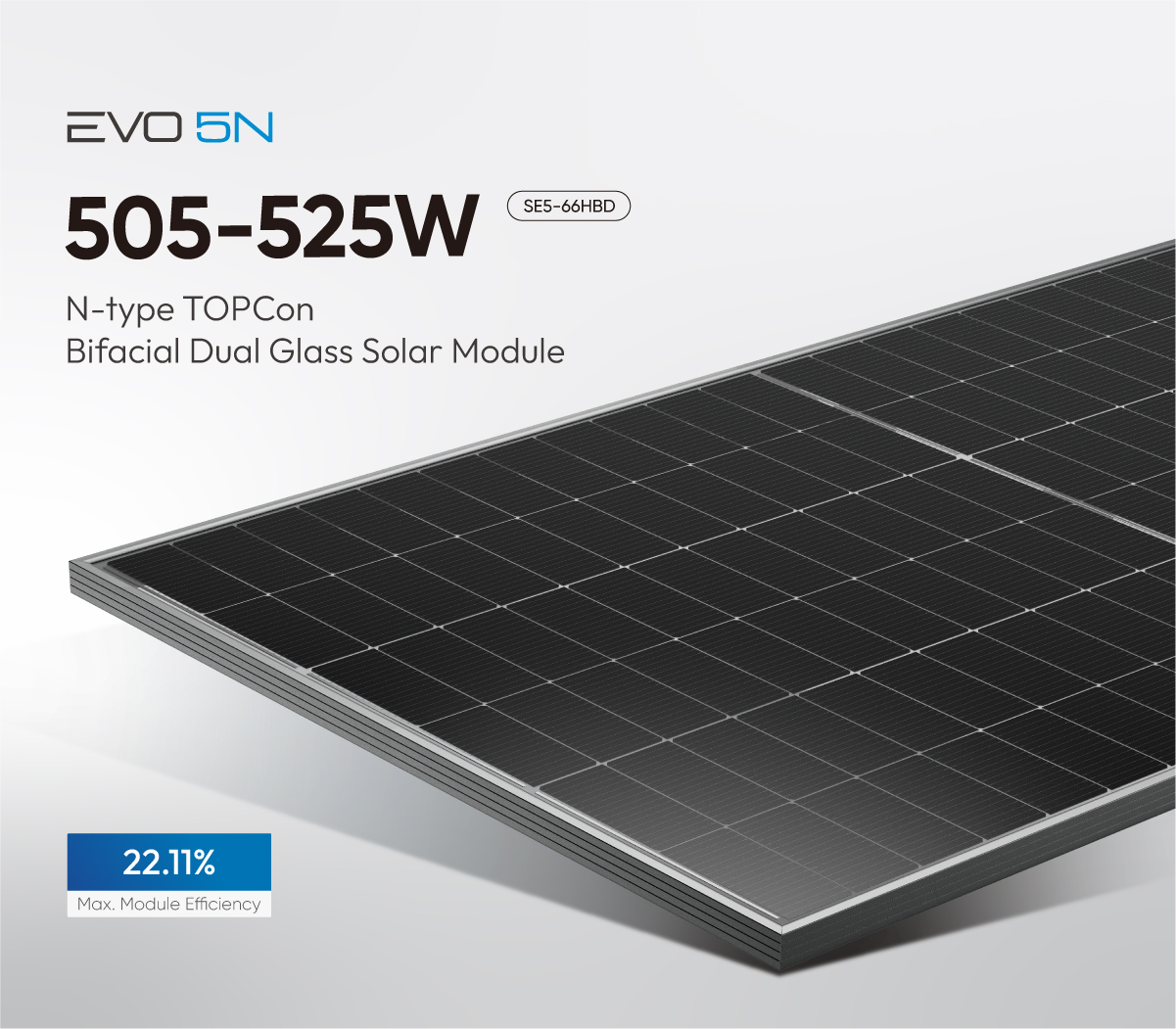

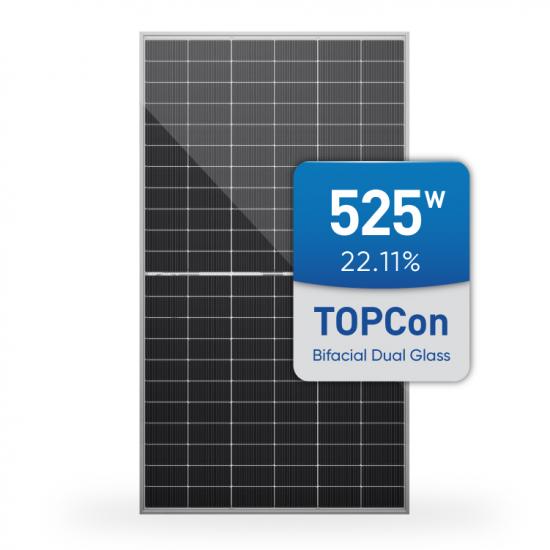

EVO 5N Series Bifacial modules combine leading N-type TOPCon technology, 182mm silicon wafer, and 16BB half-cell. The SunEvo N-type Bifacial Half-cell Module can reach a power output of range between 505W to 525W.
Brand:
SunEvoPower Range:
505W~525WMax. Efficiency:
22.11%Number of Cells:
132 (6×20)Dimensions of Module L*W*H:
2094 x 1134 x 30mmWeight:
28.5kgsFront Side Glass:
2.0mm coated semi-tempered glassBack Side Glass:
2.0mm semi-tempered glassFrame:
Anodized aluminium alloyJunction Box:
Ip68 rated (3 bypass diodes)Cable:
4mm2 , 300mm (+) / 300mm (-), Length can be customizedWind/Snow Load:
5400PaConnector:
MC4 compatibleBifaciality:
80±5%EVO 5N N-type TOPCon 132 Half Cells 505W 510W 515W 520W 525W Bifacial Dual Glass Solar Module
EVO 5N Series Bifacial modules combine leading N-type TOPCon technology, 182mm silicon wafer, and 16BB half-cell. The SunEvo N-type Bifacial Half-cell Module can reach a power output of up to 525W. Excellent re-rating, weather resistance, salt spray, sand dust, and ammonia performance which is fully applicable in coastal, high temperature, humidity areas, and harsh environments.
Electrical Parameters (STC*)
|
Maximum Power (Pmax/W) |
505 |
510 |
515 |
520 |
525 |
|
Maximum Power Voltage (Vmp/V) |
38.26 |
38.43 |
38.61 |
38.78 |
38.95 |
|
Maximum Power Current (Imp/A) |
13.20 |
13.27 |
13.34 |
13.41 |
13.48 |
|
Open Circuit Voltage (Voc/V) |
46.59 |
46.75 |
46.92 |
47.08 |
47.24 |
|
Short Circuit Current (Isc/A) |
13.91 |
13.98 |
14.05 |
14.12 |
14.19 |
|
Module Efficiency (%) |
21.27 |
21.48 |
21.69 |
22.90 |
22.11 |
|
Power Output Tolerance (W) |
0/+5W |
||||
|
Temperature Coefficient of Isc |
+0.045%/°C |
||||
|
Temperature Coefficient of Voc |
-0.250%/°C |
||||
|
Temperature Coefficient of Pmax |
-0.290%/°C |
||||
| 5% | Maximum Power (Pmax/W) | 530 | 536 | 541 | 546 | 551 |
| Module Efficiency STC(%) | 22.33 | 22.55 | 22.77 | 22.99 | 23.21 | |
| 15% | Maximum Power (Pmax/W) | 581 | 587 | 592 | 598 | 604 |
| Module Efficiency STC(%) | 24.46 | 24.70 | 24.94 | 25.18 | 25.43 | |
| 25% | Maximum Power (Pmax/W) | 631 | 638 | 644 | 650 | 656 |
| Module Efficiency STC(%) | 26.58 | 26.85 | 27.11 | 27.37 | 27.64 |
Certifications
All of SunEvo's products have been certified by professional third-party testing bodies around the world, and the testing conditions are complex and diverse, from ordinary installation conditions to various extreme weather conditions, and natural environments. We pursue the ultimate in quality and provide the best guarantee for customers' assets and profits.
Evo 5 Series 144 Half Cells 555W 560W 565W 570 Wp 575 Watt Solar PV Panels N-type TOPCon Monocrystalline MBB Bifacial Double Side Glass Photovoltaic Solar Panel Module Based on 182mm Solar Cell
Evo 5 Pro Series 108 Half Cells 430W 425W 420W 415W 410 Watt Solar PV Panels N-type TOPCon Monocrystalline MBB Bifacial Double Side Glass Photovoltaic Solar Panel Module Based on 182mm Solar Cell
EVO 5N Series Bifacial modules combine leading N-type TOPCon technology, adapt 182mm silicon wafer and 16BB half-cell, 120 cells. The power output range is 460W 465W 470W 475W 480W.

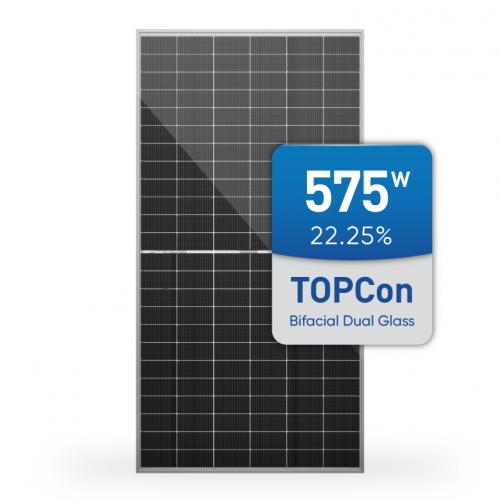

EVO 5N Series Bifacial modules combine leading N-type TOPCon technology, 182mm silicon wafer, and 16BB half-cell. Higher power generation under working conditions, thanks to passivating contact cell technology. The SunEvo N-type Bifacial Half-cell Module can reach a power output range between 555W to 575W.
