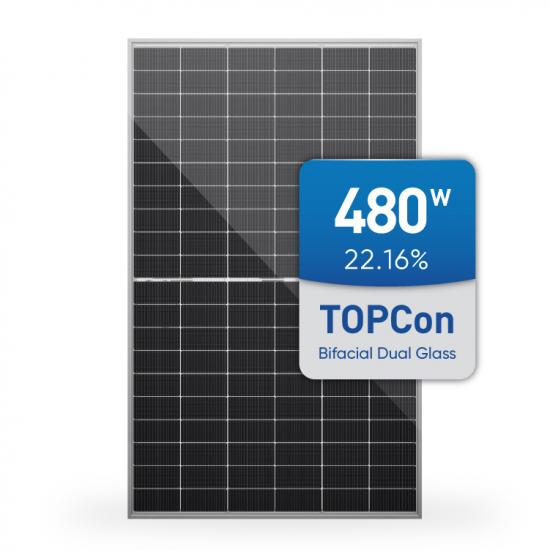

EVO 5N Series Bifacial modules combine leading N-type TOPCon technology, adapt 182mm silicon wafer and 16BB half-cell, 120 cells. The power output range is 460W 465W 470W 475W 480W.
Brand:
SunEvoPower Range:
460W~480WMax. Efficiency:
22.16%Number of Cells:
120 (6×20)Dimensions of Module L*W*H:
1910 x 1134 x 30mmWeight:
26.0kgsFront Side Glass:
2.0mm coated semi-tempered glassBack Side Glass:
2.0mm semi-tempered glassFrame:
Anodized aluminium alloyJunction Box:
Ip68 rated (3 by pass diodes)Cable:
4mm2 , 300mm (+) / 300mm (-), Length can be customizedWind/Snow Load:
5400PaConnector:
MC4 compatibleBifaciality:

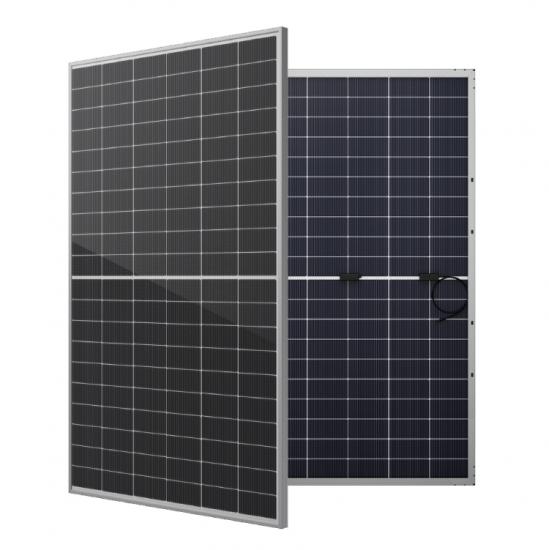

80±5%EVO 5N N-type TOPCon 120 Half Cells 460W 465W 470W 475W 480W Bifacial Dual Glass Solar Module
EVO 5N Series Bifacial modules combine leading N-type TOPCon technology, 182mm silicon wafer, and 16BB half-cell. The SunEvo N-type Bifacial Half-cell Module can reach a power output of up to 480W. N-type material adapted SunEvo's latest S-TOPCo 2.0 technology, no polysilicon wrap around, full electrical isolation, zero leakage current, much safe for the roof.
Electrical Parameters (STC*)
|
Maximum Power (Pmax/W) |
460 |
465 |
470 |
475 |
480 |
|
Maximum Power Voltage (Vmp/V) |
34.93 |
35.12 |
35.31 |
35.50 |
35.69 |
|
Maximum Power Current (Imp/A) |
13.17 |
13.24 |
13.31 |
13.38 |
13.45 |
|
Open Circuit Voltage (Voc/V) |
42.51 |
42.72 |
42.94 |
43.15 |
43.36 |
|
Short Circuit Current (Isc/A) |
13.88 |
13.95 |
14.02 |
14.09 |
14.16 |
|
Module Efficiency (%) |
21.24 |
21.47 |
21.70 |
22.93 |
22.16 |
|
Power Output Tolerance (W) |
0/+5W |
||||
|
Temperature Coefficient of Isc |
+0.045%/°C |
||||
|
Temperature Coefficient of Voc |
-0.250%/°C |
||||
|
Temperature Coefficient of Pmax |
-0.290%/°C |
||||
| 5% | Maximum Power (Pmax/W) | 483 | 488 | 494 | 499 | 504 |
| Module Efficiency STC(%) | 22.30 | 22.54 | 22.78 | 23.03 | 23.27 | |
| 15% | Maximum Power (Pmax/W) | 529 | 535 | 541 | 546 | 552 |
| Module Efficiency STC(%) | 24.42 | 24.69 | 24.95 | 25.22 | 25.49 | |
| 25% | Maximum Power (Pmax/W) | 575 | 581 | 588 | 594 | 600 |
| Module Efficiency STC(%) | 26.55 | 26.84 | 27.12 | 27.41 | 27.70 |
Certifications
All of SunEvo's products have been certified by professional third-party testing bodies around the world, and the testing conditions are complex and diverse, from ordinary installation conditions to various extreme weather conditions, and natural environments. We pursue the ultimate in quality and provide the best guarantee for customers' assets and profits.
