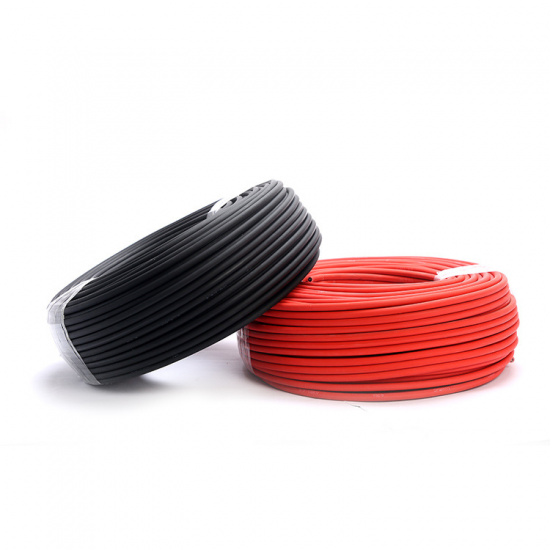

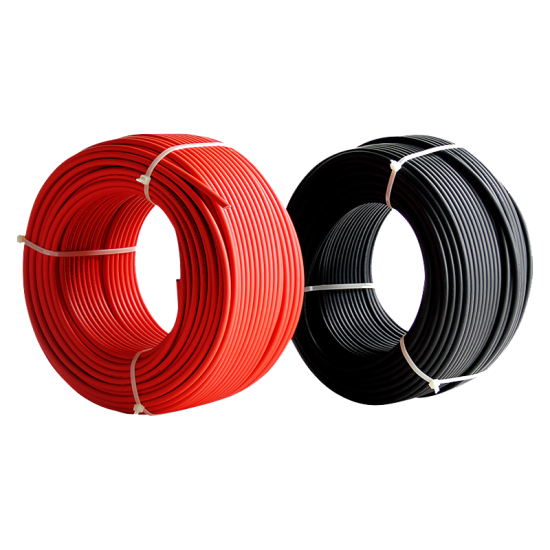

It's the connecting bridge between solar panels and inverters and is crucial for the efficient transmission of photovoltaic power.
Brand:
SunEvoRated voltage:
DC 1500 V AC Uo/U：1.0/1.0kVMax .permitted voltage:
Uo 1800 V DCInsulation resistance:
1000MΩ/KMTest Voltage(AC):
AC 6. 5kV, 50Hz, 5 minTemperature range:
-40°C to +90°C, Max.temp. at conductor + 120°CShort circuit temperature:
250°C for 5 sFlame-resistant test:
acc.to EN 60332-1-2 25years
Excellent environmental characteristics
High temperature resistance, cold resistance, aging resistance, UV resistance, low smoke and halogen-free, high flame retardancy, etc. These characteristics allow photovoltaic special DC cables to maintain stable working conditions under harsh environmental conditions.
Wire types to meet different environments
Depending on the usage environment and power requirements, there are many types of photovoltaic-specific DC cables, including but not limited to: PV1-F, PV1-F1, PV1-F2, PV1-F3, etc. These different types of cables have different conductor cross-sectional areas, insulation materials, sheath materials, etc. to meet different power transmission needs and usage environment requirements.
DC PV Cable Meet Certifications And Application standard
TUV 2PfG 1169/08.2007 PV-F UNE 211 23:UNE 20.460-5-52 UTEC 32-502
FAQs:
Q1:How long is the delivery time?
A: The delivery time is generally 5 working days after receiving the advance payment, if there is stock, it can be shipped immediately；
Q2: Does it support door-to-door service？
A：Yes, we have freight forwarders with many years of rich experience in the industry, who can deliver goods to the door and help customers clear customs and pay taxes;
Q3:How many years of warranty and after-sales service are provided?
A:We provide a unified 10 years warranty for DC solar cables.
Meter marking - easy installation & UV. ozone and hydrolysis resistant.
Cables carry the DC power generated at the panel back to a collection point or device. During the power transmission process, DC power can flow directly with minimal loss.
Photovoltaic special DC cable is an indispensable part of the photovoltaic power generation system. They have a variety of advantages and features that allow them to maintain stable working conditions under harsh environmental conditions.
