Trina NEG9R.28 445W solar panel is a high-performance solar module that has gained significant popularity in the market, especially for Germany residential installation.
Power Range:
425-450WMax. Efficiency:
22.3%Dimensions of Module L*W*H:
1762*1134*30 mmWeight:
21.1 kgNumber of Cells:

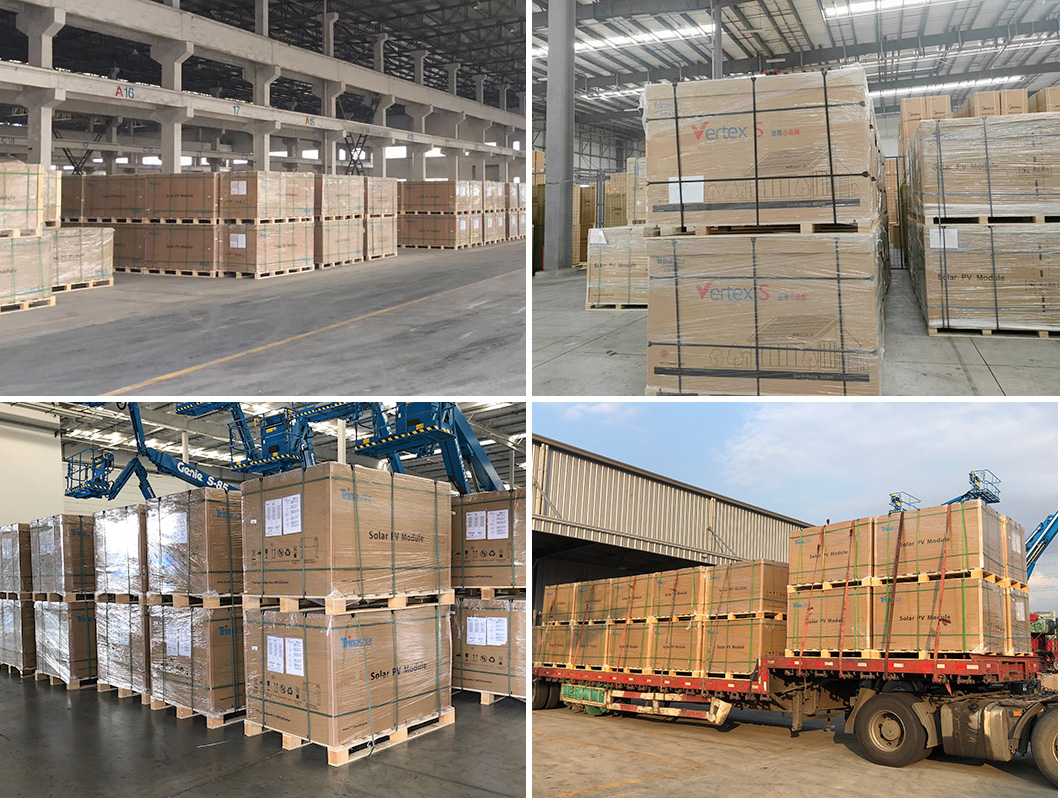

144 ( 6 * 24 )Trina Vertex S+ Residential NEG9R.28 Solar Panel 440W 445W 450W EU Europe Warehouse
Trina NEG9R.28 445W solar panel is a perfect design for European market, and it wins great reputation from most of the clients and installation companies.
Electrical Parameters (STC*)
|
Module model |
NEG9R.28 430W |
NEG9R.28 435W |
NEG9R.28 440W |
NEG9R.28 445W
|
NEG9R.28 450W
|
|
Maximum Power (Pmax/W) |
430 |
435 |
440 |
445 |
450 |
|
Open circuit voltage (Voc/V) |
51.4 |
51.8 |
52.2 |
52.6 |
53.0 |
|
Short circuit current (Isc/A) |
10.59 |
10.64 |
10.67 |
10.71 |
10.74 |
|
Peak power voltage (Vmp/V) |
43.2 |
43.6 |
44.0 |
44.3 |
44.6 |
|
Peak power current (Imp/A) |
9.96 |
9.99 |
10.01 |
10.05 |
10.09 |
|
Module Efficiency (%) |
21.5 |
21.8 |
22.0 |
22.3 |
22.5 |
|
Power Output Tolerance (W) |
0~3% |
||||
|
Temperature Coefficient of Isc |
+0.04%/°C |
||||
|
Temperature Coefficient of Voc |
-0.24%/°C |
||||
|
Temperature Coefficient of Pmax |
-0.30%/°C |
||||
|
Standard test conditions |
STC：AM1.5 1000W/m² 25℃ |
||||
Germany has been a global leader in promoting renewable energy and has implemented favorable policies and incentives to encourage the adoption of solar power. This incentivizes homeowners and businesses to invest in solar panels to generate clean and sustainable electricity.
The Trina NEG9R.28 445W solar panel is highly popular in Germany for several reasons.
Firstly, its impressive power output of 445W makes it one of the most efficient solar panels available in the market. This high power output enables users to generate more electricity and maximize their energy production.
Another reason for its popularity is its excellent performance under challenging weather conditions. Germany experiences varying weather patterns, including cloudy days and low light conditions. The Trina NEG9R.28 445W solar panel is designed to have a high efficiency even under low light conditions, allowing it to generate electricity consistently, even on cloudy days. This reliability in less-than-optimal conditions makes it an ideal choice for Germany's climate.

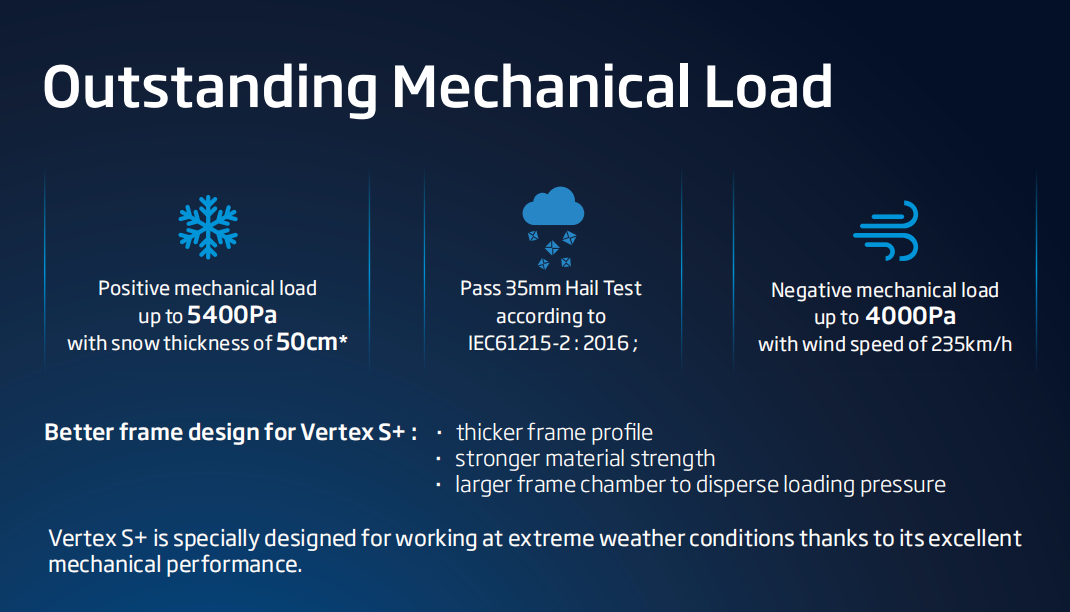

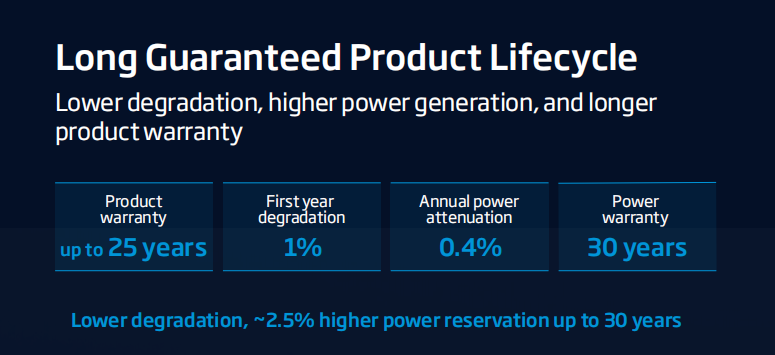

Additionally, the Trina NEG9R.28 445W solar panel is known for its durability and long lifespan. It is built with high-quality materials and undergoes rigorous testing to ensure it can withstand extreme weather conditions, including hail, snow, and strong winds. This durability factor is highly valued in Germany, where solar panels need to endure harsh winters and fluctuating weather patterns.
Furthermore, the Trina NEG9R.28 445W solar panel is backed by Trina Solar, a reputable and established solar panel manufacturer. Trina Solar is known for its commitment to quality and innovation, and its products are widely trusted in the industry. The solid reputation of the manufacturer adds to the popularity of the Trina NEG9R.28 445W solar panel among consumers and installers in Germany.

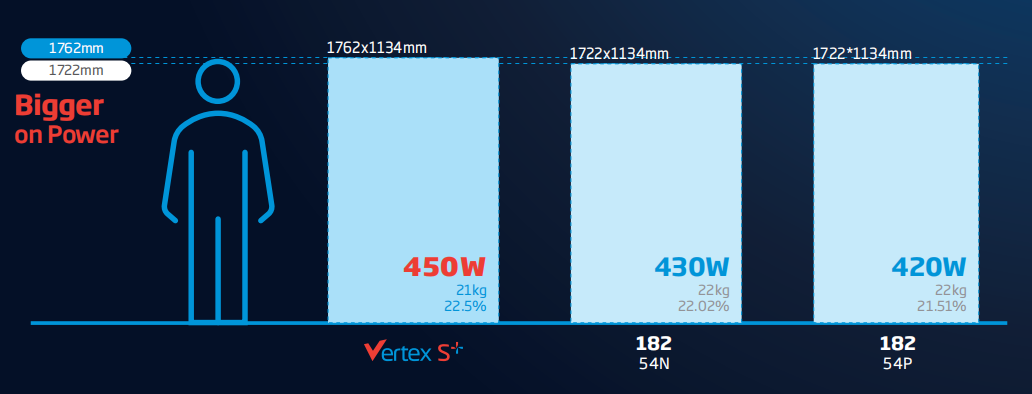

Lastly, the dimension of 1762*1134*30mm makes it a convenient option for rooftop installations, which are common in Germany. The compact size allows for easy integration into different types of roofs, maximizing the available roof space for solar energy generation.
In conclusion, the Trina NEG9R.28 445W solar panel's exceptional power output, reliable performance in challenging conditions, durability, and the reputation of its manufacturer make it a highly sought-after choice in Germany. Its compatibility with rooftop installations further enhances its popularity, allowing homeowners and businesses to harness solar energy effectively and efficiently.

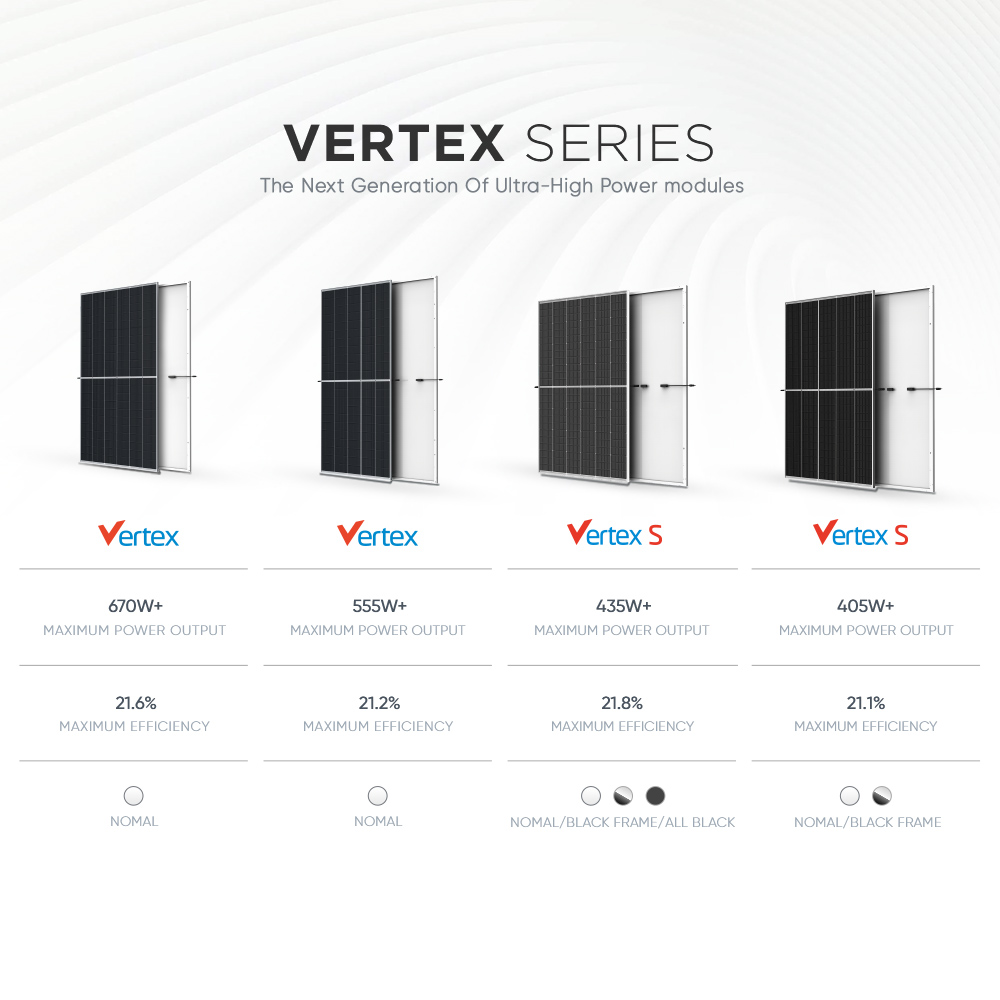

Tier 1 Solar Module Trina Solar Vertex S Full Black 425W 420W 415W 410W 405W
Trina Solar, the global PV and smart energy total solutions provider, has unveiled its latest head-turner, the Vertex N 610W for C&I and utility-scale projects. Together with the Vertex N 700W for utility scenarios and Vertex S+ 450W for rooftop PV systems, Trina Solar’s n-type module portfolio is based on the leading 210 product technology platform and n-type i-TOPCon cell technology. The release of Vertex N will hit and reshape the PV market again.
Trina Solar, the global PV and smart energy total solutions provider, has unveiled its latest head-turner, the Vertex N 610W for C&I and utility-scale projects. Together with the Vertex N 700W for utility scenarios and Vertex S+ 450W for rooftop PV systems, Trina Solar’s n-type module portfolio is based on the leading 210 product technology platform and n-type i-TOPCon cell technology. The release of Vertex N will hit and reshape the PV market again.
Trina NEG9R.28 series solar based on Multi-busbar technology for better light trapping, lower series resistance, improved current collection, and enhanced reliability. Reduce installation cost with higher power bin and efficiency. Boost performance in warm weather with low temperature coefficient and operating temperature. Up to 450W, 22.5% module effciency with high density interconnect technology.

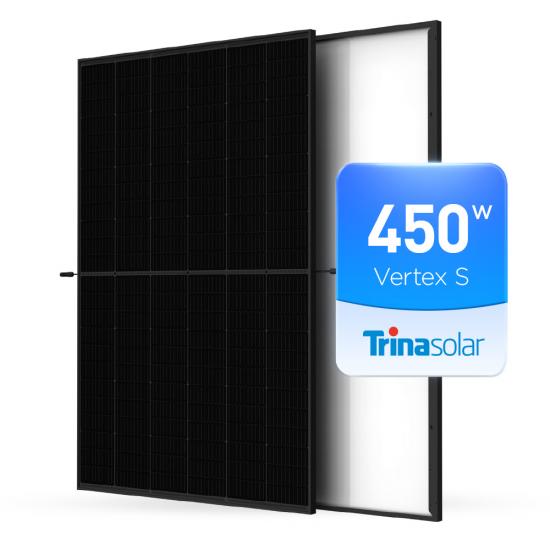

Trina NEG9R.28 445W solar panel is black frame solar panel, its 1762*1134*30mm compact size makes it a perfect choice for Germany installation.
