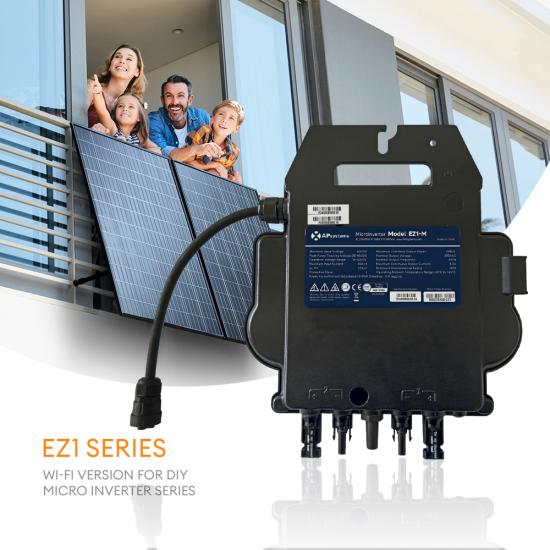

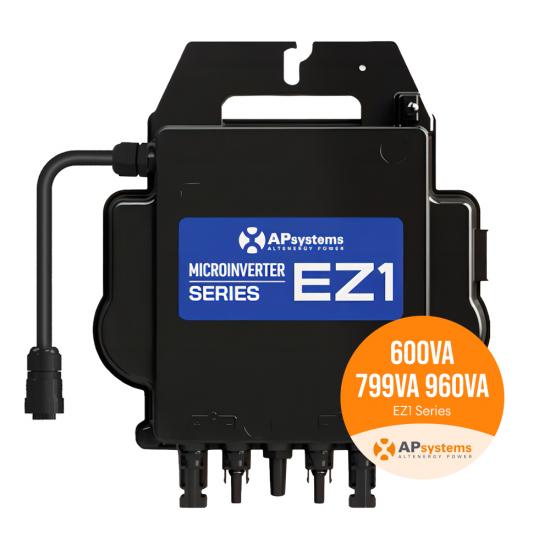

APsystems Micro Solar Inverter EZ1-M 800W 2 MPPT 230V APS Micro Inverter

APSystems EZ1M micro inverter is a technologically advanced and user-friendly solution for solar systems. Its compact size, monitoring capabilities, safety features, and high efficiency make it an ideal choice for residential and commercial installations, helping users maximize their solar energy production and achieve long-term cost savings.

  • Model:

    EZ1-M / EZ1-H
  • Recommended PV Module:

    300Wp-730Wp+ / 410Wp-760Wp+
  • Output Data (AC):

    600VA(3)/799VA / 960VA
  • Communication:

    Built-in Wi-Fi and Bluetooth
  • Weight:

    2.8kg / 3kg

New Products

APsystems Micro Solar Inverter EZ1-M 800W 2 MPPT 230V APS Micro Inverter



The EZ1-M microinverter stands out due to its compact size and high efficiency. Its small form factor allows for easy integration and installation, making it suitable for various rooftop configurations. The microinverter utilizes MPPT (Maximum Power Point Tracking) technology to extract maximum power from each solar panel, ensuring higher energy production and increased overall system efficiency.




Important Specification of APSystems Single Phase Micro-Inverter

Model
EZ1-M
EZ1-H
Region
EMEA
Input Data (DC)
Recommended PV Module Power (STC) Range
300Wp-730Wp+
410Wp-760Wp+
Peak Power Tracking Voltage
28V-45V
Operating Voltage Range
16V-60V
Maximum Input Voltage
60V
Maximum Input Current
20A x 2
Isc PV
25A x 2
Output Data (AC)
Maximum Continuous Output Power
600VA(3)/799VA
960VA
Nominal Output Voltage/Range(1)
230V/184V-253V
Nominal Output Current
2.6A(3)/3.5A
4.2A
Nominal Output Frequency/ Range(1)
50Hz/48Hz-51Hz
Default Power Factor
0.99
Efficiency
Peak Efficiency
97.3%
Nominal MPPT Efficiency
99.5%
Night Power Consumption
20mW
Mechanical Data
Operating Ambient Temperature Range(3)
-40 °C to +65 °C
Storage Temperature Range
- 40 °C to + 85 °C
Dimensions (W x H x D)
263mm x 218mm x 36.5mm
263mm x 218mm x 37mm
Weight
2.8kg
3kg
DC Connector Type
Stäubli MC4 PV-ADBP4-S2&ADSP4-S2
Cooling
Natural Convection - No Fans
Enclosure Environmental Rating
IP67
Features
Communication
Built-in Wi-Fi and Bluetooth
Maximum units connected(4)
2
Isolation Design
High Frequency Transformers, Galvanically Isolated
Energy Management
AP EasyPower APP
Warranty
12 Years Standard; 20 Years Optional
Compliances
Safety, EMC & Grid Compliances
EN 62109-1/-2; EN 61000-1/-2/-3/-4; EN 50549-1;DIN V VDE V 0126-1-1; VFR; UTE C15-712-1; CEI 0-21;UNE 217002; NTS; RD647; VDE-AR-N








Product Features



The Wi-Fi version of EZ1 series are APsystems 3" generation of dual micro inverters, they are dedicated designed for balcony and DlY systems, EZ1 series micor inverters have 2 input channels with independent MPPT and high input current and output power to adapt to today's larger power module.

Users could directly connect to the EZ1 series with their cell phones through Bluetooth and get the real-time data of the solar systems. Besides direct connection,EZ1 series could also connect to a router through Wi-Fi and send data to cloud servers for remote monitoring.

Through an AC extension cable available from APsystems (optional), the EZ1 series could be plugged into a socket and start output energy, truly easy and convenient grid connection.






Monitoring Platform



APPLICATION FOR CONFIGURATION& COMMISSIONING



Free download on APP Store and GOOGLE Play, the APsystems ECUAPp becomes the interface of the ECU-B, ECU-R or the ECU-C allowing configuration and quick setup of the installation






Application Cases



EZ1 series micro-inverters are widely used in European countries, here are some installations cases.
