Deye High Voltage Outdoor Cabinet 100Kwh 200Kwh 300kwh Energy Storage Container System

Deye outdoor cabinet is an energy storage device designed for outdoor environments. It has an IP65 high protection level and corrosion-resistant materials, and is suitable for harsh conditions such as high temperature and humidity. It adopts intelligent temperature control and modular structure, supports flexible expansion and remote monitoring, integrates multiple safety protections, and can be efficiently used in scenarios such as home energy storage, photovoltaic power stations and off-grid power supply. It is easy to install and stable in operation.

  • Model Number:

    GE-F60
  • System Voltage:

    614.4V
  • Output Power Range:

    >50KW
  • Grid connection:

    Hybrid grid, Off grid
  • Dimension (L*W*H):

    780*1056*2235
  • Weight:

    1070kg
  • Type:

    All-in-one
  • Communication Port:

    CAN, rs485
  • Protection Class:

    ip55
  • Warranty:

    10 year
  • Certification:

    CE, IEC62619, IEC62040, UN38.

New Products

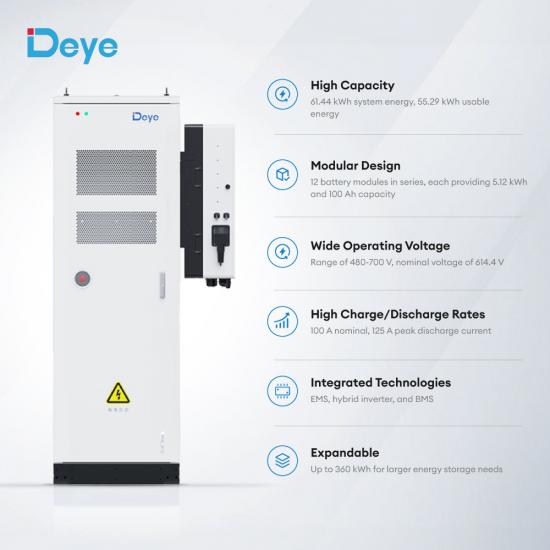

Deye High Voltage Lithium Battery Container 60kWh-316kWh Outdoor Cabinet



Deye GE-F60 is a high-performance outdoor energy storage device with IP65 protection, corrosion resistance and resistance to harsh environments. It has intelligent temperature control and modular design to support capacity expansion, integrated safety protection and remote management. It is suitable for home, photovoltaic and off-grid

power supply and easy to install.

Please click to consult more questions!

Model
GE-F60
Main Parameter

Cell Chemistry
LiFePO4

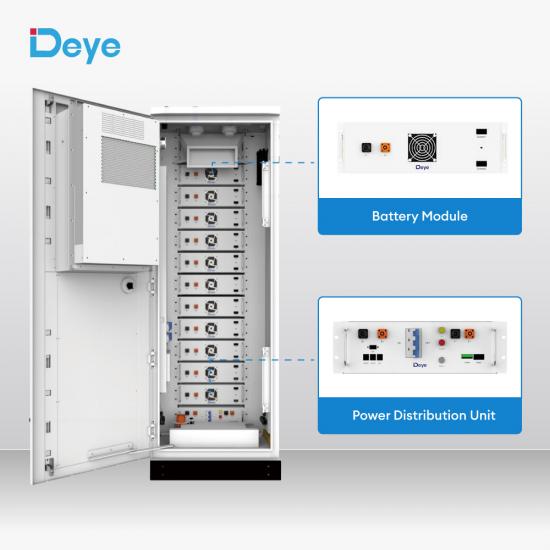

Module Energy (kWh)
5.12
Module Nominal Voltage (V)
51.2
Module Capacity (Ah)
100
Battery Module Qty In Series (Optional)
12
System Nominal Voltage (V)
614.4
System Operating Voltage (V)
480~700
System Energy (kWh)
61.44
System Usable Energy (kWh)
55.29
Rated DC Power
61.44
Charge/Discharge Current (A)
Recommend
50
Nominal
100
Peak Discharge (2 mins, 25℃)
125
Working Temperature (°C)
Charge: 0~55/Discharge: -20~55
Status Indicator
Yellow: Battery High Voltage Power On Red: Battery System Alarm
Communication Port
CAN2.0/ RS485
Humidity
5%~85%RH
Altitude
≤2000m
IP Rating of Enclosur
IP55
Dimension (W/D/H,mm)
780*1056*2235
Weight Approximate (kg)
1.2T
Installation Location
Floor-mounted
Storage Temperature (°C)
0~35
Recommend Depth of Discharge
90%
Cycle Life
25±2°C,0.5C/0.5C, EOL70%≥6000
Warranty
10 years
Certification
CE, IEC62619, IEC62040, UN38.3

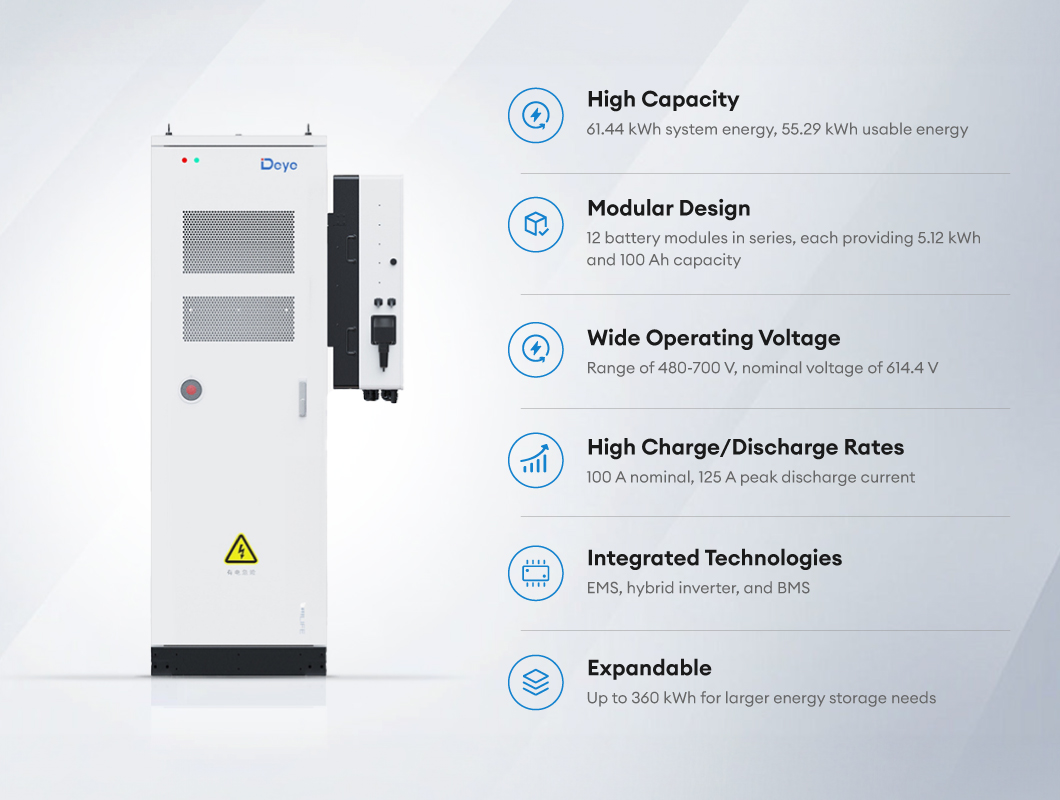

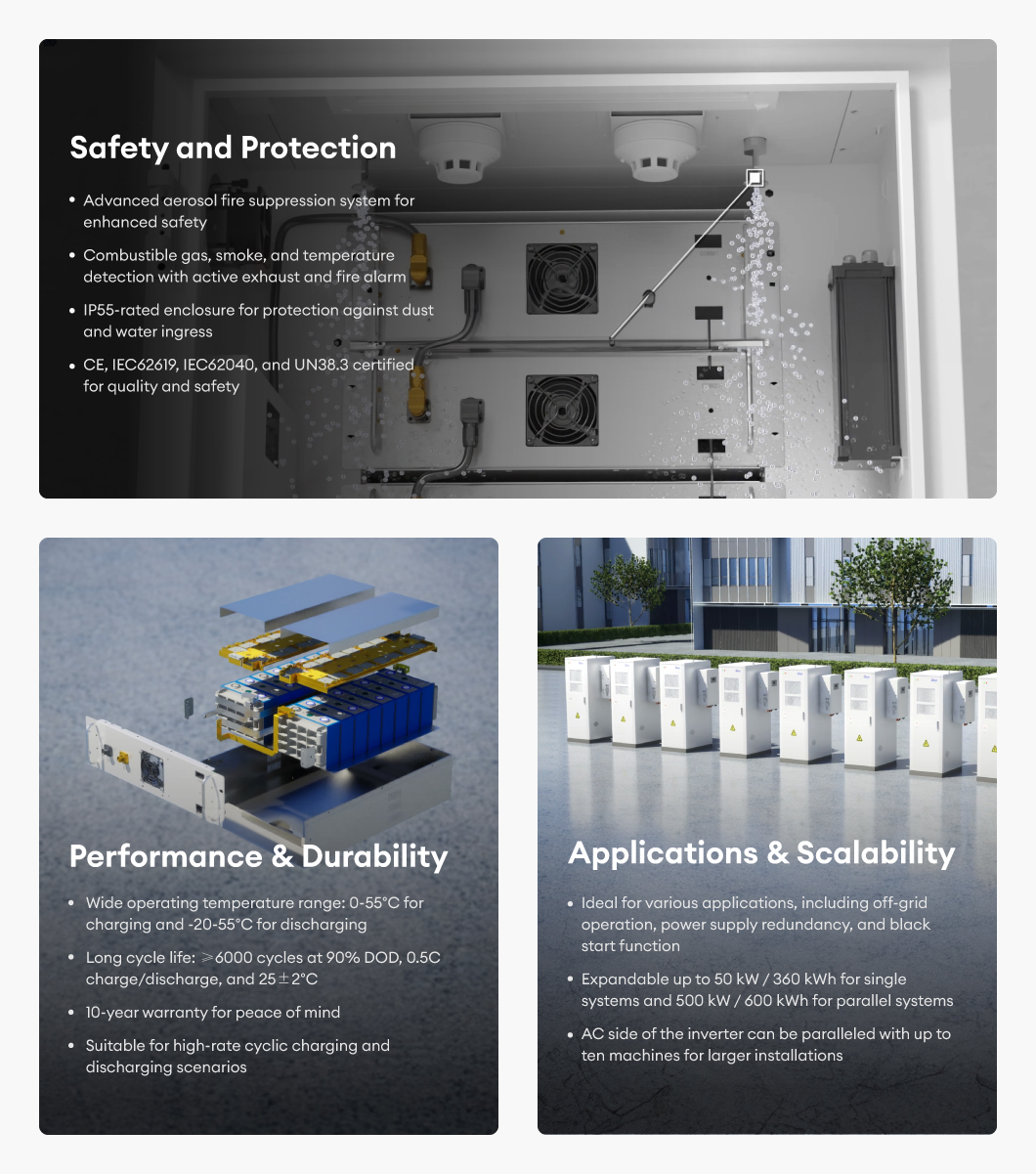

Characteristics and Advantages



1.High protection level Adopt IP65 or higher protection design, dustproof, waterproof, adapt to harsh outdoor environment (such as high temperature, humidity, salt spray, etc.). 2.Durable material The shell is mostly made of aluminum-plated steel plate or corrosion-resistant material, which is UV-resistant and anti-oxidation, extending the service life. 3.Efficient heat dissipation design Built-in intelligent temperature control system (such as fan heat dissipation or natural convection) to ensure stable operation of the equipment in high temperature environment. 4.Modular structure Supports flexible expansion and can be matched with different battery capacities (such as lithium battery or lead-acid battery) to meet the needs of home energy storage, industrial and commercial scenarios. 5.Intelligent management Integrated energy management system (EMS), supports remote monitoring (APP/cloud platform), charging and discharging strategy optimization and fault warning. 6.Safe and reliable With multiple protections such as overvoltage, overcurrent, and overtemperature, some models support off-grid operation to ensure emergency power needs. 7.Easy to install Integrated design, supports wall or ground installation, saves space and adapts to a variety of outdoor scenarios.

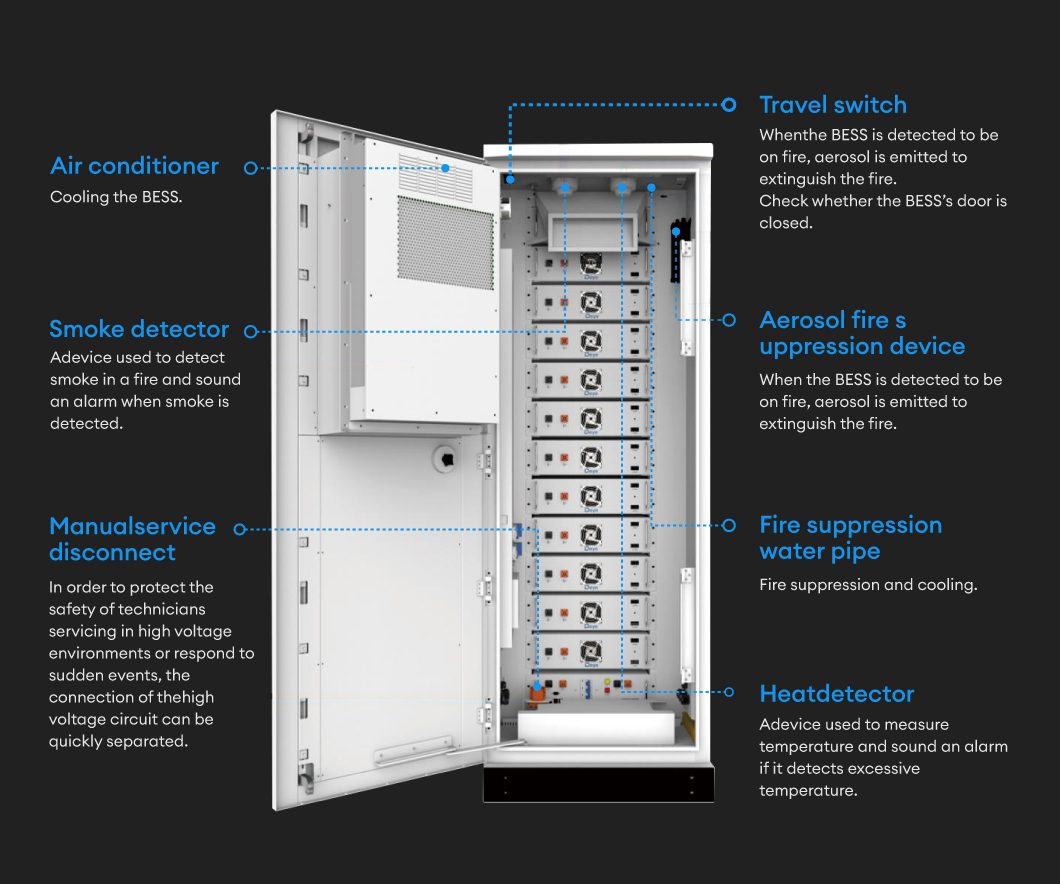

Product Detail

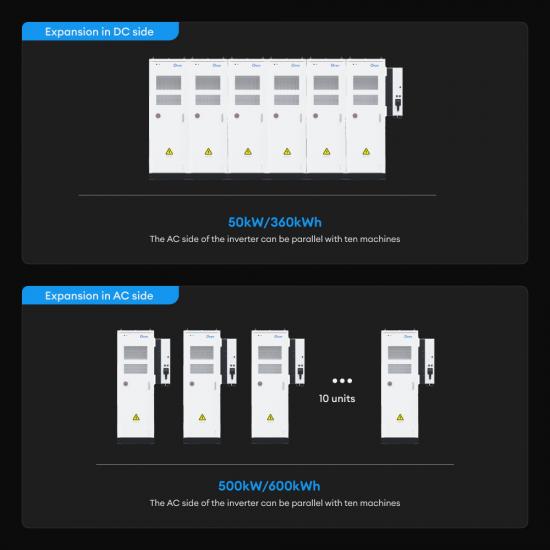

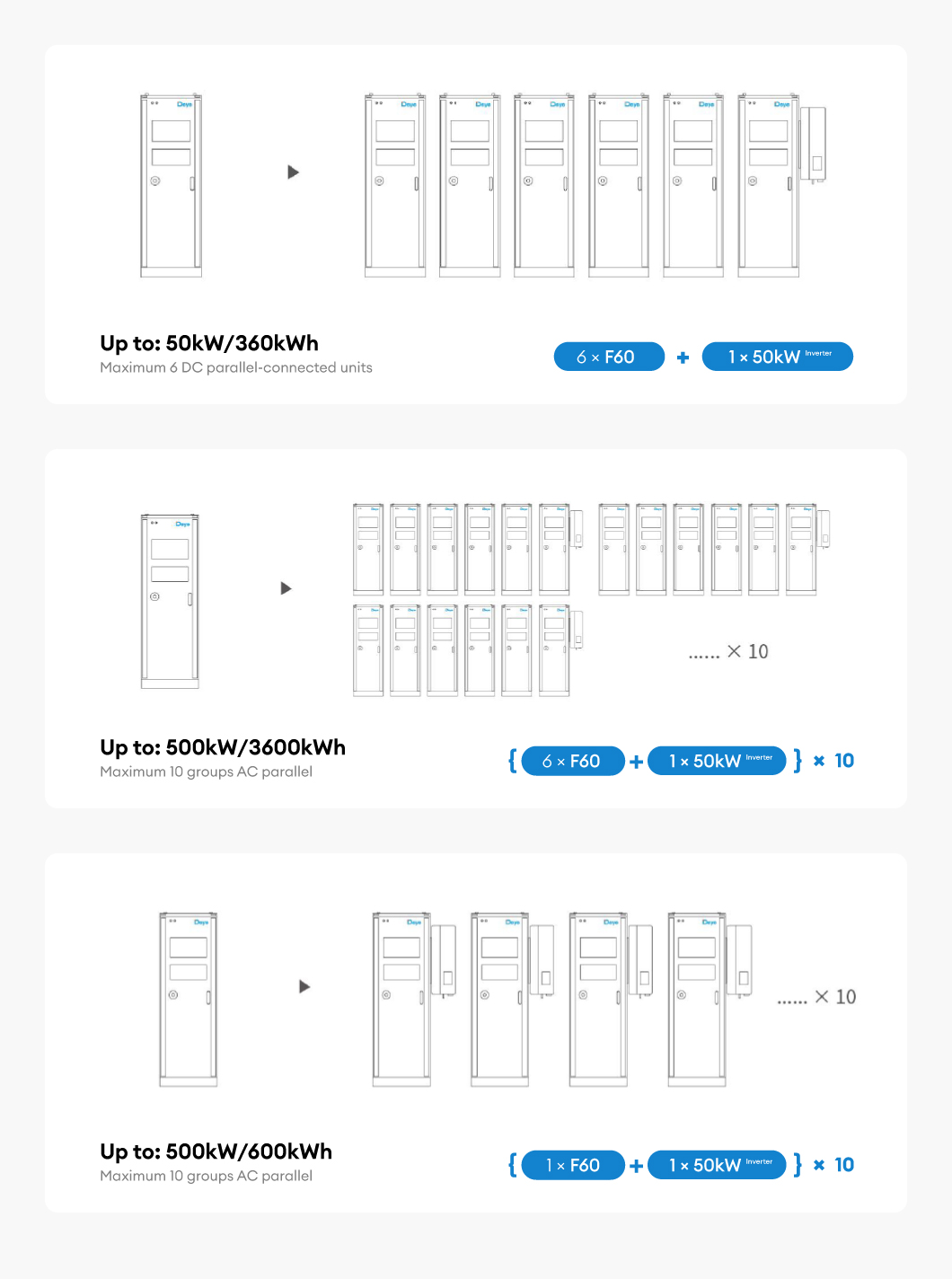

Maximum number of series and parallel connections



Certifications

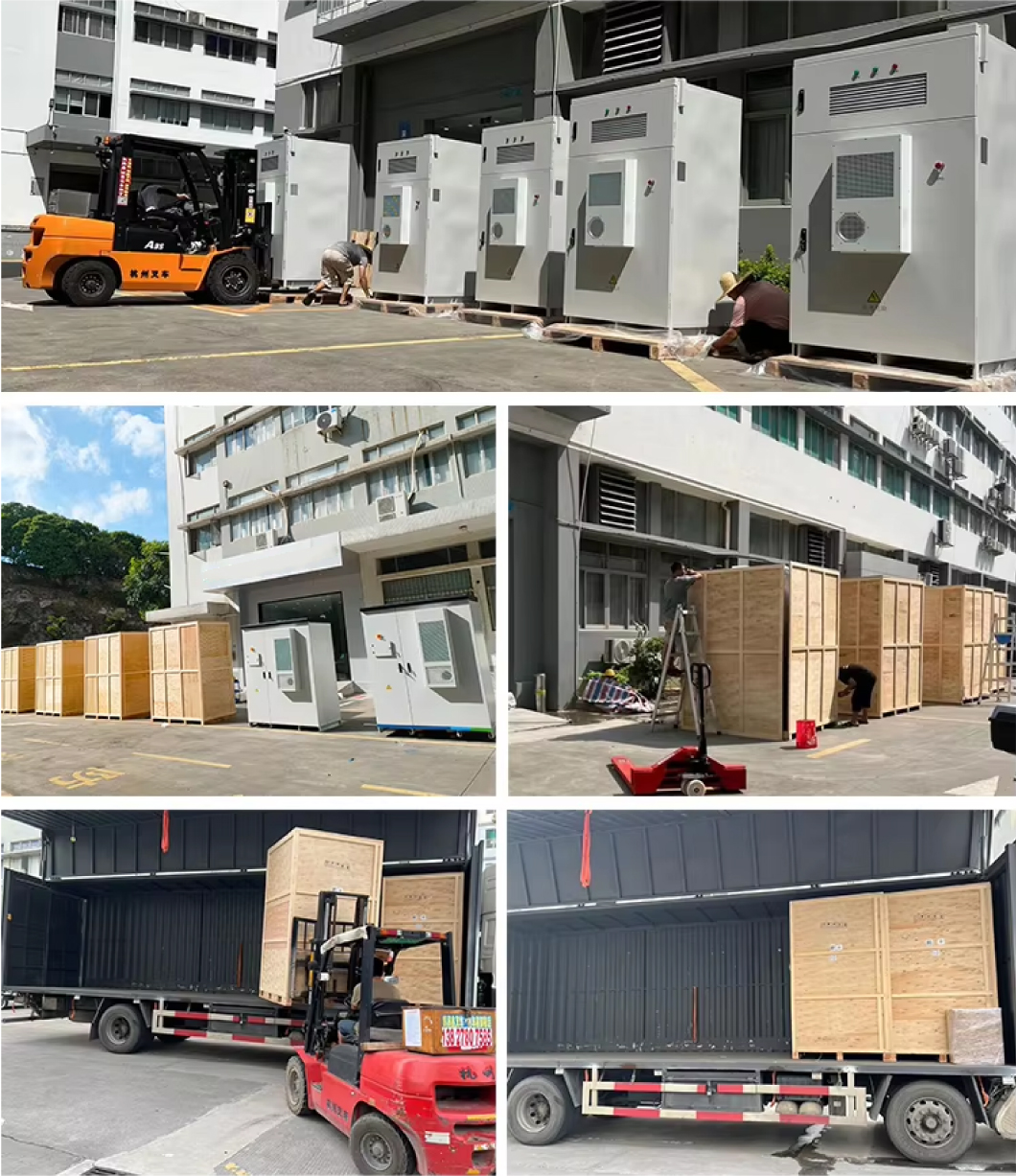

Packaging&Delivery

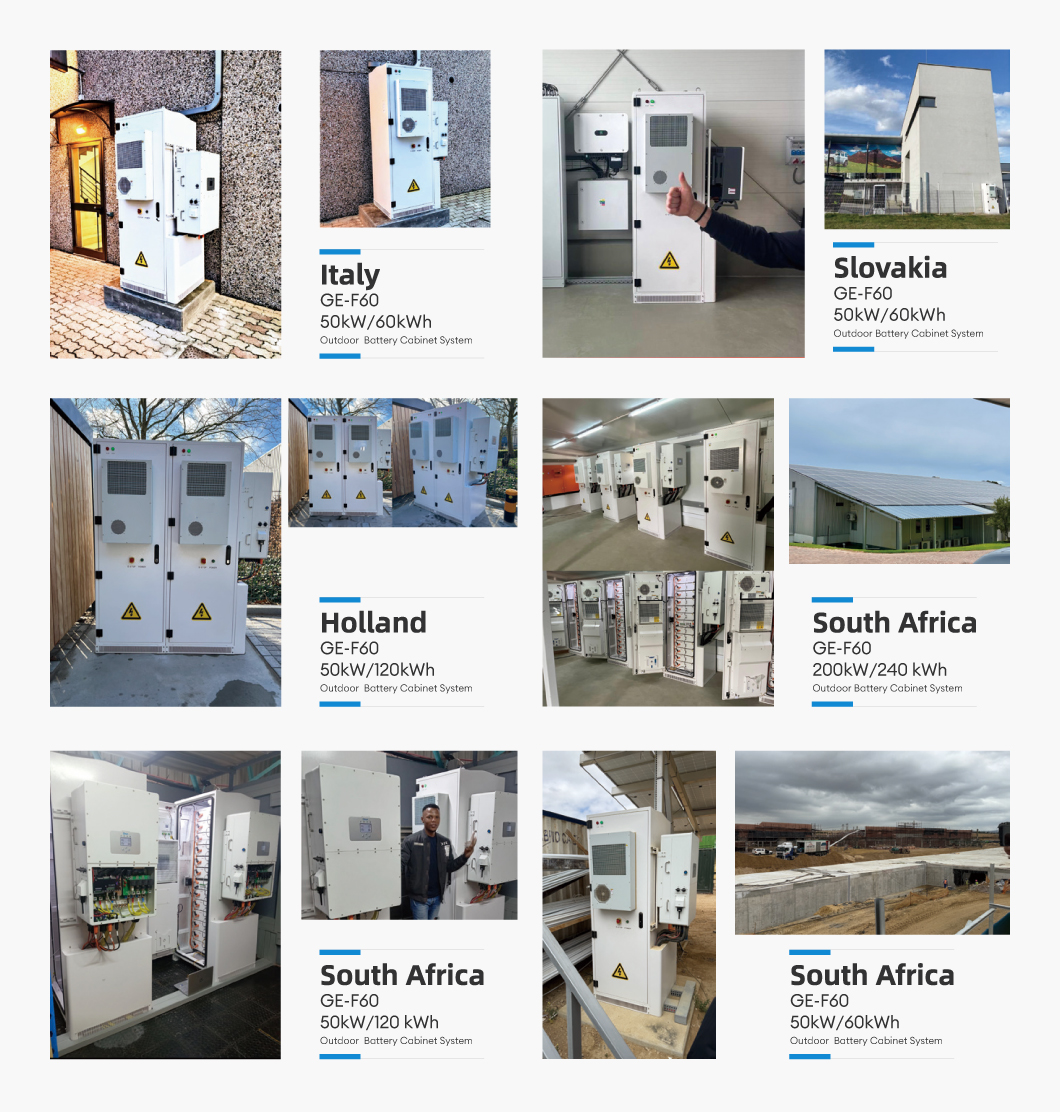

Project Case



One-stop Solar Solution



Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
