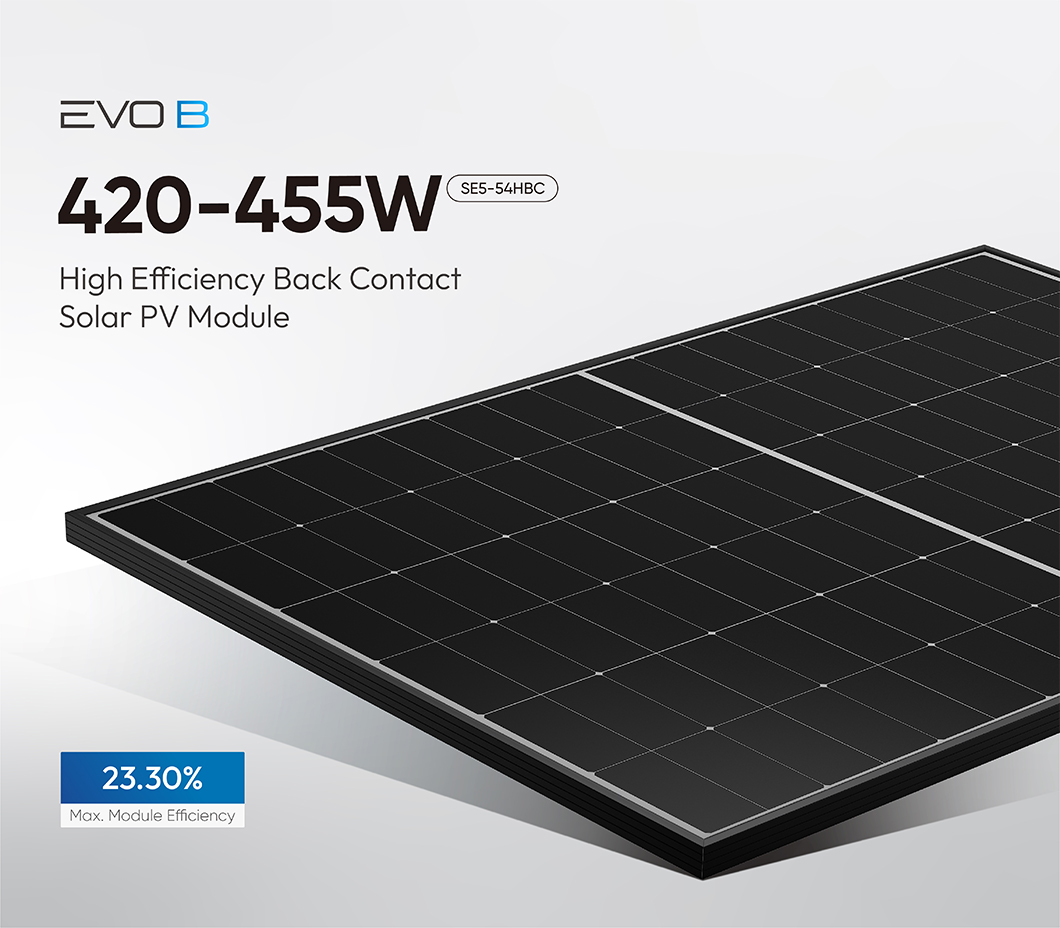

EVO B High Efficiency Back Contact Black Frame Solar PV Module 455W 450W 445W 440W 435W 430W 425W 420W

The EVO B back-contact solar modules feature electrical contacts on the rear, offering enhanced aesthetics and efficiency, reduced shading issues, and improved overall durability.

  • Brand:

    SunEvo
  • Power Range:

    420W~455W
  • Max. Efficiency:

    23.30%
  • Number of Cells:

    108 (6×18)
  • Dimensions of Module L*W*H:

    1722 × 1134 × 30mm
  • Weight:

    20.8kg
  • Front Side Glass:

    Single glass, 3.2mm coated tempered glass
  • Backsheet:

    backsheet
  • Frame:

    Anodized aluminium alloy
  • Junction Box:

    Ip68 rated (3 by pass diodes)
  • Cable:

    4mm2 , ±1200mm length can be customized
  • Wind/Snow Load:

    5400Pa
  • Connector:

    Mc4 compatible

New Products

EVO B High-Efficiency Back Contact Black Frame Solar PV Module 455W 450W 445W 440W 435W 430W 425W 420W

The EVO B back-contact solar modules feature electrical contacts on the rear, offering enhanced aesthetics and efficiency, reduced shading issues, and improved overall durability.



Electrical Parameters (STC*)

Maximum Power (Pmax/W)

420

425

430

435

440

445

450

455

Maximum Power Voltage (Vmp/V)

32.44

32.64

32.84

33.04

33.24

33.44

33.64

33.84

Maximum Power Current (Imp/A)

12.95

13.03

13.10

13.17

13.24

13.31

13.38

13.45

Open Circuit Voltage (Voc/V)

38.73

38.93

39.13

39.33

39.53

39.73

39.93

40.13

Short Circuit Current (Isc/A)

14.00

14.07

14.15

14.22

14.30

14.37

14.45

14.52

Module Efficiency (%)

21.5

21.8

22.00

22.30

22.50

22.80

23.00

23.30

Power Output Tolerance (W)

0~3%

Temperature Coefficient of Isc

+0.05%/°C

Temperature Coefficient of Voc

-0.23%/°C

Temperature Coefficient of Pmax

-0.29%/°C




Advantages and Development History of Longi's Back-Contact Solar Modules

Introduction

The solar energy industry has witnessed significant advancements over the years, leading to increased energy efficiency and cost-effectiveness. One such breakthrough is the development of back-contact solar modules, a technology that has gained prominence due to its numerous advantages. Longi, a leading solar technology company, has been at the forefront of this innovation, contributing to the growth of the solar energy sector. This article explores the advantages and development history of Longi's back-contact solar modules.

Advantages of Back-Contact Solar Modules

1. Enhanced Aesthetics:

Back-contact solar modules, also known as back-contacted solar panels, offer a sleek and modern appearance compared to traditional front-contact modules. The absence of visible grid lines on the front surface makes them visually appealing and ideal for residential and architectural installations.

2. Improved Efficiency:

Back-contact modules are known for their superior efficiency. By placing the electrical contacts on the rear side of the solar cells, they reduce shading and internal resistance. This design minimizes energy losses and maximizes the amount of electricity generated from the same amount of sunlight.

3. Enhanced Durability:

Longi's back-contact solar modules feature a robust design with reduced cell-to-module (CTM) distance, leading to enhanced durability and resistance to microcracks. This design ensures longevity and reliability, even in challenging weather conditions.

4. Higher Energy Yield:

The improved efficiency of back-contact modules results in a higher energy yield per square meter of installed solar panels. This means that Longi's modules can produce more electricity for the same installation area, optimizing space utilization.

5. Reduced Degradation:

Longi employs advanced materials and manufacturing techniques to reduce potential-induced degradation (PID) and light-induced degradation (LID). This ensures that the modules maintain their performance over time and have a longer lifespan.

Development History of Longi's Back-Contact Solar Modules

Longi's journey in the development of back-contact solar modules can be traced back to their commitment to innovation and sustainability. Here are the key milestones in the company's development history:

1. Early Research and Development:

Longi began its research and development efforts in the back-contact solar module technology in the early 2000s. They explored ways to improve the efficiency and aesthetics of solar panels.

2. Commercialization of Technology:

In 2015, Longi successfully commercialized their back-contact technology. They introduced a range of high-efficiency solar modules, gaining recognition for their innovative approach to solar panel design.

3. Ongoing Advancements:

Longi continued to invest in research and development, making incremental improvements to their back-contact modules. They collaborated with research institutions and partners to optimize their products for various applications.

4. Global Expansion:

The success of Longi's back-contact modules led to their expansion into international markets. They established a global presence, contributing to the adoption of this technology worldwide.

5. Industry Leadership:

Today, Longi is recognized as an industry leader in the back-contact solar module segment. Their commitment to quality, efficiency, and sustainability has cemented their position in the solar energy industry.

Conclusion

Longi's back-contact solar modules offer a range of advantages, including enhanced aesthetics, improved efficiency, durability, higher energy yield, and reduced degradation. The company's development history reflects its dedication to innovation and sustainability, ultimately contributing to the growth of the solar energy sector. As the demand for high-efficiency solar solutions continues to rise, Longi's back-contact technology is poised to play a significant role in shaping the future of solar energy production.
