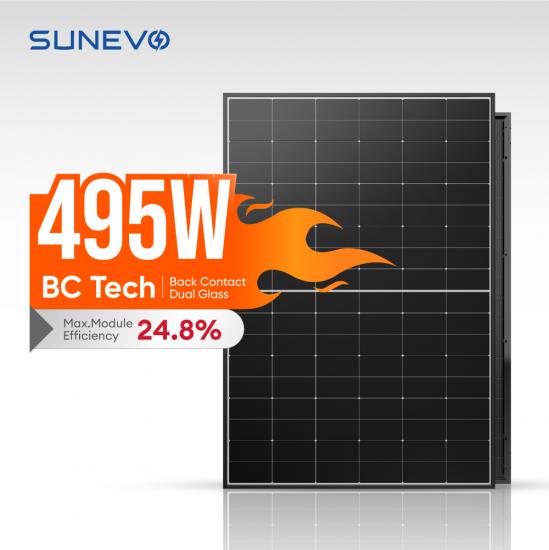

Boasting up to 24.8% efficiency, these back-contact panels deliver high energy output and better ROI.
A wide -40°C~+85°C temperature range guarantees stable performance across climates.
Sleek all-black design fits diverse roofs, ideal for premium residential and commercial projects.
Brand:
SunEvoPower Range:
465-495WMax. Efficiency:
24.8%Number of Cells:

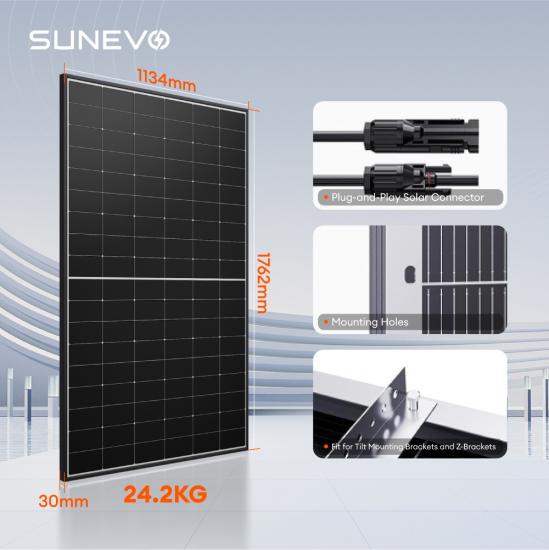

108 (6×18)Dimensions of Module L*W*H:
1762 × 1134 × 30mmWeight:
24.2kg±3%Front Side Glass:
5400PaBack Side Glass:
2400PaFrame:
Black Anodized aluminumJunction Box:
IP68, 3 bypass diodesCable:
4mm2, ±1200mm length can be customizedHigh Module Efficiency: With module efficiency up to 24.8%, these back-contact solar panels provide superior energy yield, maximizing power generation and return on investment.
Wide Operational Temperature: Operational temperature range of -40°C to +85°C ensures reliable performance in a variety of climates, making them suitable for diverse geographic locations.
All-Black Aesthetic Design: The uniform all-black appearance without distracting metal lines enhances the aesthetic value of high-end residential and commercial properties, seamlessly integrating with various roof styles.
Features
Efficiency

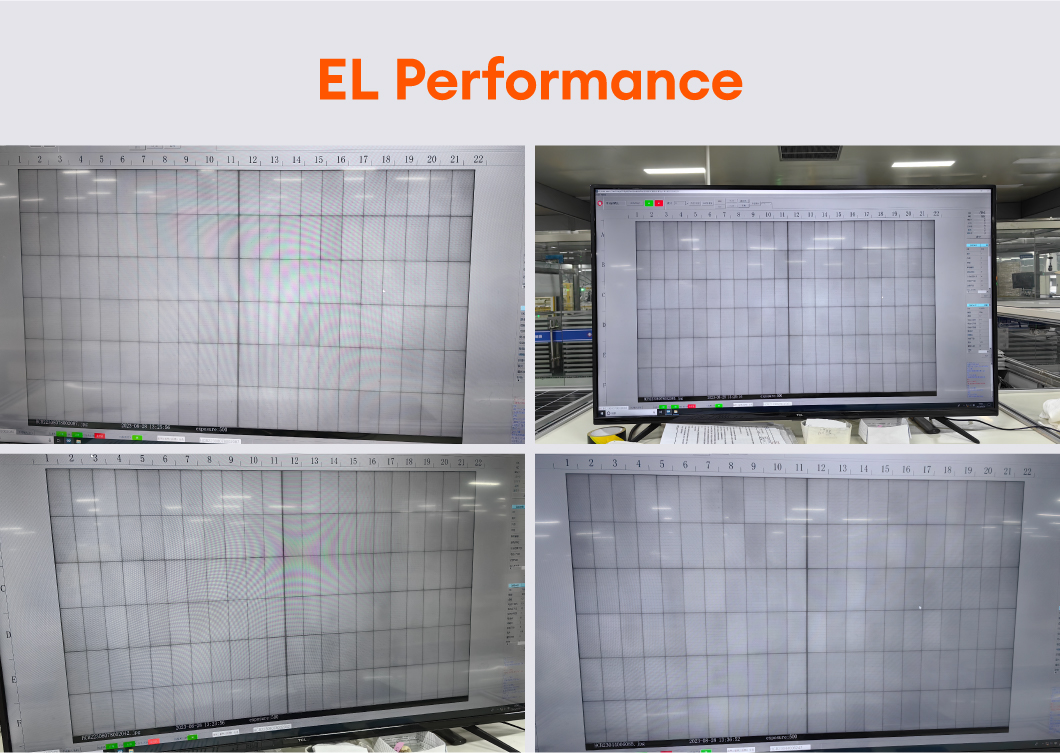

EL Performance

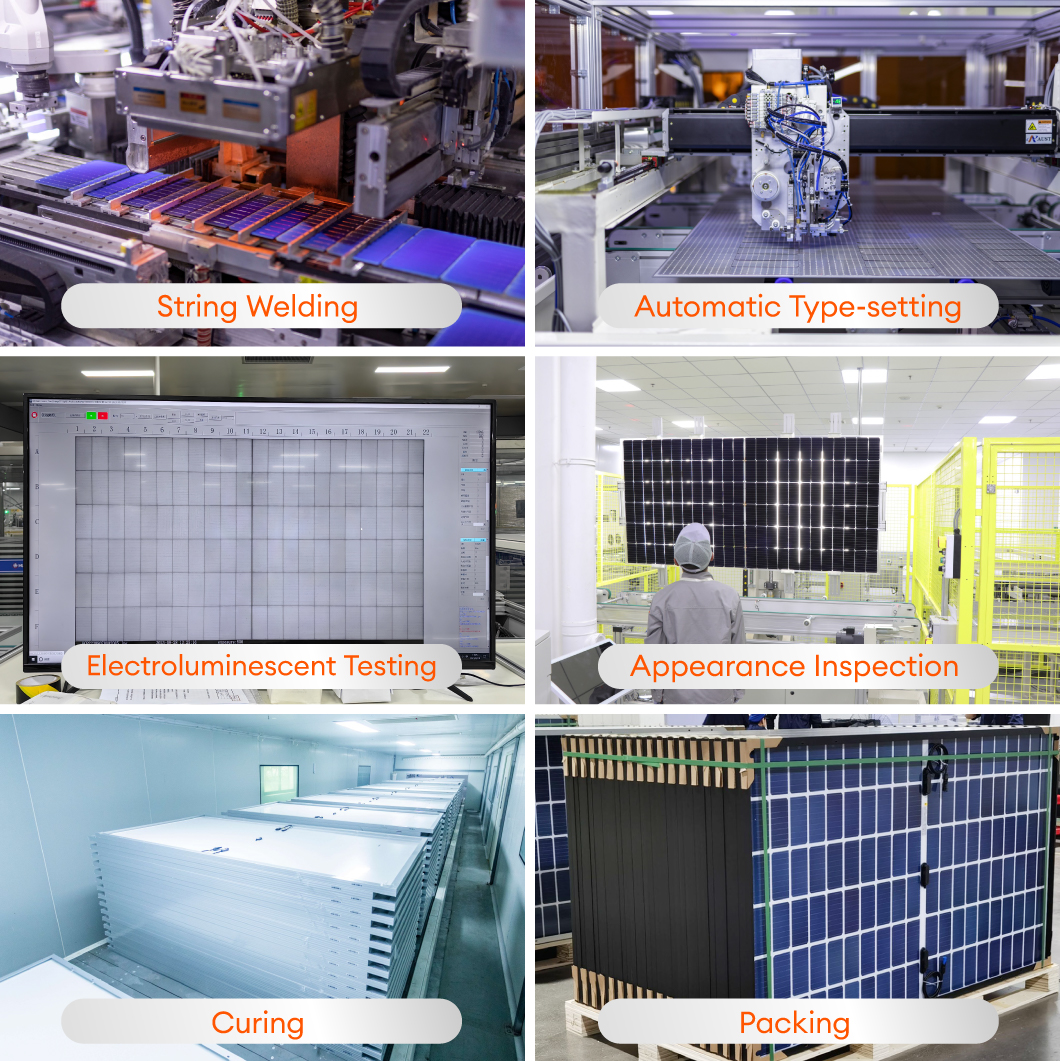

Production process

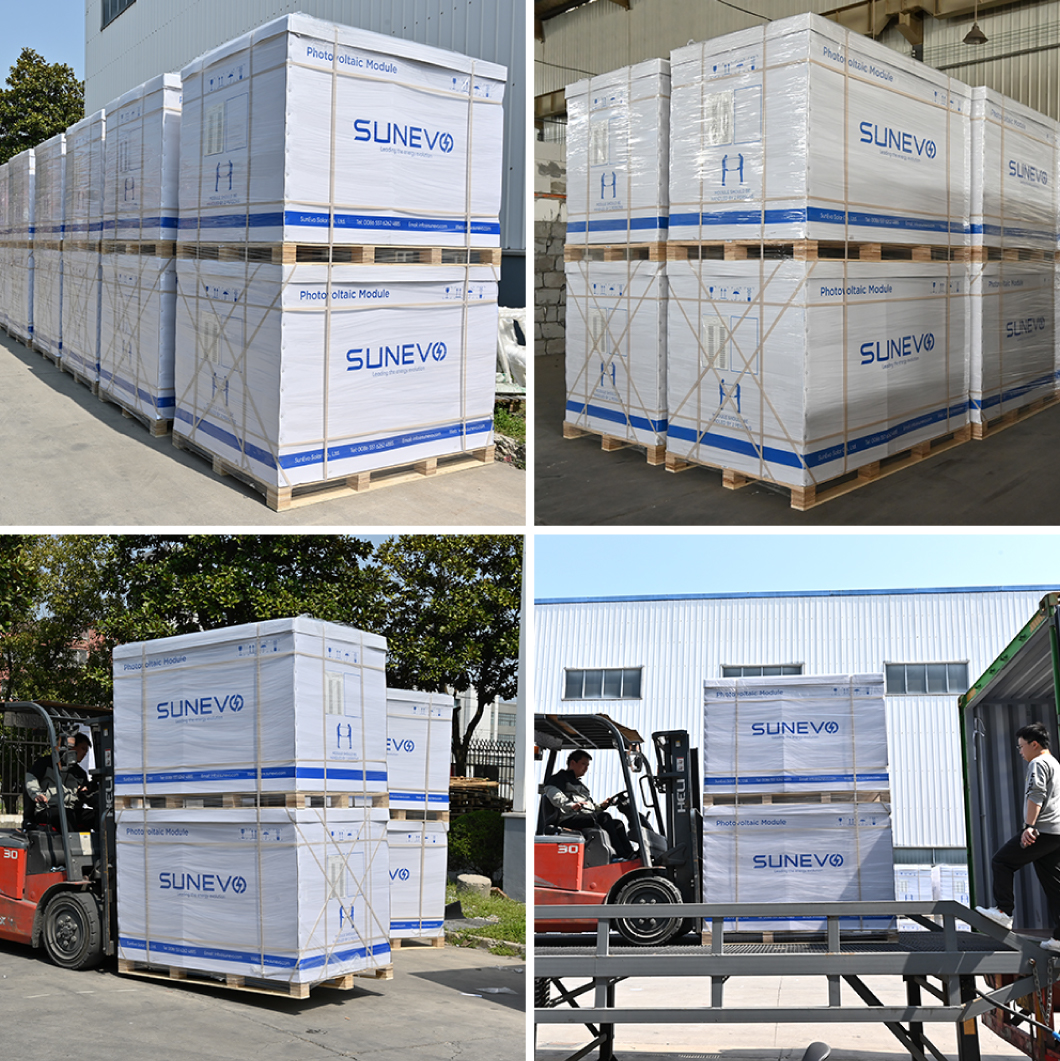

Packing

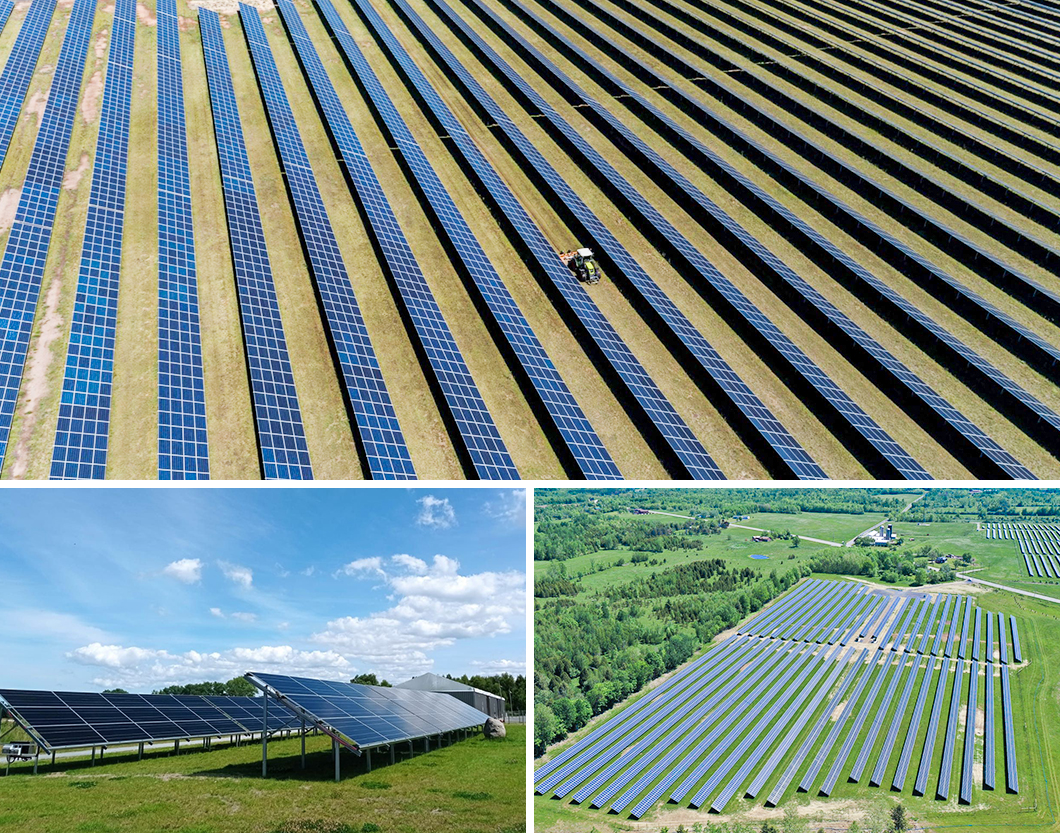

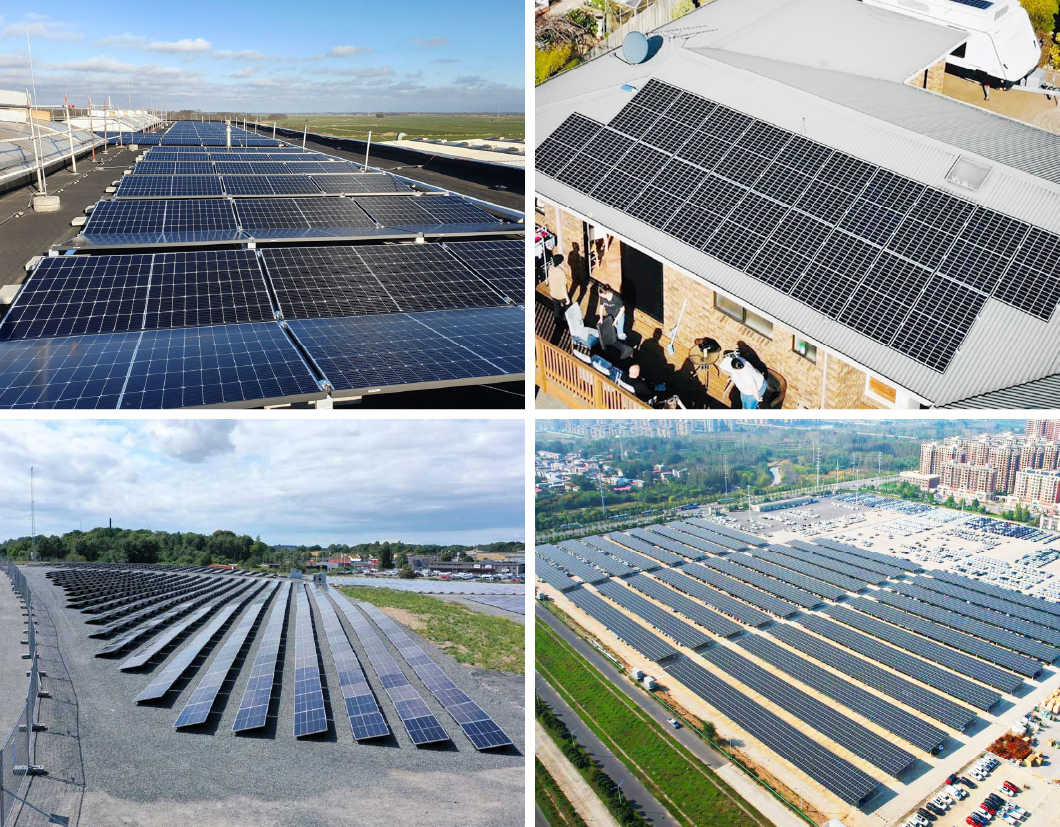

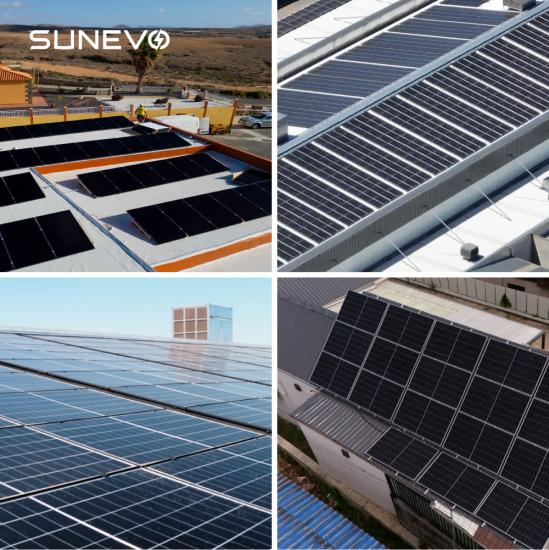

Project Case
OEM Service
Certifications
About Us
Customer Visits
Customer Feedback
FAQ
Q1:What is the solar panel's efficiency?
It offers 470–495W power output and a maximum efficiency of 24.8%, enabled by N-type HJT and 0BB half-cell technologies.
Q2: How does bifaciality benefit my project?
With a bifaciality of 90±5%, the module captures extra sunlight from the backside, significantly boosting overall energy yield for utility-scale or ground-mounted installations.
Q3: What is the module’s long-term reliability guarantee?

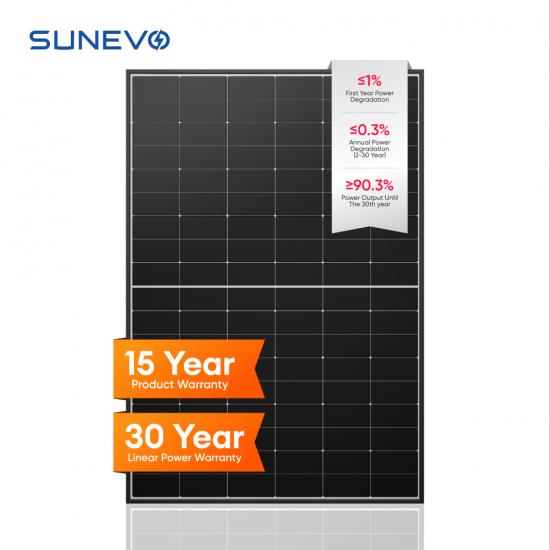

It comes with a 15-year product warranty and a 30-year linear power warranty—ensuring ≥90.3% power output at year 30, with ≤1% first-year degradation and ≤0.3% annual degradation (years 2–30).
Q4: What is the typical lead time for the solar module?
Standard lead time is 1-2 weeks after order confirmation and receipt of deposit. For large-volume (≥5000 pcs) or customized orders, lead time may extend to 3–4 weeks—contact our sales team for a tailored timeline.
Q5: Does SunEvo offer OEM/ODM services for this module?
Yes, we provide flexible OEM/ODM solutions, including custom branding, slight dimension adjustments, and tailored electrical parameters (within technical feasibility). Minimum order quantity (MOQ) applies for OEM projects—please inquire for details.
Q6: What transportation options are available, and who handles logistics?
We offer sea, air, and rail freight. For bulk orders (≥1 container), sea freight (FCL/LCL) is recommended for cost efficiency. We can arrange logistics (DAP/DDP/FOB terms) or cooperate with your designated forwarder.
Q7:Are there any MOQ requirements for ordering the solar panel?
Standard MOQ is 1 pallet (37 modules). For OEM orders or customized configurations, MOQ is 972 modules. Contact us for flexible terms on large-scale utility projects.
Q8: Can I visit your factory to inspect production?
Absolutely. We welcome customer or third-party audits (e.g., SGS, TÜV) at our Hefei factory. Please notify us 2 weeks in advance to schedule the visit, including production line inspections and quality control process reviews.
The EVO B back-contact solar modules feature electrical contacts on the rear, offering enhanced aesthetics and efficiency, reduced shading issues, and improved overall durability.
The EVO B back-contact solar modules feature electrical contacts on the rear, offering enhanced aesthetics and efficiency, reduced shading issues, and improved overall durability.

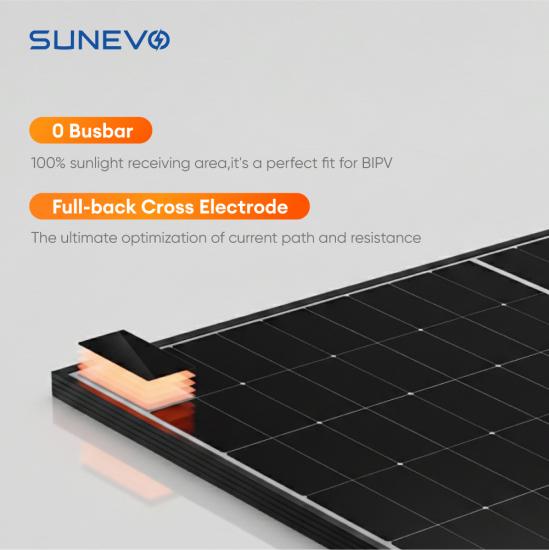

The EVO B back-contact solar modules pioneer the adoption of full-back welding technology to effectively improve the resistance to micro cracking of modules.
