Full 30KW 50KW PV Panel Off Grid Hybrid 3 Phase Solar System

The off-grid three-phase system can directly supply solar power to the load, and automatically select solar power or mains power to power the load according to the intensity of sunlight, realizing automatic conversion of working modes, intelligent mains bypass, unattended, automatic conversion, Automatic resume wake function.

  • Brand:

    SunEvo
  • MODEL:

    SE10KW-OFF/SE30KW-OFF/SE50KW-OFF/SE80KW-OFF/SE100KW-OFF/SE500KW-OFF
  • PV MODULE:

    Mono Solar Panel (Poly is Optional)
  • INVERTER POWER:

    10KVA/30KVA/50KVA/80KVA/100KVA/500KVA
  • BATTERY BANK:

    Lead Acid Battery (GEL/OPzV / Lithium Battery Optional)
  • BOS:

    DC Cable/Ground Cable/MC4 Connector/PV Tools
  • MOUNTINGS:

    Metal Roof,Asphalt Shingle,Tile Roof,Tin Roof,Flat Concrete Roof
  • APPLICATION:

    Farm, Factory,Villa
  • OEM:

    Acceptable

New Products

Mono Solar Panels



Peak Power Watts: 550W (SE5-72H)

Maximum Power Voltage: 42.64V

Maximum Power Current: 12.90A

Open Circuit Voltage: 50.22V

Short Circuit Current: 13.70A

Dimensions: 2279×1134×35(30)mm

Weight: 26.9 kg (59.3 lb)

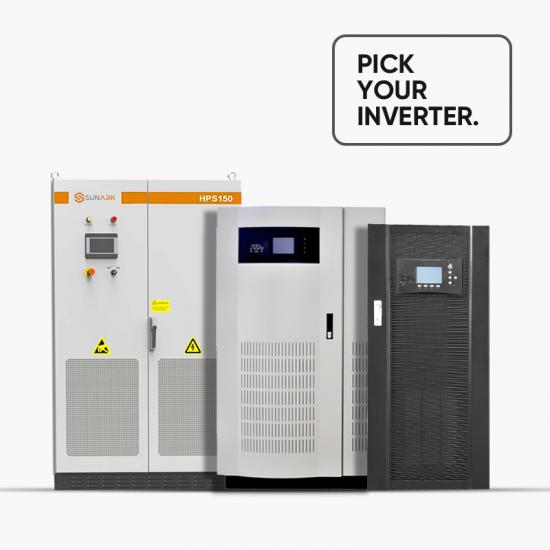

Off Grid Solar Inverter



SunEvo's commercial off-grid solar inverter supports complementary control functions of solar energy, mains electricity, and batteries. According to changes in solar intensity and battery voltage, it automatically selects mains or solar power to charge the battery. It can realize mains bypass but does not Charging function, automatically identifies day and night status, and the device is in interactive mode at night.



Battery Bank



The lead-acid battery pack has been in industrial production for the longest time and has the most mature technology. It has stable and reliable performance and good applicability. It uses dilute sulfuric acid as the electrolyte and is non-flammable. The battery adopts normal pressure or low voltage design and has good safety. Batteries that can be made into thousands of ampere hours provide convenience for large-scale energy storage.

  1.
  2.



Solar Panel Mounting Structure



The aluminum alloy brackets we provide can be designed and customized for you according to your address, location, light intensity, and direction. Our engineers can provide corresponding solar panel layout and 3D drawing. For different roofs and floors, different installations Material, we can always find the most suitable installation solution.

PV Combiner Box



DC combiner boxes are generally used in medium and large photovoltaic power generation systems. Users connect several photovoltaic arrays to the photovoltaic combiner box in parallel, which not only keeps the connections organized, but also facilitates group inspection and maintenance. When the photovoltaic module array part fails, Parts can be inspected separately without disturbing the overall power generation system.








Other Accessories



Solar panel install tools

PV cable(4m㎡,6m㎡,10m㎡ etc, optional)

DC and AC switch, protective effect

MC4(normal type, T and Y type etc)




Off grid solar panel system meet certifications:



IEC 61215, IEC 61730, UL 61730

ISO 9001:2008: ISO Quality Management System

ISO 14001: 2004: ISO Environment Management System

OHSAS 18001: 2007 Occupational Health and Safety




FAQs:

     Q1: Do you support OEM service?

     A:Yes, we support OEM service, including Logo customization and packaging;

     Q2:How long is the delivery time?

     A: The delivery time is generally 15 working days after receiving the advance payment, if there is stock, it can be shipped immediately;

     Q3: Does it support door-to-door service?

     A:Yes, we have freight forwarders with many years of rich experience in the industry, who can deliver goods to the door and help customers clear customs and pay taxes;

     Q4:How many years of warranty and after-sales service are provided?

     A:We provide a unified 10-25 year warranty for different components in the system, and accessories can be replaced and sent for free.
