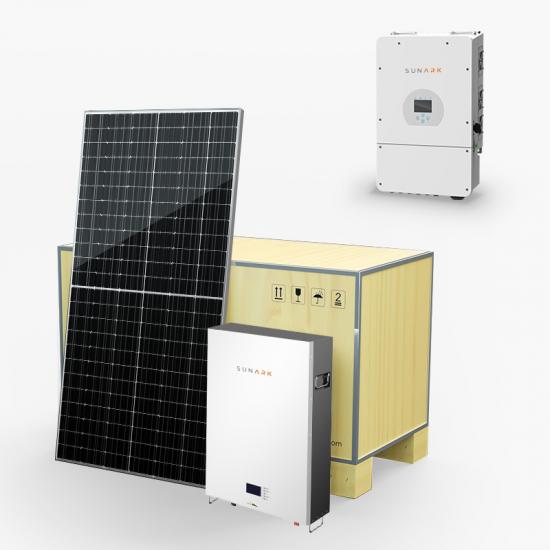

Hybrid full package hybrid 5KW 8KW solar tracking home energy system can achieve load regulation, storage of electricity, cooperation with new energy access, compensation for line losses, power compensation, improvement of power quality, isolated grid operation, peak shaving and valley filling, etc.
Brand:
SunEvoModel:
SE3KW-HY/SE3.6KW-HY/SE5KW-HY/SE6KW-HY/SE8KW-HY/SE10KW-HYPV Panel:
Mono(Poly Optional)Inverter Output Power:
3000Watt/3600Watt/5000Watt/6000Watt/8000Watt/10000WattAccessories:
PV Cable/Y Branch Connector/MC4 Connector/PV Tools/SwitchPV Mounting Structure:
Metal Roof,Asphalt Shingle,Tile Roof,Tin Roof,Flat Concrete RoofApplication:
Home, Remote Cabin, Villa, ApartmentOEM:
Acceptable
Mono Solar Panels
Peak Power Watts: 550W (SE5-72H)
Maximum Power Voltage: 42.64V
Maximum Power Current: 12.90A
Open Circuit Voltage: 50.22V
Short Circuit Current: 13.70A
Dimensions: 2279×1134×35(30)mm
Weight: 26.9 kg (59.3 lb)

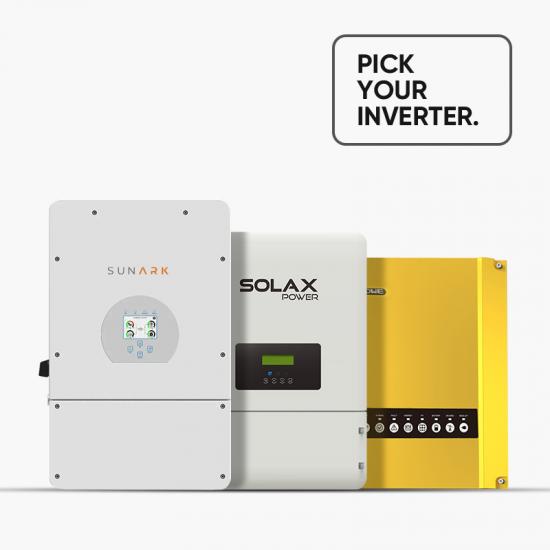

Hybrid Solar Inverter
Energy storage inverter is a bridge between solar energy storage system and electrical equipment. It can effectively utilize power equipment, reduce power supply costs, and has complete protection functions to protect the converter and energy storage components under various fault conditions. safety, grid-connected operation, automatic reactive power or dispatch compensation function, and low voltage ride-through function.
Lithium Battery Backup
The P-O bond in the lithium iron phosphate crystal is stable and difficult to decompose. Even at high temperatures or overcharge, the structure will not collapse and generate heat or form strong oxidizing substances like lithium cobalt oxide. Therefore, it has good safety and has better performance than ordinary batteries. (lead acid, etc.) larger capacity. The monomer capacity is 5AH-1000AH.
Intelligent Monitoring
Cable free, easy installation
USB communication port
Build -in storage, 1 month data
Online monitoring and maintenance
Solar Panel Mounting Structure
Solar Panel Mounting Structure
The wind resistance of the photovoltaic bracket reaches 216km/h and can withstand typhoons of magnitude 17. The wind resistance of the solar tracking bracket reaches 150 km/h and can withstand typhoons greater than magnitude 13. Photovoltaic power stations installed under general standards can ensure wind resistance of level 8-10, can withstand damage from heavy rain, corrosion and other factors, and can operate safely and stably for more than 25 years.
PV Combiner Box
In order to improve the reliability and practicality of the system, photovoltaic-specific DC lightning protection modules, DC fuses and circuit breakers can be configured in the smart photovoltaic combiner box, and working status indicators, lightning counters, etc. can be set up to facilitate users' timely and accurate control. The working condition of photovoltaic cells ensures that the solar photovoltaic power generation system can maximize its effectiveness.
Other Accessories
Solar panel install tools
PV cable(4m㎡,6m㎡,10m㎡ etc, optional)
DC and AC switch, protective effect
MC4(normal type, T and Y type etc)
Hybrid solar panel system meet certifications:
IEC 61215, IEC 61730, UL 61730
ISO 9001:2008: ISO Quality Management System
ISO 14001: 2004: ISO Environment Management System
OHSAS 18001: 2007 Occupational Health and Safety
FAQs:
Q1: Do you support OEM service?
A：Yes, we support OEM service, including Logo customization and packaging;
Q2:How long is the delivery time?
A: The delivery time is generally 15 working days after receiving the advance payment, if there is stock, it can be shipped immediately；
Q3: Does it support door-to-door service？
A：Yes, we have freight forwarders with many years of rich experience in the industry, who can deliver goods to the door and help customers clear customs and pay taxes;
Q4:How many years of warranty and after-sales service are provided?
A:We provide a unified 10-25 year warranty for different components in the system, and accessories can be replaced and sent for free.
Home lithium battery 5kW 10kW hybrid solar power system with OEM service can store excess electrical energy in batteries, which not only reduces the demand on the power grid but also reduces the use of traditional energy sources such as coal, which is beneficial to reducing carbon emissions. Home energy storage systems can make families self-sufficient without reliance entirely on grid power increasing the home’s energy independence.
Residential hybrid PV 5kW 10kW on grid off grid solar energy system can maximize savings on their electricity bills by purchasing power during off-peak hours and using battery-stored power during peak hours. When the grid is out of power, home energy storage systems can provide backup power for households to maintain basic power needs.
Industrial and commercial energy storage hybrid solar systems have rapid response and adjustment capabilities. They can quickly respond to grid demand, adjust voltage and frequency, avoid problems such as harmonics and flicker in the power system, ensure power stability, and thereby improve power supply quality.
The solar energy storage system improves the user's self-use rate and brings greater benefits; currently the self-use part of the user's photovoltaic system is relatively low, perhaps less than 30%, and the combination of photovoltaic + energy storage will greatly provide spontaneous self-use ratio, thereby increasing user income.
Hot sell all-in-one 8KW 12KW all black solar module power hybrid system is divided into three working modes. Mode 1: Photovoltaics provide energy storage and surplus electricity is connected to the grid; Mode 2: Photovoltaics provide energy storage and some users use electricity; Mode 3 : Photovoltaics only provide partial energy storage.
As energy storage technology becomes more mature, costs gradually decline, and electricity price incentive policies continue to be introduced, there are more and more small and medium-sized user-side photovoltaic energy storage projects, and the market demand for user-side energy storage projects has also greatly increased to meet the needs of various projects needs.
Commercial energy storage systems can help businesses improve efficiency and reduce power costs. These systems avoid paying expensive electricity bills when the sun isn't shining or the wind isn't blowing by storing excess power from solar or wind farms. In addition, commercial energy storage systems can reduce the need for grid infrastructure, such as power lines or substations, saving money in the long run.
SunEvo off Grid UPS system 100KW 150KW 300KW PV solar solution does not require cooling water, has no environmental problems, and has a wide range of site selection. Photovoltaic power stations can be installed in deserts, Gobi deserts, plateaus and other places that are not suitable for human habitation.
