Brand:
SunEvoPower Range:
535-555WMax. Efficiency:
21.7%Number of Cells:
144 Cells (6x24)Dimensions of Module L*W*H:
2278 x 1134 x 35mmWeight:
32.6kgFront Side Glass:
High transparency solar glass 2.0mmBack Side Glass:
High transparency solar glass 2.0mmFrame:
Black/Silver, anodized aluminium alloyJunction Box:
IP68 Rated, 3 DiodesCable:
4.0mm2, Portrait: 300mm / Landscape: 1400mmWind/Snow Load:
2400Pa/5400PaConnector:
MC CompatibleBifaciality:
70±5%

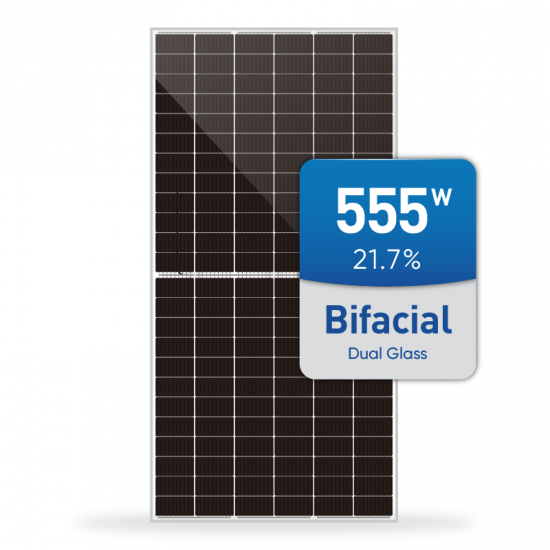

EVO 5 Series Monocrystalline 144 Half Cells 535W 540W 545W 550W 555W Bifacial Dual Glass Solar Module
SunEvo Solar focuses on value creation and in the 3rd quarter of 2020 launches a new generation of high efficiency PV modules, the Evo 5 bifacial series. The new Evo 5 series integrates 182mm large-size silicon wafers with TOPCon / PERC, multi-busbar, half-cell, bifacial, double glass technologies and high-density solar module encapsulation. Technology integration enables the Evo 5 bifacial series to increase the efficiency of the module up to 21.7%, and a maximum power output on the front side of 555W.
Electrical Specification
|
Maximum Power (Pmax/W) |
535 |
540 |
545 |
550 |
555 |
|
Maximum Power Voltage (Vmp/V) |
41.22 |
41.45 |
41.70 |
41.93 |
42.18 |
|
Maximum Power Current (Imp/A) |
12.98 |
13.03 |
13.07 |
13.12 |
13.16 |
|
Open Circuit Voltage (Voc/V) |
48.96 |
49.24 |
49.52 |
49.80 |
50.08 |
|
Short Circuit Current (Isc/A) |
13.73 |
13.78 |
13.83 |
13.88 |
13.93 |
|
Module Efficiency (%) |
20.9 |
21.1 |
21.3 |
21.5 |
21.7 |
|
Power Output Tolerance (W) |
0~+5W |
||||
|
Temperature Coefficient of Isc |
+0.05%/°C |
||||
|
Temperature Coefficient of Voc |
-0.28%/°C |
||||
|
Temperature Coefficient of Pmax |
-0.35%/°C |
||||
Certifications
All of SunEvo's products have been certified by professional third-party testing bodies around the world, and the testing conditions are complex and diverse, from ordinary installation conditions to various extreme weather conditions, natural environments. We pursue the ultimate in quality and provide the best guarantee for customers' assets and profits.
· ISO 9001: 2015: ISO Quality Management System
· ISO 14001: 2015: ISO Environment Management System
· ISO 45001: 2018: Occupational Health and Safety
· CE & EU declaration of conformity
· IEC 61215 / IEC 61730 Anti-PID Test for Photovoltaic Module
· IEC 61701 Salt Mist Corrosion Test for Photovoltaic Module
· IEC 60068-2-68 Dust and Sand Test for Photovoltaic Module
· UL1703 / UL 61730 – PV Module Safety Standards by UL / CSA / INTERTEK
· Italian First-Class Report on Fire Prevention
· INMETRO Ex Tariff for Brazil
· MCS / JEPC & JET / CEC(Clean Energy Council) approved PV modules / FIDE / CB / DEWA / RETIE
What's the Benifits of Bifacial Dual Glass Solar Panels?
• Lower LCOE (Levelized Cost Of Energy), reduced BOS (Balance of System) cost, shorter payback time
• Lowest guaranteed first year and annual degradation;
• Designed for compatibility with existing mainstream system components
• Up to 21.6% module effciency with high density interconnect technology
• Multi-busbar technology for better light trapping effect, lower series resistance and improved current collection
• Minimized micro-cracks with innovative non-destructive cutting technology
• Ensured PID resistance through cell process and module material control
• Resistant to harsh environments such as salt, ammonia, sand, high temperature and high humidity areas
• Mechanical performance up to 5400 Pa positive load and 2400 Pa negative load
• Excellent IAM (Incident Angle Modifer) and low irradiation performance, validated by 3rd party certi cations
• The unique design provides optimized energy production under inter-row shading conditions
• Lower temperature coeffcient (-0.34%) and operating temperature
• Up to 25% additional power gain from back side depending on albedo
