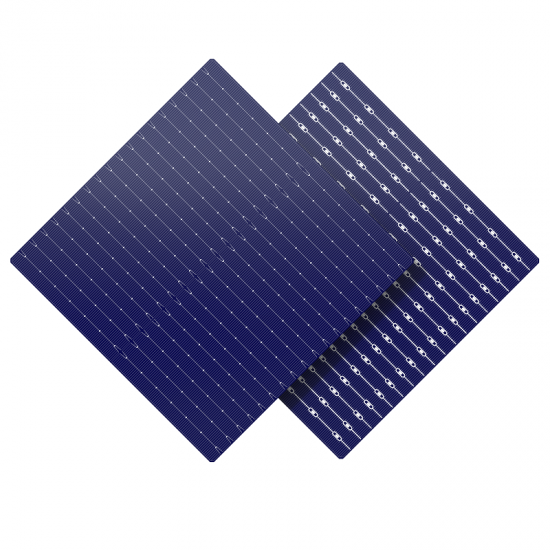

Powerful N-type TOPCon Solar Cells 210mm For Solar Module

Our 210mm N-Type Topcon Solar Panels offer unmatched performance with features like reduced LID and enhanced PID resistance, ensuring durability and stability for high-efficiency modules. With minimized sealing damage and CTM loss rates, they're designed to optimize energy output. Plus, boasting a low power temperature coefficient of -0.30%/°C, they excel even in low irradiance environments, achieving a remarkable relative conversion efficiency of up to 98% under low light conditions (200W/m²). With impressive front efficiency of 25% and a bifaciality rate exceeding 80%, our panels deliver exceptional conversion efficiency for maximum energy generation.

  • Brand:

    SunEvo
  • Mdel:

    210 mono-crystalline Bifacial solar cell (SE-210M-18D1)
  • Dimension:

    210mmx210mm±0.25mm, Φ 295mm±0.25mm
  • Thickness:

    150μm±20μm
  • Front:

    18 busbars, 12 pads, 148 fingers, busbar width 0.045±0.02mm
  • Back:

    18 busbars, 12 pads, 140 fingers, busbar width 0.045±0.02mm

New Products

Product Characteristics

Lower LlD
Superior anti-PlD performance
Lower Cell to Module (CTM) Loss Rate, more suitable for high-efficiency module
Temperature coefficient of Power as low as -0.30%/°C
Relative conversion efficiency is 98% under low light (200W/m?)
High Conversion Effciency: Front effciency≥25%,Bifaciality rate ≥80%

Mechanical Characteristics
Model: 210 mono-crystalline Bifacial solar cell (SE-210M-18D1)
Dimension: 210mmx210mm+0.25mm,Ф295mm+0.25mm
Thickness: 150um+20um
Front: 18 busbars, 12 pads, 148 fingers, busbar width 0.045+0.02mm
Back: 18 busbars, 12 pads, 140 fingers, busbar width 0.045+0.02mm
