Solar panel mounting systems for clay tile roofs are designed to securely and efficiently attach solar panels to the roof while maintaining the integrity of the roof structure.
Brand:
SunEvoInstallation Application:
Tile Roof Rack SystemPV Module Layout:
Portrait or LandscapeWind Load:
60m/s or CustomizedSnow Load:
1.6KN/m2 or CustomizedInclination:
Parallel to the roofTile Roof Bracket Hook Solar System Brackets Structure Mounting Systems

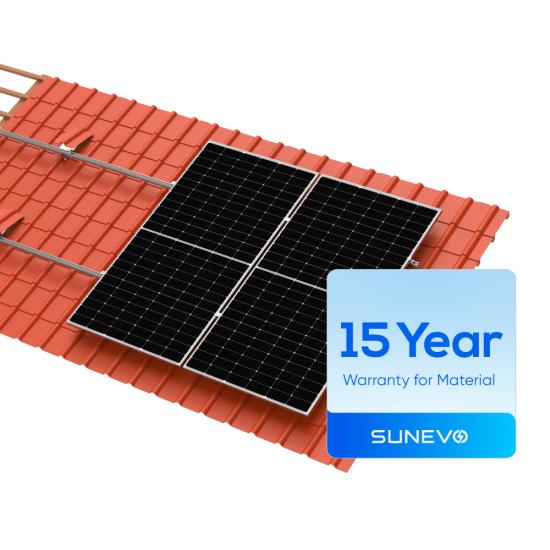

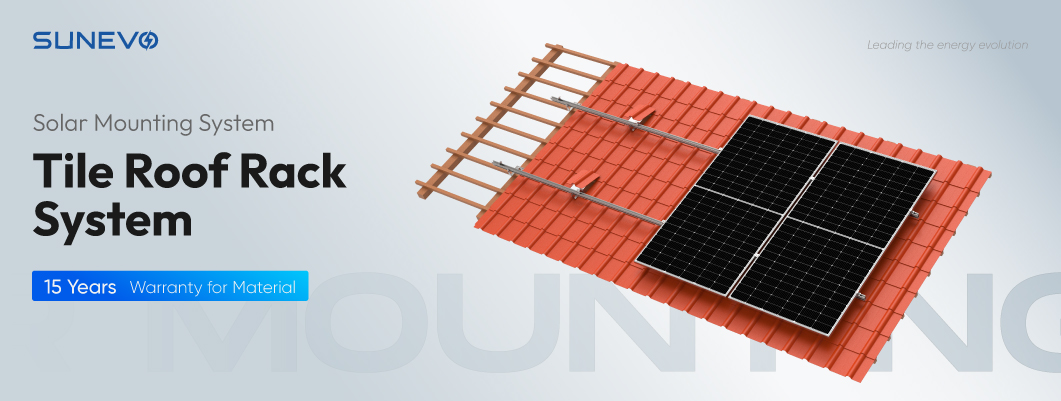

Tile-on RoofSystem is an optimized design with a wide range of usage, easy installation. The system uses roof hook to be fixed on the roof and mount the PV module by rail &clamps. The flexible design adopts to different roof structures and tile shapes.

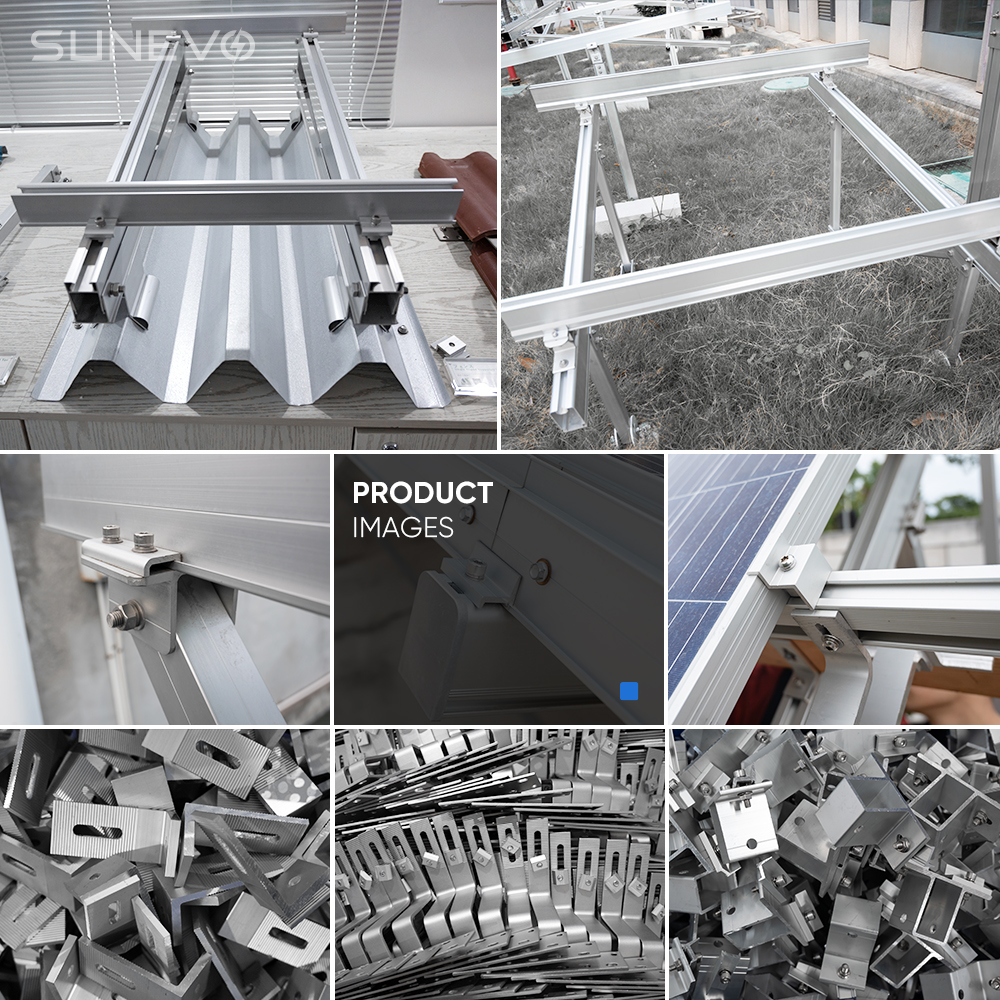

Technical Features of Metal Roof Mounting Systems:
| Product name | Tile roof mounting system |
| Application | Tile roof |
| Inclination | Parallel to the roof |
| Material | AL6005-T5,SUS 304, EPDM |
| Finish | SUS304 &Zinc-Nickel Alloy Electroplated Steel |
| Module orientation | Landscape or Portrait |

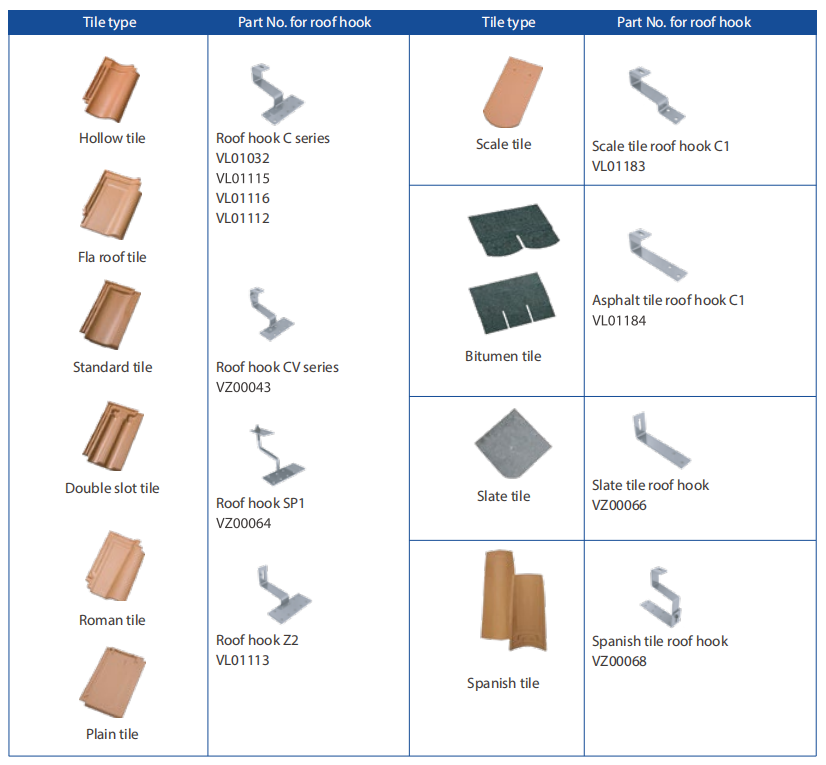

Different Types of Tiles:
There are many different types of tiles, see some examples as follow:
The components of tile roof solar panel mounting brackets typically include:
--Mounting Rails: These are horizontal metal rails that provide a stable base for mounting the solar panels. They are usually made of aluminum or stainless steel and designed to withstand various weather conditions.

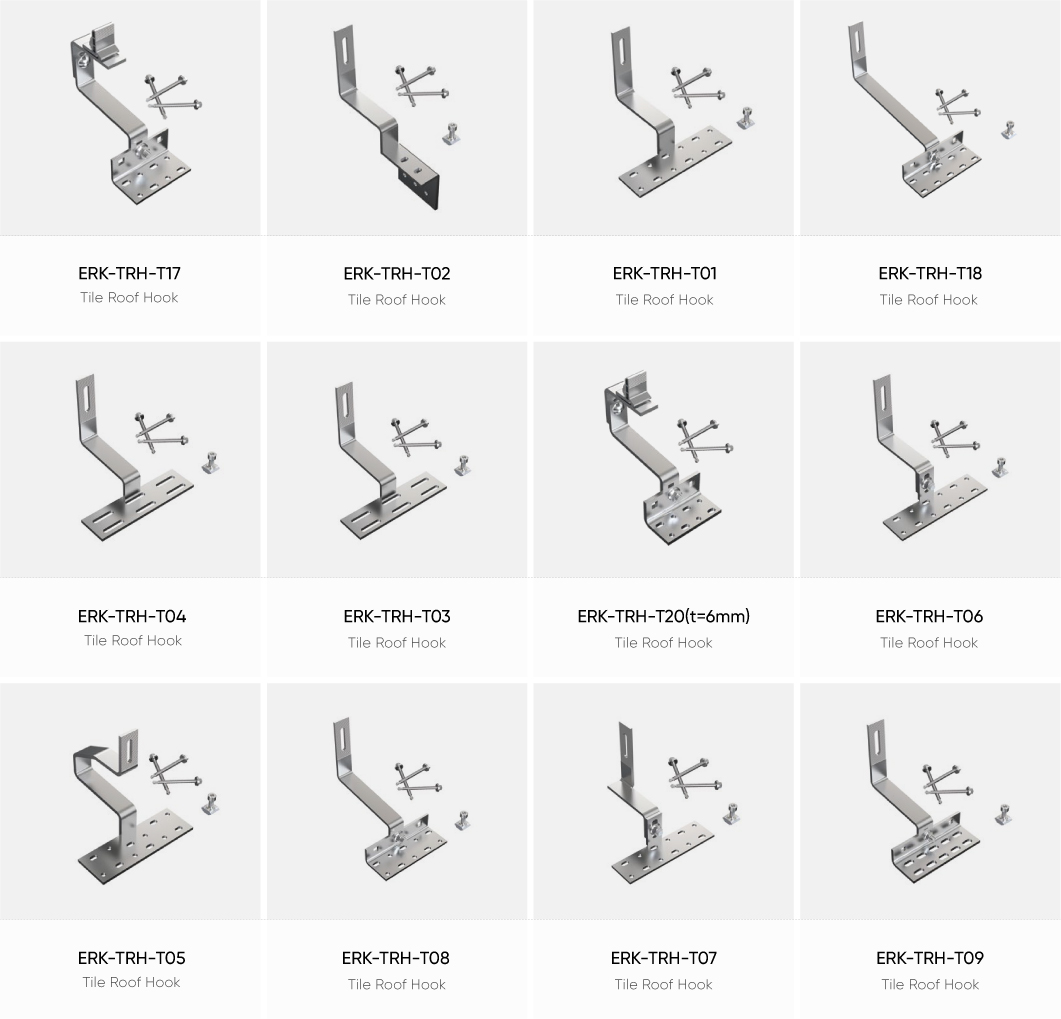

--Tile Hooks/Brackets: These are specialized hooks or brackets that attach to the roof's structural elements underneath the tiles. They are available in different designs to accommodate different tile profiles. Tile hooks are typically made of stainless steel or aluminum, and they are adjustable to fit the specific tile shape and size.
--Flashing: Flashing is a waterproofing material that is installed around the tile hooks to prevent water from seeping into the roof. It is typically made of rubber or a similar flexible material and is customized to fit the specific tile profile.
--Clamps: Clamps are used to secure the solar panels onto the mounting rails. They come in various sizes to accommodate different panel dimensions. The clamps are usually made of aluminum or stainless steel and are designed to resist corrosion.
--End Clamps and Mid Clamps: End clamps are used to secure the panels on the outer edges, while mid clamps hold the panels in place along their lengths. These clamps ensure that the panels remain firmly attached to the mounting rails, providing structural stability.
The Installation Process of Tile Roof Mounting Systems
The installation process for solar panels on a clay tile roof typically involves the following steps:
--Roof Assessment: A professional installer will assess the roof's condition, determine its load-bearing capacity, and identify any necessary reinforcements before designing the mounting system.
--Tile Removal: In the areas where the solar panels will be installed, tiles are temporarily removed to expose the underlying structure.
--Attaching Tile Hooks: The tile hooks or brackets are attached to the roof structure under the tiles, aligning them with the planned panel layout
--Flashing Installation: Flashing is installed around the tile hooks, carefully fitted to the profile of the tiles to maintain a watertight seal.
--Mounting Rail Installation: The mounting rails are attached to the tile hooks, providing a stable foundation for the solar panels. They are aligned and secured according to the predetermined design.
--Panel Mounting: The solar panels are mounted onto the rails using clamps. End clamps secure the panels on the outer edges, while mid clamps hold them in place along their lengths.
--Electrical Connections: Once the panels are securely mounted, the electrical wiring is connected to enable the generation and transmission of electricity.

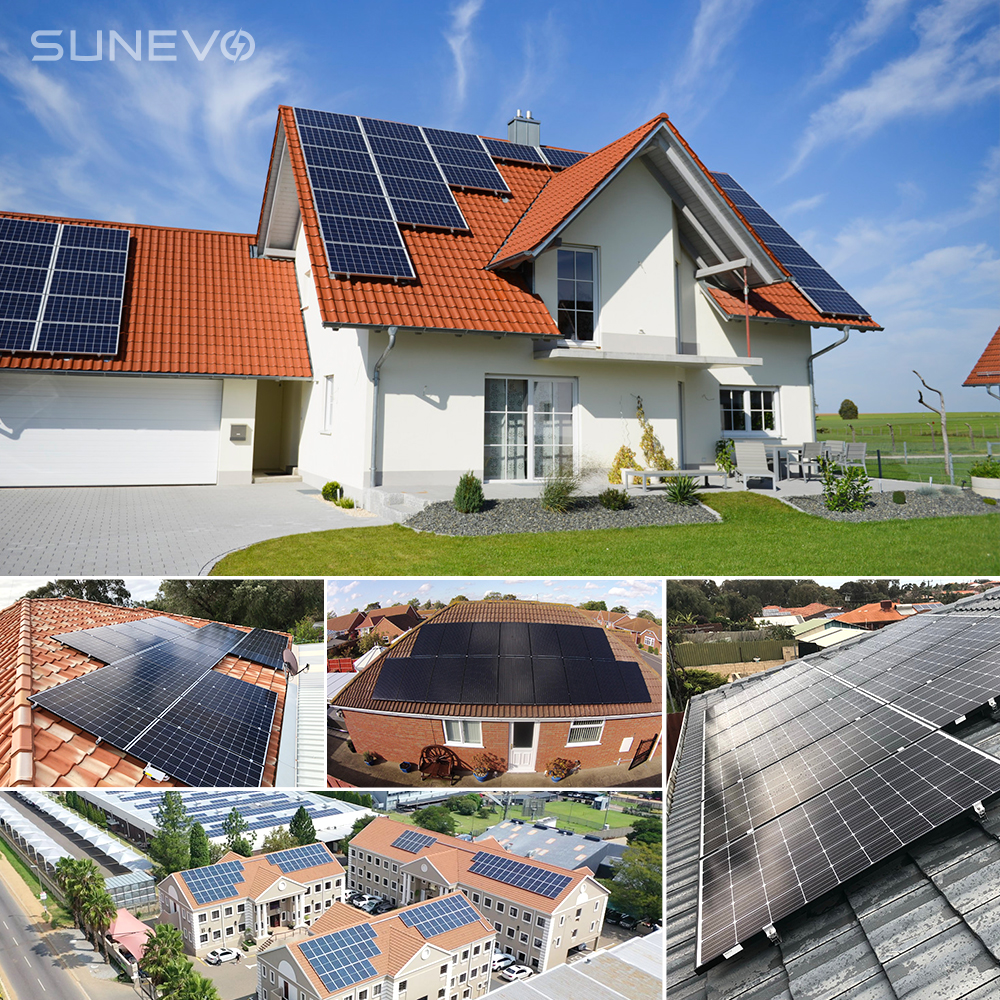

Installation Project Cases
It's important to note that the specific installation process may vary based on the type of metal roof, manufacturer guidelines, and local building codes. Therefore, it is recommended to consult with a professional installer or follow the manufacturer's instructions for a proper and compliant installation.
