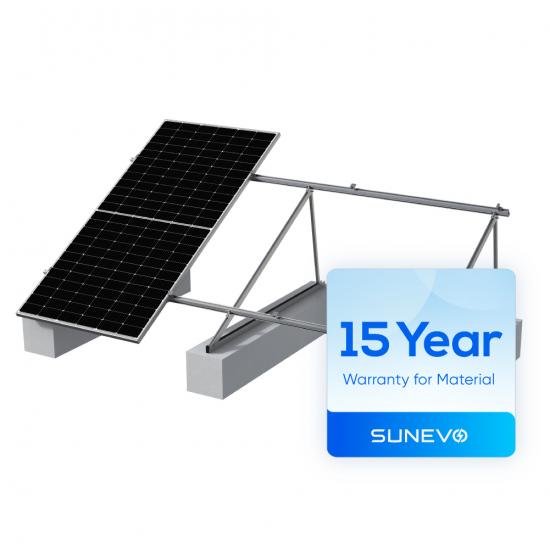

Sunevo Steel Ground Installation Parts Tilt Mount Photovoltaic Solar Ground System

The Tilt Mounting Rack System is a type of solar panel mounting structure designed to provide an adjustable tilt angle for optimal solar energy production. It is usually used for flat roof or on the ground.

  • Brand:

    SunEvo
  • Installation Application:

    Tilt Rack System
  • PV Module Layout:

    Portrait or Landscape
  • Wind Load:

    60m/s or Customized
  • Snow Load:

    1.6KN/m2 or Customized
  • Inclination:

    Customized

New Products

Sunevo Steel Ground Installation Parts Tilt Mount Photovoltaic Solar Ground System



The Tilt Mounting Rack System is a type of solar panel mounting structure designed to securely hold solar panels at an optimized tilt angle. It is specifically designed for installations where the solar panels need to be tilted to maximize energy production.








Technical Features of Tilt Rack Mounting Systems:

Product name Tilt Rack Mounting System
Installation Site
Flat concrete roofs and ground installations
Wind Load
60m/s or Customized
Snow Load
1.6KN/m2 or Customized
Applicable Solar Module
Framed
Panel Layout
Portrait or Landscape
Material AL 6005-T5, SUS 304





The Components of Tilt Rack Mounting Systems


The tilt mounting structure consists of various components that facilitate the installation and adjustment of solar panels.



Key components of the Tilt Mounting Rack System typically include:



1. Rails: bars that provide structural support and allow for the attachment of solar panels.

  1.

2. Mounting Brackets: Connectors that secure the solar panels to the rails and provide the flexibility to adjust the tilt angle.



3. Ground Mounts or Roof Attachments: Depending on the installation environment, there are different options available for attaching the mounting racks to the ground or a roof structure.




The Installation Processes of Tilt Rack Mounting Systems



The installation process for a tilt rack mounting system typically involves the following steps:



  1. 1. Site Preparation: Assess the installation site, ensure proper spacing and layout, and prepare the foundation for stability.
  2.
  3. 2. Mounting Rack Assembly: Assemble the rails, brackets, and other components according to the manufacturer's instructions
  4.
  5. 3. Attachment to Structure: Install the mounting brackets onto the roof or ground mounts, ensuring secure and level attachment.
  6.
  7. 4. Panel Mounting: Attach the solar panels to the mounting brackets using appropriate hardware and ensure proper alignment and spacing.
  8.
  9. 5. Tilt Adjustment: Adjust the tilt angle of the mounting system to optimize solar energy production based on the local latitude and seasonal variations.






The Installation Environments Of The Proper Tilt Rack Mounting System



The Tilt Mounting Rack System is suitable for a variety of installation environments, including residential, commercial, and utility-scale solar projects.

It is commonly used in ground-mounted solar arrays, as well as rooftop installations, where the tilt angle can be adjusted to maximize energy production.



When choosing the appropriate Tilt Mounting Rack System, considerations include:

--Load-bearing Capacity: Ensure that the system can handle the weight of the solar panels and withstand environmental loads such as wind and snow.



--Durability: Look for systems made from high-quality materials that are corrosion-resistant and able to withstand harsh weather conditions.



--Adjustability and Flexibility: Depending on the desired tilt angle and installation requirements, choose a system that offers the appropriate range of adjustability.



--Compatibility: Ensure that the system is compatible with the size and dimensions of the solar panels being used.



By considering these factors, it is possible to select a suitable Tilt Mounting Rack System that meets the specific needs and requirements of the solar installation.
