A hybrid inverter, also known as a multi-mode inverter, is a device used in renewable energy systems, such as solar power or wind power systems, to convert and manage electrical energy. It combines the functionalities of a grid-tied (on-grid) inverter and an off-grid inverter into a single unit, allowing for more flexibility and efficiency in energy usage.
Brand:
SunArkModel:
SUN-8K / 10K / 12K / 15K / 16K-SG01HP3-EU-AM2Max. DC PV Input Power (W):
10400 / 13000 / 15600 / 19500 / 21000MPPT Voltage Range (V):
150-850VdcRated AC Output and UPS Power (W):
8000 / 10000 / 12000 / 15000 / 16000Output Frequency and Voltage:
50/60Hz; 380-400VGrid Type:
Three Phase
Firstly, you need to confirm your AC voltage type. Technically speaking, there’re EU version and US version AC voltage. And each voltage type also has several type, for example, EU voltage has single phase and three phases; US voltage has split phase and three phases. If you are not sure about your AC voltage, check your smart meter.
Secondly, you need to confirm your home load. For example, we can provide 5kw, 8kw, 10kw, 12kw, etc. Make sure the load power of the inverter is more than your home load.
--Hybrid inverter x1
--Wall mounting bracket x1
--Stainless steel anti-collision bolt M8×80 x4
--Parallel communication cable x1
--L-type Hexagon wrench x1
--Battery temperature sensor x1
--User manual x1
--Wi-Fi-Plug(optional) x1
--Meter(optional) x 1
--Sensor Clamp x 3
--DC+/DC- Plug connectors including metal terminal xN
SunArk Power is a great manufacturer of solar and energy products, we can provide lead acid battery, lead carbon battery, OPZV battery, OPZS battery, lithium battery, etc.
For lithium battery, we have different models according to the installation methods, such as lead acid replacement type lithium battery, rack type lithium battery, wall-mounted powerwall lithium battery, stackable ground type lithium battery, container lithium battery, etc.
Please make sure the DC voltage of the battery pack is within the hybrid inverter DC voltage range. For your reference, the model we provide to DEYE single phase 5kW, 8kW, three phases 8kW, 10kW and 12kW, all these models need to connect with battery pack voltage between 40V to 60V, so usually we suggest you to connect 48V or 51.2V.
How to take sample inverter order to test quality?
Before placing the bulk order, usually reselling company or installation company may need to take the sample inverter to test the quality and performance of the hybrid solar inverter. Just contact the sales department team, and mentioned that you want to get one sample inverter.
After payment, we would arrange the production. If you don’t have a shipping agent, we can help arrange the delivery.
Of course, you are also very welcome to take the complete solar system solution. We can provide to you.

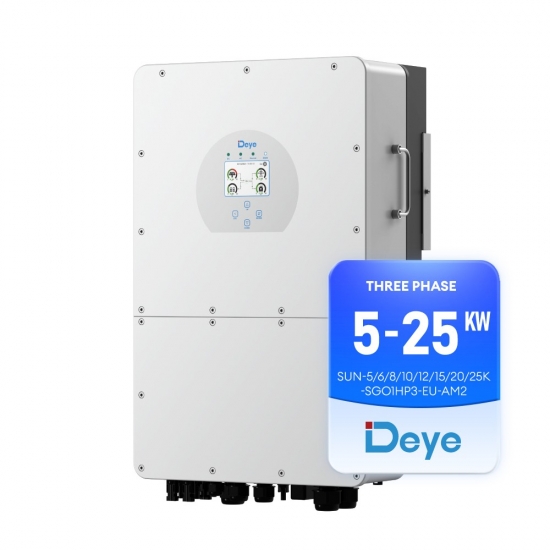

SunArk Deye EU Standard Hybrid Residential Solar Inverter, Which Is On Grid Type + Off Grid Type Inverter, It Also Has UPS Function, Which Meets Multiple Requirements In Different Applications. The MPPT voltage Range is wide, And It Has 2 MPPT Trackers, Which Can Optimize The PV And Battery Performance.
SunArk EU Standard Hybrid Residential Solar Inverter, Which Is Widely Used In Solar System, Have Both Single Phase and Three Phases Versions.
Deye hybrid on grid off grid solar inverter, is a key part in combining a set of solar energy system. It has helped a lot of households and industrial and commercial projects to save the electricity bill. In the meantime, it also provides a environmental-friendly home for all the users.
A hybrid inverter, also known as a multi-mode inverter, is a device used in renewable energy systems, such as solar power or wind power systems, to convert and manage electrical energy. It combines the functionalities of a grid-tied (on-grid) inverter and an off-grid inverter into a single unit, allowing for more flexibility and efficiency in energy usage.
The function of a hybrid inverter is to convert direct current (DC) electricity generated by renewable energy sources like solar panels or wind turbines into alternating current (AC) electricity that can be used to power household appliances or fed back into the electrical grid. Additionally, a hybrid inverter is equipped with battery charging and discharging capabilities, which enable it to store excess energy in batteries for later use or provide backup power during grid outages.
A hybrid inverter combines the functionalities of a grid-tied inverter and an off-grid inverter. It is designed to work with both renewable energy sources, such as solar panels or wind turbines, and a grid power supply, which is very popular for residential solar system.
DEYE three phase 30kw 35kw 40kw 50kw hybrid inverter with High voltage battery 160-800V, ensuring system efficiency and less heat dissipation. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios.
DEYE three phase solar hybrid inverter is a multifunctional inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptable power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible button operation such as battery charging, AC/solar charging, and acceptable input voltage based on different applications.
