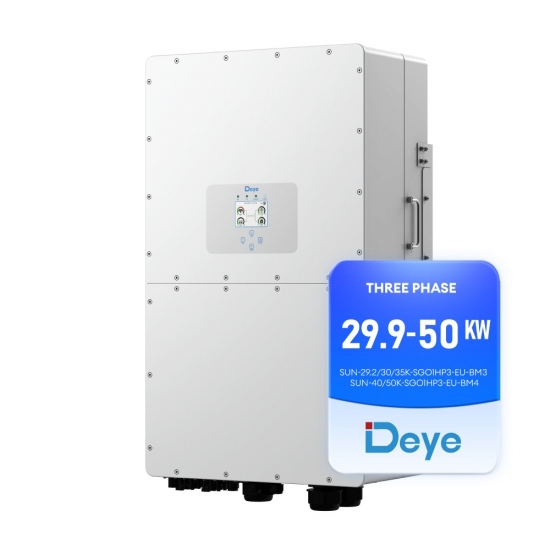

DEYE three phase 30kw 35kw 40kw 50kw hybrid inverter with High voltage battery 160-800V, ensuring system efficiency and less heat dissipation. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios.
Brand:
SunArkModel:
SUN-30K / 35K / 40K / 50K-SG01HP3-EU-BM3Max. DC PV Input Power (W):
39000 / 45500 / 52000 / 65000MPPT Voltage Range (V):
150-850VdcRated AC Output and UPS Power (W):
30000 / 35000 / 40000 / 50000Output Frequency and Voltage:
50/60Hz;3L/N/PE 220/380Vac，230/400VacGrid Type:
Three PhasesNo. of MPP Trackers:
3 / 4No. of Strings per MPP Tracker:
2+2+2+2Battery Voltage Range (V):
160-800
The left illustration shows basic application of this inverter. It also includes following devices to have a complete running system.
- Generator or Utility
- PV modules
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air conditioner.
- 230V/400V Three phase Pure sine wave inverter.
- Self-consumption and feed-in to the grid.
- Auto restart while AC is recovering
- Programmable supply priority for battery or grid.
- Programmable multiple operation modes: On grid, off grid and UPS.
- Configurable battery charging current/voltage based on applications by LCD setting.
- Configurable AC/Solar/Generator Charger priority by LCD setting.
- Compatible with mains voltage or generator power.
- Overload/over temperature/short circuit protection.
- Smart battery charger design for optimized battery performance
- With limit function, prevent excess power overflow to the grid.
- Supporting WIFI monitoring and build-in 2 strings for 1 MPP tracker, 1 string for 1 MPP tracker.
- Smart settable three stages MPPT charging for optimized battery performance.
- Time of use function.
- Smart Load Function.
--Please select a vertical wall with load-bearing capacity for installation, suitable for installation on concrete or other non-flammable surfaces.
-- Install this inverter at eye level in order to allow the LCD display to be read at all times.
--The temperature is recommeded to be between -40~60℃ .
--Keep other objects and surfaces to guarantee sufficient heat dissipation and have enough space for removing wires.
Usually the hybrid inverter would packed by thin film to protect the inverter from moisture. Then put the inverter into the paper box.
All extra parts and tools like WIFI, cable, user manual, CT, etc. Would also put into extra thin film bag.
We would put foams to all six sides of the inverter, so that the inverter would be protected from Squeeze and collision.
After the package, inverters would be packed by a wooden pallet. Usually 8 pcs or 12 pcs per pallet. Then the pallet would be packed by thin film.
SunArk Deye EU Standard Hybrid Residential Solar Inverter, Which Is On Grid Type + Off Grid Type Inverter, It Also Has UPS Function, Which Meets Multiple Requirements In Different Applications. The MPPT voltage Range is wide, And It Has 2 MPPT Trackers, Which Can Optimize The PV And Battery Performance.
SunArk EU Standard Hybrid Residential Solar Inverter, Which Is Widely Used In Solar System, Have Both Single Phase and Three Phases Versions.
Deye hybrid on grid off grid solar inverter, is a key part in combining a set of solar energy system. It has helped a lot of households and industrial and commercial projects to save the electricity bill. In the meantime, it also provides a environmental-friendly home for all the users.
A hybrid inverter, also known as a multi-mode inverter, is a device used in renewable energy systems, such as solar power or wind power systems, to convert and manage electrical energy. It combines the functionalities of a grid-tied (on-grid) inverter and an off-grid inverter into a single unit, allowing for more flexibility and efficiency in energy usage.
The function of a hybrid inverter is to convert direct current (DC) electricity generated by renewable energy sources like solar panels or wind turbines into alternating current (AC) electricity that can be used to power household appliances or fed back into the electrical grid. Additionally, a hybrid inverter is equipped with battery charging and discharging capabilities, which enable it to store excess energy in batteries for later use or provide backup power during grid outages.
A hybrid inverter, also known as a multi-mode inverter, is a device used in renewable energy systems, such as solar power or wind power systems, to convert and manage electrical energy. It combines the functionalities of a grid-tied (on-grid) inverter and an off-grid inverter into a single unit, allowing for more flexibility and efficiency in energy usage.
A hybrid inverter combines the functionalities of a grid-tied inverter and an off-grid inverter. It is designed to work with both renewable energy sources, such as solar panels or wind turbines, and a grid power supply, which is very popular for residential solar system.
DEYE three phase solar hybrid inverter is a multifunctional inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptable power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible button operation such as battery charging, AC/solar charging, and acceptable input voltage based on different applications.
