SunArk Deye EU Standard Hybrid Residential Solar Inverter, Which Is On Grid Type + Off Grid Type Inverter, It Also Has UPS Function, Which Meets Multiple Requirements In Different Applications. The MPPT voltage Range is wide, And It Has 2 MPPT Trackers, Which Can Optimize The PV And Battery Performance.
Brand:
SunArkModel:
SUN-5K-SG04LP1-EUMax. DC PV Input Power (W):
6500MPPT Voltage Range (V):
150~425Rated AC Output and UPS Power (W):
5000Output Frequency and Voltage:
50/60Hz; L/N/PE 220/230VacGrid Type:
Single Phase
- Supports Single phase 220-240Vac, Three phase 380-400Vac, Split phase 120/240Vac, Three-phase 120/208Vac system.
- Self-consumption and feed-in to the grid.
- Auto restart while AC is recovering.
- Programmable supply priority for battery or grid.
- Programmable multiple operation modes: On grid, off grid and UPS.
- Configurable battery charging current/voltage based on applications by LCD setting.
- Configurable AC/Solar/Generator Charger priority by LCD setting.
- Compatible with mains voltage or generator power.
- Overload/over temperature/short circuit protection.
- Smart battery charger design for optimized battery performance
- With limit function, prevent excess power overflow to the grid.
- Supporting WIFI monitoring and build-in 2 strings of MPP trackers
- Smart settable three stages MPPT charging for optimized battery performance.
- Time of use function.
- Smart Load Function.
For DEYE hybrid solar inverter, we can mainly provide single phase and three phases.

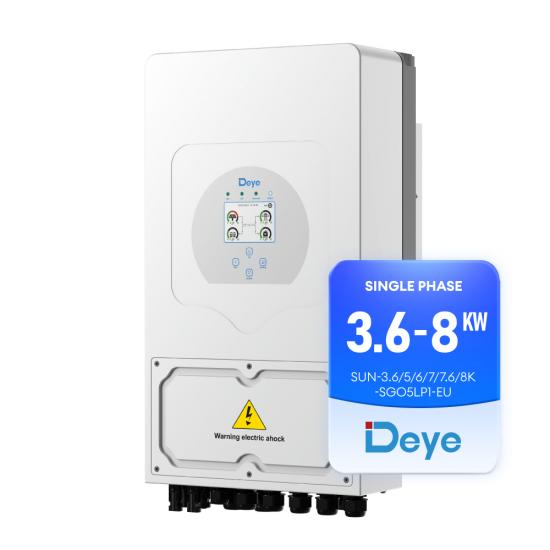

Single phases include: 3.6kW, 5kW, 6kW, 8kW, 12kW, 14kW, 16kW. All the models are low voltage type.
Three phases include: low voltage 4kW, 6kW, 8kW, 10kW, 12kW; And high voltage 5kW, 6kW, 8kW, 10kW, 12kW, 15kW, 20kW, 30kW, 40kW, 50kW
Above all mentioned solar inverters, single phase 5kW and 8kW, as well as three phases 8kW, 10kW, 12kW are most popular models.
In most cases, DEYE hybrid solar inverter can work as on grid model plus off-grid model.
In on grid model, you can send the electricity generated from the solar inverter back to the grid and make a profit from this.
If you don’t want to send the electricity back, what you need is just to install a CT, then it can help present reselling the electricity.
This inverter can work with many different kinds of batteries, such as AGM battery, GEL battery, lead carbon battery, OPZV battery, OPZS battery, lithium battery, etc. Just make sure that the battery or battery pack voltage range shall between 40-60V.
Another key is that when you are using lithium battery with this inverter, it’s important to confirm the compatibility firstly. If you don’t know how to chose a suitable lithium battery, you can choose either DEYE battery or SunArk battery, we would test every battery before delivery and make sure it works perfect with DEYE inverter.
FAQs:
1.Do you support customized design?
Yes,we can accept your customized requirements,we can also help you create your new designs. Just send us your logo, then you can get the unique OEM service.
2.How to get free samples?
Send us your address, your telephone number, postcode, and express account number to our mailbox, and also told us which model of
samples you need. Our sales team will contact you within 24 hours.
3.How can I place an order?
You can contact us for the details and after all the details confirmed,you can place an order.
4.What is the lead time?
For sample inverter, it usually needs 7-10 days to arrange the delivery. For bulk order, if we have stock, we can arrange delivery within 7-10 days; If stock out, it needs about 25 days to prepare new inventory.
5.How is the shipment?
For small quantity order,we usually use the air express such as Fed-Ex DHL or UPS,for large quantity order,we usually ship the goods by sea.
6.What certificates do you have for the inverter?
CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11
Our DEYE hybrid inverter also passed many Safety EMC / Standards
IEC/EN 61000-6-1/2/3/4
IEC/EN 62109-1
IEC/EN 62109-2
7.How many warranty years do you provide?
We'll offer 5 years warranty for hybrid,and 3 years warranty for on-grid inverter,warranty extension is available.
SunArk EU Standard Hybrid Residential Solar Inverter, Which Is Widely Used In Solar System, Have Both Single Phase and Three Phases Versions.
Deye hybrid on grid off grid solar inverter, is a key part in combining a set of solar energy system. It has helped a lot of households and industrial and commercial projects to save the electricity bill. In the meantime, it also provides a environmental-friendly home for all the users.
A hybrid inverter, also known as a multi-mode inverter, is a device used in renewable energy systems, such as solar power or wind power systems, to convert and manage electrical energy. It combines the functionalities of a grid-tied (on-grid) inverter and an off-grid inverter into a single unit, allowing for more flexibility and efficiency in energy usage.
The function of a hybrid inverter is to convert direct current (DC) electricity generated by renewable energy sources like solar panels or wind turbines into alternating current (AC) electricity that can be used to power household appliances or fed back into the electrical grid. Additionally, a hybrid inverter is equipped with battery charging and discharging capabilities, which enable it to store excess energy in batteries for later use or provide backup power during grid outages.
A hybrid inverter, also known as a multi-mode inverter, is a device used in renewable energy systems, such as solar power or wind power systems, to convert and manage electrical energy. It combines the functionalities of a grid-tied (on-grid) inverter and an off-grid inverter into a single unit, allowing for more flexibility and efficiency in energy usage.
A hybrid inverter combines the functionalities of a grid-tied inverter and an off-grid inverter. It is designed to work with both renewable energy sources, such as solar panels or wind turbines, and a grid power supply, which is very popular for residential solar system.
DEYE three phase 30kw 35kw 40kw 50kw hybrid inverter with High voltage battery 160-800V, ensuring system efficiency and less heat dissipation. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios.
DEYE three phase solar hybrid inverter is a multifunctional inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptable power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible button operation such as battery charging, AC/solar charging, and acceptable input voltage based on different applications.
