The 645W HJT module combines cutting-edge technology, superior product features, and high-efficiency performance to redefine the standards of solar power generation. Combining the gettering process and single-side μc-Si technology to ensure higher cell efficiency and higher module power.
Brand:
SunEvoPower Range:
625W~645WMax. Efficiency:
22.79%Number of Cells:
120 (6×20)Dimensions of Module L*W*H:
2172 × 1303 × 35mmWeight:
35.3kgFront Side Glass:
2.0mm anti-reflective solar glassBack Side Glass:
2.0mm solar glassFrame:
Anodized aluminium alloyJunction Box:
IP68Cable:
4mm2 , 300mm in length, length can be customized / UV resistantWind/Snow Load:
5400PaConnector:
MC4 original /MC4 compatibleBifaciality:

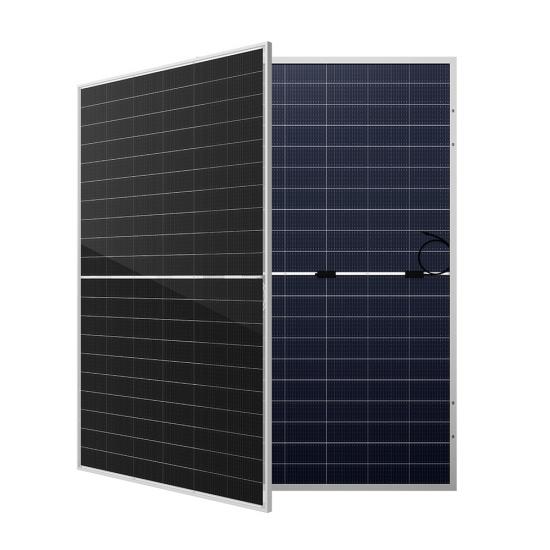

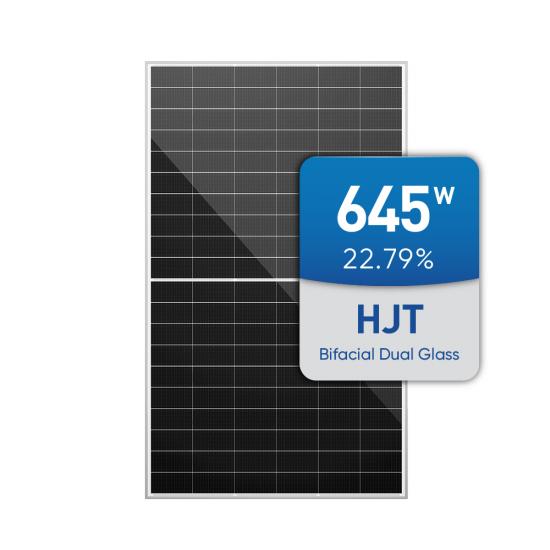

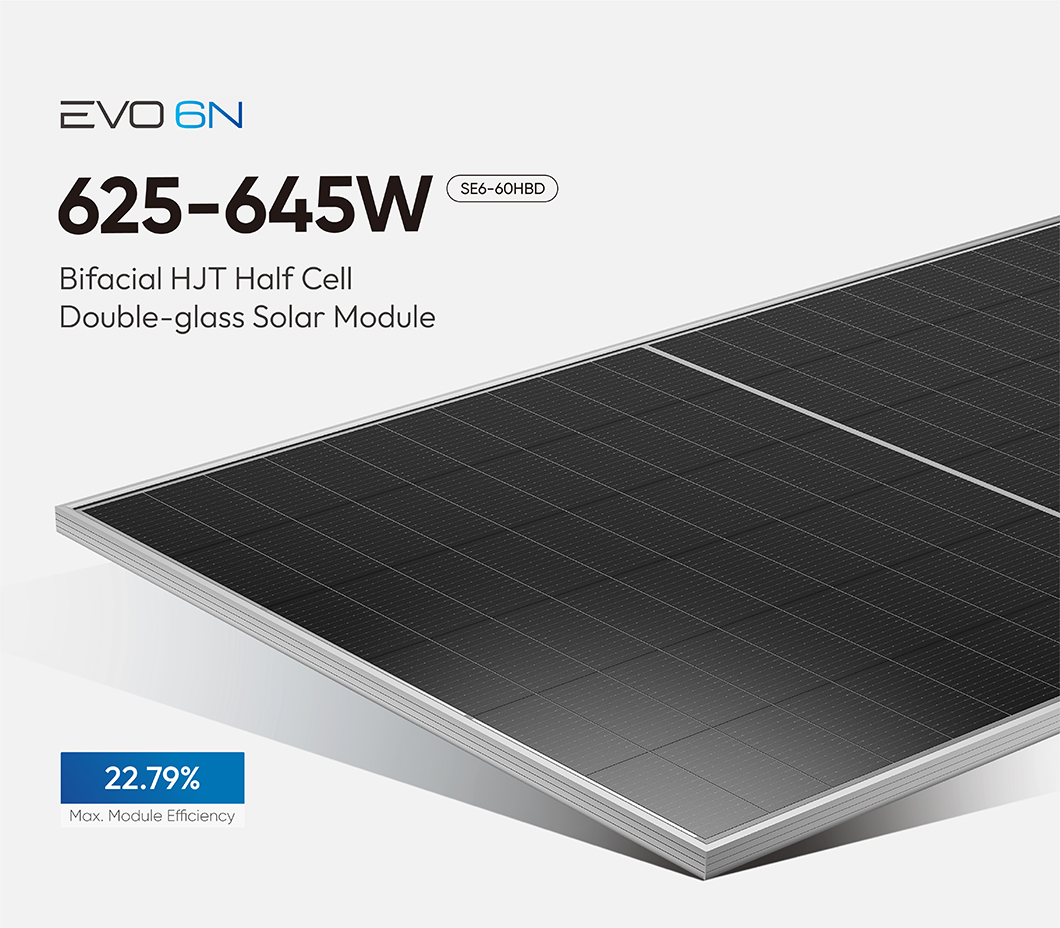

85%±5%EVO 6N Bifacial HJT Half Cell Double-glass Solar Module 645W 640W 635W 630W 625W
The 645W HJT module combines cutting-edge technology, superior product features, and high-efficiency performance to redefine the standards of solar power generation. Combining the gettering process and single-side μc-Si technology to ensure higher cell efficiency and higher module power.
Electrical Parameters (STC*)
|
Maximum Power (Pmax/W) |
625 |
630 |
635 |
640 |
645 |
|
Maximum Power Voltage (Vmp/V) |
37.86 |
38.03 |
38.19
|
38.35
|
38.51
|
|
Maximum Power Current (Imp/A) |
16.51
|
16.57
|
16.63
|
16.69 |
16.75 |
|
Open Circuit Voltage (Voc/V) |
45.13
|
45.30
|
45.48
|
45.65
|
45.82
|
|
Short Circuit Current (Isc/A) |
17.31 |
17.37 |
17.43 |
17.49 |
17.55 |
|
Module Efficiency (%) |
22.08
|
22.26
|
22.44
|
22.61
|
22.79
|
|
Power Output Tolerance (W) |
0/+5W |
||||
|
Temperature Coefficient of Isc |
+0.040%/°C |
||||
|
Temperature Coefficient of Voc |
-0.240%/°C |
||||
|
Temperature Coefficient of Pmax |
-0.260%/°C |
||||
High-Efficiency HJT Solar Panels: Unlocking the Power of 715W
Solar energy has become a cornerstone of the renewable energy revolution, and continuous advancements in photovoltaic technology have been pivotal in harnessing more power from the sun. One of the most exciting developments in the world of solar panels is HJT (Heterojunction) technology, which offers unmatched efficiency and the potential to generate up to 715W of electricity. In this article, we explore the wonders of HJT solar panels and explain why they can achieve such remarkable power outputs.
1. Understanding Heterojunction Technology
HJT, or Heterojunction Technology, is a cutting-edge approach to solar panel design that combines the best of two worlds: crystalline silicon and thin-film technology. This fusion results in a solar cell that's not only highly efficient but also cost-effective and aesthetically pleasing. HJT solar panels consist of two key layers: amorphous silicon and crystalline silicon. The unique structure of these panels allows for the efficient capture of sunlight and minimizes energy losses due to electron recombination.
2. High Efficiency Through Reduced Recombination
One of the primary reasons HJT solar panels can achieve such high efficiency is their ability to reduce electron recombination. Electron recombination is a phenomenon where energized electrons return to their ground state without generating electricity. HJT panels tackle this issue with a thin layer of amorphous silicon, which acts as a buffer and prevents electrons from recombining prematurely.
3. Improved Performance in Real-World Conditions
HJT panels excel not only in ideal laboratory conditions but also in real-world scenarios. They have a higher tolerance for temperature variations and perform better in low-light conditions. This makes them particularly suitable for regions with fluctuating weather patterns or areas with limited sunlight during certain seasons.
4. High Power Output Explained
Now, let's delve into why HJT panels can reach an astounding 715W of power output. The key factors contributing to this capability include:
A. High Efficiency: HJT panels boast efficiency levels that often exceed 25%. This means they can convert a larger portion of sunlight into electricity compared to conventional panels.
B. Bifacial Design: Many HJT panels are bifacial, meaning they can capture sunlight from both the front and rear sides. This dual-sided exposure further enhances their power output.
C. Increased Panel Size: HJT panels tend to be larger in size compared to standard panels. This allows them to accommodate more solar cells and generate higher power.
D. Improved Durability: HJT panels are designed to be more durable and have longer lifespans, ensuring they can consistently produce high power over many years.
E. Potential for Energy Storage: HJT panels are often used in combination with advanced energy storage solutions, allowing for the capture and utilization of excess energy, further increasing their effective power output.
In conclusion, HJT solar panels represent a remarkable leap in solar technology. Their ability to reach up to 715W of power output is a testament to their efficiency, durability, and adaptability to real-world conditions. As we continue to push the boundaries of solar energy, HJT panels stand at the forefront, promising a brighter, more sustainable future powered by the sun.
Evo 6 Pro Series 110 Half Cells Solar PV Panel 580W 575W 570W 565 Wp 560 Watt High Effficiency Monocrystalline HJT Bifacial Double Glass Photovoltaic Solar Panel Module Based on 210mm Solar Cell
The 710W HJT module combines cutting-edge technology, superior product features, and high-efficiency performance to redefine the standards of solar power generation. Combining the gettering process and single-side μc-Si technology to ensure higher cell efficiency and higher module power.
The HJT 750W module has high efficiency, high reliability, and strong environmental adaptability as its core advantages and is suitable for distributed and large-scale power station projects that pursue high power generation returns and low levelized cost of electricity.
AC charger stations can provide different power levels, commonly ranging from 3.3 kW to 22 kW, although higher power levels are also available. The charging speed and time will depend on the power level of the charger and the capabilities of the electric vehicle being charged. AC charging is commonly used for overnight charging at home or for longer-duration charging at public charging stations. It is a convenient and widely adopted method of charging EVs, as it utilizes the existing AC infrastructure that is readily available in most residential and commercial buildings.
The Jinko JKM585-N-72HL4RBDV solar panel offers exceptional power output, efficiency, durability, and reliability, making it an ideal choice for commercial, industrial, and utility-scale solar installations.
The deep cycle AGM battery is known for its long cycle life, providing reliable power for extended periods without the need for frequent replacement. Its design includes robust plates that allow for deeper discharges compared to conventional batteries, making it highly efficient in demanding applications. The battery's spill-proof construction ensures safe operation in any position, making it suitable for a variety of installations. It also offers high energy density, enabling more power to be stored in a compact size. Additionally, this battery performs well in both high and low-temperature environments, ensuring consistent performance in extreme conditions. Its low maintenance requirements and superior charge retention make it an ideal choice for energy storage systems and off-grid solutions.
S5-EH1P(3-6)K-L series energy storage inverter is designed for residential PV energy storage systems. 5kW backup power supports more critical loads. The backup switching time is less than 20ms. Integrate multiple protections and fault monitoring to ensure the safety of batteries and equipment.
SunEvo residential 5kW 10kW off grid solar panel power system is a power generation system that is independent of the traditional power grid. The off-grid photovoltaic power generation system does not rely on the traditional power grid for power supply. Especially in remote areas or places that cannot access the traditional power grid, the off-grid photovoltaic power generation system has become an ideal alternative.
