The 710W HJT module combines cutting-edge technology, superior product features, and high-efficiency performance to redefine the standards of solar power generation. Combining the gettering process and single-side μc-Si technology to ensure higher cell efficiency and higher module power.
Brand:
SunEvoPower Range:
695W~715WMax. Efficiency:
23.02%Number of Cells:
132 (6×22)Dimensions of Module L*W*H:
2384 × 1303 × 35mmWeight:
38.7kgFront Side Glass:
2.0mm anti-reflective solar glassBack Side Glass:
2.0mm solar glassFrame:
Anodized aluminium alloyJunction Box:
Ip68Cable:
4mm2 , 300mm in length, length can be customized / UV resistantWind/Snow Load:
5400PaConnector:
MC4 original /MC4 compatibleBifaciality:

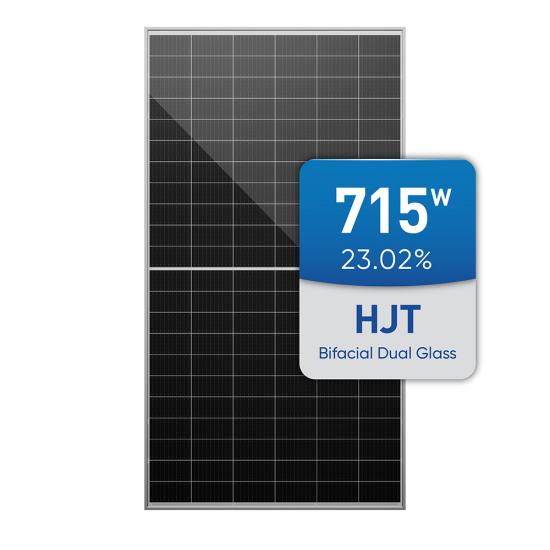

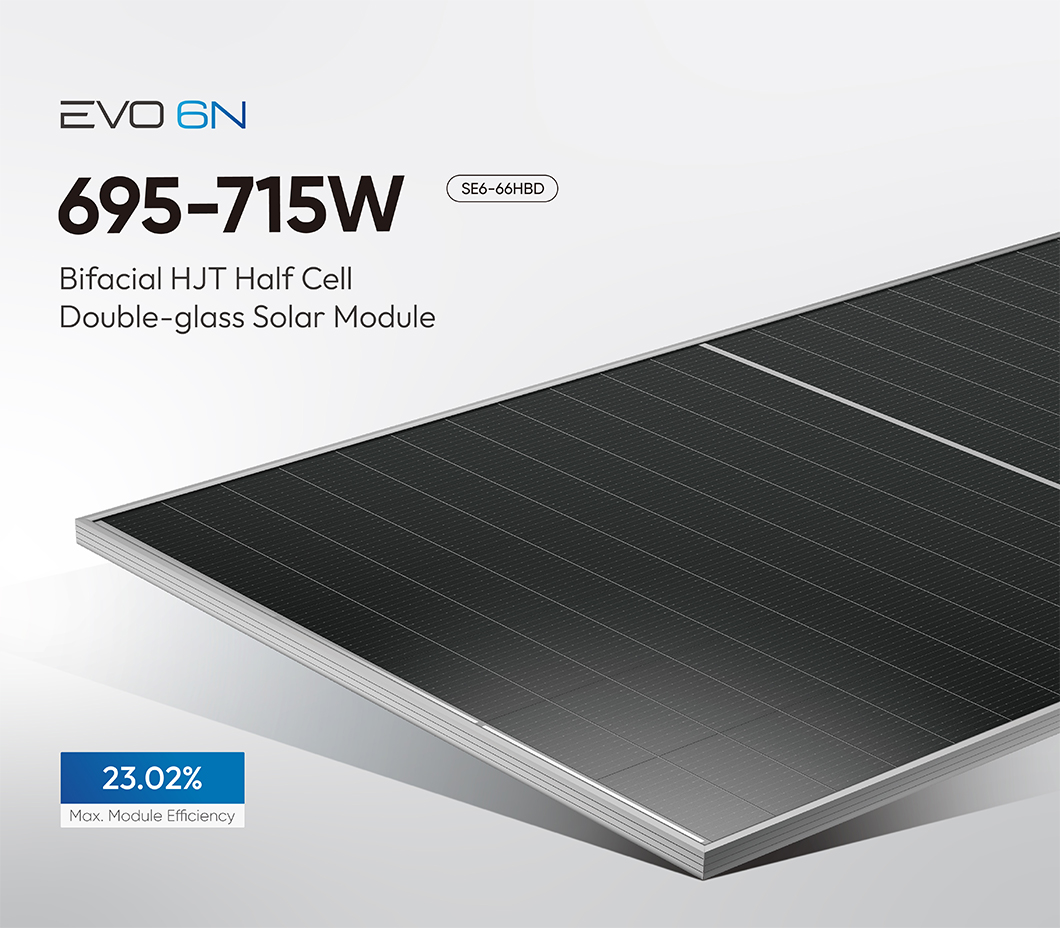

85%±5%EVO 6N Bifacial HJT Half Cell Double-glass Solar Module 695W 700W 705W 710W 715W
The 710W HJT module combines cutting-edge technology, superior product features, and high-efficiency performance to redefine the standards of solar power generation. Combining the gettering process and single-side μc-Si technology to ensure higher cell efficiency and higher module power.
Electrical Parameters (STC*)
|
Maximum Power (Pmax/W) |
695 |
700 |
705 |
710 |
715 |
|
Maximum Power Voltage (Vmp/V) |
41.95 |
42.10 |
42.25 |
42.39 |
42.54 |
|
Maximum Power Current (Imp/A) |
16.57 |
16.63 |
16.69 |
16.75 |
16.81 |
|
Open Circuit Voltage (Voc/V) |
49.98 |
50.13 |
50.29 |
50.44 |
50.59 |
|
Short Circuit Current (Isc/A) |
17.37 |
17.43 |
17.49 |
17.55 |
17.61 |
|
Module Efficiency (%) |
22.37 |
22.53 |
22.70 |
22.86 |
23.02 |
|
Power Output Tolerance (W) |
0/+5W |
||||
|
Temperature Coefficient of Isc |
+0.040%/°C |
||||
|
Temperature Coefficient of Voc |
-0.240%/°C |
||||
|
Temperature Coefficient of Pmax |
-0.260%/°C |
||||

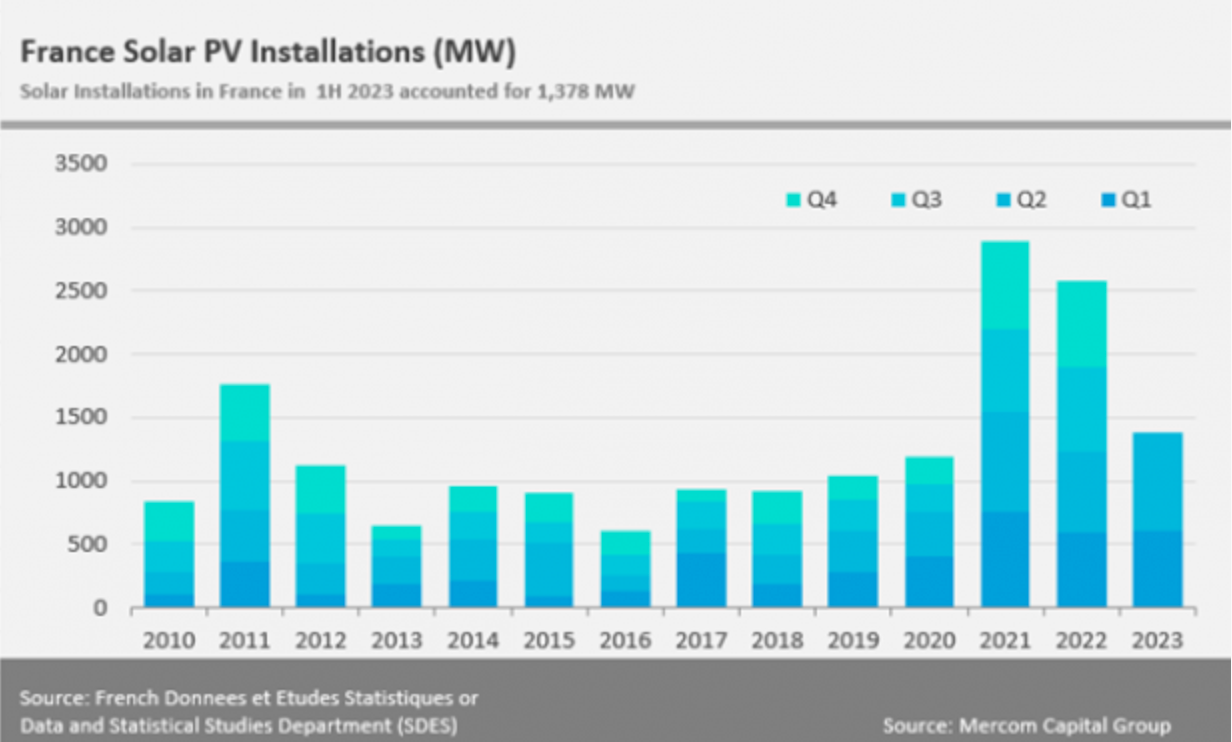

According to the latest data, France's installed solar capacity was 1,378MW in the first half of 2023, compared with 1,233MW in the same period last year.
From January to June, French solar power generation reached 11.2TWh, a year-on-year increase of 18%. Solar power accounted for 4.7% of France's electricity consumption, a year-on-year increase of 0.9%.
As of June 30, 2023, France's installed solar capacity was 18GW, of which 17.3GW was in mainland France.
In the first half of 2023, the French regions of Auvergne-Rhône-Alpes, Occitanie, Nouvelle-Aquitaine, Provence-Alpes-Côte d’Azur and Pays de la Loire played an important role in expanding solar power generation. Together, these regions account for 67% of the country’s new grid-connected capacity.
Although accounting for only 0.2% of the total number of new grid-connected equipment, about 39% of power generation from January to June came from new installations above 250kW. Lower power equipment, especially equipment below 9kW, accounted for 94% of new grid-connected equipment and 24% of new power generation.
It is worth noting that the capacity of projects under construction has increased significantly, increasing by 19% since the beginning of the year to 20.1 GW. Among these projects, 4.49GW have signed grid connection agreements.
In France, 41.6% of PV installations came from captive power generation projects (78.5% of installed capacity), an increase of 1.2% compared to the previous quarter. The installed capacity of self-use projects was 297 GWh, accounting for 3.9% of the total photovoltaic power generation in this quarter.
In August, the French Ministry of Ecology and Solidarity Transformation announced the list of winning bidders for the fifth round of industrial and commercial rooftop solar project bidding. These projects have a power generation capacity of more than 500kW and a total power generation of 378MW. The average quotation of the 60 winning bidders was 0.1019 euros (approximately US$0.1102)/kWh.
According to data from the French Government's Department of Statistics and Research (SDES), France's photovoltaic installed capacity will reach 14GW in 2022, becoming the country with the third largest installed capacity in Europe.
The European Parliament and Council have tentatively agreed to increase the EU's binding renewable energy target from 32% to at least 42.5% by 2030. This means that the EU’s existing share of renewable energy will double.

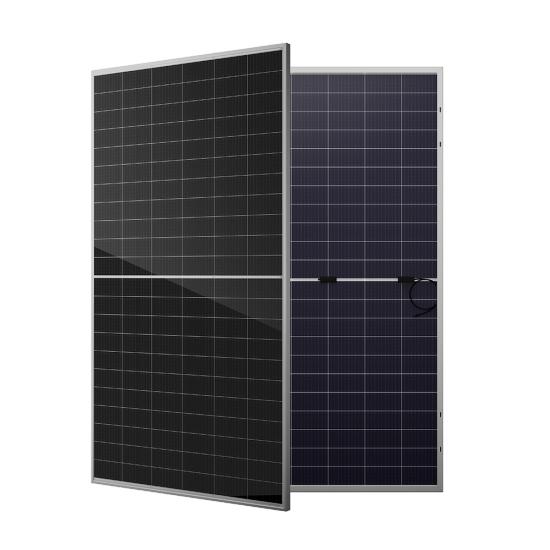

Evo 6 Pro Series 120 Half Cells Solar PV Panel 615W 620W 625W 630 Wp 635 Watt Monocrystalline N Type HJT Bifacial Double Glass Multi Busbar Photovoltaic Solar Panel Module Based on 210mm Solar Cells
Evo 6 Pro Series 132 Half Cells Solar PV Panel 680W 685W 690W 695Wp 700Watt High Effficiency Monocrystalline HJT Bifacial Double Glass Photovoltaic Solar Panel Module Based on 210mm Solar Cell

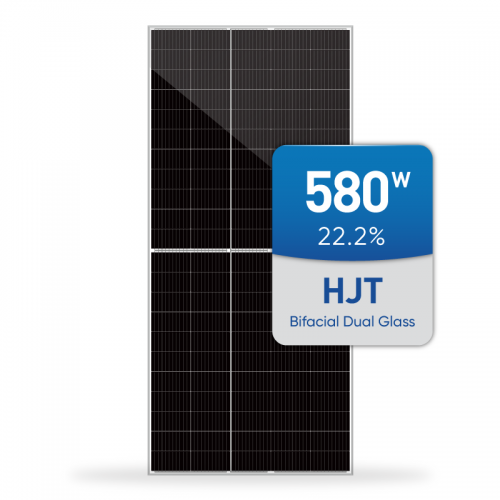

Evo 6 Pro Series 110 Half Cells Solar PV Panel 580W 575W 570W 565 Wp 560 Watt High Effficiency Monocrystalline HJT Bifacial Double Glass Photovoltaic Solar Panel Module Based on 210mm Solar Cell

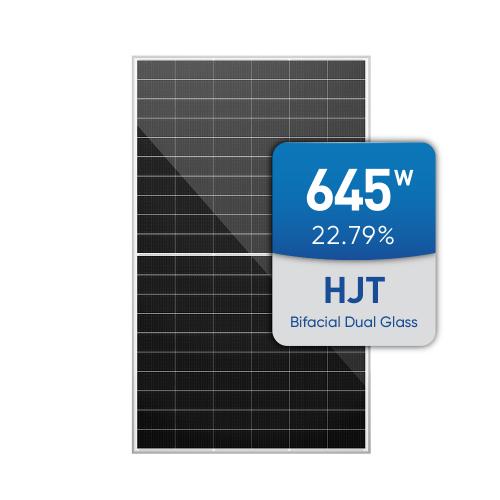

The 645W HJT module combines cutting-edge technology, superior product features, and high-efficiency performance to redefine the standards of solar power generation. Combining the gettering process and single-side μc-Si technology to ensure higher cell efficiency and higher module power.
An all-in-one energy storage system is a comprehensive solution that combines various components and technologies to store and manage energy efficiently. It typically integrates different elements such as batteries, inverters, charge controllers, and monitoring systems into a single unit. The aim of an all-in-one energy storage system is to provide a convenient and compact solution for storing and utilizing renewable energy.
SunArk batteries are typically designed to be modular, allowing easy installation and scalability. They come with built-in management systems that ensure safe and efficient operation, including features like battery monitoring, balancing, and protection against overcharging or over-discharging. Rack-mounted lithium batteries are known for their high energy density, long cycle life, and fast charging capabilities, making them a popular choice for many modern energy storage applications.
EVO 5N Series Bifacial modules combine combining gettering process and single-side μc-Si technology to ensure higher cell efficiency and higher module power. More stable power generation performance and is even better in hot climates. Natural symmetrical bifacial structure brings more energy yield from the backside.

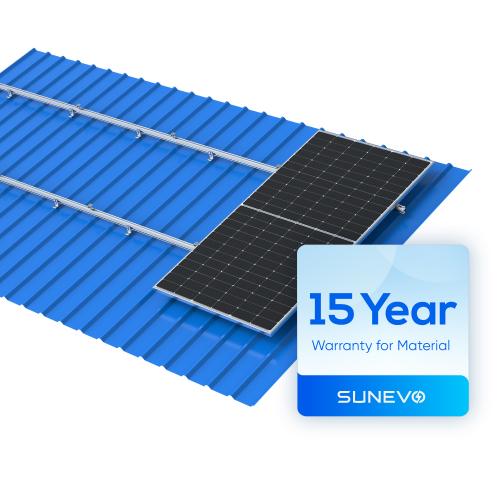

Metal roof solar panel mounting brackets refer to the structural components and accessories used to secure solar panels on metal roofs.
