Brand:
SunEvoPower Range:
445-475WMax. Efficiency:
21.9%Number of Cells:
144 Cells (6x24)Dimensions of Module L*W*H:
2094 x 1038 x 30mmWeight:
26.7kgFront Side Glass:
High transparency solar glass 2.0mmBack Side Glass:
High transparency solar glass 2.0mmFrame:
Silver, anodized aluminium alloyJunction Box:
IP68 Rated, 3 DiodesCable:
4.0mm2, Portrait: 300mm / Landscape: 1300mmWind/Snow Load:
2400Pa/5400PaConnector:
MC CompatibleBifaciality:
70±5%

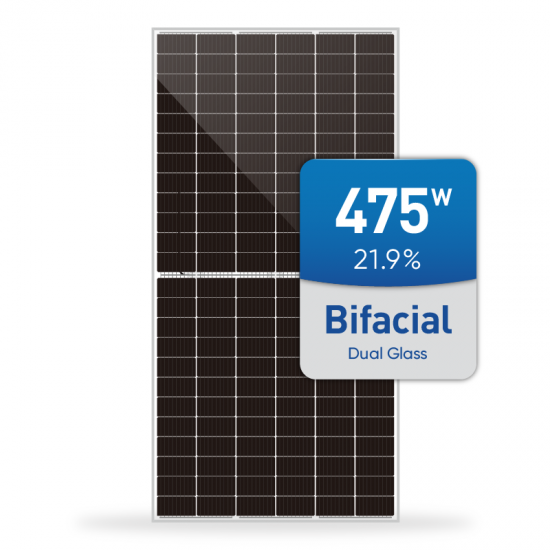

EVO 4 Series 144 Half Cells 445W 450W 455W 460W 465W 470W 475W Bifacial Dual Glass Solar Module
SunEvo Solar Evo 4 series PERC / HJT solar sanels are produced with the highest quality materials within the industry. Using the advanced 9BB (MBB Technology) solar cell conbines with half-cut cell technology to guarantee more power. Combine the best of crystalline and thin-film technologies, N-type technology. With highly efficient cell architecture for high performance and special anti-reflective glass increases light transmission for higher power.
Electrical Specification
|
Maximum Power (Pmax/W) |
445 |
450 |
455 |
460 |
465 |
470 |
475 |
|
Maximum Power Voltage (Vmp/V) |
41.75 |
42.1 |
42.41 |
42.76 |
43.1 |
43.44 |
43.78 |
|
Maximum Power Current (Imp/A) |
10.66 |
10.69 |
10.73 |
10.76 |
10.79 |
10.82 |
10.85 |
|
Open Circuit Voltage (Voc/V) |
49.55 |
49.84 |
50.1 |
50.39 |
50.68 |
50.96 |
51.25 |
|
Short Circuit Current (Isc/A) |
11.31 |
11.34 |
11.37 |
11.4 |
11.43 |
11.47 |
11.5 |
|
Module Efficiency (%) |
20.5 |
20.7 |
20.9 |
21.2 |
21.4 |
21.6 |
21.9 |
|
Power Output Tolerance (W) |
0~+5W |
||||||
|
Temperature Coefficient of Isc |
+0.05%/°C |
||||||
|
Temperature Coefficient of Voc |
-0.28%/°C |
||||||
|
Temperature Coefficient of Pmax |
-0.36%/°C |
||||||
Certifications
All of SunEvo's products have been certified by professional third-party testing bodies around the world, and the testing conditions are complex and diverse, from ordinary installation conditions to various extreme weather conditions, natural environments. We pursue the ultimate in quality and provide the best guarantee for customers' assets and profits.
Advantages of Evo 4 Sereis Solar Module
High Power
High reliability
High energy generation
Easy to install
Evo 4 Series 144 Half Cells 9BB Solar PV Panel 445W 450W 455W 460W 465W 470 Wp 475 Watt for sale Monocrystalline PERC HJT Multi Busbar Photovoltaic Solar Energy Panel factory Based on 166mm Solar Cells
Evo 4 Series 120 Half Cells 9BB Solar PV Panel 370W 375W 380W 385W 390W 395W 400W for home Monocrystalline PERC HJT Multi Busbar Black Frame Photovoltaic Solar Power Panel Wholesale Based on 166mm Solar Cells
Evo 4 Series 120 Half Cells MBB All Black Solar PV Panel 360W 365W 370W 375W 380W 385W 390W Monocrystalline PERC Multi Busbar Ultra Black Photovoltaic Solar Panel Module Based on 166mm Solar Cells for home
Evo 4 Poly Series 144 Half Cells 9BB Solar PV Panel 405W 410W 415W 420 Watt for sale Polycrystalline PERC Multi Busbar Photovoltaic Solar Energy Panel factory Based on 166mm Solar Cells
It's worth noting that solar-powered air conditioning systems come in various configurations and designs, and the specific details of their operation can vary. It is advisable to consult with a professional or the manufacturer to determine the suitability and installation requirements for your specific needs.
Our solar cells feature superior resistance to LID and PID, with reduced sealing damage and lower CTM loss rates, making them ideal for high-efficiency modules. Additionally, they boast a low power temperature coefficient of -0.30%/°C, ensuring better performance even in low irradiance environments, with a relative conversion efficiency of up to 98% under low light conditions (200w/m²). With front efficiency at 22.5% and a bifaciality rate of approximately 80%, our panels offer high conversion efficiency for optimal energy production.
A long lifespan energy storage battery is crucial in solar systems, SunArk 48V 200Ah rack type lithium battery pack is consist of 30pcs 3.2V 100Ah ANC cells, total capacity 9600Wh, With long cycle life and warranty years reach 10 years. also it can be perfectly compatible with mostly branded inverters like Deye, Growatt, etc.
SUN 12/14/16K-SG，hybrid inverter, is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN 12/14/16K-SG. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout. It equipped with RS485/CAN port for battery communication
