Brand:
SunEvoPower Range:
405-420WMax. Efficiency:
19.3%Number of Cells:
144 Cells (6x24)Dimensions of Module L*W*H:
2094 x 1038 x 35mmWeight:
23.3kgFront Side Glass:
High transparency solar glass 3.2mmBacksheet:
WhiteFrame:
Silver / Black, anodized aluminium alloyJunction Box:
IP68 Rated, 3 DiodesCable:
4.0mm2, Portrait: 300mm / Landscape: 1300mmWind/Snow Load:
2400Pa/5400PaConnector:
MC Compatible

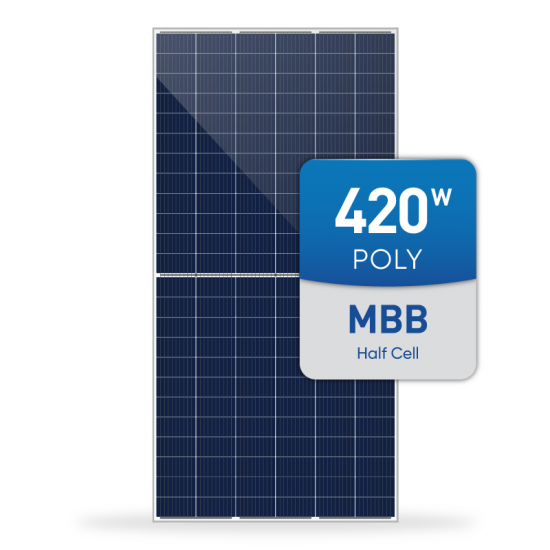

EVO 4 Poly Series PERC 144 Half Cells 405W 410W 415W 420W Solar PV Panel
Polycrystalline Solar Panels have been most popular solar modules for last 10 years because of lower cost, although the monocrystalline solar panels are more popular due to higher efficiency, a lot of customers still want poly solar modules because they have enough space for solar panel installation, and they pay more attention to the system cost, thus SunEvo Solar introduce new generation Evo 4 Poly Series solar panels based on 166mm solar cell, the maximum output power can reach 420W integrated with PERC MBB half-cut cells technology.
Electrical Specification
|
Maximum Power (Pmax/W) |
655 |
660 |
665 |
670 |
|
Maximum Power Voltage (Vmp/V) |
37.60 |
37.80 |
38.00 |
38.20 |
|
Maximum Power Current (Imp/A) |
17.42 |
17.46 |
17.50 |
17.54 |
|
Open Circuit Voltage (Voc/V) |
45.40 |
45.60 |
45.80 |
45.80 |
|
Short Circuit Current (Isc/A) |
18.50 |
18.55 |
18.60 |
18.65 |
|
Module Efficiency (%) |
21.1 |
21.2 |
21.4 |
21.6 |
|
Power Output Tolerance (W) |
0~+5W |
|||
|
Temperature Coefficient of Isc |
+0.05%/°C |
|||
|
Temperature Coefficient of Voc |
-0.28%/°C |
|||
|
Temperature Coefficient of Pmax |
-0.36%/°C |
|||
Certifications
All of SunEvo's products have been certified by professional third-party testing bodies around the world, and the testing conditions are complex and diverse, from ordinary installation conditions to various extreme weather conditions, natural environments. We pursue the ultimate in quality and provide the best guarantee for customers' assets and profits.
Key Features of Evo 4 Series Poly Solar Panel
Evo 4 Series 144 Half Cells 445W 450W 455W 460W 465W 470W 475 Watt Bifacial Dual Glass Solar PV Module N Type HJT / PERC Commercial Monocrystalline MBB Bifacial Double Side Glass Photovoltaic Solar Panel Module Based on 166mm Solar Cell
Evo 4 Series 144 Half Cells 9BB Solar PV Panel 445W 450W 455W 460W 465W 470 Wp 475 Watt for sale Monocrystalline PERC HJT Multi Busbar Photovoltaic Solar Energy Panel factory Based on 166mm Solar Cells
Evo 4 Series 120 Half Cells 9BB Solar PV Panel 370W 375W 380W 385W 390W 395W 400W for home Monocrystalline PERC HJT Multi Busbar Black Frame Photovoltaic Solar Power Panel Wholesale Based on 166mm Solar Cells
Evo 4 Series 120 Half Cells MBB All Black Solar PV Panel 360W 365W 370W 375W 380W 385W 390W Monocrystalline PERC Multi Busbar Ultra Black Photovoltaic Solar Panel Module Based on 166mm Solar Cells for home
Introducing our cutting-edge 210 Monocrystalline Bifacial PERC Solar Cells, designed for ultimate efficiency. Featuring an anisotropically etched surface for enhanced light absorption, these cells undergo low-pressure diffusion with excellent uniformity. Equipped with silver front contact bars and a silicon nitride anti-reflection coating, along with silicon oxynitride local back surface file, our solar cells ensure maximum energy generation and durability, making them the ideal choice for your renewable energy needs.
EVO 5N Series Bifacial modules combine combining gettering process and single-side μc-Si technology to ensure higher cell efficiency and higher module power. More stable power generation performance and is even better in hot climates. Natural symmetrical bifacial structure brings more energy yield from the backside.
Evo 5 Series 132 Half Cells 10BB Solar PV Panel 485W 490W 495W 500W 505 Watt Monocrystalline PERC Multi Busbar Photovoltaic Solar Panel Module Based on 182mm Solar Cells
Introducing Sunevo's latest innovation in solar technology - the Sunevo 40W solar module. Engineered for efficiency and reliability, this compact module features high-efficiency 182mm monocrystalline solar cells, cut into three pieces, achieving an impressive efficiency of 17.46%. Ideal for various applications, including solar water pump systems, RVs, solar street lights, and communication base station UPS power supply, the Sunevo 40W module delivers consistent performance in diverse environments. With its robust design and advanced solar cell technology, the Sunevo 40W module ensures maximum power output and long-term durability, making it the perfect solution for off-grid and remote power applications.
