Brand:
SunEvoPower Range:
370-400WMax. Efficiency:
22.0%Number of Cells:
120 Cells (6x20)Dimensions of Module L*W*H:
1755 x 1038 x 35mmWeight:
20.0kgFront Side Glass:
High transparency solar glass 3.2mmBacksheet:
WhiteFrame:
Silver / Black, anodized aluminium alloyJunction Box:
IP68 Rated, 3 DiodesCable:
4.0mm2, Portrait: 300mm / Landscape: 1200mmWind/Snow Load:
2400Pa/5400PaConnector:
MC Compatible

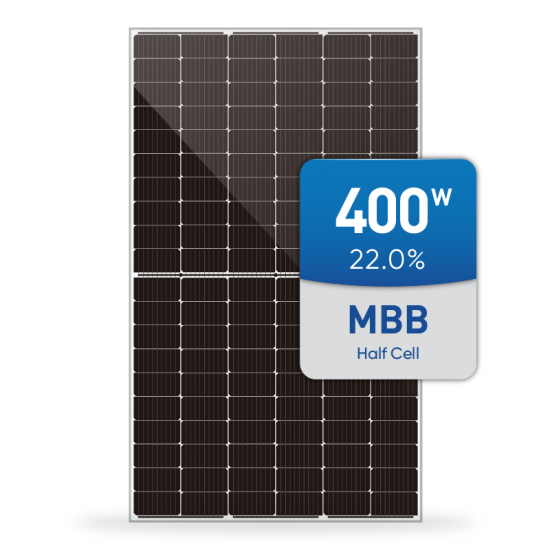

EVO 4 Series Mono PERC / HJT 120 Half Cells 370W 375W 380W 385W 390W 395W 400W Solar Power Module
This Evo 4 Sereis solar module adopts multi-bus bar technology, which can shorten the current conduction distance by more than 50% and thus lower the internal ribbon resistance loss. With finer and narrower bus bars, more sunlight will be reflected back from the round ribbon and onto the cell, thus increasing solar panel efficiency. The unique circuit design of half-cut cells can reduce power loss to 1/4 compared to full cells solar PV module, which results in a decrease of electrical resistance within the ribbon and finally improves the overall module efficiency by up to 0.6%.
Electrical Specification
|
Maximum Power (Pmax/W) |
370 |
375 |
380 |
385 |
390 |
395 |
400 |
|
Maximum Power Voltage (Vmp/V) |
34.75 |
35.05 |
35.42 |
35.72 |
36.05 |
36.41 |
36.75 |
|
Maximum Power Current (Imp/A) |
10.65 |
10.70 |
10.73 |
10.78 |
10.82 |
10.85 |
10.89 |
|
Open Circuit Voltage (Voc/V) |
41.22 |
41.50 |
41.79 |
42.07 |
42.35 |
42.63 |
42.91 |
|
Short Circuit Current (Isc/A) |
11.32 |
11.36 |
11.40 |
11.44 |
11.48 |
11.52 |
11.56 |
|
Module Efficiency (%) |
20.3 |
20.6 |
20.9 |
21.1 |
21.4 |
21.7 |
22.0 |
|
Power Output Tolerance (W) |
0~+5W |
||||||
|
Temperature Coefficient of Isc |
+0.05%/°C |
||||||
|
Temperature Coefficient of Voc |
-0.28%/°C |
||||||
|
Temperature Coefficient of Pmax |
-0.36%/°C |
||||||
Certifications
All of SunEvo's products have been certified by professional third-party testing bodies around the world, and the testing conditions are complex and diverse, from ordinary installation conditions to various extreme weather conditions, natural environments. We pursue the ultimate in quality and provide the best guarantee for customers' assets and profits.
Core Advantages of Evo 4 Sereis Solar Panel
High power output
Great for residential rooftop application
Highly reliable due to stringent quality control
Certified to withstand challenging environmental conditions
