Brand:
SunEvoPower Range:
360-390WMax. Efficiency:
21.4%Number of Cells:
120 Cells (6x20)Dimensions of Module L*W*H:
1755 x 1038 x 35mmWeight:
20.0kgFront Side Glass:
High transparency solar glass 3.2mmBacksheet:
BlackFrame:
Black, anodized aluminium alloyJunction Box:
IP68 Rated, 3 DiodesCable:
4.0mm2, Portrait: 300mm / Landscape: 1200mmWind/Snow Load:
2400Pa/5400PaConnector:
MC Compatible

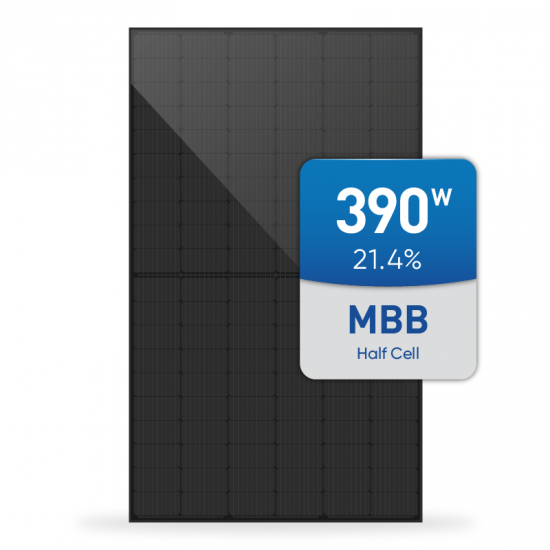

EVO 4 Series Mono PERC HJT 120 Half Cells 360W 365W 370W 375W 380W 385W 390W Ultra Black Solar Module
Evo 4 Sereis ultra black modules are equipped with dark mono-crystalline solar cells, dark colored backsheet and a black frame to enhance the aesthetic appearance of our standard mono PV modules. This product can improve the aesthetics of your rooftop. Meanwhile, SunEvo Solar provide 12-Year Warranty for Materials and Processing, 25-Year Warranty for Extra Linear Power Output for our solar modules.
Electrical Specification
|
Maximum Power (Pmax/W) |
360 |
365 |
370 |
375 |
380 |
385 |
390 |
|
Maximum Power Voltage (Vmp/V) |
33.49 |
33.73 |
33.98 |
34.28 |
34.51 |
34.74 |
34.97 |
|
Maximum Power Current (Imp/A) |
10.75 |
10.82 |
10.89 |
10.94 |
11.01 |
11.07 |
11.15 |
|
Open Circuit Voltage (Voc/V) |
40.14 |
40.41 |
40.75 |
41.05 |
41.34 |
41.62 |
41.90 |
|
Short Circuit Current (Isc/A) |
11.21 |
11.29 |
11.35 |
11.42 |
11.49 |
11.55 |
11.61 |
|
Module Efficiency (%) |
19.8 |
20.0 |
20.3 |
20.6 |
20.9 |
21.1 |
21.4 |
|
Power Output Tolerance (W) |
0~+5W |
||||||
|
Temperature Coefficient of Isc |
+0.05%/°C |
||||||
|
Temperature Coefficient of Voc |
-0.28%/°C |
||||||
|
Temperature Coefficient of Pmax |
-0.36%/°C |
||||||
Certifications
All of SunEvo's products have been certified by professional third-party testing bodies around the world, and the testing conditions are complex and diverse, from ordinary installation conditions to various extreme weather conditions, natural environments. We pursue the ultimate in quality and provide the best guarantee for customers' assets and profits.
