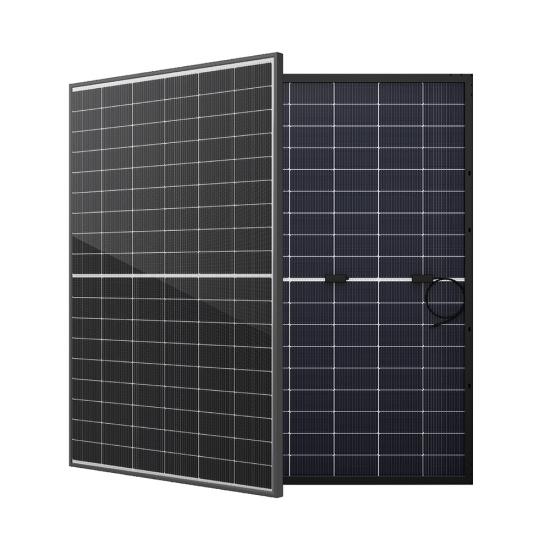

EVO 5N Series HJT Bifacial Dual Glass Black Frame modules combine gettering process and single-side μc-Si technology to ensure higher cell efficiency and higher module power. More stable power generation performance and is even better in hot climates. Stronger water resistance, and greater air impermeability to extend module lifespan.
Brand:
SunEvoPower Range:
430W~450WMax. Efficiency:
23.04%Number of Cells:
108(6×18)Dimensions of Module L*W*H:
1722 × 1134 × 30mmWeight:
23.5kgFront Side Glass:
2.0mm coated semi-tempered glassBack Side Glass:
2.0mm semi-tempered glassFrame:
Anodized aluminium alloyJunction Box:
Ip68 rated (3 by pass diodes)Cable:
4mm2 , 300mm (+) / 300mm (-), Length can be customizedWind/Snow Load:
5400PaConnector:
Mc4 compatibleBifaciality:

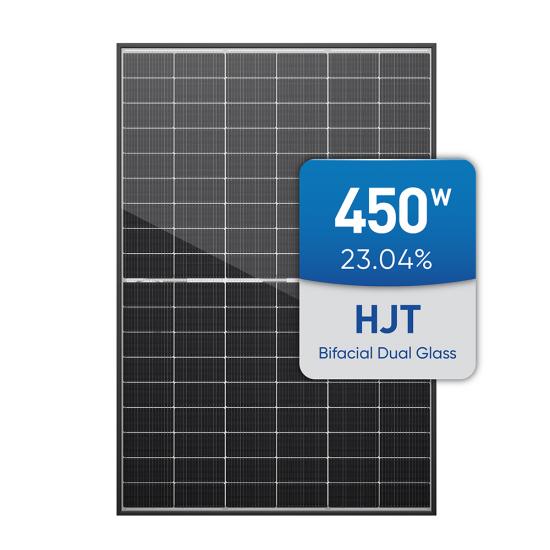

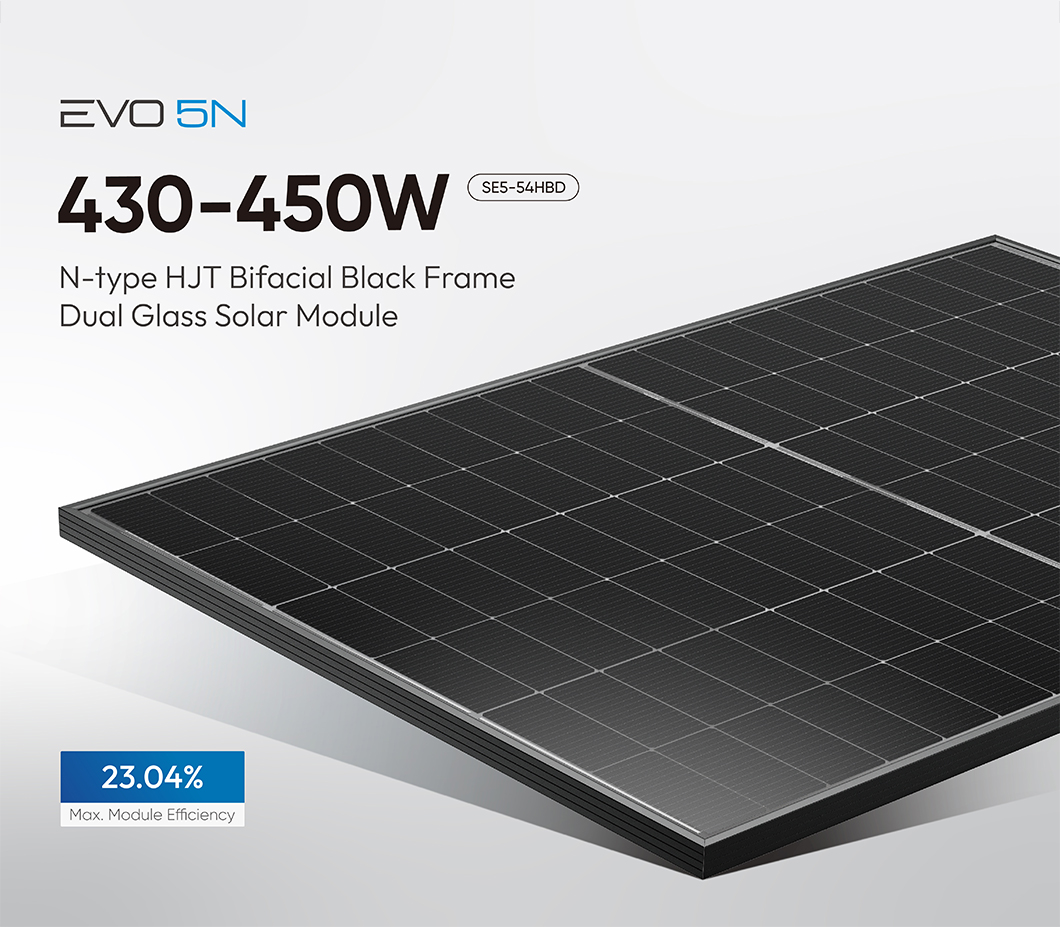

90%EVO5N 450W N-type HJT 108 Cells Bifacial Dual Glass Black Frame Solar Module 450W 445W 440W 435W 430W
EVO 5N Series HJT Black Frame modules combine gettering process and single-side μc-Si technology to ensure higher cell efficiency and higher module power. More stable power generation performance and is even better in hot climates. Stronger water resistance, and greater air impermeability to extend module lifespan. The black frame looks nice on the roof.
Electrical Parameters (STC*)
|
Maximum Power (Pmax/W) |
430 |
435 |
440 |
445 |
450 |
|
Maximum Power Voltage (Vmp/V) |
33.49 |
33.75 |
34.01 |
34.26 |
34.51 |
|
Maximum Power Current (Imp/A) |
12.84 |
12.89 |
12.94 |
12.99 |
13.04 |
|
Open Circuit Voltage (Voc/V) |
40.30 |
40.56 |
40.83 |
41.09 |
41.34 |
|
Short Circuit Current (Isc/A) |
13.30 |
13.35 |
13.40 |
13.45 |
13.50 |
|
Module Efficiency (%) |
22.02 |
22.28 |
22.53 |
22.79 |
23.04 |
|
Power Output Tolerance (W) |
0/+5W |
||||
|
Temperature Coefficient of Isc |
+0.04%/°C |
||||
|
Temperature Coefficient of Voc |
-0.24%/°C |
||||
|
Temperature Coefficient of Pmax |
-0.26%/°C |
||||
| 5% | Maximum Power (Pmax/W) | 475 | 481 | 486 | 492 | 497 |
| Module Efficiency STC(%) | 23.12 | 23.39 | 23.66 | 24.93 | 24.19 | |
| 15% | Maximum Power (Pmax/W) | 495 | 500 | 506 | 512 | 518 |
| Module Efficiency STC(%) | 25.32 | 25.62 | 25.91 | 26.21 | 26.50 | |
| 25% | Maximum Power (Pmax/W) | 538 | 544 | 550 | 556 | 563 |
| Module Efficiency STC(%) | 27.53 | 27.85 | 28.16 | 28.49 | 28.80 |

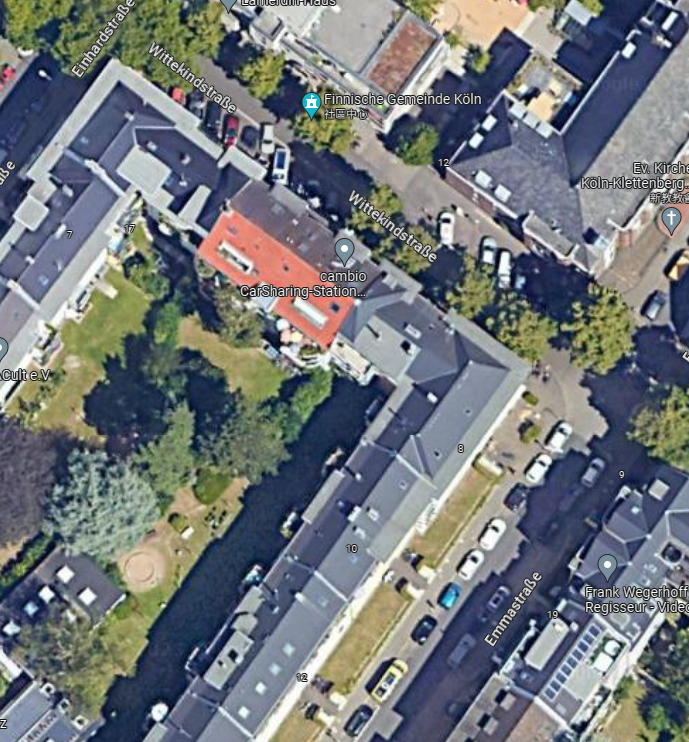

Why do Europe, America, and Japan like black solar modules? Many friends have asked this question, and you will know it clearly after looking at these two photos.

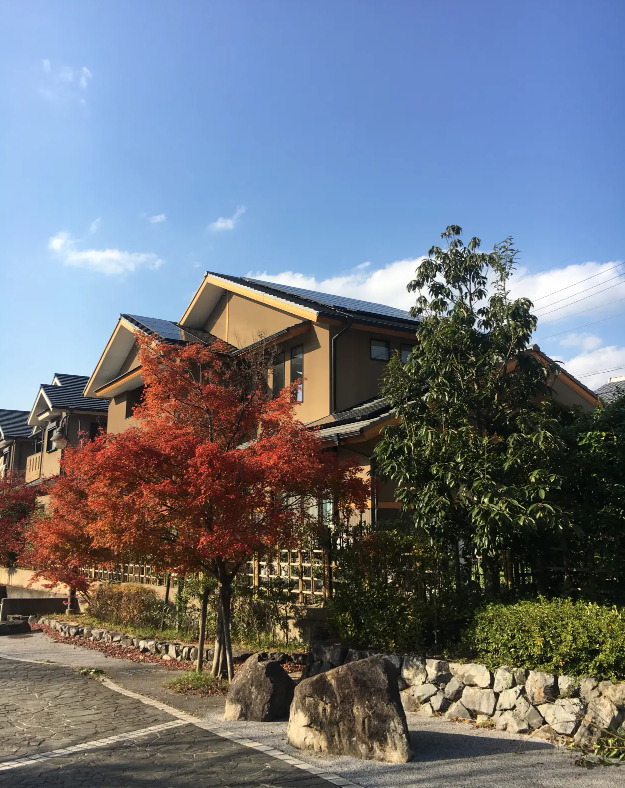

Most people in Europe, America, and Japan live in small buildings like this. The roof tiles are generally black. If you use solar panels with silver frames and white backgrounds, it will affect the overall appearance. After using components with black frames and black backgrounds much better.
Generally speaking, the power generation efficiency of black-frame and black-bottom modules is lower, which has little impact on small solar systems. After all, other restrictive conditions on the roof have a greater impact on efficiency. The installation angle of this house is not optimal, but it can only be installed according to the slope of the roof; in addition, the modules on the west side will be blocked in the morning, which will affect the power generation efficiency of the whole string; Significantly reduce the efficiency of photovoltaic power generation. In this case, using a photovoltaic optimizer or a micro-inverter is a very good choice.

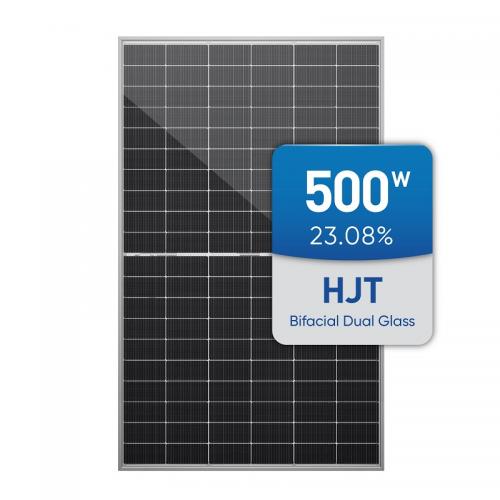

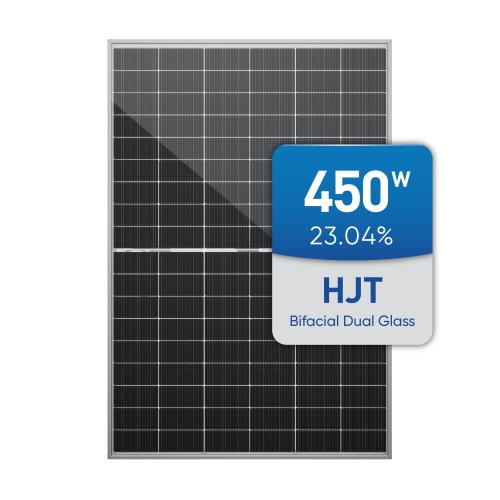

EVO 5N Series Bifacial modules combine combining gettering process and single-side μc-Si technology to ensure higher cell efficiency and higher module power. More stable power generation performance and is even better in hot climates. Natural symmetrical bifacial structure brings more energy yield from the backside.
EVO 5N Series Bifacial modules combine combining gettering process and single-side μc-Si technology to ensure higher cell efficiency and higher module power. More stable power generation performance and is even better in hot climates. Natural symmetrical bifacial structure brings more energy yield from the backside.
EVO 5N Series Bifacial modules combine combining gettering process and single-side μc-Si technology to ensure higher cell efficiency and higher module power. More stable power generation performance and is even better in hot climates. Natural symmetrical bifacial structure brings more energy yield from the backside.

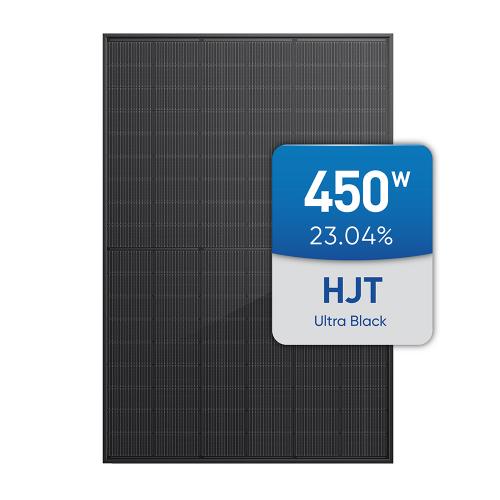

EVO 5N Series HJT Black Frame modules combine the gettering process and single-side μc-Si technology to ensure higher cell efficiency and higher module power. More stable power generation performance and is even better in hot climates. Stronger water resistance, and greater air impermeability to extend module lifespan.
EVO 5N Series HJT (Heterojunction with Intrinsic Thin-layer) technology combines the advantages of crystalline silicon and thin-film solar cells, resulting in a remarkably high energy conversion efficiency. HJT All-Black panels can harness more sunlight and generate more electricity per square meter.
The EVO 5N Series, featuring HJT (Heterojunction with Intrinsic Thin-layer) technology, represents a groundbreaking fusion of the best attributes of both crystalline silicon and thin-film solar cells. The outcome is nothing short of remarkable: a solar technology with exceptional energy conversion efficiency.
HJT solar cell is a new generation superior bifacial solar cell made out of an N-type wafer, which combines the merits of crystalline silicon and thin-film technology to form a single composite structure. As one of the most effective cell passivation technologies in the market, HJT ensures that solar cells deliver high efficiency and great power even in hot climates.

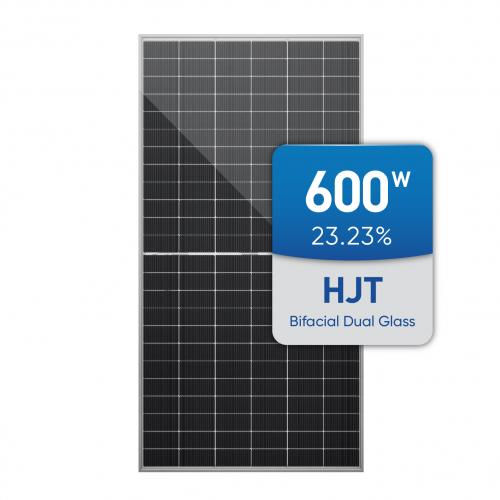

Canadian modules are optimized for superior performance, boasting a maximum power output of 600 Watts and an efficiency level reaching up to 23.2%. These modules are equipped with top-notch anti-LeTID and anti-PID capabilities, ensuring minimal degradation and maximizing energy yield throughout their lifespan. With a lower temperature coefficient (Pmax) of -0.29%/°C, they excel in hot climates, further enhancing energy production. Additionally, they offer cost-efficiency with reduced LCOE and system expenses while effectively mitigating the impact of micro-cracks. Engineered to withstand heavy snow loads up to 5400 Pa and wind loads up to 2400 Pa, our modules guarantee reliability and efficiency in any environment.
