EVO 5N Series HJT (Heterojunction with Intrinsic Thin-layer) technology combines the advantages of crystalline silicon and thin-film solar cells, resulting in a remarkably high energy conversion efficiency. HJT All-Black panels can harness more sunlight and generate more electricity per square meter.
Brand:
SunEvoPower Range:
430W~450WMax. Efficiency:
23.04%Number of Cells:
108 (6×18)Dimensions of Module L*W*H:
1722 × 1134 × 30mmWeight:
21.0kgFront Side Glass:
3.2mm coated tempered glassBacksheet:
BlackFrame:
Anodized aluminium alloyJunction Box:
Ip68 rated (3 by pass diodes)Cable:
4mm2 , 300mm (+) / 300mm (-), Length can be customizedWind/Snow Load:
5400PaConnector:

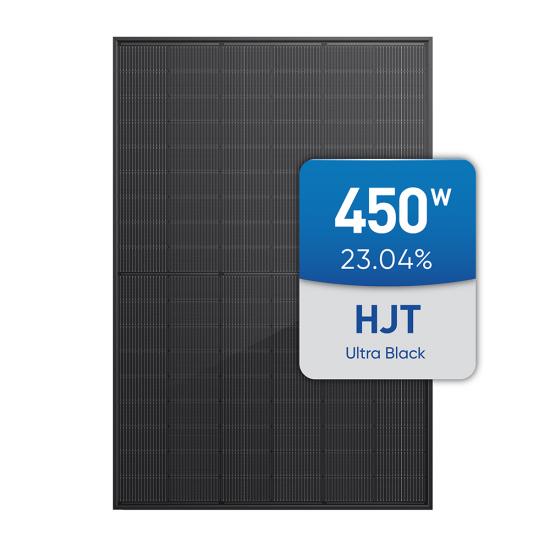

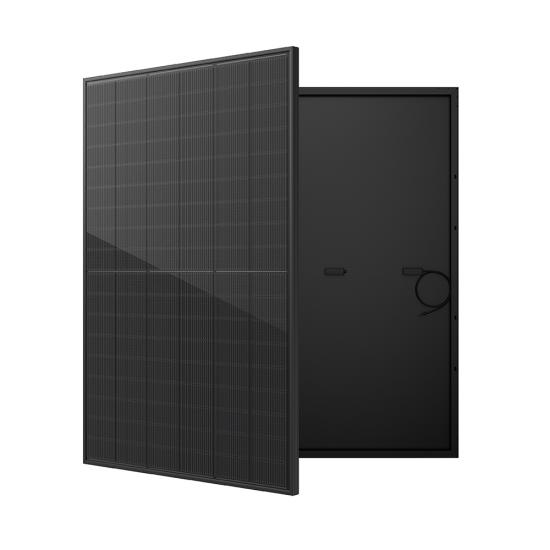

Mc4 compatibleEVO5N 450W N-type HJT 108 Cells Ultra Black Solar Module 450W 445W 440W 435W 430W
EVO 5N Series HJT (Heterojunction with Intrinsic Thin-layer) technology combines the advantages of crystalline silicon and thin-film solar cells, resulting in a remarkably high energy conversion efficiency. HJT All-Black panels can harness more sunlight and generate more electricity per square meter.
Electrical Parameters (STC*)
|
Maximum Power (Pmax/W) |
430 |
435 |
440 |
445 |
450 |
|
Maximum Power Voltage (Vmp/V) |
34.60 |
34.86 |
35.12 |
35.38 |
35.63 |
|
Maximum Power Current (Imp/A) |
12.43 |
12.48 |
12.53 |
12.58 |
12.63 |
|
Open Circuit Voltage (Voc/V) |
41.37 |
41.64 |
41.91 |
42.18 |
42.44 |
|
Short Circuit Current (Isc/A) |
12.95 |
13.00 |
13.05 |
13.10 |
13.15 |
|
Module Efficiency (%) |
22.02 |
22.28 |
22.53 |
22.79 |
23.04 |
|
Power Output Tolerance (W) |
0/+5W |
||||
|
Temperature Coefficient of Isc |
+0.04%/°C |
||||
|
Temperature Coefficient of Voc |
-0.24%/°C |
||||
|
Temperature Coefficient of Pmax |
-0.26%/°C |
||||
HJT All-Black solar panels represent a cutting-edge innovation in solar technology, offering enhanced aesthetics and exceptional performance. These panels are designed to seamlessly blend into any environment while maximizing energy production. In this brief introduction, we will explore the key features and benefits of HJT All-Black solar panels.
High Efficiency: HJT (Heterojunction with Intrinsic Thin-layer) technology combines the advantages of crystalline silicon and thin-film solar cells, resulting in a remarkably high energy conversion efficiency. HJT All-Black panels can harness more sunlight and generate more electricity per square meter.
Sleek All-Black Design: The elegant, all-black appearance of these solar panels adds a touch of sophistication to any residential or commercial building. With a black back sheet and black frame, these panels seamlessly integrate with your roofing or installation surface.
Low Light Performance: HJT technology excels in low-light conditions, ensuring that your solar panels continue to generate power even during cloudy days or early mornings and late evenings.
Durability: HJT All-Black panels are built to last. They are resistant to harsh weather conditions, such as heavy rain, snow, and high winds, making them suitable for a wide range of climates.
Reduced Energy Bills: By harnessing the power of the sun, these panels help reduce your energy bills, providing long-term cost savings while contributing to a more sustainable energy future.
Environmental Benefits: Using solar energy reduces greenhouse gas emissions, helping combat climate change and minimize your carbon footprint. HJT All-Black panels are a green choice for environmentally-conscious individuals and businesses.
Easy Installation: These solar panels are designed for straightforward installation by certified professionals, ensuring a hassle-free process from start to finish.
Warranty: HJT All-Black panels come with a comprehensive warranty, providing peace of mind and protecting your investment for years to come.
In summary, HJT All-Black solar panels offer a harmonious blend of aesthetics and performance, making them an ideal choice for those seeking a stylish and efficient solar energy solution. Whether you're looking to reduce your energy bills, minimize your environmental impact, or enhance the visual appeal of your property, HJT All-Black panels are an excellent choice for your solar energy needs.
EVO 5N Series Bifacial modules combine combining gettering process and single-side μc-Si technology to ensure higher cell efficiency and higher module power. More stable power generation performance and is even better in hot climates. Natural symmetrical bifacial structure brings more energy yield from the backside.
EVO 5N Series Bifacial modules combine combining gettering process and single-side μc-Si technology to ensure higher cell efficiency and higher module power. More stable power generation performance and is even better in hot climates. Natural symmetrical bifacial structure brings more energy yield from the backside.
EVO 5N Series Bifacial modules combine combining gettering process and single-side μc-Si technology to ensure higher cell efficiency and higher module power. More stable power generation performance and is even better in hot climates. Natural symmetrical bifacial structure brings more energy yield from the backside.
EVO 5N Series HJT Bifacial Dual Glass Black Frame modules combine gettering process and single-side μc-Si technology to ensure higher cell efficiency and higher module power. More stable power generation performance and is even better in hot climates. Stronger water resistance, and greater air impermeability to extend module lifespan.
EVO 5N Series HJT Black Frame modules combine the gettering process and single-side μc-Si technology to ensure higher cell efficiency and higher module power. More stable power generation performance and is even better in hot climates. Stronger water resistance, and greater air impermeability to extend module lifespan.
The EVO 5N Series, featuring HJT (Heterojunction with Intrinsic Thin-layer) technology, represents a groundbreaking fusion of the best attributes of both crystalline silicon and thin-film solar cells. The outcome is nothing short of remarkable: a solar technology with exceptional energy conversion efficiency.
Evo 5 Pro Series 108 Half Cells 430W 425W 420W 415W 410 Watt Solar PV Panels N-type TOPCon Monocrystalline MBB Bifacial Double Side Glass Photovoltaic Solar Panel Module Based on 182mm Solar Cell
Canadian modules are engineered to deliver exceptional performance with a maximum power output of 595 Watts and an efficiency rating of up to 23.0%. Featuring up to 85% power bifaciality, they harness additional energy from the rear side. These modules excel in anti-LeTID and anti-PID capabilities, ensuring minimal power degradation and maximizing energy yield. With a lower temperature coefficient (Pmax) of -0.29%/°C, they thrive even in hot climates, enhancing overall energy production. Furthermore, they offer cost savings with lower LCOE and system expenses while effectively mitigating micro-crack impacts. Designed to withstand heavy snow loads up to 5400 Pa and wind loads up to 2400 Pa, our modules guarantee reliability and efficiency in diverse environmental conditions.
