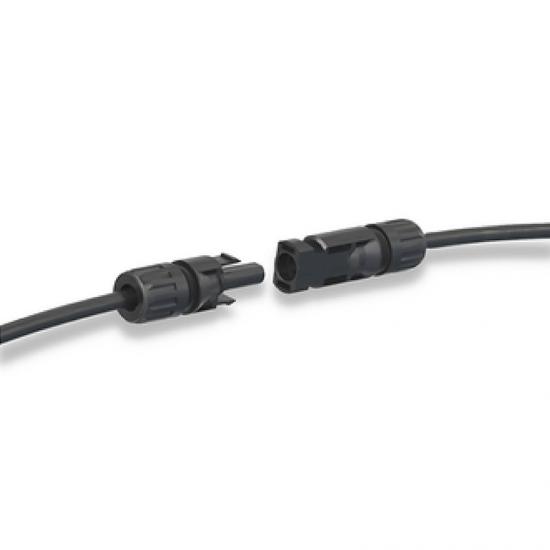

SunEvo MC4 connector is used for connection between solar cables, assembly with solar cables, connection of module strings and DC/AC inverters, photovoltaic power plants and solar parks, gable and flat roof photovoltaic systems.
Brand:
SunEvoRated voltage:
1500V DCTest voltage:
16kV(50Hz, 1min.)Contact material:
Tin-plated Copper AlloyContact resistance:
≥0, <0.25mΩInsulation material:
PPOLocking system:
Snap-inOperating Temp. Range:
-40°C to 90°CProtection Degree:
IP68Flame class:
UL-94-V0Type of termination:
CrimpingContact system:
NEC Locking TypeCable OD range:
4.5mm - 7.8mm
Advantages
•Efficient snap in locking system for easy and safe install •Accommodate PV cables with vary diameters
•High current carring capacity
•Reliable in harsh conditions
•IP68 water proof and dust proof
•Low transition resistance
MC4 Connector Meet Certifications And Application standard
RoHs, TUV, UL, CE and ISO
FAQs:
Q1: How long is the delivery time?
A: The delivery time is generally 3 working days after receiving the advance payment, if there is stock, it can be shipped immediately；
Q2: Does it support door-to-door service？
A：Yes, we have freight forwarders with many years of rich experience in the industry, who can deliver goods to the door and help customers clear customs and pay taxes;

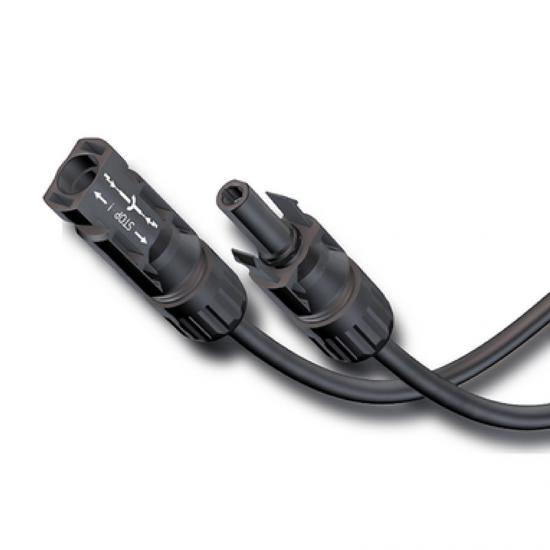

SunEvo male to female 1000V TUV DC PV plug socket MC4 connector is a high-quality PPE resin material, which not only meets the UL94-V0 fire rating, but also adds anti-aging and anti-UV functions. Therefore the product can be used outdoors for a long time.
SunEvo solar panel 30A 50A PPO material photovoltaic PV system MC4 connector has a stable self-locking mechanism: the connection is connected by a compression ring, and the male and female heads have a locking mechanism, allowing easy opening and closing.
SunEvo 4mm2 4 Pin copper silver plated solar cable mount MC4 connectors has a tight and reliable connection, prevents accidental falling off, ensures full conduction, improves the safety and performance stability of the system, is suitable for outdoor environments, and ensures long-term stable operation of the equipment.
Introducing our Stackable High Voltage Lithium Battery, a state-of-the-art energy storage solution compatible with most inverter brands on the market. With a compact footprint of 690*195mm, this plug-and-play battery features a modular design that allows for easy installation and scalability from 5.12kWh up to 25kWh. Equipped with advanced BMS and breaker-level protection, it ensures safe and reliable operation, while its impressive lifespan of 6000 cycles guarantees long-term durability. Ideal for both residential and commercial use, this battery system offers unparalleled flexibility and efficiency for all your energy needs.
Products Description Applications MODULE CubeArk-500K-1MWH DC Data Cell type Prismatic ĮFP Cell brand HiGEE Celle life cycle >8,000 cycles@0.5C,25°C Cell spec 3.2V/280Ah String configuration 1P224S Number of strings 5 String rated energy capacity 200kWh DC rated energy capacity 1000kWh Rated AC voltage 716.8V Vokage range 628V~806V BMS communication interface Ethernet, CAN, RS485 BMS communication protocol Modbus RTU, Modbus TCP AC Data Rated AC power 500kW Maximum AC power 550kW Rated AC vokage 400V AC PF 1 leading ~ 1 lagging Output THDi ≤3% Nominal grid frequency 50/60Hz Isolation method 3 Phase 4 Įine Transformer Product Details Product Physical Picture Packaging and Shipping Project Case Why Choose Us About Us Contact Us
SunArk Lead-carbon batteries offer a reliable, cost-effective energy storage solution that bridges the gap between traditional lead-acid and high-cost lithium-ion batteries. They are ideal for applications where durability, high cycling capability, and environmental friendliness.
Solar AC, also known as solar air conditioning, refers to an air conditioning system that utilizes solar energy to power its operation. Traditional air conditioning systems rely on electricity from the power grid, which is typically generated using fossil fuels. In contrast, solar AC systems harness the power of the sun to produce electricity, reducing reliance on non-renewable energy sources and minimizing environmental impact.
Solar air conditioners are air conditioning systems powered by solar energy. They use photovoltaic (PV) panels to convert sunlight into electricity, which is then used to run the air conditioner. These systems are designed to reduce dependence on non-renewable energy sources and decrease electricity consumption.
