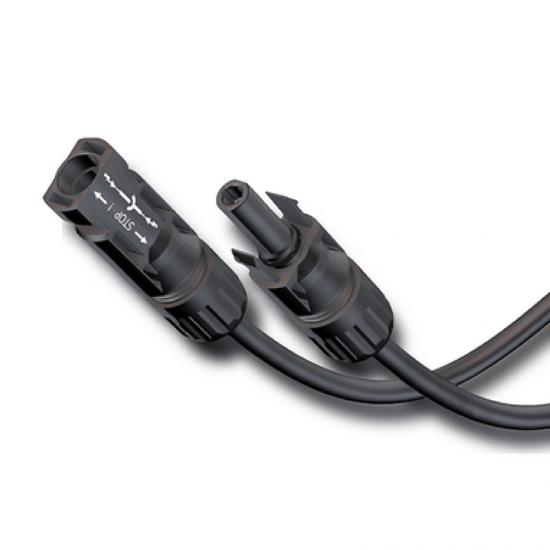

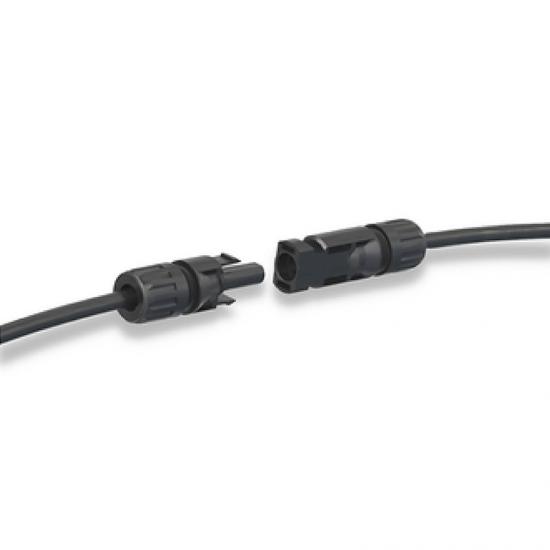

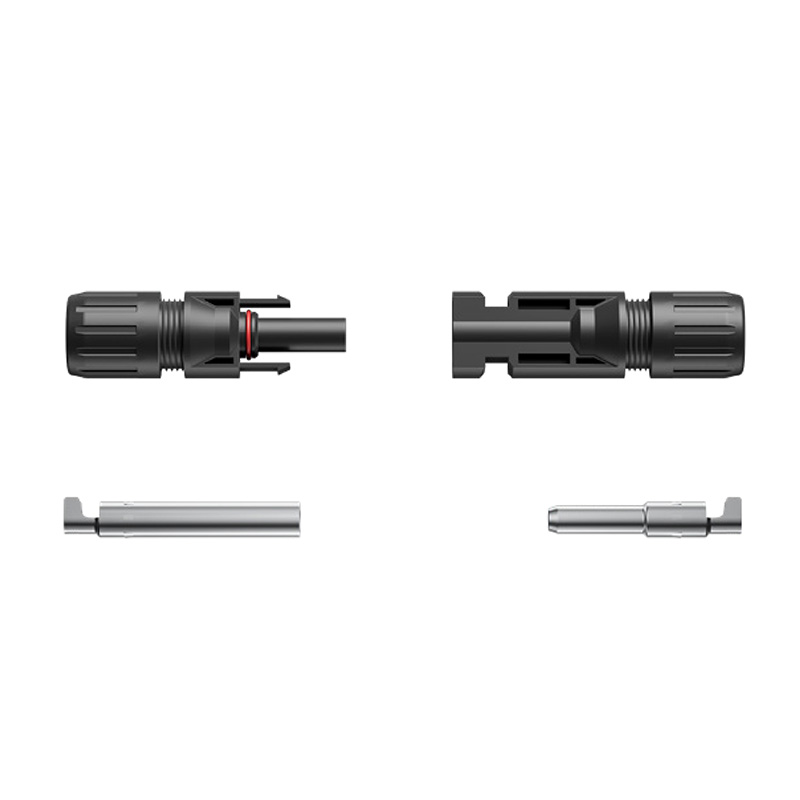

SunEvo solar panel 30A 50A PPO material photovoltaic PV system MC4 connector has a stable self-locking mechanism: the connection is connected by a compression ring, and the male and female heads have a locking mechanism, allowing easy opening and closing.
Brand:
SunEvoRated voltage:
1500V DCTest voltage:
16kV(50Hz, 1min.)Contact material:
Tin-plated Copper AlloyContact resistance:
≥0, <0.25mΩInsulation material:
PPOLocking system:
Snap-inOperating Temp. Range:
-40°C to 90°CProtection Degree:
IP68Flame class:
UL-94-V0Type of termination:
CrimpingContact system:
NEC Locking TypeCable OD range:
4.5mm - 7.8mm
Advantages
•Reduced installation costs and time
•Improve system performance stability
•Can be plugged and unplugged multiple times
•Suitable for device connection of different specifications
MC4 Connector Meet Certifications And Application standard
RoHs, TUV, UL, CE and ISO
FAQs:
Q1: How long is the delivery time?
A: The delivery time is generally 3 working days after receiving the advance payment, if there is stock, it can be shipped immediately；
Q2: Does it support door-to-door service？
A：Yes, we have freight forwarders with many years of rich experience in the industry, who can deliver goods to the door and help customers clear customs and pay taxes;
SunEvo MC4 connector is used for connection between solar cables, assembly with solar cables, connection of module strings and DC/AC inverters, photovoltaic power plants and solar parks, gable and flat roof photovoltaic systems.
