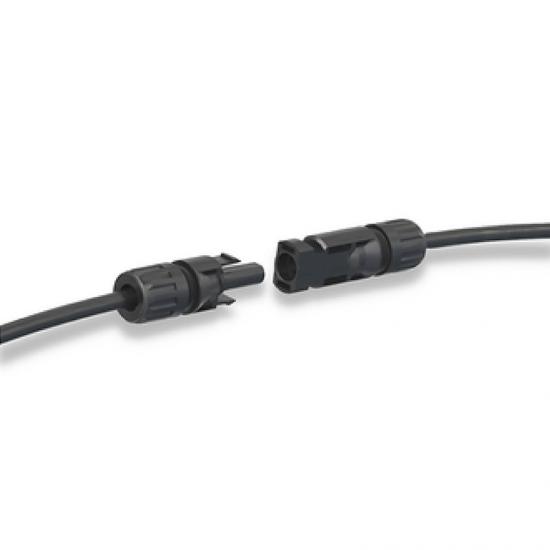

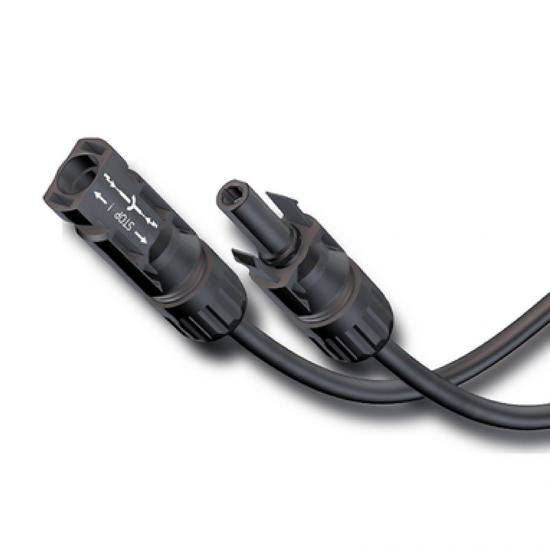

SunEvo male to female 1000V TUV DC PV plug socket MC4 connector is a high-quality PPE resin material, which not only meets the UL94-V0 fire rating, but also adds anti-aging and anti-UV functions. Therefore the product can be used outdoors for a long time.
Brand:
SunEvoRated voltage:
1500V DCTest voltage:
16kV(50Hz, 1min.)Contact material:
Tin-plated Copper AlloyContact resistance:
≥0, <0.25mΩInsulation material:
PPOLocking system:
Snap-inOperating Temp. Range:
-40°C to 90°CProtection Degree:
IP68Flame class:
UL-94-V0Type of termination:
CrimpingContact system:
NEC Locking TypeCable OD range:
4.5mm - 7.8mm
Advantages
•The installation method is simple, convenient and safe
•High pressure
•Stable self-locking mechanism
•Excellent sealing design
•High quality PPE material
MC4 Connector Meet Certifications And Application standard
RoHs, TUV, UL, CE and ISO
FAQs:
Q1: How long is the delivery time?
A: The delivery time is generally 3 working days after receiving the advance payment, if there is stock, it can be shipped immediately；
Q2: Does it support door-to-door service？
A：Yes, we have freight forwarders with many years of rich experience in the industry, who can deliver goods to the door and help customers clear customs and pay taxes;
SunEvo MC4 connector is used for connection between solar cables, assembly with solar cables, connection of module strings and DC/AC inverters, photovoltaic power plants and solar parks, gable and flat roof photovoltaic systems.
SunEvo solar panel 30A 50A PPO material photovoltaic PV system MC4 connector has a stable self-locking mechanism: the connection is connected by a compression ring, and the male and female heads have a locking mechanism, allowing easy opening and closing.
SunEvo 4mm2 4 Pin copper silver plated solar cable mount MC4 connectors has a tight and reliable connection, prevents accidental falling off, ensures full conduction, improves the safety and performance stability of the system, is suitable for outdoor environments, and ensures long-term stable operation of the equipment.
