Hybrid solar inverters play a critical role in the efficient utilization of renewable energy sources. They enable the seamless conversion of DC power into AC power, optimize system performance, and facilitate the integration of renewable energy systems with the existing grid infrastructure.
Model:
SUN-60 /70 / 80K-SG02HP3 -EU-EM4Max. DC PV Input Power (W):
120000 / 150000 / 160000MPPT Voltage Range (V):
150~850Rated AC Output and UPS Power (W):
60000/70000/80000Output Frequency and Voltage:
50/60Hz; 3L/N/PE 220/380, 230/400VacGrid Type:
Three PhasesNo. of MPP Trackers:
6No. of Strings per MPP Tracker:
2Battery Voltage Range (V):

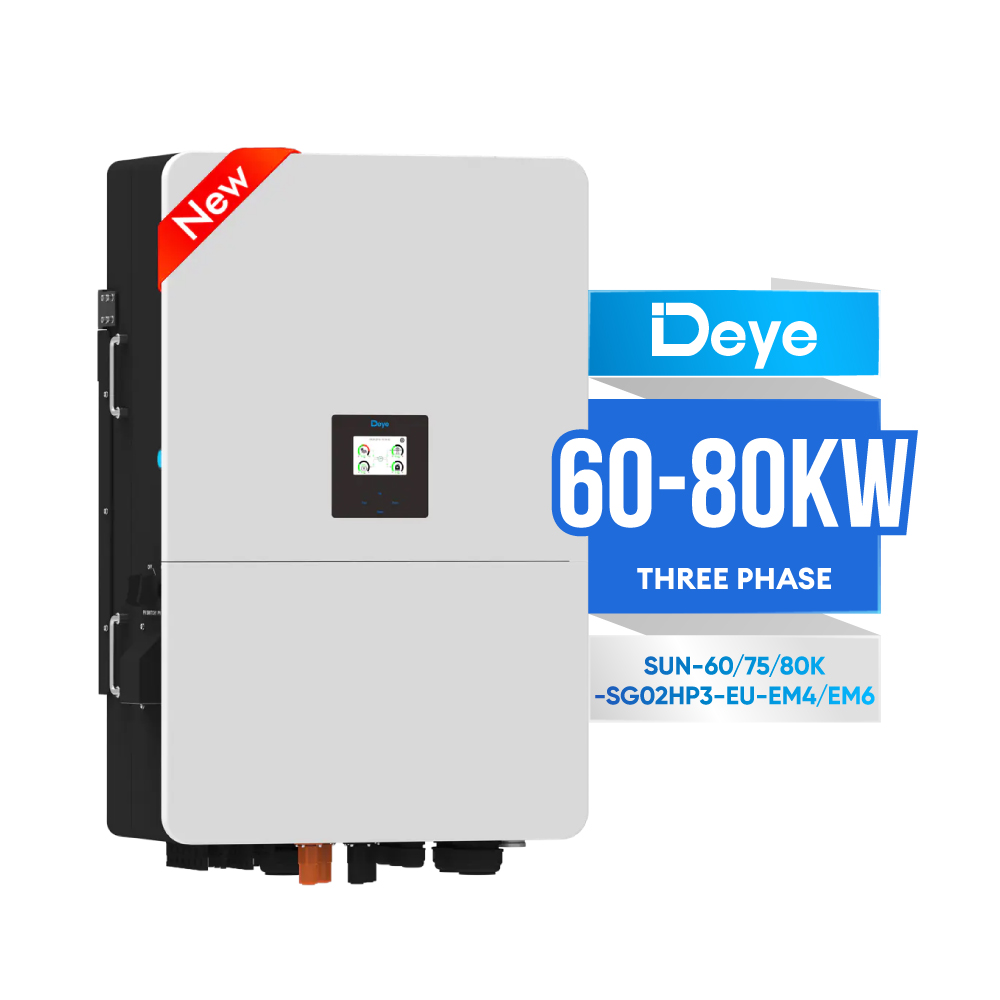

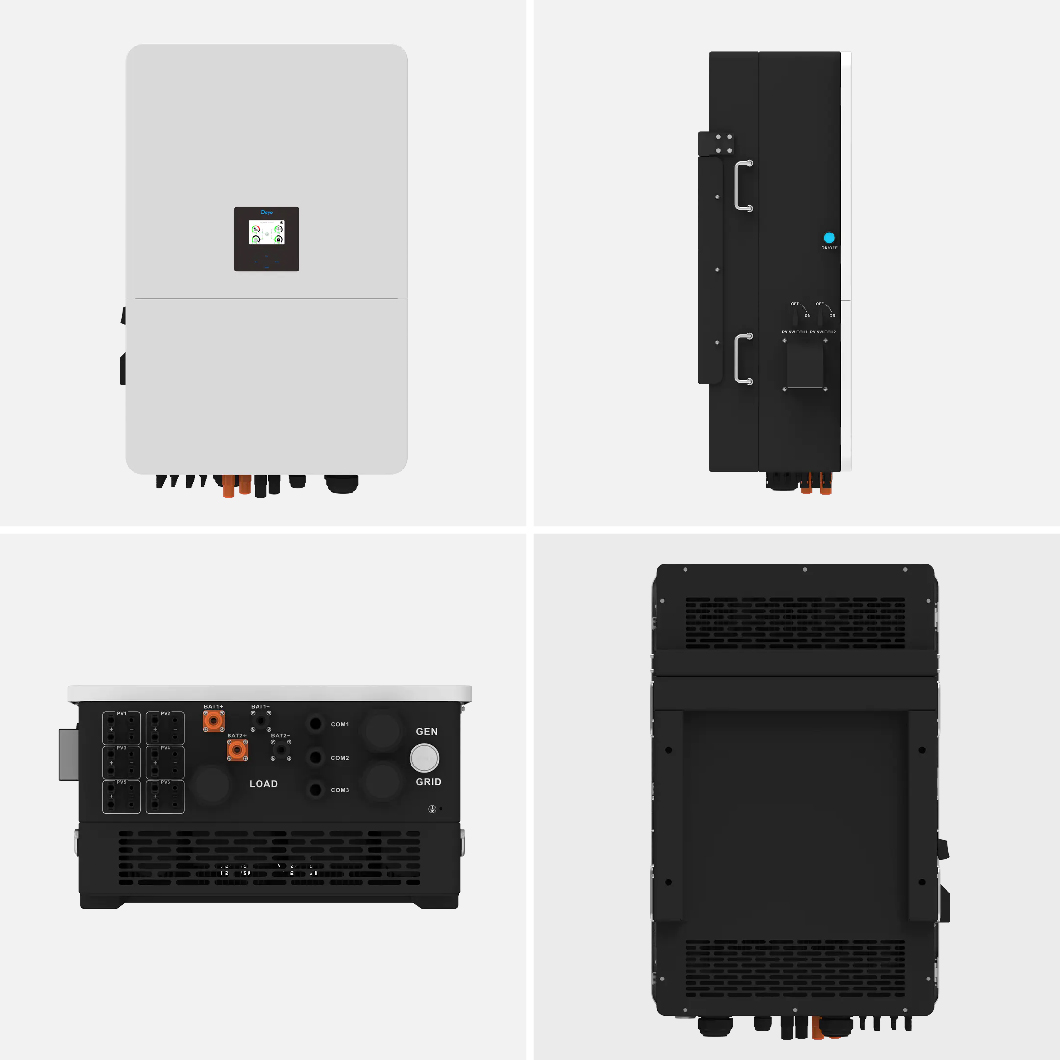

160-1000Deye Three Phases Hybrid 60KW Solar Inverter SUN-60K-SG02HP3-EU-EM4
SUN-60K-SG02HP3-EU-EM4 inverter combines high efficiency, advanced MPPT technology, integrated energy management, intelligent grid management, and reliability. It is an excellent choice for maximizing energy generation, optimizing system performance, and ensuring a smooth and efficient operation of solar power systems.
Detailed Parameters of Deye Three Phases Hybrid 60KW Solar Inverter

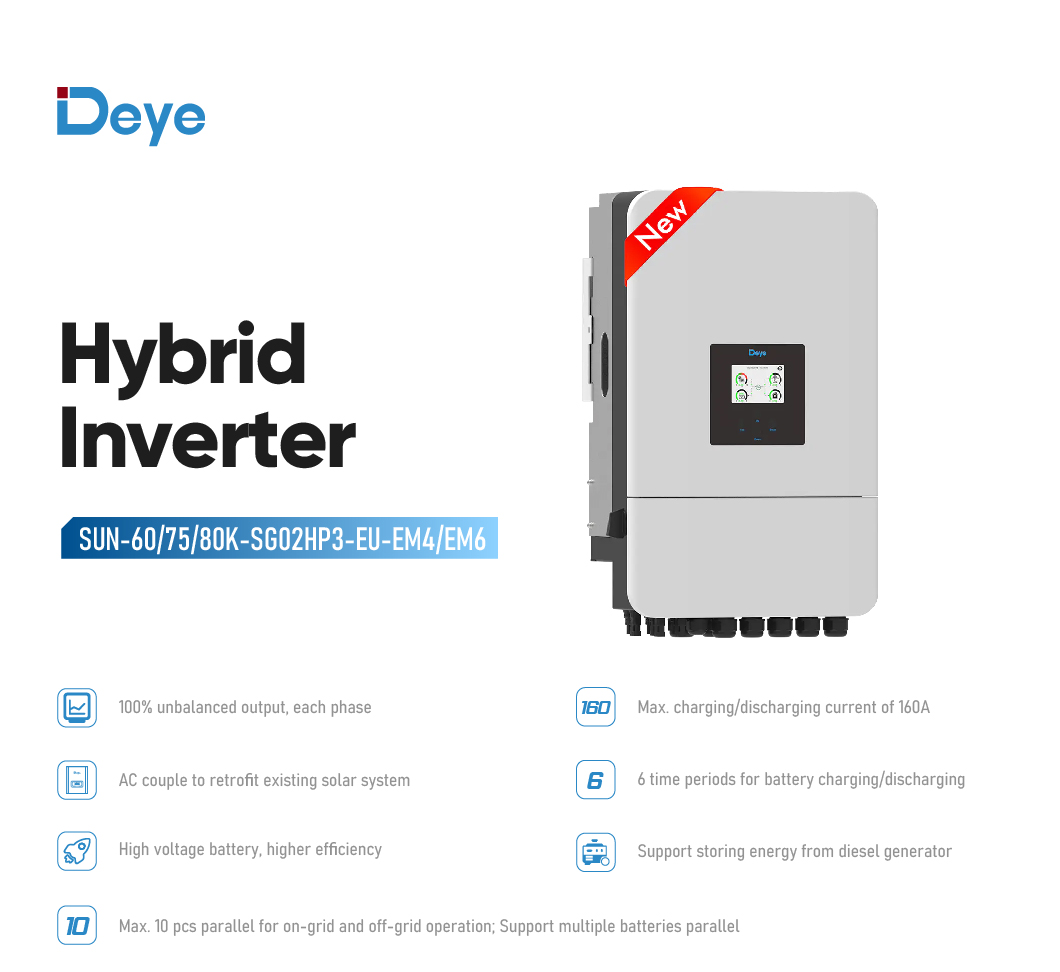

Features of Deye Hybrid Solar Inverter 60KW SUN-60K-SG02HP3-EU-EM4
--100% unbalanced output, each phase: This feature ensures that the inverter provides evenly distributed power output across all phases, resulting in a stable and balanced electrical supply.
--AC couple to retrofit existing solar systems: The inverter is designed to seamlessly integrate with and enhance existing solar systems, allowing for easy installation and integration into the current setup.
--Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel: The inverter supports up to 10 units working in parallel, enabling both on-grid and off-grid operations. It also allows for parallel connection of multiple batteries, increasing energy storage capacity.
--Max. charging/discharging current of 160A: The inverter is capable of handling a maximum charging and discharging current of 160A, enabling efficient and fast charging/discharging of batteries.
--High voltage battery, higher efficiency: This feature allows the inverter to work with high voltage batteries, resulting in improved energy efficiency and overall system performance.
--6 time periods for battery charging/discharging: The inverter offers flexibility in programming battery charging and discharging schedules with six available time periods. This enables users to optimize the system's energy usage and adapt it to their specific needs.
--Support storing energy from a diesel generator: The inverter is capable of efficiently storing energy generated from a diesel generator, providing a reliable backup power solution and maximizing energy utilization.

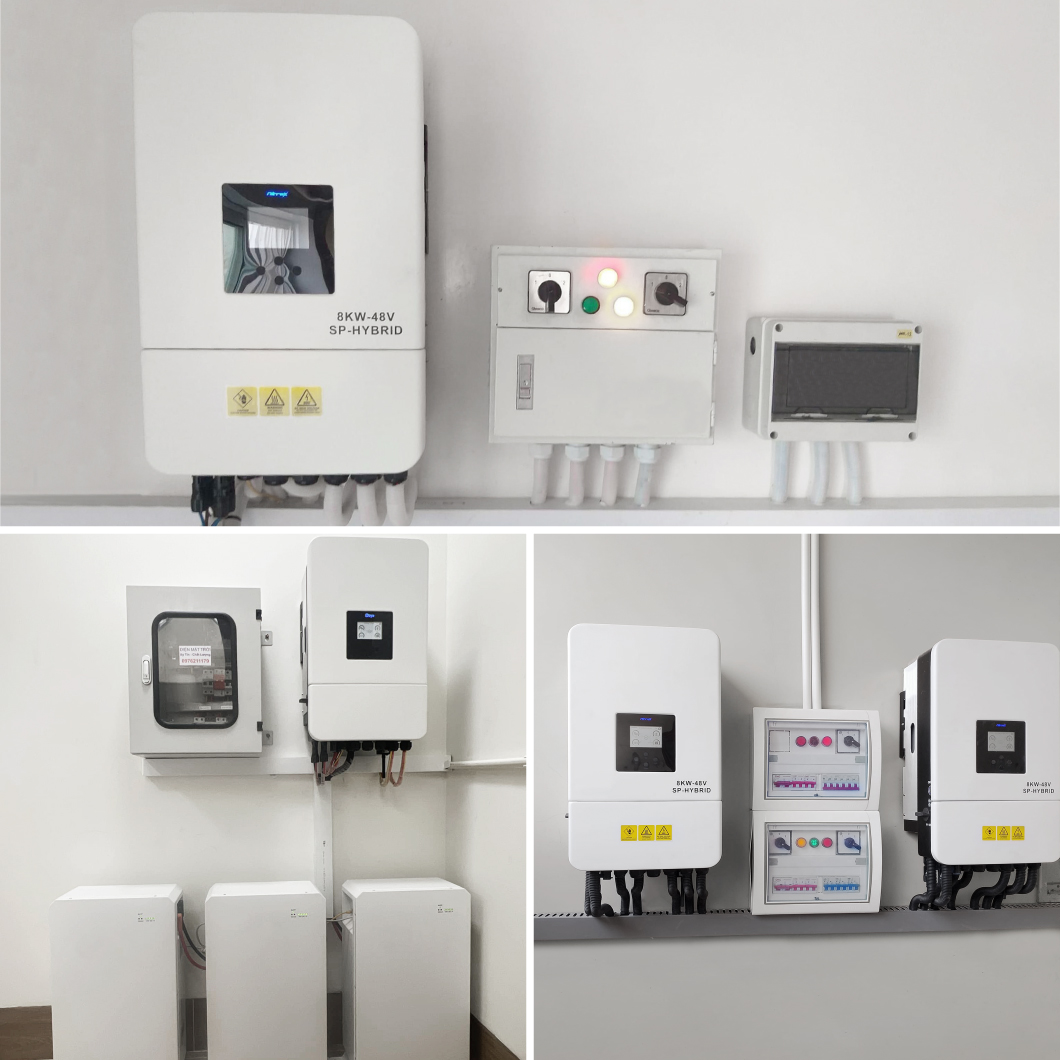

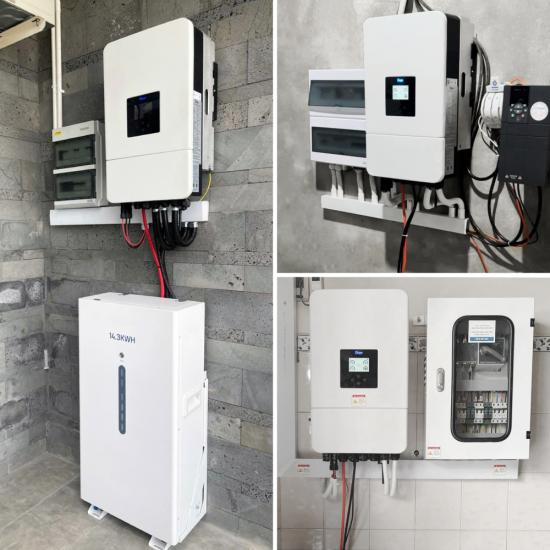

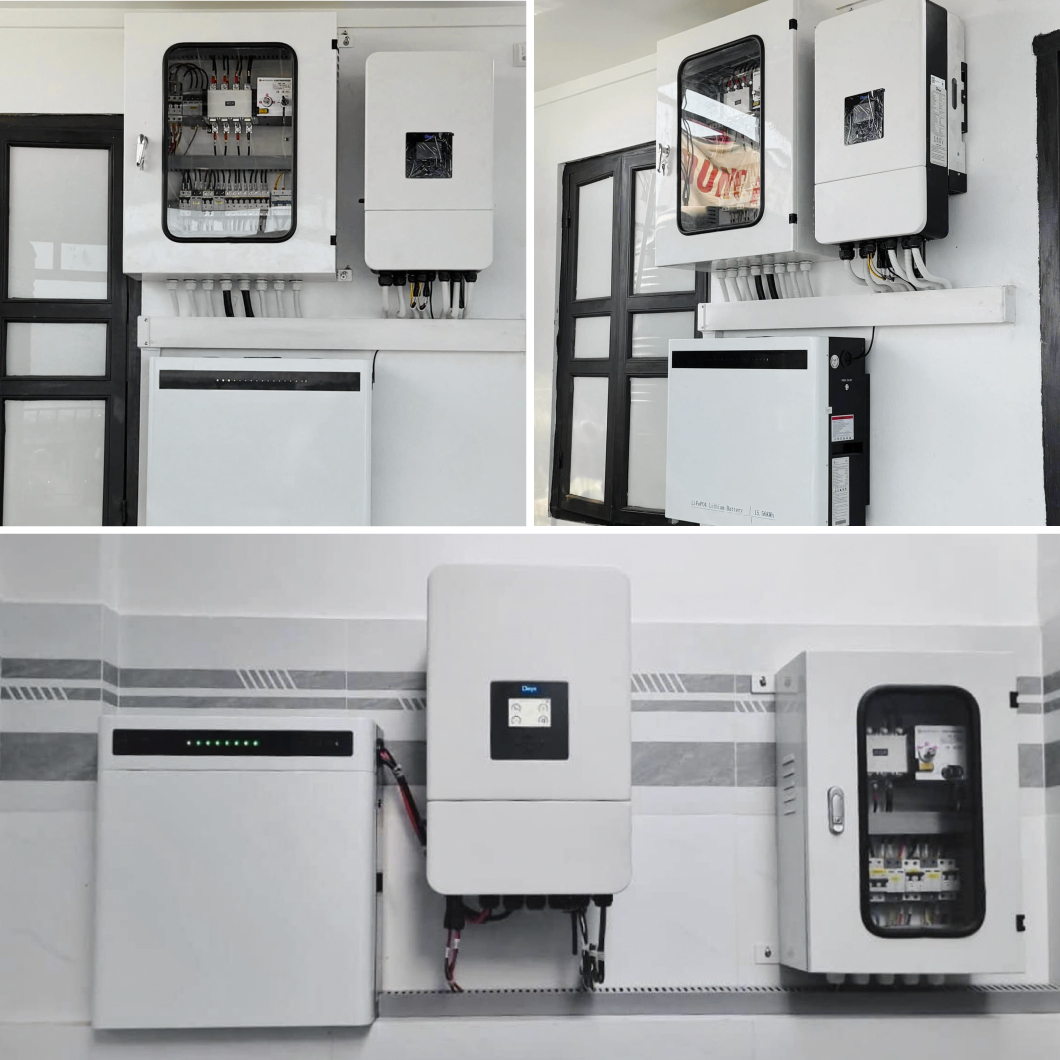

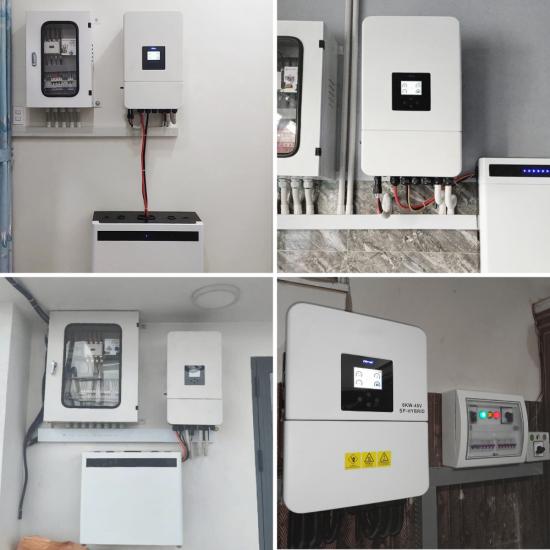

Installation of Deye Hybrid Solar Inverter 60KW SUN-60K-SG02HP3-EU-EM4
SunArk Deye EU Standard Hybrid Residential Solar Inverter, Which Is On Grid Type + Off Grid Type Inverter, It Also Has UPS Function, Which Meets Multiple Requirements In Different Applications. The MPPT voltage Range is wide, And It Has 2 MPPT Trackers, Which Can Optimize The PV And Battery Performance.

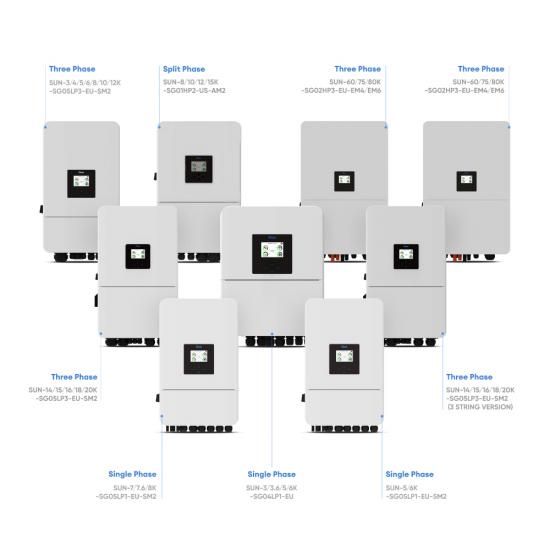

SunArk EU Standard Hybrid Residential Solar Inverter, Which Is Widely Used In Solar System, Have Both Single Phase and Three Phases Versions.
Deye hybrid on grid off grid solar inverter, is a key part in combining a set of solar energy system. It has helped a lot of households and industrial and commercial projects to save the electricity bill. In the meantime, it also provides a environmental-friendly home for all the users.
A hybrid inverter, also known as a multi-mode inverter, is a device used in renewable energy systems, such as solar power or wind power systems, to convert and manage electrical energy. It combines the functionalities of a grid-tied (on-grid) inverter and an off-grid inverter into a single unit, allowing for more flexibility and efficiency in energy usage.
The function of a hybrid inverter is to convert direct current (DC) electricity generated by renewable energy sources like solar panels or wind turbines into alternating current (AC) electricity that can be used to power household appliances or fed back into the electrical grid. Additionally, a hybrid inverter is equipped with battery charging and discharging capabilities, which enable it to store excess energy in batteries for later use or provide backup power during grid outages.
A hybrid inverter, also known as a multi-mode inverter, is a device used in renewable energy systems, such as solar power or wind power systems, to convert and manage electrical energy. It combines the functionalities of a grid-tied (on-grid) inverter and an off-grid inverter into a single unit, allowing for more flexibility and efficiency in energy usage.
A hybrid inverter combines the functionalities of a grid-tied inverter and an off-grid inverter. It is designed to work with both renewable energy sources, such as solar panels or wind turbines, and a grid power supply, which is very popular for residential solar system.
DEYE three phase 30kw 35kw 40kw 50kw hybrid inverter with High voltage battery 160-800V, ensuring system efficiency and less heat dissipation. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios.
