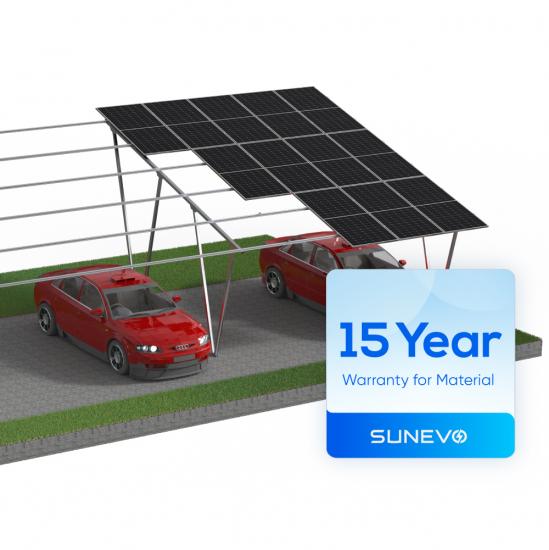

China Wholesale Sunevo Photovoltaic Solar Panel Carport Rack Mounting System

The Solar Carport Rack System is a structure specifically designed to support solar panels and create a covered parking area for vehicles. It consists of various components designed to ensure stability, durability, and efficient solar panel installation.

  • Brand:

    SunEvo
  • Installation Application:

    Solar Carport Rack System
  • PV Module Layout:

    Landscape
  • Wind Load:

    60m/s or Customized
  • Snow Load:

    1.6KN/m2 or Customized
  • Inclination:

    Customized

New Products

Sunevo PV Module Solar Carport Rack Mounting Systems



A Solar Carport Rack System is a framework made of steel or aluminum that provides structural support for solar panels mounted on top. It serves a dual purpose of generating clean energy from sunlight and providing shade or protection for parked vehicles.








Technical Features of Pile Pile Rack Mounting Systems:

Product name Solar Carport Rack Mounting System
Installation Site
Solar parking
Wind Load
60m/s or Customized
Snow Load
1.6KN/m2 or Customized
Applicable Solar Module
Framed
Panel Layout
Landscape
Material AL 6005-T5, SUS 304


The Components of Screw Pile Rack Mounting Systems


The main components of a Solar Carport Rack System typically include:

--Steel or aluminum support beams: Provide structural strength and rigidity.

--Solar panel mounting frames: Securely hold the solar panels in place.

--Beam connectors and joiners: Connect and stabilize the support beams.

--Foundation anchors or footings: Secure the structure to the ground.

--Optional features: Energy management systems, electrical wiring, and lighting.






The Installation Processes of Solar Carport Rack Mounting Systems



The installation process of the solar carport Rack System involves the following steps:

--Site assessment: Evaluate the available space, analyze solar potential, and determine the optimum orientation and tilt angle for the solar panels.



--Foundation preparation and installation: Depending on the design, it may require digging holes for concrete footings or securing foundation anchors to the ground.



--Mounting frame assembly: Connect the support beams, mounting frames, and connectors according to the manufacturer's instructions.



--Solar panel installation: Attach the solar panels securely to the mounting frames using appropriate hardware.


Different Types Of Solar Carport Rack Mounting System



There are different variations of solar carport Rack Systems, including:

--Single-row carports: Designed for single-row parking configurations

.



--Double-row carports: Allow for two rows of parked vehicles.



--Cantilever carports: Feature a suspended design with no supporting posts along one side.



--Customized carports: Tailored to specific project requirements, such as size, shape, and aesthetic considerations.




Suitable Installation Environments Of Solar Carport  Rack Mounting Systems

Solar Carport Rack Systems are suitable for various environments, including:

--Commercial parking lots and campuses: Provide shade, weather protection, and clean energy generation for employees and customers.

--Residential areas: Offer covered parking space with the added benefit of solar power generation.

--Public and municipal spaces: Combine parking functionality with renewable energy generation for public use.
